Injection Pump Assembly

52 part groups · 2 illustrations

Illustrations

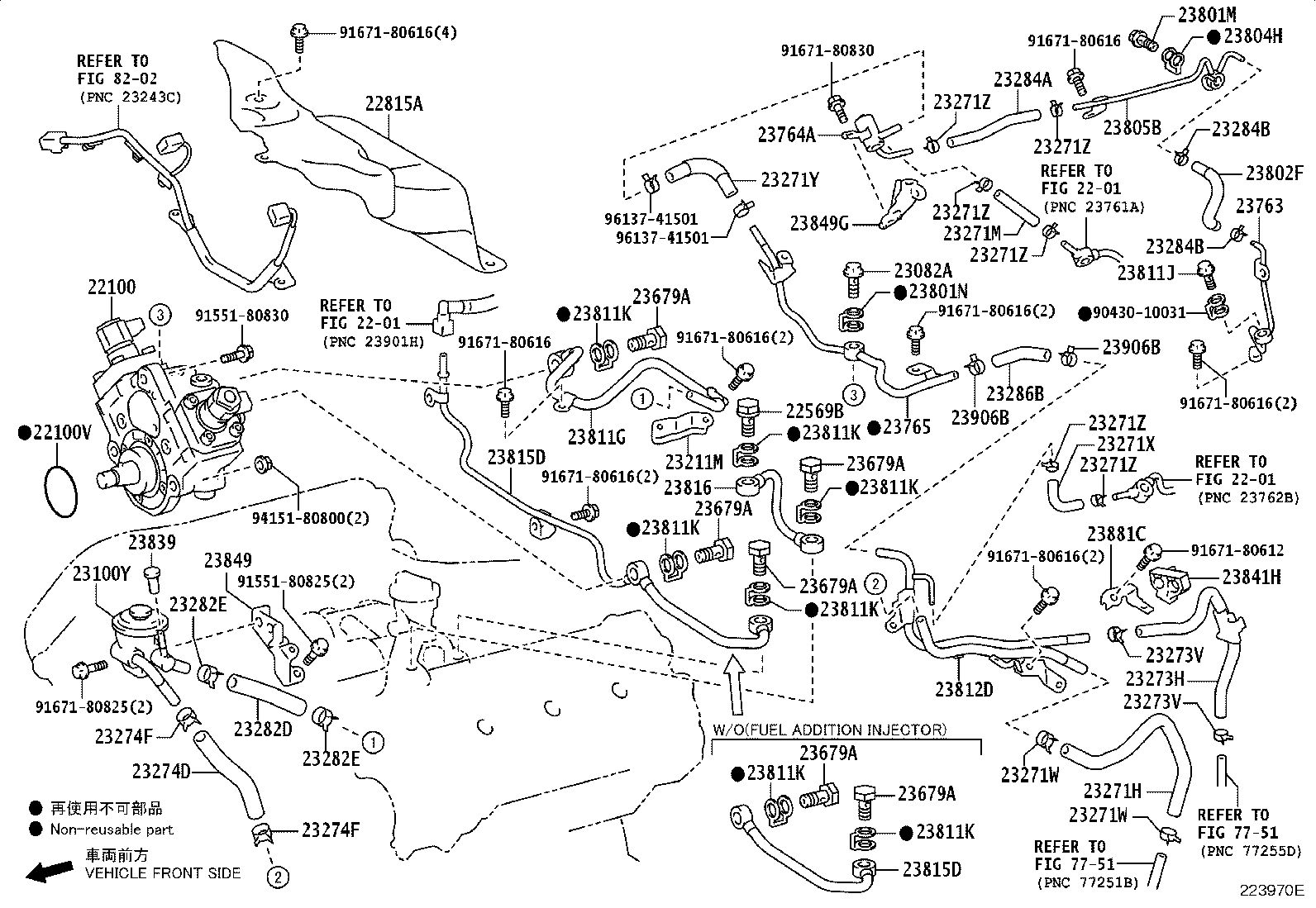

Figure 223968A 223968A 2021-07 → — Figure 223970E 223970E 2021-07 → —

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22100V Ring, O(FOR INJECTION PUMP)
22569B Screw, Supply Pump Hollow
22815A Insulator, Injection Pump
23082A Screw(FOR NOZZLE LEAKAGE PIPE)
23100Y Pump Assy, Fuel Priming
23211M Bracket(FOR FUEL PIPE)
23271H Hose, Fuel, NO.1
23271M Hose, Fuel
23271W Clip(FOR FUEL HOSE NO.1)
23271X Hose, Fuel, NO.2
23271Y Hose, Fuel
23271Z Clip, Hose
23273H Hose, Fuel, NO.2
23273V Clip(FOR FUEL HOSE NO.2)
23274D Hose, Fuel, NO.3
23274F Clip(FOR FUEL HOSE NO.3)
23282D Hose, Fuel, NO.4
23282E Clip(FOR FUEL HOSE NO.4)
23284A Hose, Fuel, NO.5
23284B Clip(FOR FUEL HOSE NO.5)
23286B Hose, Fuel, NO.6
23679A Screw, Injector Follow
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23705 Pipe Sub-assy, Injection, NO.5
23706 Pipe Sub-assy, Injection, NO.6
23741 Clamp, Injection Pipe, NO.1
23763 Pipe, Nozzle Leakage, NO.3
23764A Pipe, Nozzle Leakage, NO.4
23765 Pipe, Nozzle Leakage, NO.5
23801M Bolt, Union
23801N Gasket
23802F Hose, Fuel
23804H Gasket(FOR FUEL PIPE)
23805B Pipe Sub-assy, Fuel, NO.5
23810A Rail Assy, Common
23811G Pipe, Fuel, NO.1
23811J Bolt, Union
23811K Gasket
23812D Pipe, Fuel, NO.2
23815D Pipe, Fuel, NO.3
23816 Pipe, Fuel, NO.4
23820A Rail Assy, Common
23839 Plug, Fuel Pipe
23841H Clamp, Fuel Hose
23849 Support, Fuel
23849G Support, Fuel Pipe
23881C Bracket, Fuel Hose
23906B Clip, Hose(FOR FUEL HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
