Toyota Land Cruiser
2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe
Supported model
Data version 2024-11

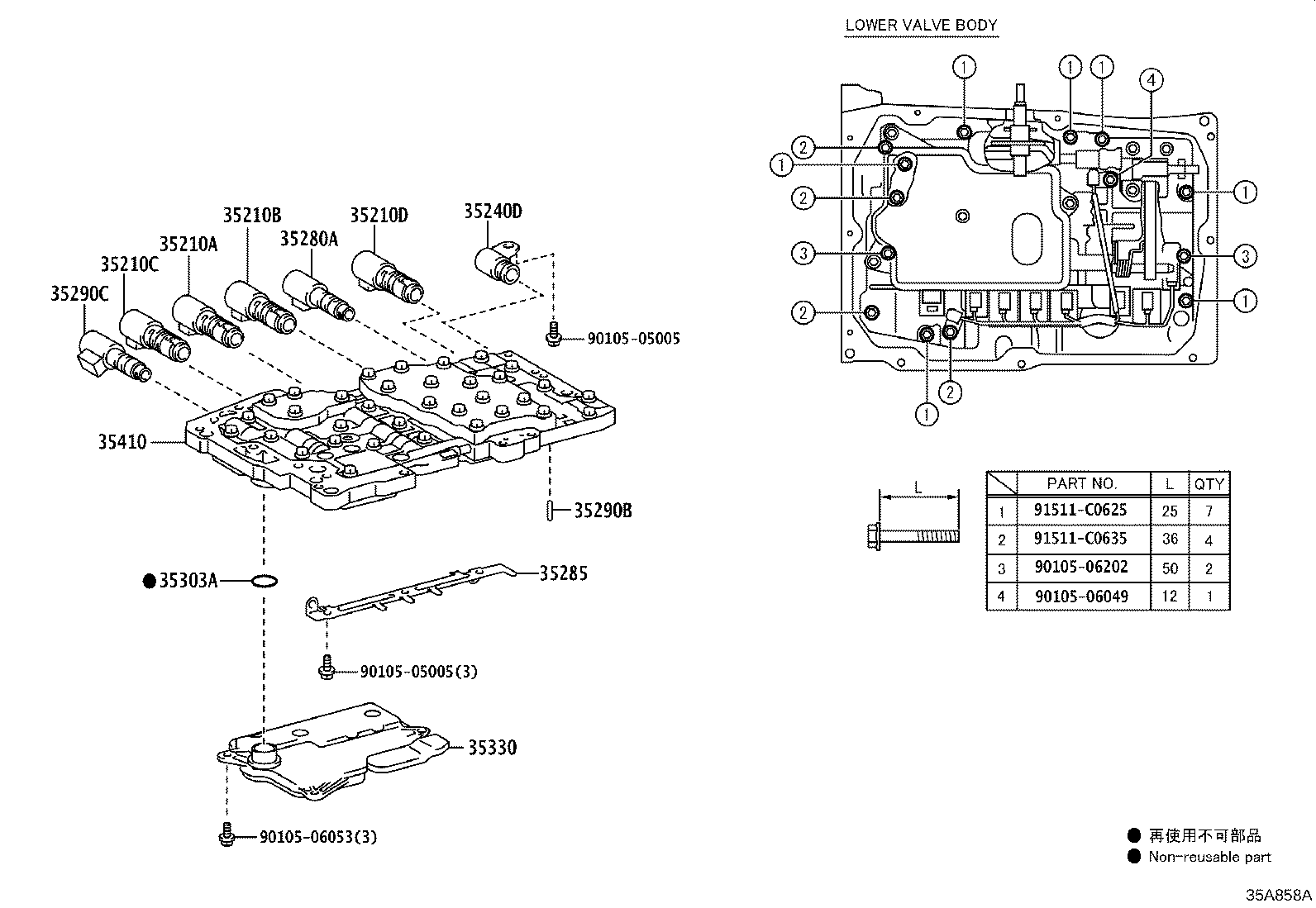

Valve Body & Oil Strainer (ATM)
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33129F | Pipe, Transmission Oil |
| 33129G | Pipe, Transmission Oil, NO.2 |
| 33129H | Pipe, Transmission Oil, NO.3 |
| 33129J | Pipe, Transmission Oil, NO.4 |
| 35210A | Valve, Solenoid(SL1) |
| 35210B | Valve, Solenoid(SL3) |
| 35210C | Valve, Solenoid(SL2) |
| 35210D | Valve, Solenoid(SL4) |
| 35210E | Valve, Solenoid(SL5) |
| 35210F | Valve, Solenoid(SL6) |
| 35240D | Valve, Solenoid(SL) |
| 35240K | Solenoid Assy, Transmission 3Way(SC1) |
| 35240R | Solenoid Assy, Transmission 3Way(SR) |
| 35240S | Solenoid Assy, Transmission 3Way(SL) |
| 35280A | Valve, Solenoid(SLU) |
| 35285 | Plate, Solenoid Lock |
| 35290B | Pin, Straight (FOR LINE PRESSURE CONTOROL SOLENOID) |
| 35290C | Valve, Solenoid(SLT) |
| 35295 | Plate, Solenoid Lock, NO.2 |
| 35303A | Ring, O (FOR OIL STRAINER) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35330A | Ring, O (FOR OIL STRAINER) |
| 35400A | Body Assy, Transmission Valve W/Solenoid |
| 35410 | Body Assy, Transmission Valve |
| 35481B | Clamp, Valve Body Wire Harness |
| 35481D | Clamp, Valve Body Wire Harness, NO.2 |
| 35482B | Clamp, Temperature Sensor |
| 35801C | Pin, Straight |
| 82125J | Wire, Transmission |
| 82125L | Ring, O(FOR TRANSMISSION WIRE) |
| 89429K | Ring, O(FOR OIL TEMPERATURE SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
