Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

13 part groups · 3 illustrations

Illustrations

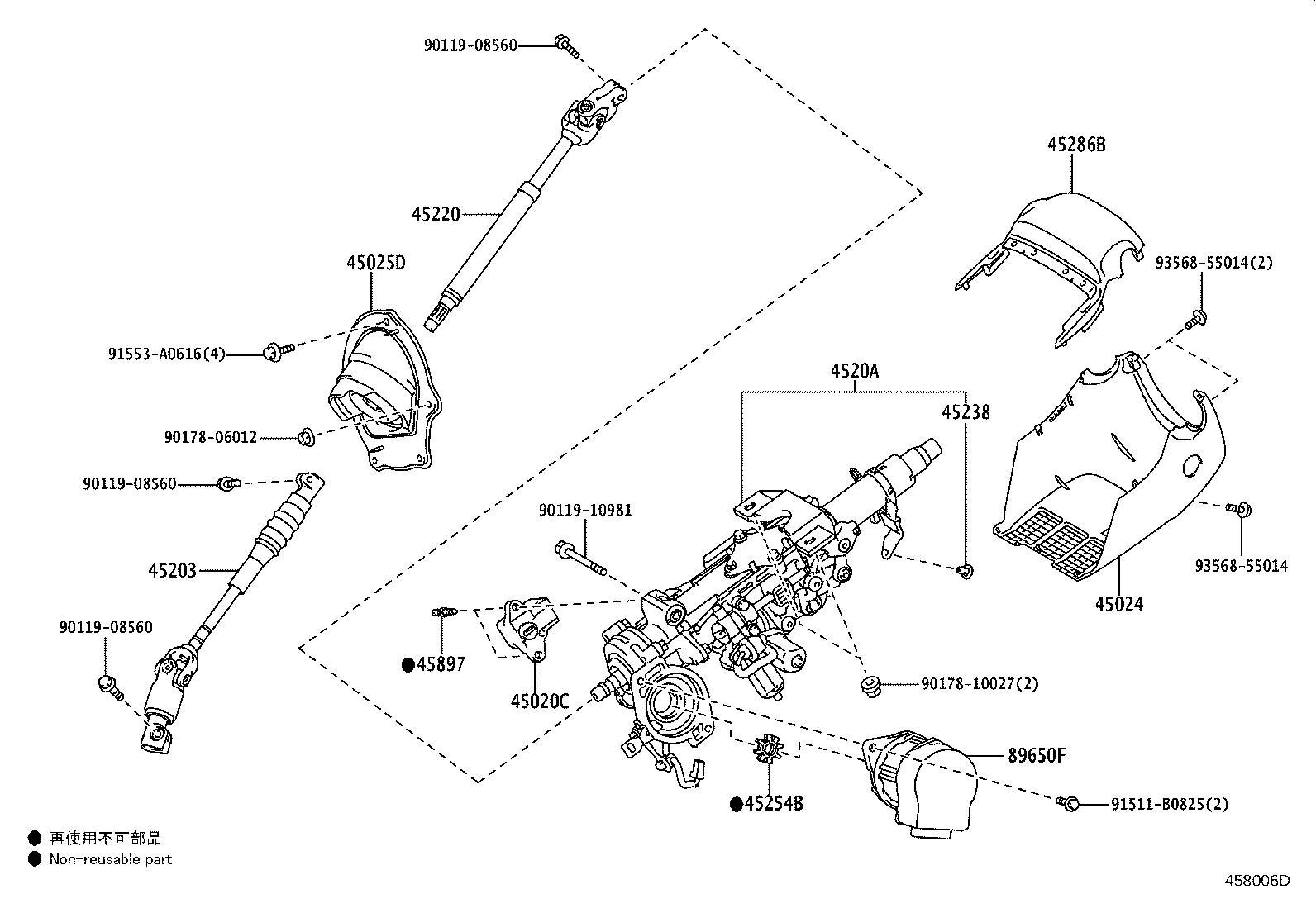

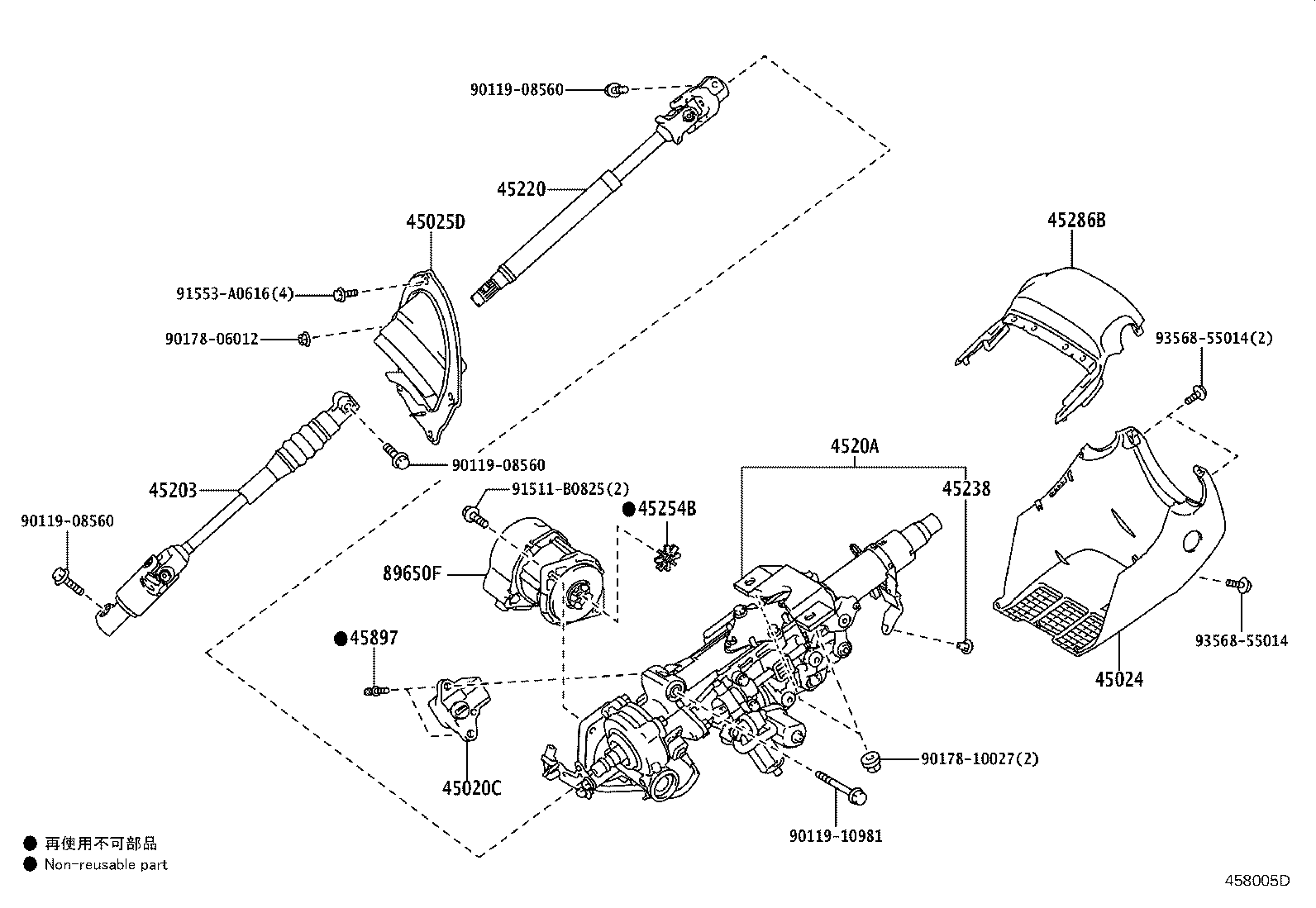

Figure 458004C 458004C 2021-04 → — Figure 458005D 458005D 2021-04 → — Figure 458006D 458006D 2021-04 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45024 Cover Sub-assy, Steering Column, Lower
45025D Cover Sub-assy, Steering Column Hole, NO.1
45203 Shaft Sub-assy, Steering Intermediate, NO.2
4520A Column Sub-assy, Electric Power Steering
45220 Shaft Assy, Steering Intermediate
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45254B Damper, Electric Power Steering Motor Shaft
45271 Clamp, Steering Column, Upper
45286B Cover, Steering Column, Upr
45897 Bolt, Steering Lock Set
89650F Computer Assy, Power Steering W/Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
