Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

12 part groups · 8 illustrations

Illustrations

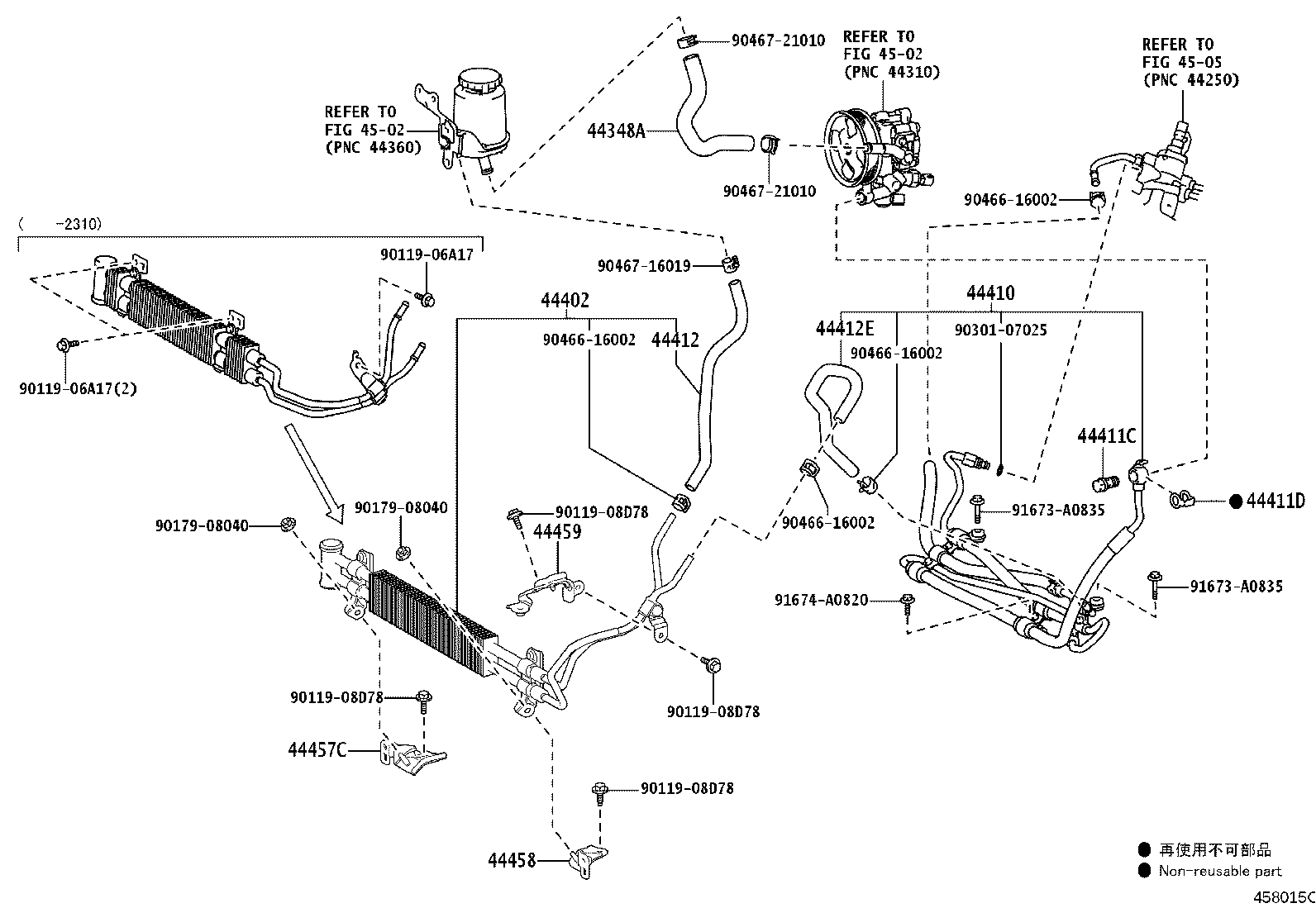

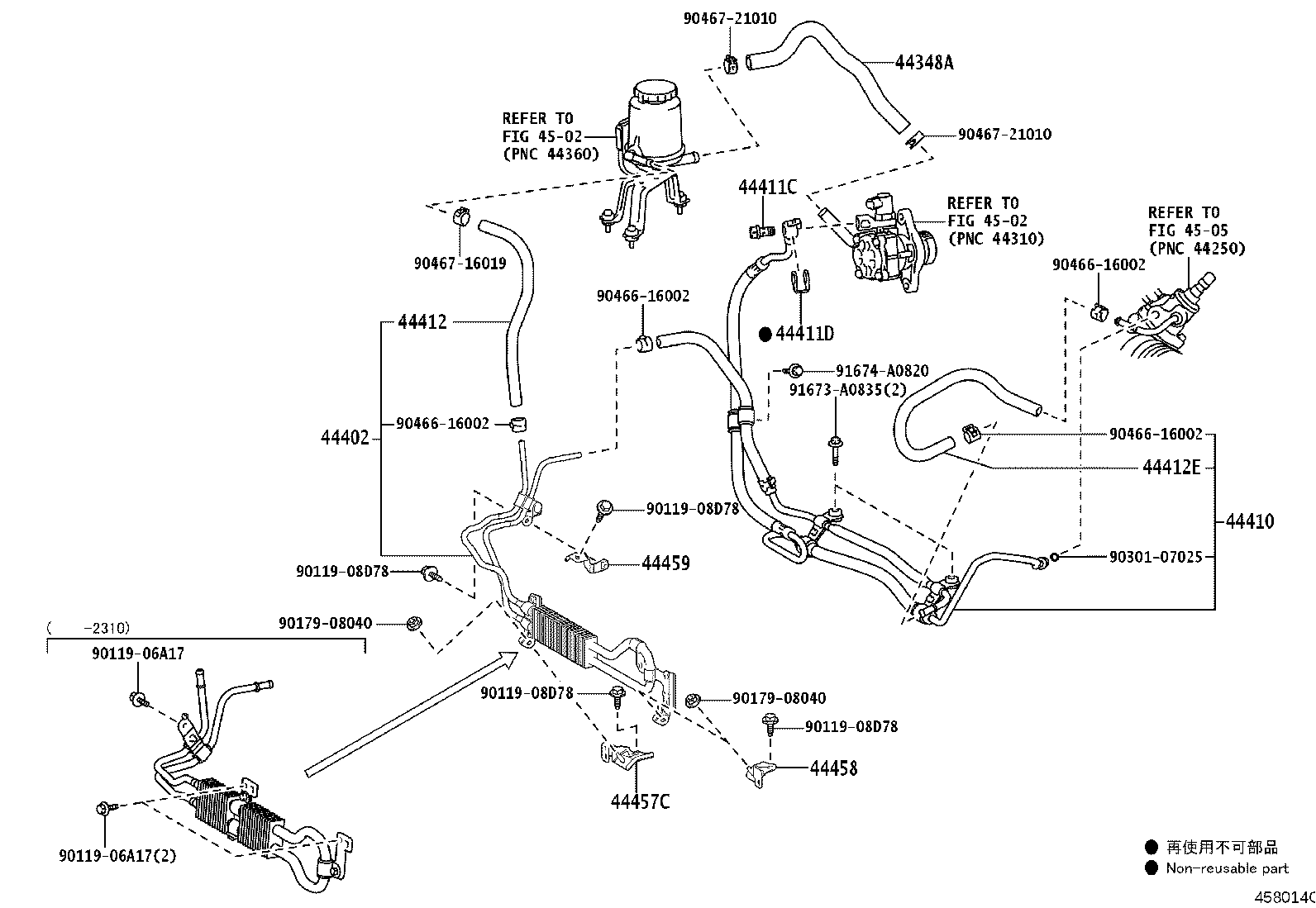

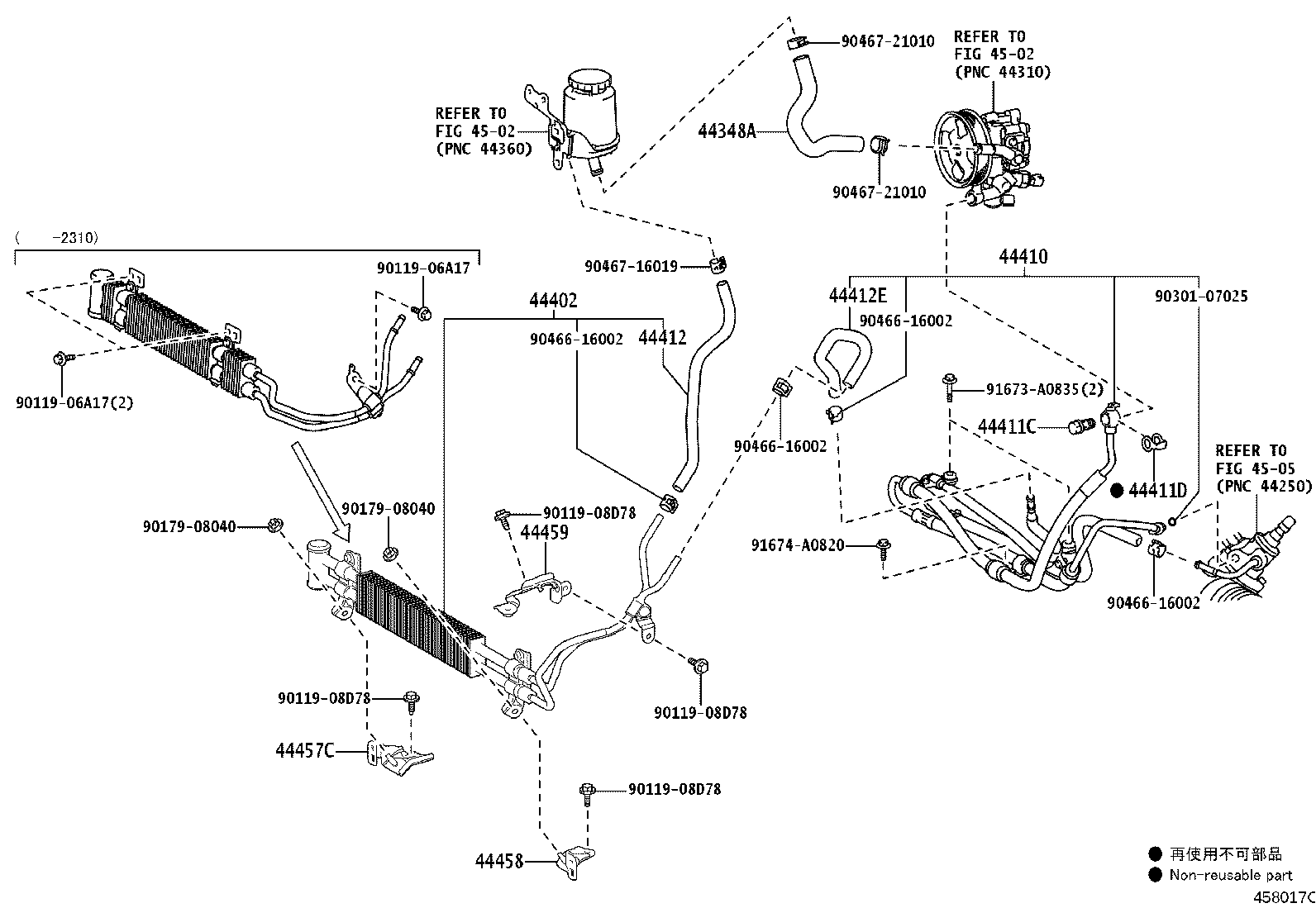

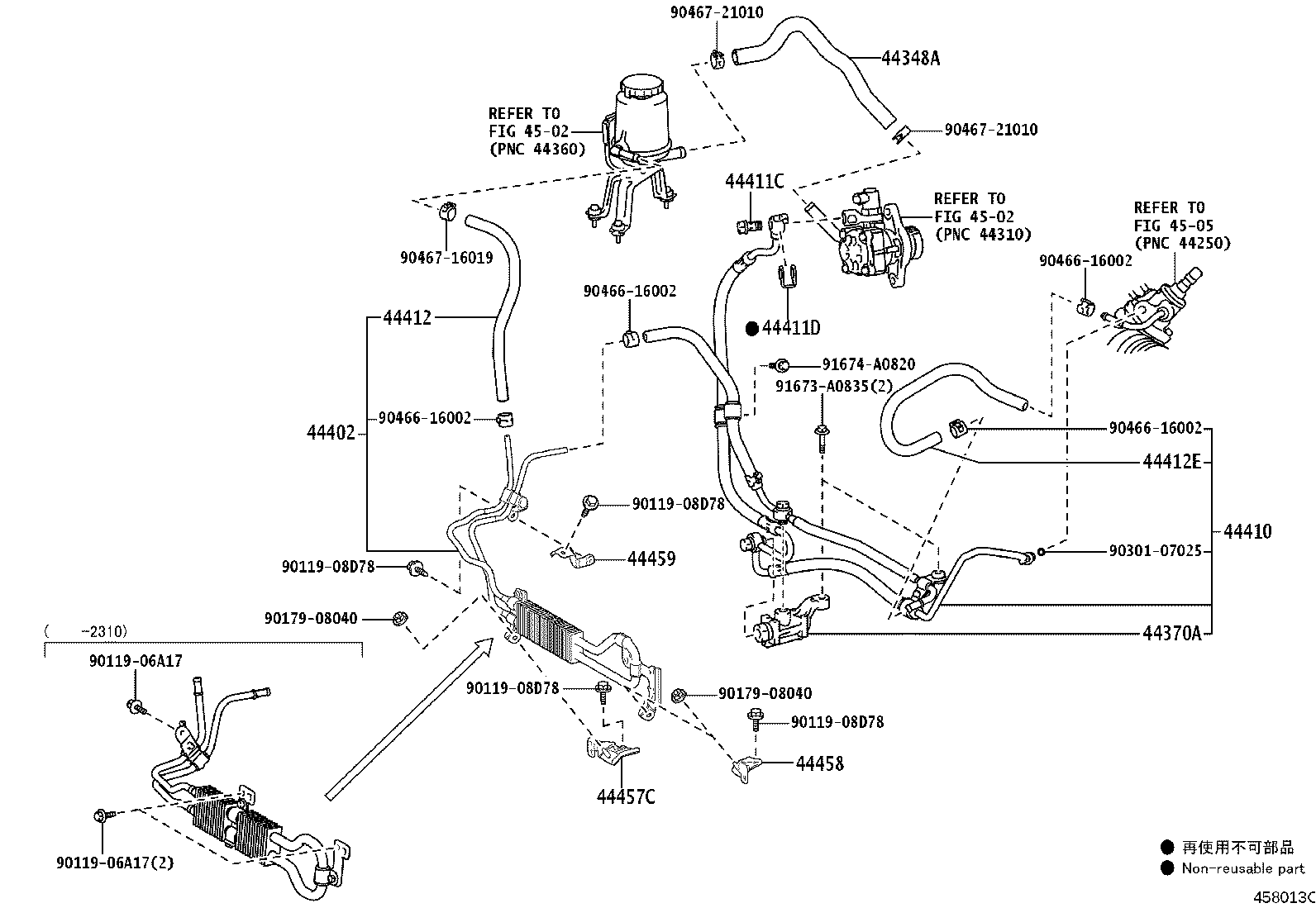

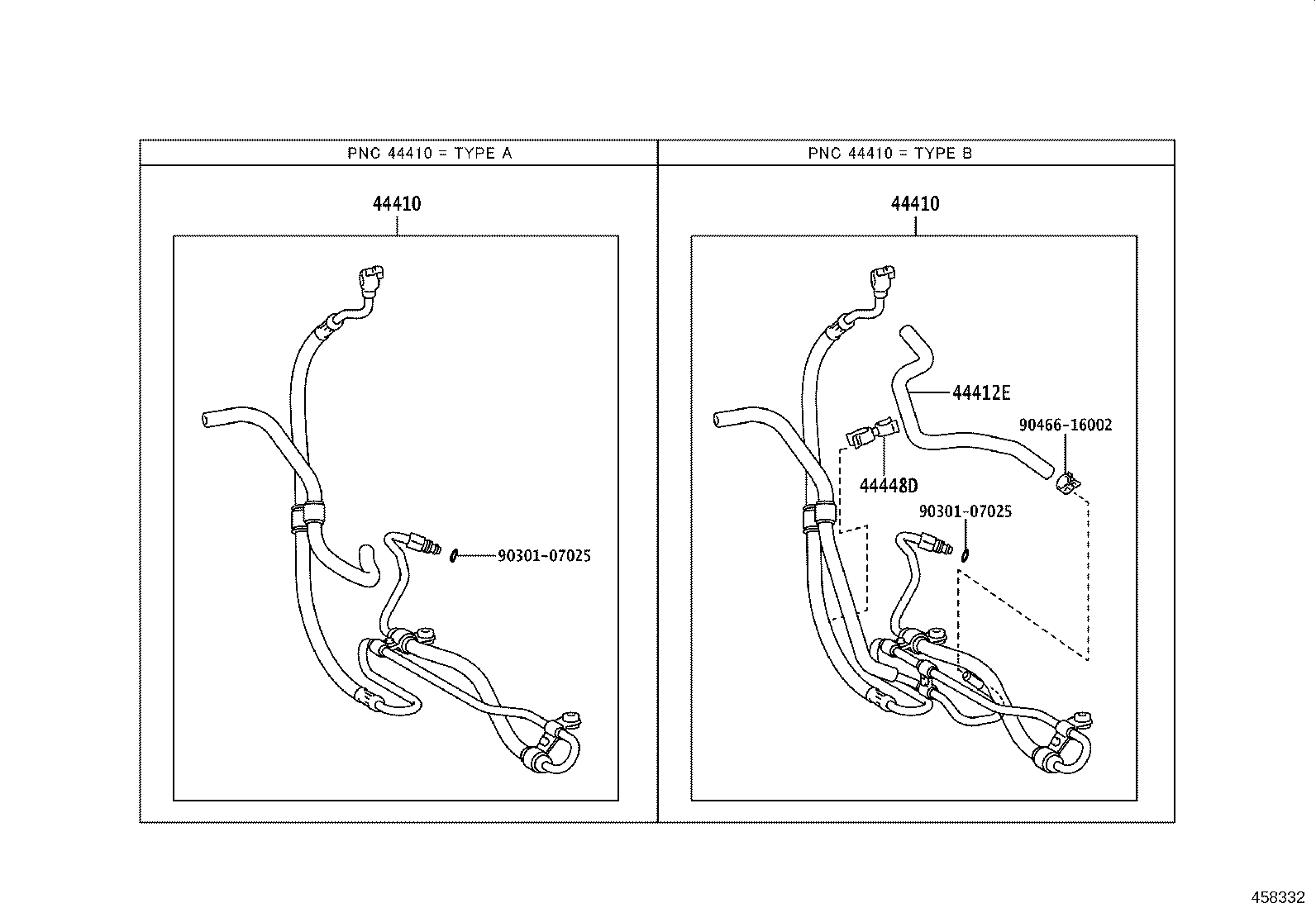

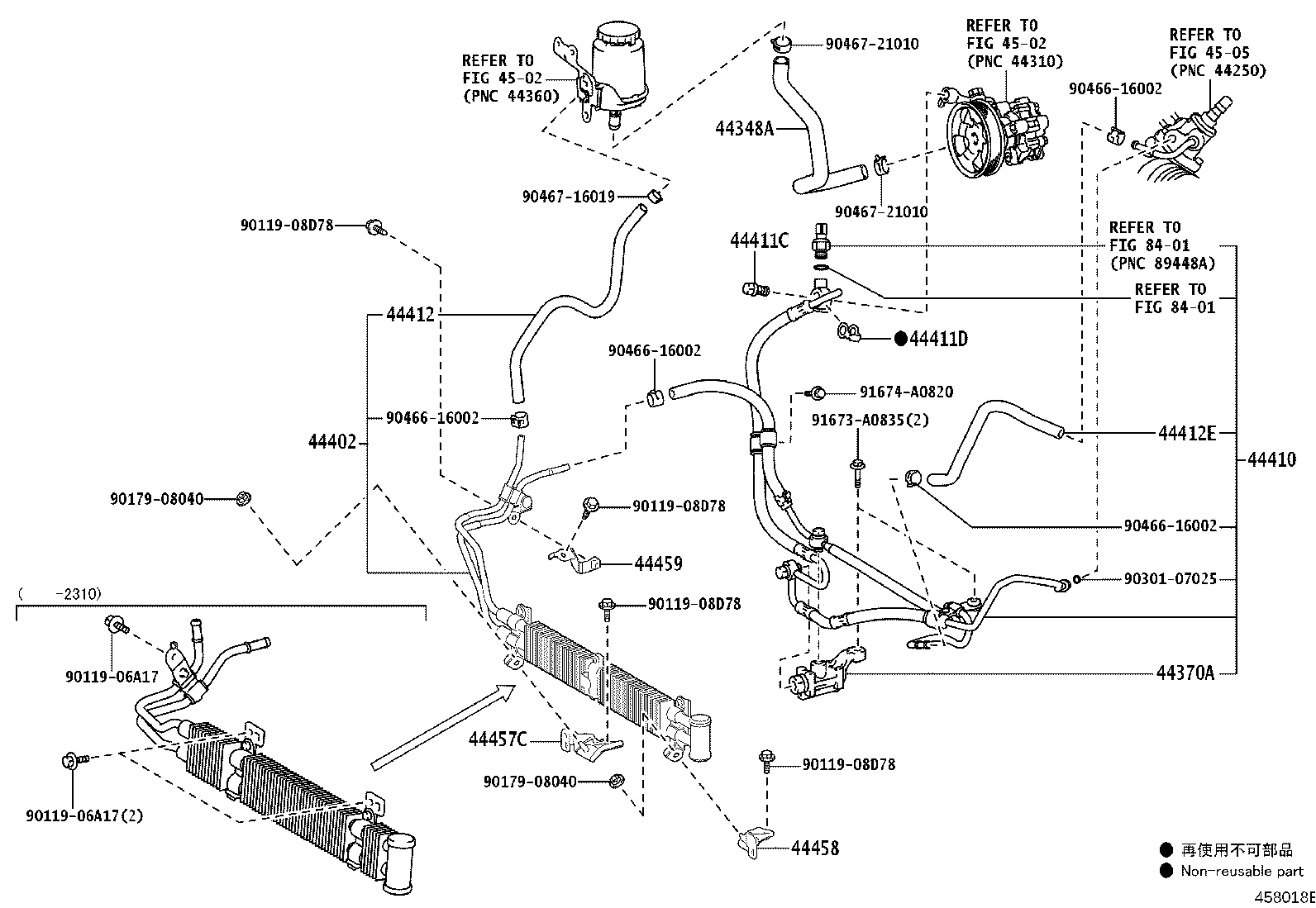

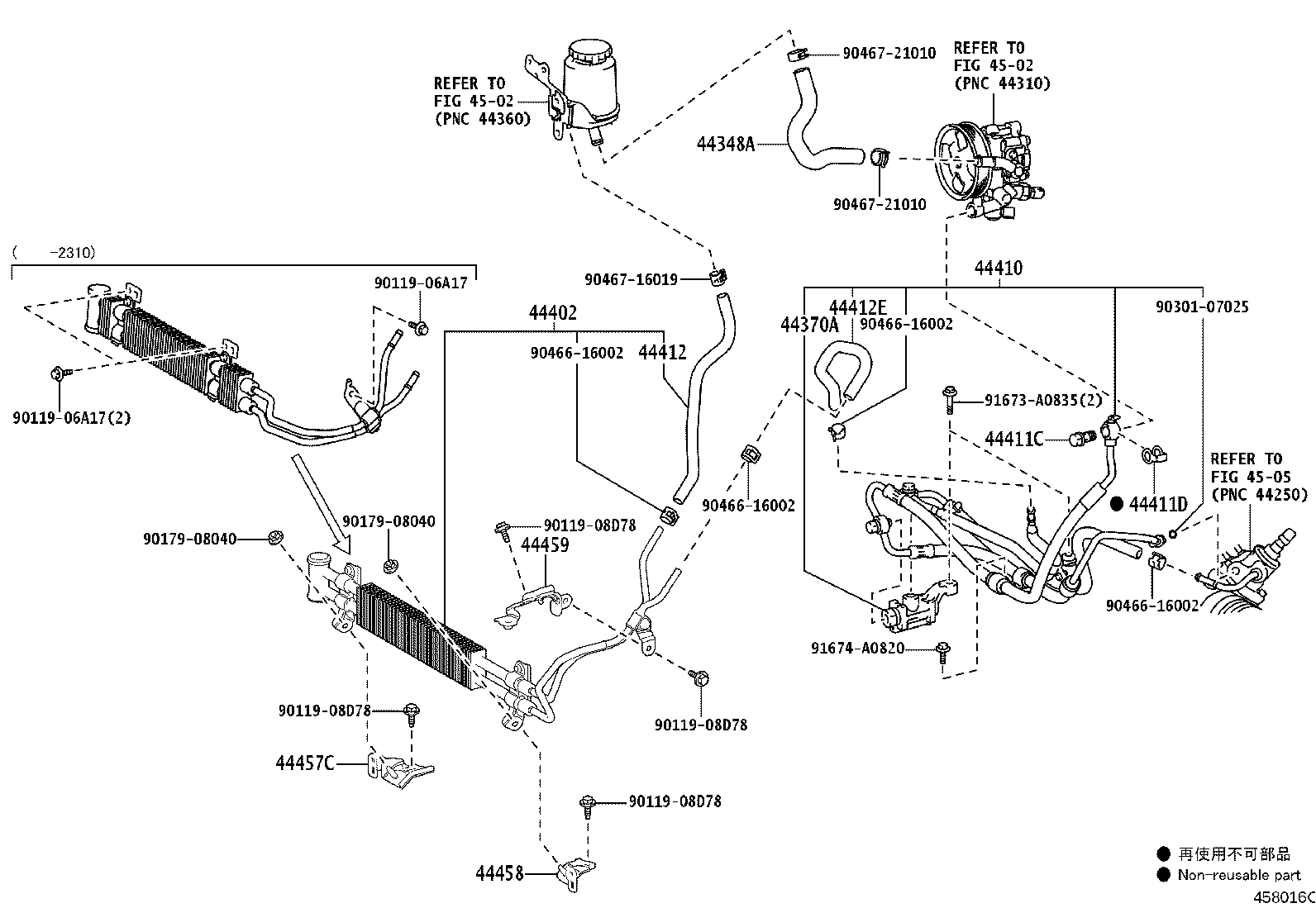

Figure 458012D 458012D 2021-07 → — Figure 458332 458332 2021-07 → — Figure 458013C 458013C 2021-07 → — Figure 458014C 458014C 2021-07 → — Figure 458015C 458015C 2021-04 → — Figure 458016C 458016C 2021-04 → — Figure 458017C 458017C 2021-04 → — Figure 458018E 458018E 2021-04 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44370A Valve Assy, Relief
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412E Hose, Return, NO.2
44448D Clamp, Pressure Feed, NO.1
44457C Bracket, Power Steering Tube Support, NO.1
44458 Bracket, Tube Support, NO.2
44459 Bracket, Tube Support, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
