Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

9 part groups · 2 illustrations

Illustrations

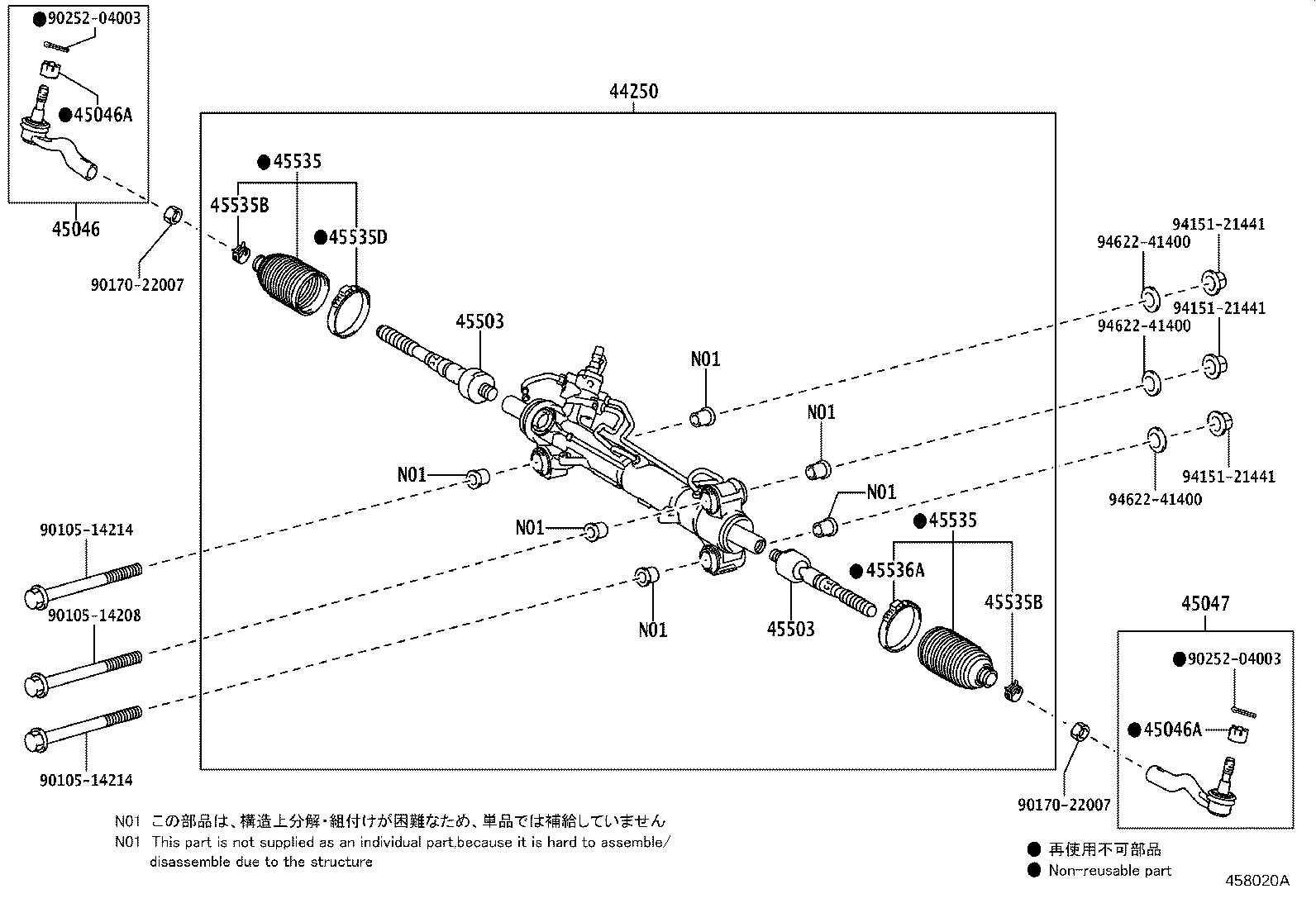

Figure 458019A 458019A 2021-04 → — Figure 458020A 458020A 2021-04 → —

Part groups

PNCDescription
44250 Gear Assy, Power Steering(FOR RACK & PINION)
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45503 End Sub-assy, Steering Rack
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
