Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

36 part groups · 6 illustrations

Illustrations

485328D 2021-04 → —

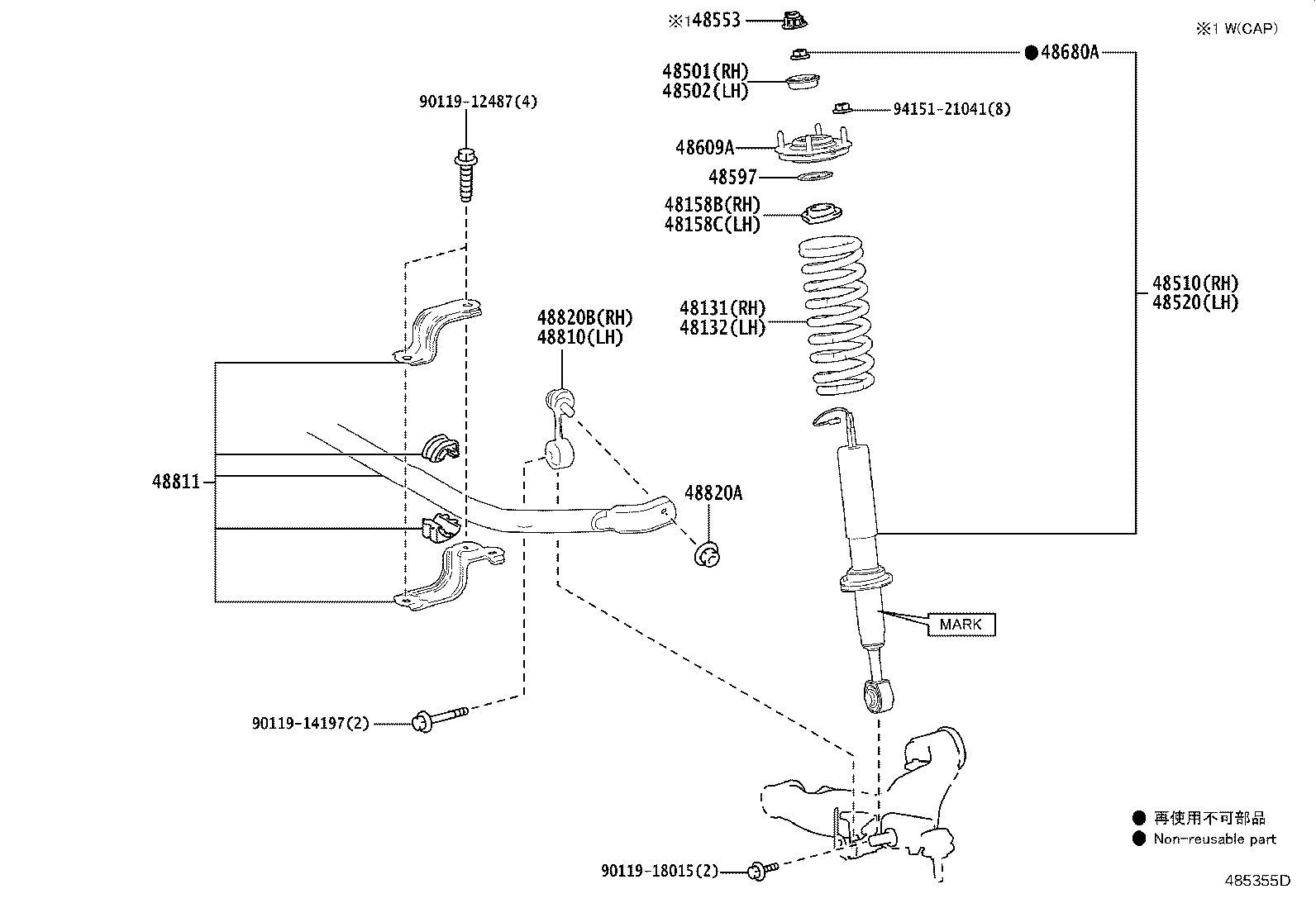

485355D 2021-04 → —

485356B 2021-04 → —

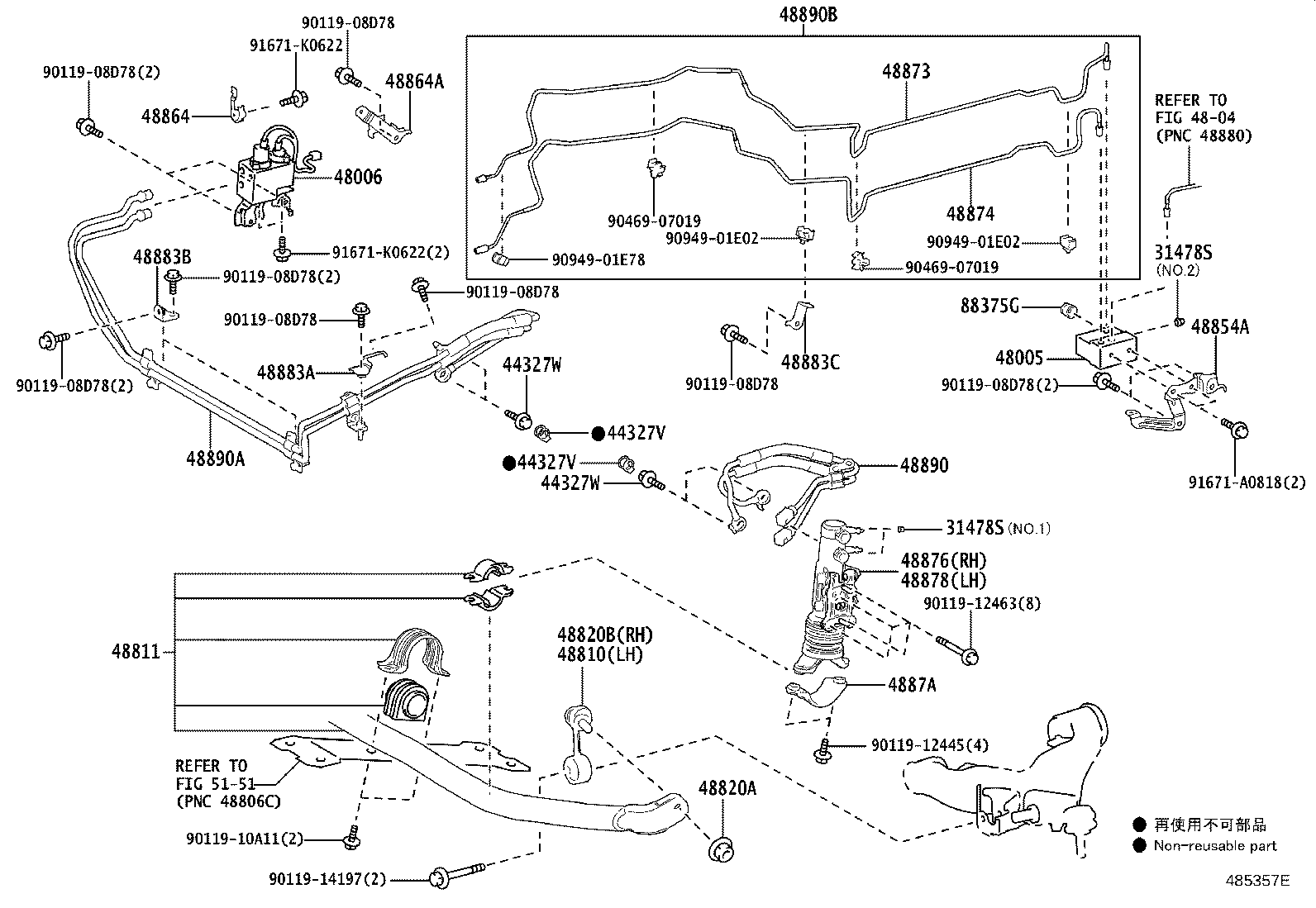

485357E 2021-04 → 2024-11

485357E 2021-07 → —

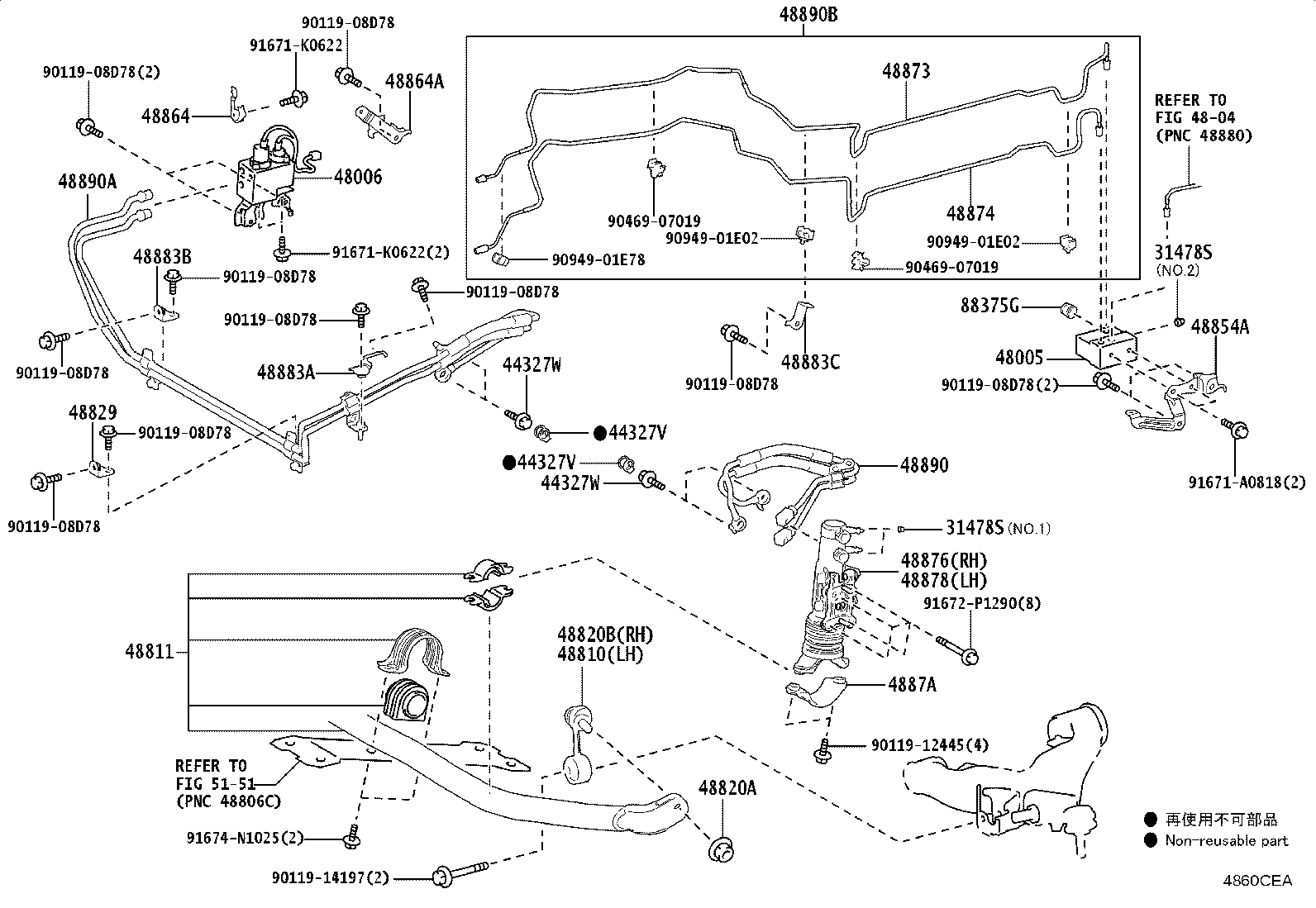

4860CEA 2024-11 → —

Part groups

PNC	Description
31478S	Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
44327V	Gasket, Pressure Port(FOR FRONT STABILIZER CONTROL TUBE)
44327W	Bolt, Union(FOR FRONT STABILIZER CONTOROL TUBE)
48005	Valve Sub-assy, Stabilizer Control
48006	Housing Sub-assy, Front Stabilizer
48131	Spring, Front Coil, RH
48132	Spring, Front Coil, LH
48158B	Insulator, Front Coil Spring, Lower RH
48158C	Insulator, Front Coil Spring, Lower LH
48501	Bracket Sub-assy, Front Shock Absorber, Upper RH
48502	Bracket Sub-assy, Front Shock Absorber, Upper LH
48510	Absorber Assy, Shock, Front RH
48520	Absorber Assy, Shock, Front LH
48553	Cap, Shock Absorber, Upper
48597	Retainer, Shock Absorber Cushion
48609A	Support Sub-assy, Front Suspension
48680A	Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810	Link Assy, Front Stabilizer, LH
48811	Bar, Stabilizer, Front
48820A	Nut(FOR FRONT STABILIZER LINK)
48820B	Link Assy, Front Stabilizer, RH
48854A	Bracket, Front Stabilizer Control
48864	Bracket, Stabilizer Control Wire, NO.1
48864A	Bracket, Stabilizer Control Wire, NO.2
48873	Tube, Front Stabilizer Control, NO.1
48874	Tube, Front Stabilizer Control, NO.2
48876	Cylinder, Front Stabilizer Control
48878	Cylinder, Front Stabilizer Control, LH
4887A	Bracket, Front Stabilizer Control Cylinder, Lower
48883A	Bracket, Stabilizer Control Tube, NO.1
48883B	Bracket, Stabilizer Control Tube, NO.2
48883C	Bracket, Stabilizer Control Tube, NO.3
48890	Tube Assy, Front Stabilizer Control, NO.1
48890A	Tube Assy, Front Stabilizer Control, NO.2
48890B	Tube Assy, Front Stabilizer Control, NO.3
88375G	Cap, Service Valve

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
