Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

39 part groups · 14 illustrations

Illustrations

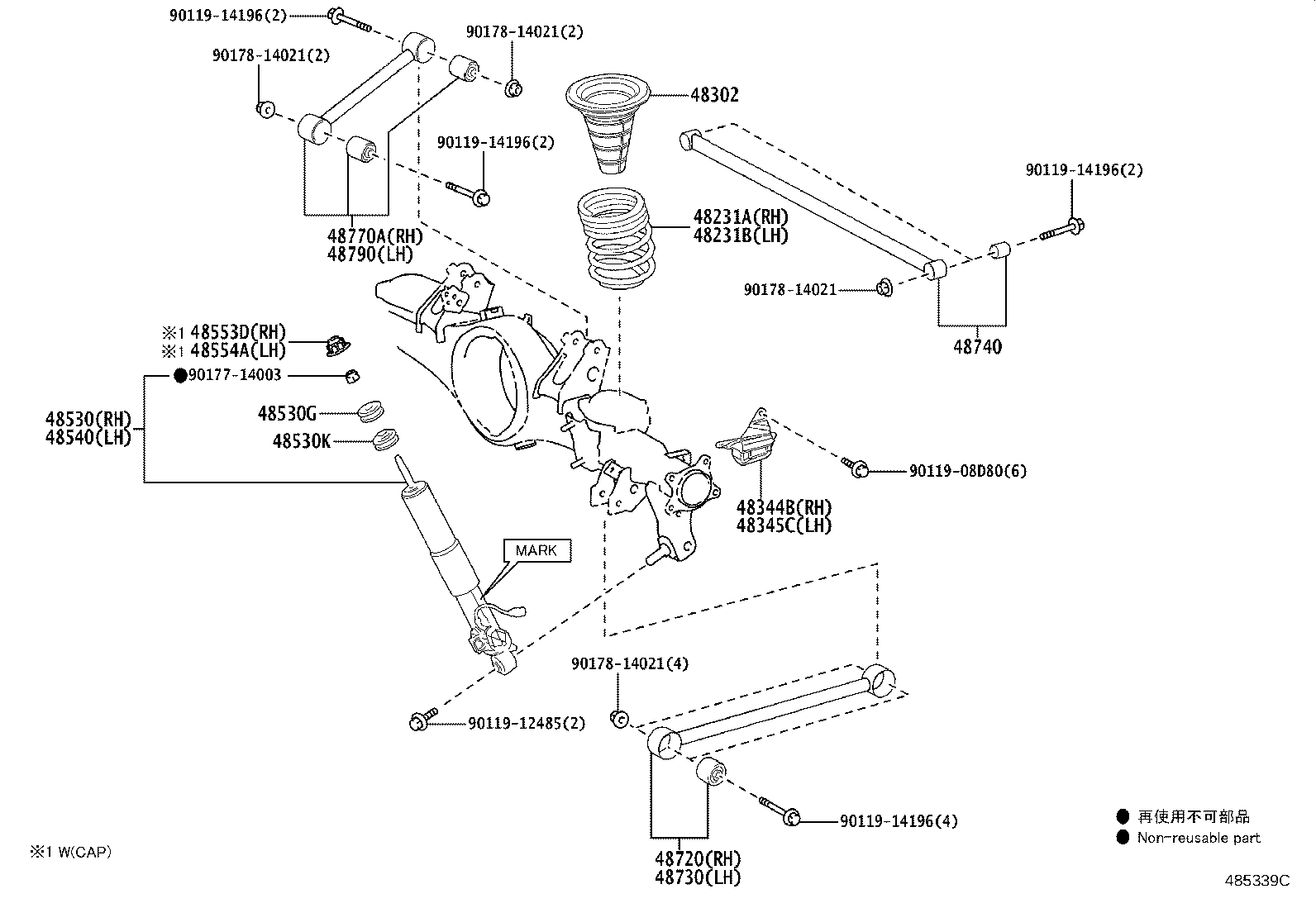

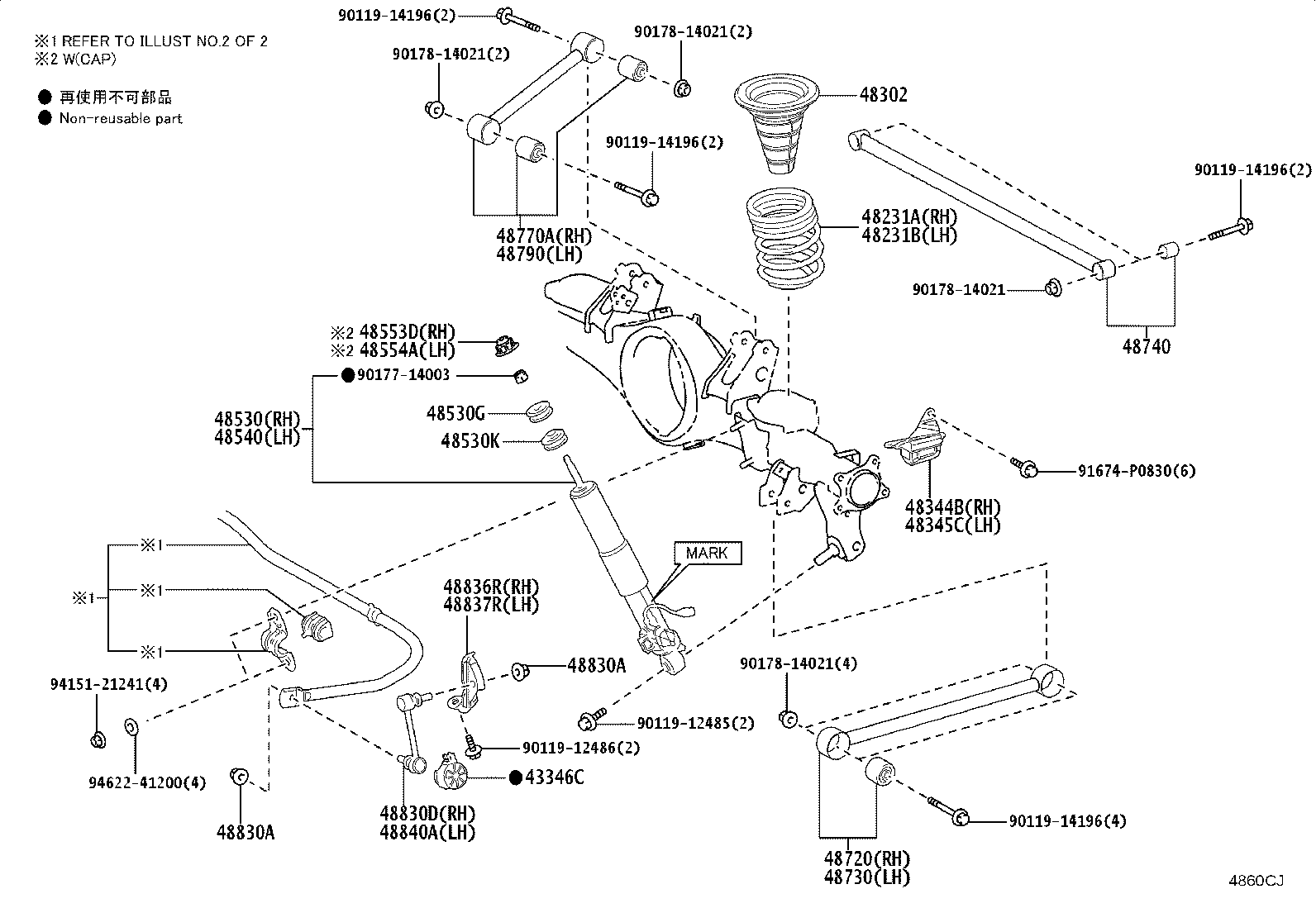

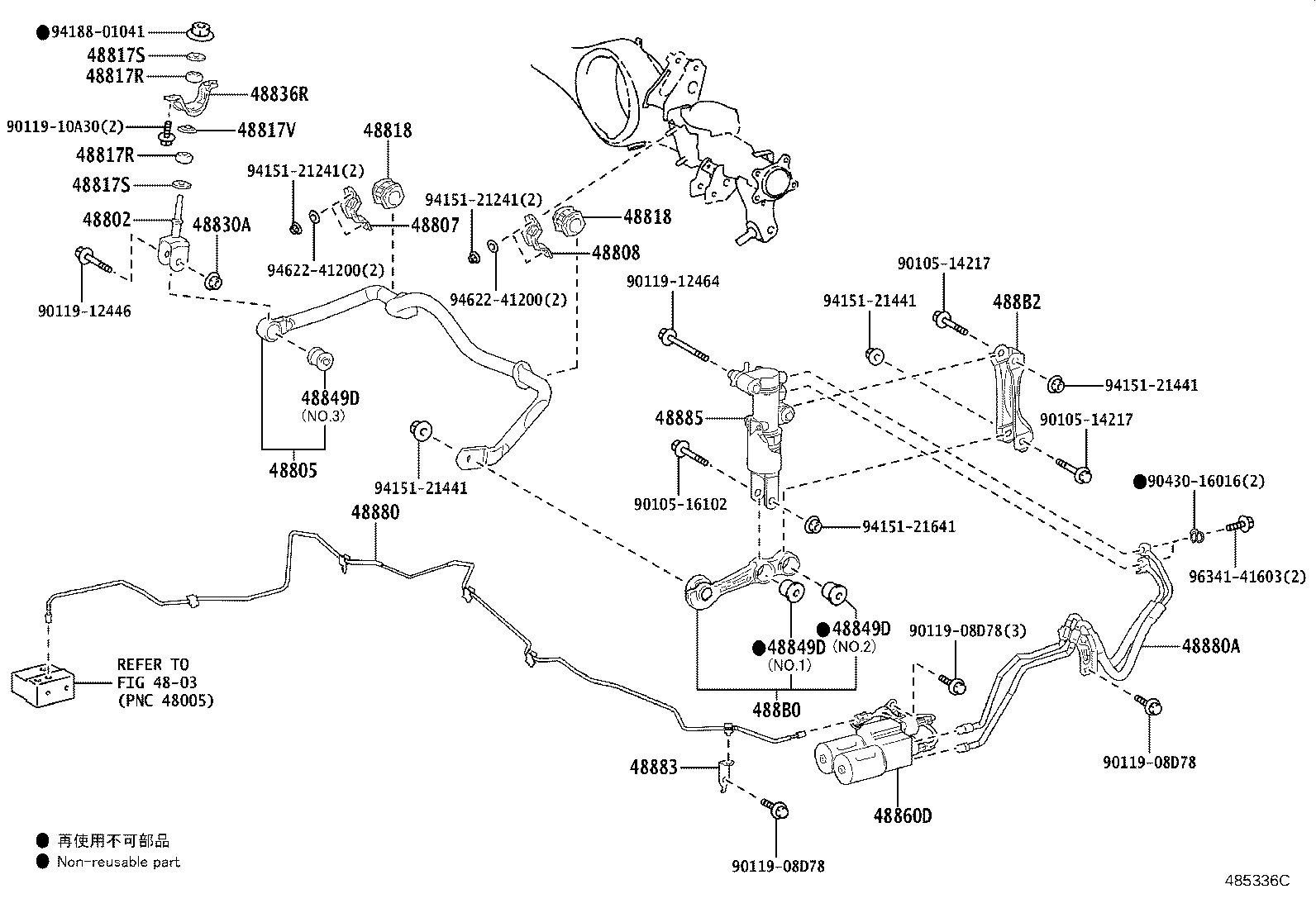

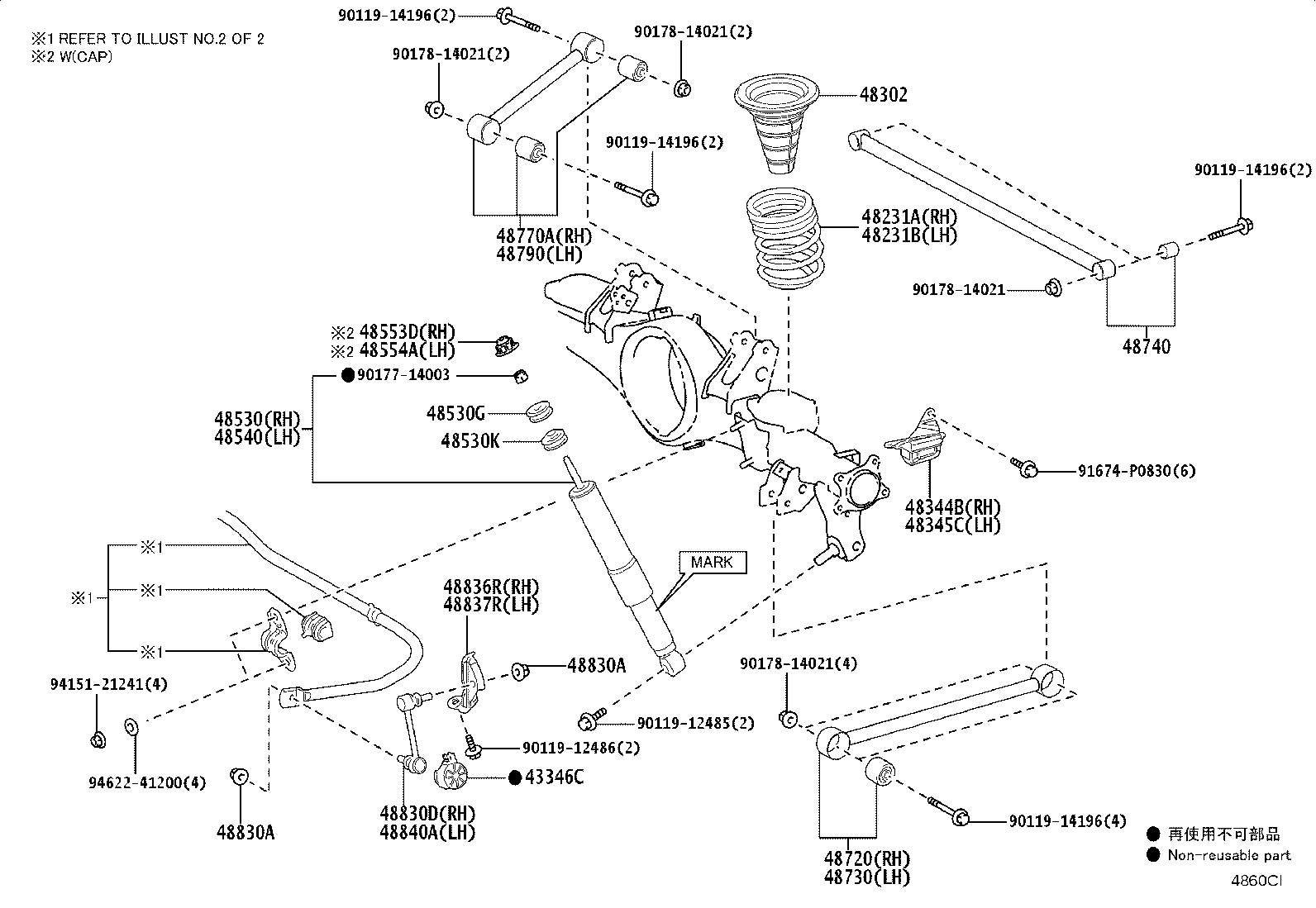

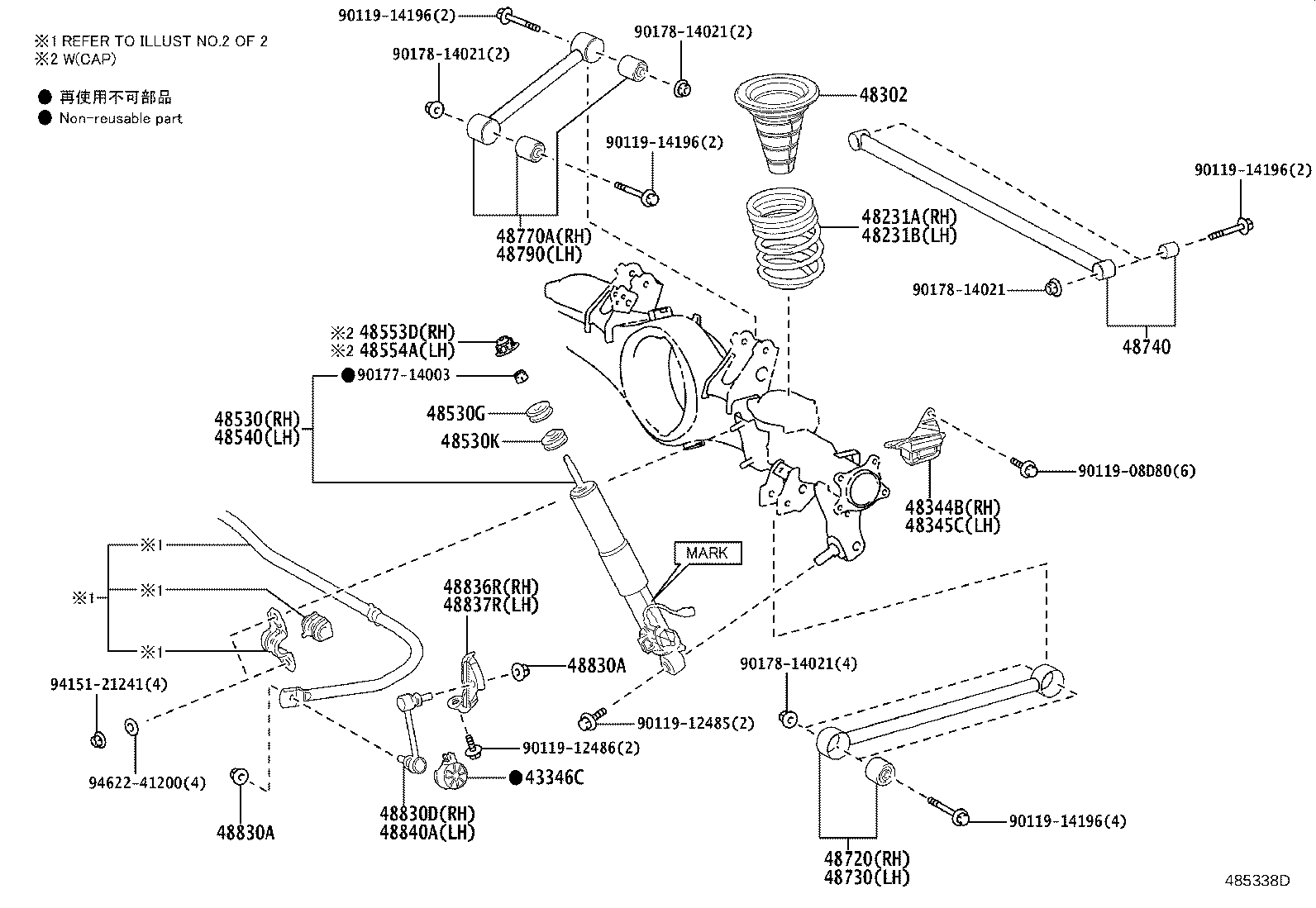

Figure 485337D 485337D 2021-04 → 2024-11 Figure 485337D 485337D 2021-07 → — Figure 4860CI 4860CI 2024-11 → — Figure 485518 485518 2021-04 → — Figure 485338D 485338D 2021-04 → 2024-11 Figure 485338D 485338D 2021-07 → — Figure 4860CJ 4860CJ 2024-11 → — Figure 485525 485525 2021-04 → — Figure 485339C 485339C 2021-04 → 2024-11 Figure 485339C 485339C 2021-07 → — Figure 4860CK 4860CK 2024-11 → — Figure 485336C 485336C 2021-04 → 2024-11 Figure 485336C 485336C 2021-07 → — Figure 4860CM 4860CM 2024-11 → —

Part groups

PNCDescription
43346C Protector, Lower Ball Joint Dust Cover
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48302 Spring Sub-assy, Hollow
48344B Stopper, Bumper, Rear RH
48345C Stopper, Bumper, Rear LH
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530K Cushion, Rear Shock Absorber, NO.2
48540 Absorber Assy, Shock, Rear LH
48553D Cap, Rear Shock Absorber, RH
48554A Cap, Rear Shock Absorber, LH
48720 Arm Assy, Lower Control, RH
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48770A Arm Assy, Upper Control, Rear RH
48790 Arm Assy, Upper Control, Rear LH
48802 Link Sub-assy, Stabilizer
48805 Bar Sub-assy, Rear Stabilizer
48807 Bracket, Rear Stabilizer Bar, RH
48808 Bracket, Rear Stabilizer Bar, LH
48812 Bar, Stabilizer, Rear
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817V Retainer, Cushion, NO.2(FOR STABILIZER REAR BAR)
48818 Bush, Stabilizer, Rear
48830A Nut(FOR REAR STABILIZER LINK)
48830D Link Assy, Rear Stabilizer, RH
48836R Bracket, Rear Stabilizer End, RH
48837R Bracket, Rear Stabilizer End, LH
48840A Link Assy, Rear Stabilizer, LH
48849D Bush, Rear Stabilizer Link
48860D Housing Assy, Stabilizer Control W/Accumulator
48880 Tube Assy, Rear Stabilizer Control, NO.1
48880A Tube Assy, Rear Stabilizer Control, NO.2
48883 Bracket, Stabilizer, Control Tube
48885 Cylinder, Rear Stabilizer Control
488B0 Arm Assy, Rear Stabilizer Control
488B2 Arm, Rear Stabilizer Control, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
