Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11

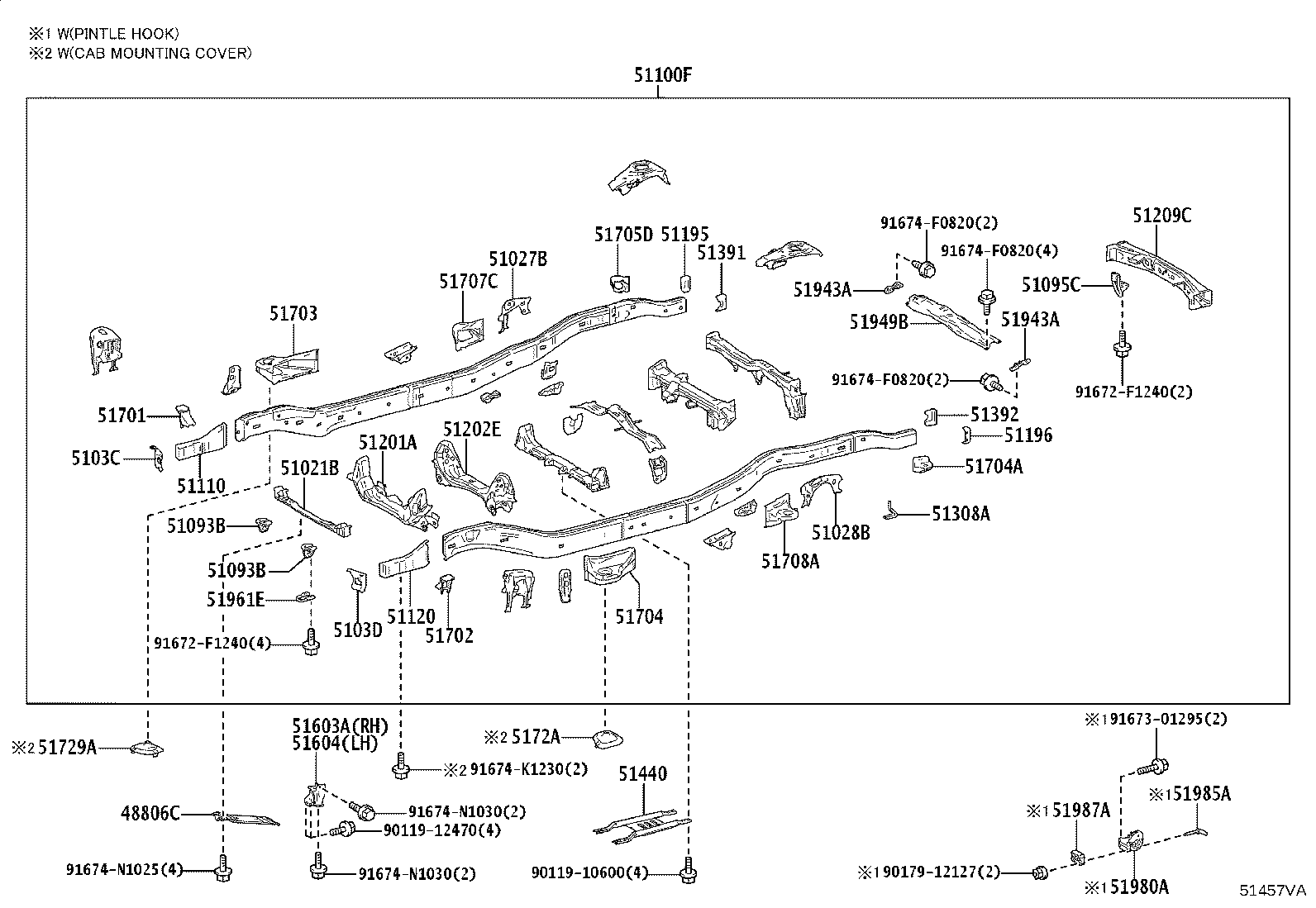

Frame

38 part groups · 3 illustrations

PNC	Description
48806C	Brace Sub-assy, Front Stabilizar, Center
51021B	Crossmember Sub-assy, Frame Auxiliary
51027B	Bracket Sub-assy, Rear Shock Absorber Mount, RH
51028B	Bracket Sub-assy, Rear Shock Absorber Mount, LH
5103C	Plate Sub-assy, Side Rail Extension, RH
5103D	Plate Sub-assy, Side Rail Extension, LH
51093B	Hook Sub-assy, Transport, Front
51095C	Hook Sub-assy, Transport, Rear
51100F	Frame Sub-assy
51110	Extension Assy, Side Rail, RH
51120	Extension Assy, Side Rail, LH
51195	Patch, Rear Frame Rail, RH
51196	Patch, Rear Frame Rail, LH
51201A	Crossmember Sub-assy, Frame, Front
51202E	Crossmember Sub-assy, Frame, NO.2
51209C	Crossmember Sub-assy, Frame, Rear
51308A	Bracket Sub-assy, Exhaust Pipe Clamp
51391	Gusset, Frame Rear Crossmember, RH
51392	Gusset, Frame Rear Crossmember, LH
51440	Protector Assy, Oil Pan
51603A	Bracket Sub-assy, Front Bound Stopper, RH
51604	Bracket Sub-assy, Front Bound Stopper, LH
51701	Bracket Sub-assy, Cab Mounting, NO.1 RH
51702	Bracket Sub-assy, Cab Mounting, NO.1 LH
51703	Bracket Sub-assy, Cab Mounting, NO.2, RH
51704	Bracket Sub-assy, Cab Mounting, NO.2 LH
51704A	Bracket Sub-assy, Cab Rear Mounting, LH
51705D	Bracket Sub-assy, Cab Rear Mounting, RH
51707C	Bracket Sub-assy, Cab Mounting, NO.4 RH
51708A	Bracket Sub-assy, Cab Mounting, NO.4 LH
51729A	Cover, NO.2 Cab Mounting, RH
5172A	Cover, NO.2 Cab Mounting, LH
51943A	Bracket, Spare Wheel Carrier
51949B	Crossmember, Spare Wheel Carrier
51961E	Hook, Front
51980A	Hook Assy, Pintle
51985A	Hook, Eyelet Pintle
51987A	Bracket, Pintle Hook

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
