Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

28 part groups · 3 illustrations

Illustrations

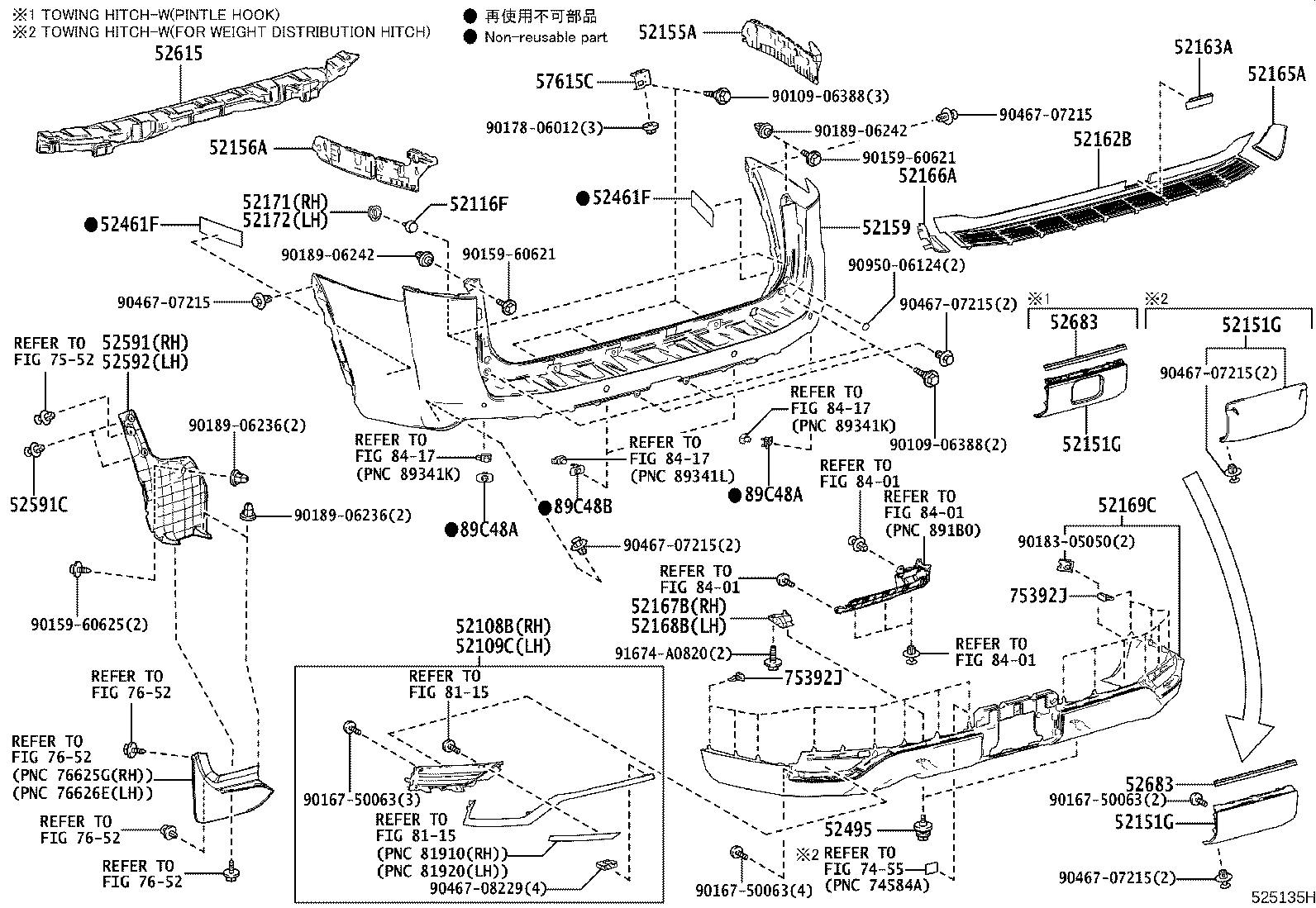

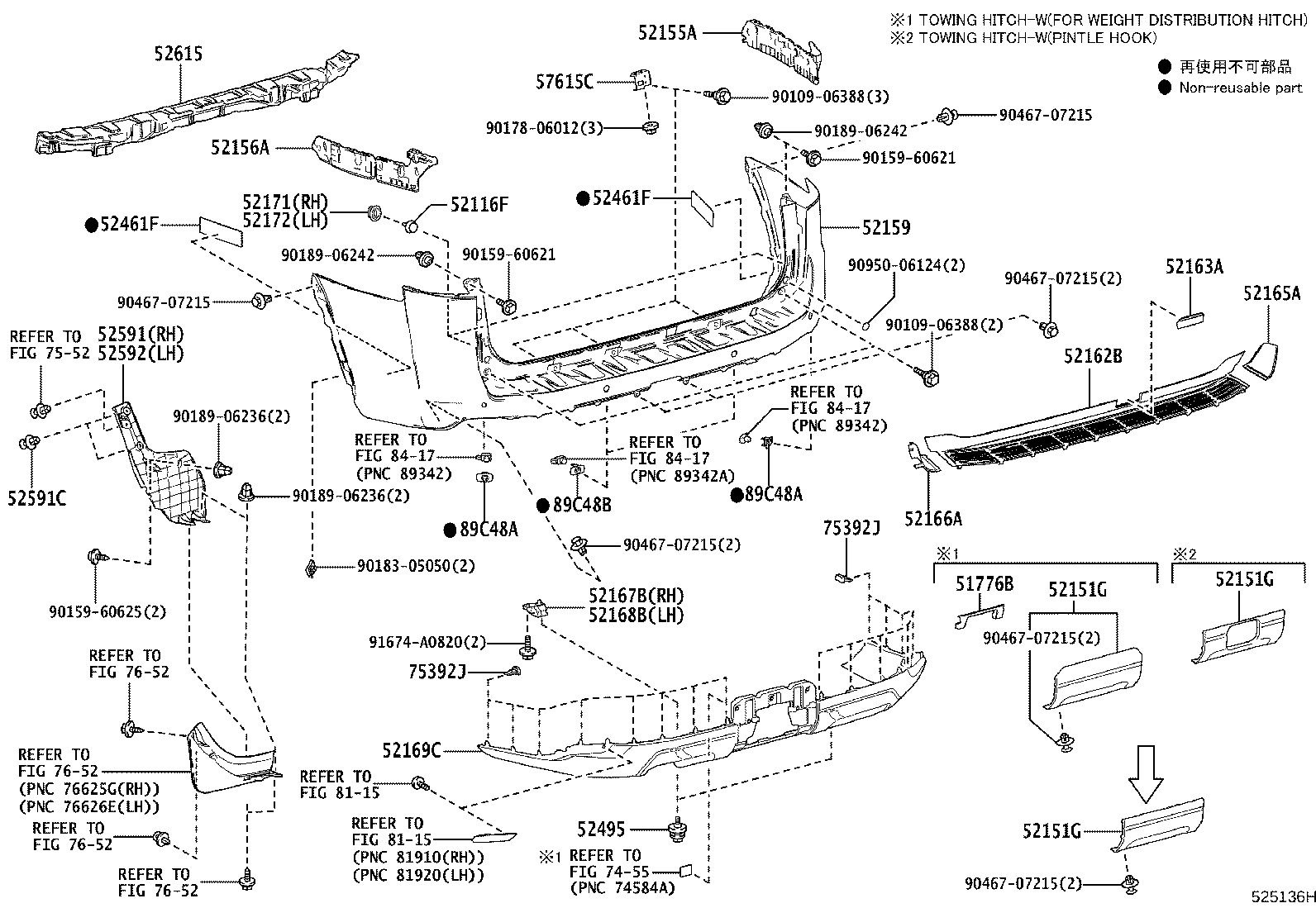

Figure 525134H 525134H 2021-04 → — Figure 525135H 525135H 2021-04 → — Figure 525136H 525136H 2021-07 → —

Part groups

PNCDescription
51776B Cover, Rear Step, NO.2
52108B Extension Sub-assy, Rear Bumper Side, RH
52109C Extension Sub-assy, Rear Bumper Side, LH
52116F Retainer, Rear Bumper
52151G Extension, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52163A Plate, Rear Bumper, RH
52165A Cover, Rear Bumper, Upr RH
52166A Cover, Rear Bumper, Upr LH
52167B Bracket, Rear Bumper Extension Mounting, RH
52168B Bracket, Rear Bumper Extension Mounting, LH
52169C Cover, Rear Bumper, Lower
52171 Retainer, Rear Bumper Side, RH
52172 Retainer, Rear Bumper Side, LH
52461F Pad, Rear Bumper
52495 Bolt, Rear Bumper Pad, NO.1
52591 Seal, Rear Bumper Side, RH
52591C Clip, Rear Bumper Side Seal
52592 Seal, Rear Bumper Side, LH
52615 Absorber, Rear Bumper Energy
52683 Extension, Rear Bumper, Center
57615C Bracket, Rear Bumper Arm
75392J Retainer, Outside Moulding
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
