Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

22 part groups · 3 illustrations

Illustrations

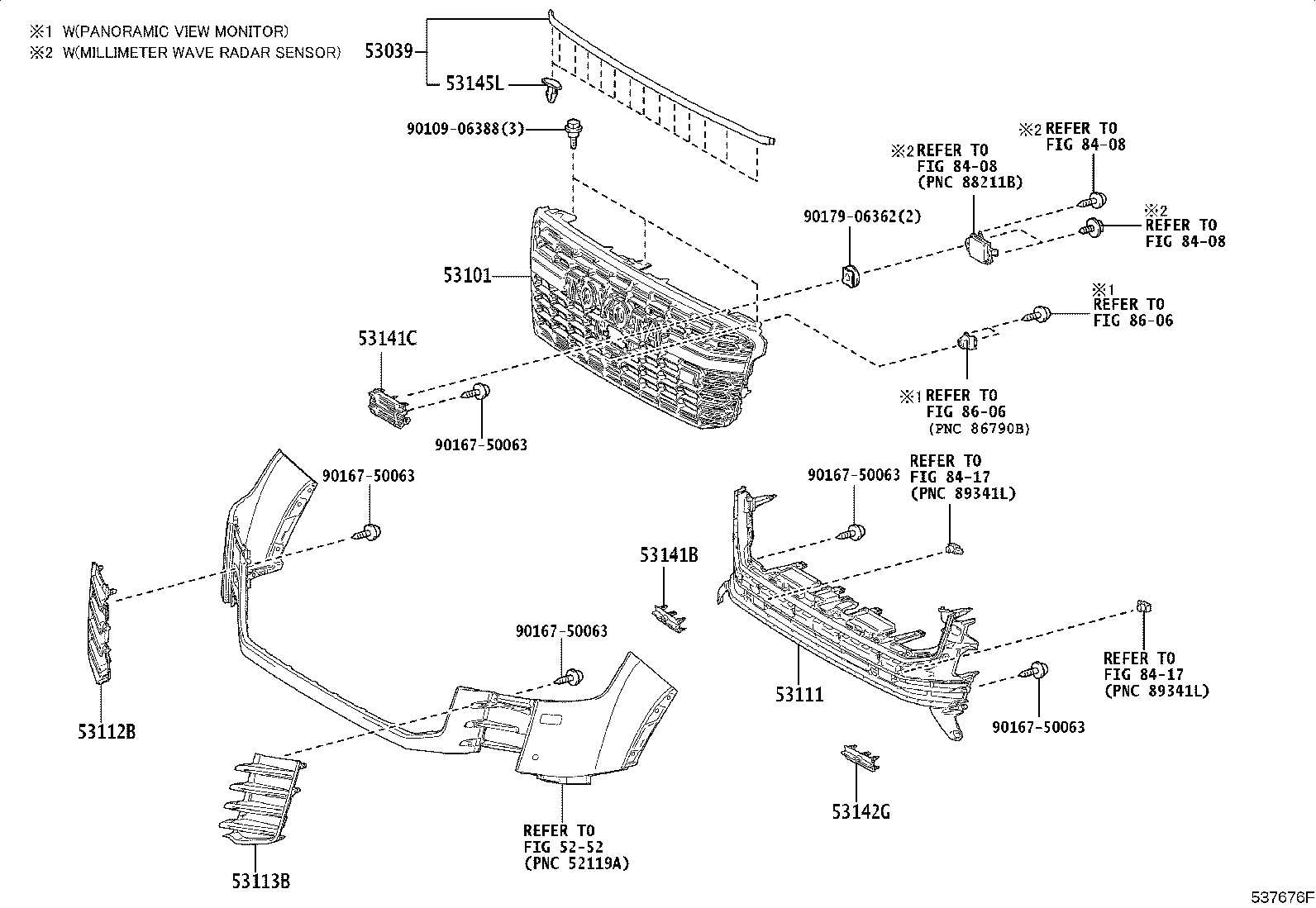

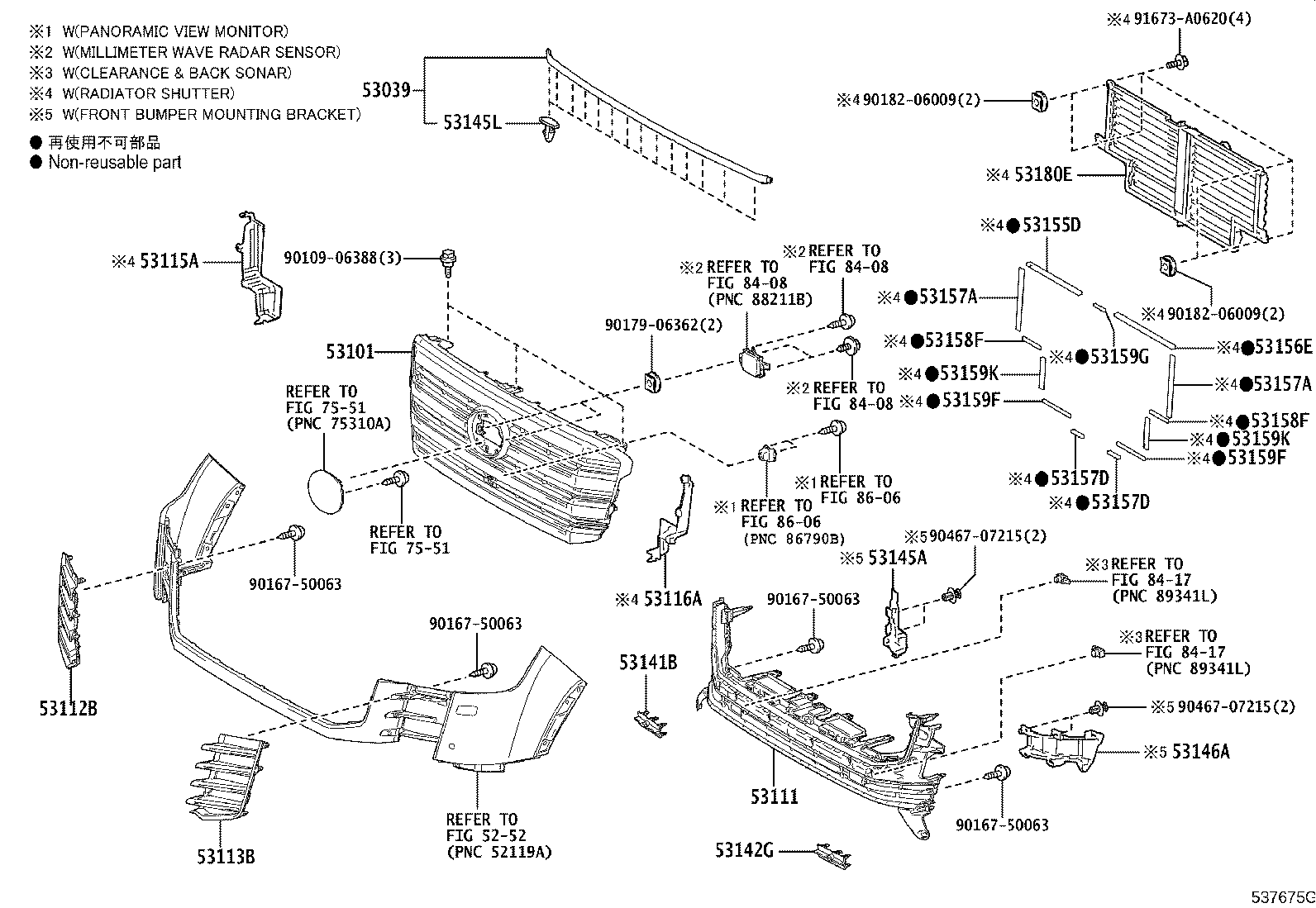

Figure 537674E 537674E 2021-04 → — Figure 537675G 537675G 2021-04 → — Figure 537676F 537676F 2021-07 → —

Part groups

PNCDescription
53039 Seal, Radiator, Upper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53112B Grille, Radiator Side, RH
53113B Grille, Radiator Side, LH
53115A Bracket, Radiator Grille, RH
53116A Bracket, Radiator Grille, LH
53141B Garnish, Radiator Grille, NO.1
53141C Garnish, Radiator Grille
53142G Garnish, Radiator Grille, NO.2
53145A Bracket, Radiator Grille, Garnish, NO.1
53145L Clip, Radiator Grille
53146A Bracket, Radiator Grille, Garnish, NO.2
53155D Seal, Radiator Grille, NO.1
53156E Seal, Radiator Grille, NO.2
53157A Seal, Radiator Grille, NO.3
53157D Seal, Radiator Grille, NO.8
53158F Seal, Radiator Grille, NO.4
53159F Seal, Radiator Grille, NO.6
53159G Seal, Radiator Grille, NO.7
53159K Seal, Radiator Grille, NO.5
53180E Shutter Assy, Radiator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
