Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 2 illustrations

Illustrations

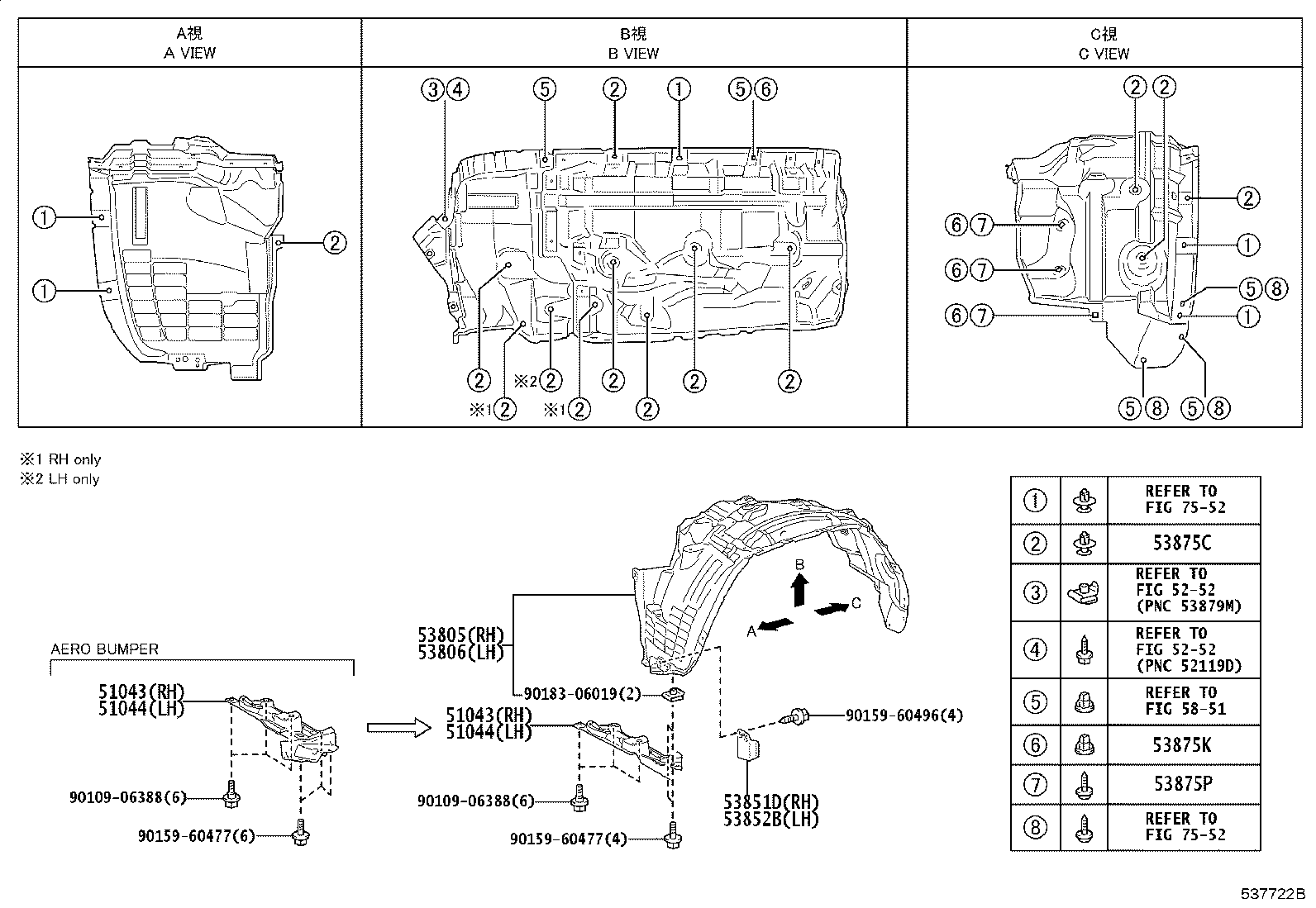

Figure 537666C 537666C 2021-04 → — Figure 537722B 537722B 2021-04 → —

Part groups

PNCDescription
51043 Cover Sub-assy, Engine Side, RH
51044 Cover Sub-assy, Engine Side, LH
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53807D Reinforcement Sub-assy, Front Fender, Top RH
53808D Reinforcement Sub-assy, Front Fender, Top LH
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875C Clip, Front Fender Liner
53875K Grommet, Screw
53875P Screw, NO.1
65487 Clip, Corner Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
