Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

51 part groups · 8 illustrations

Illustrations

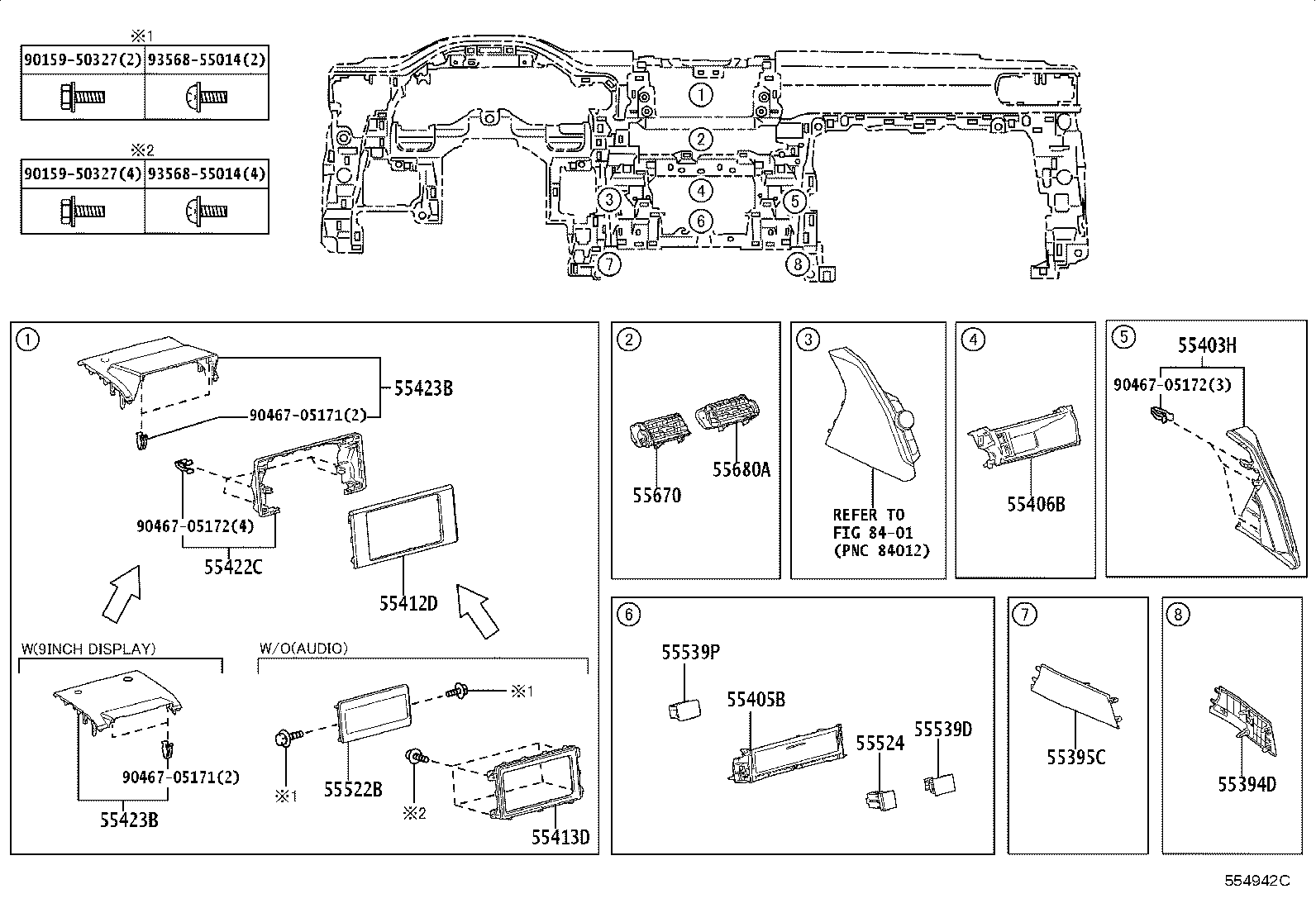

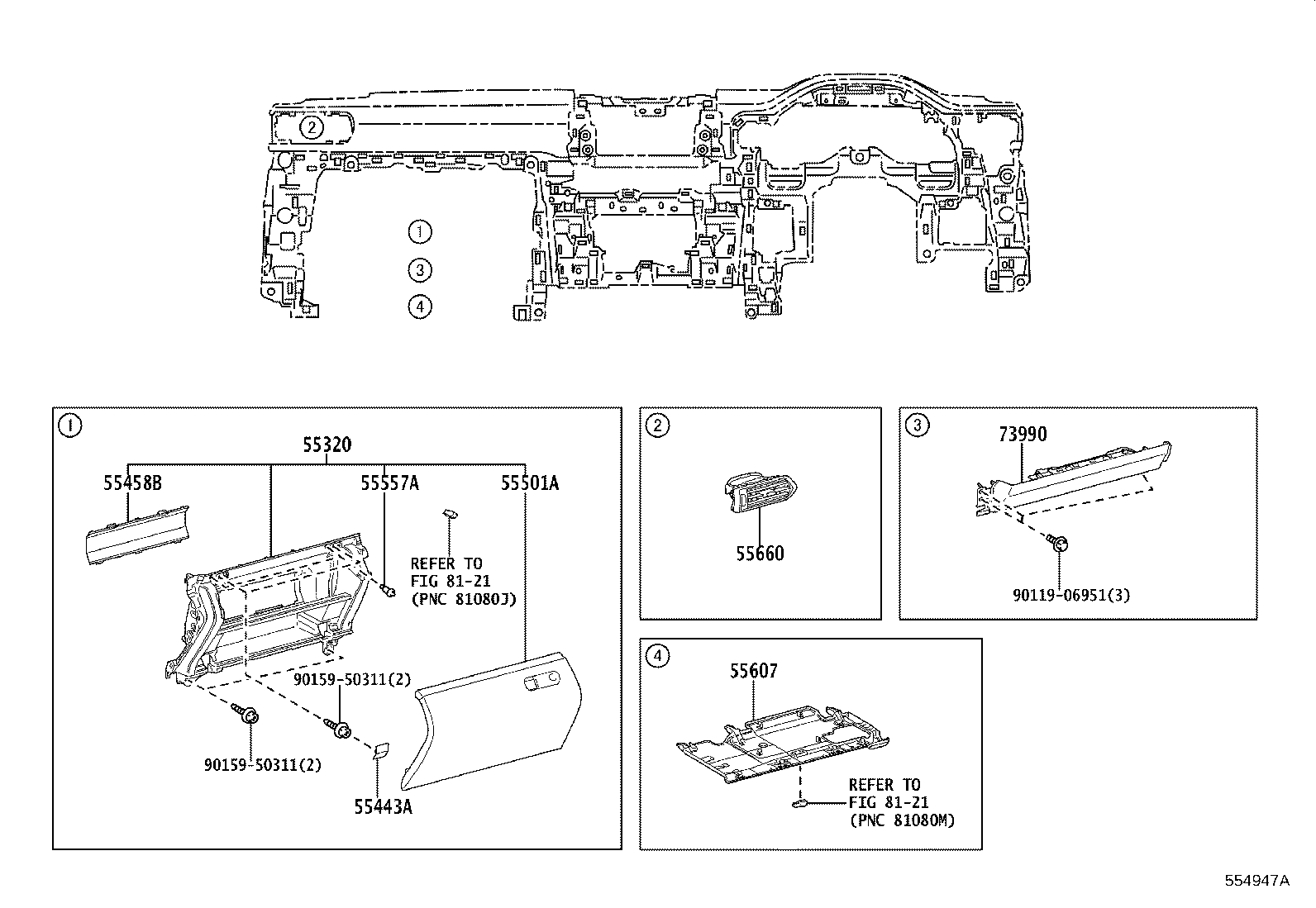

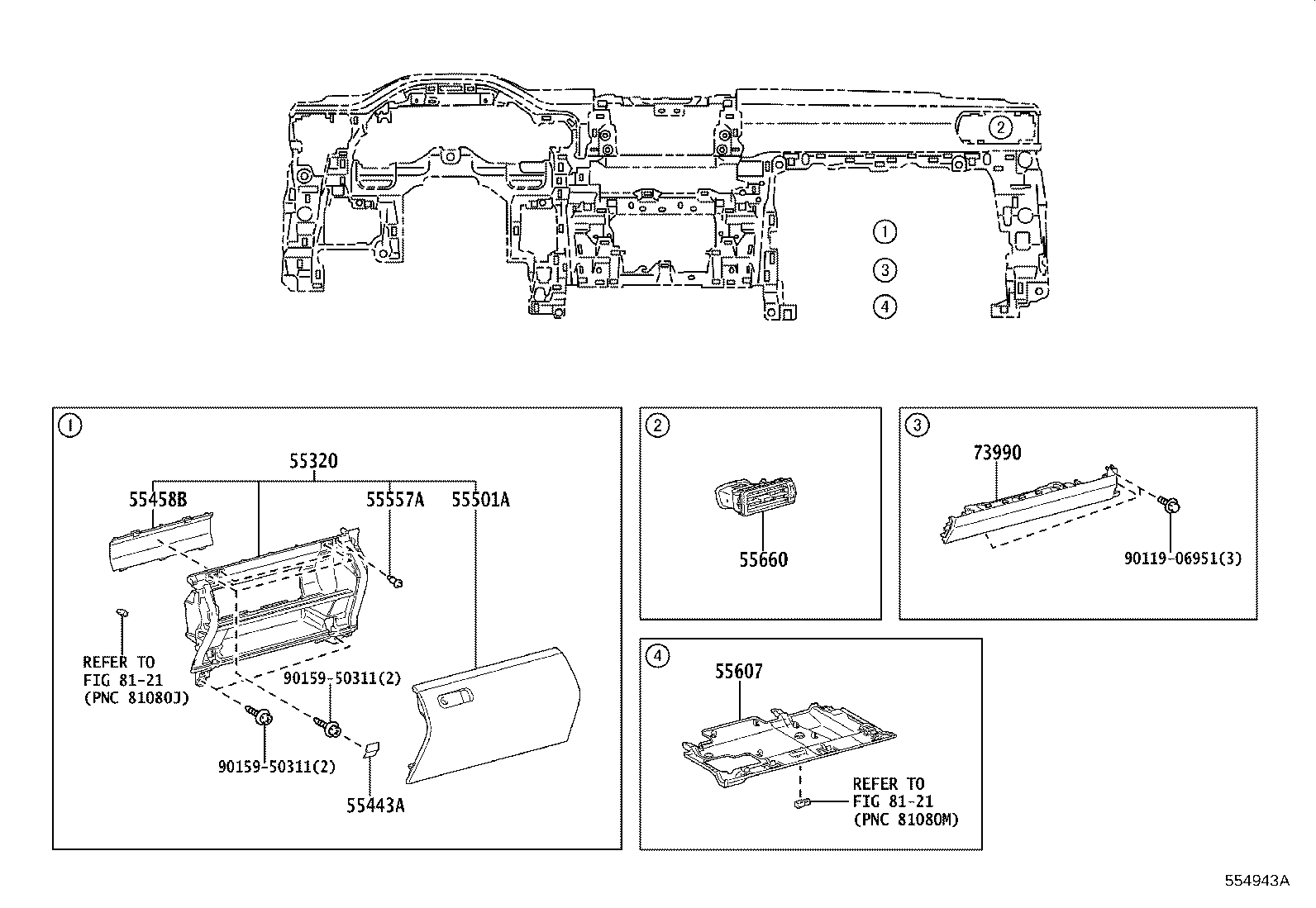

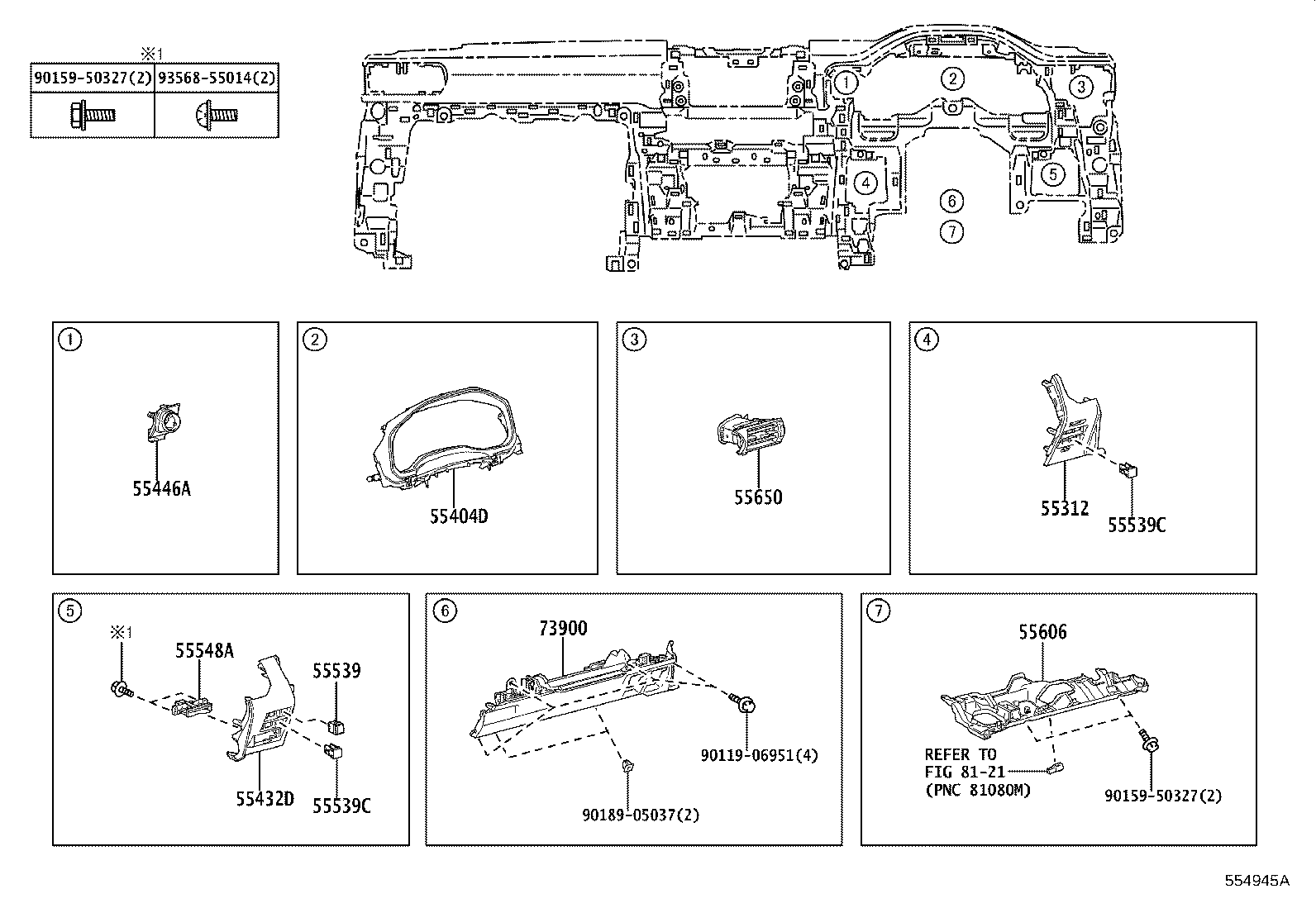

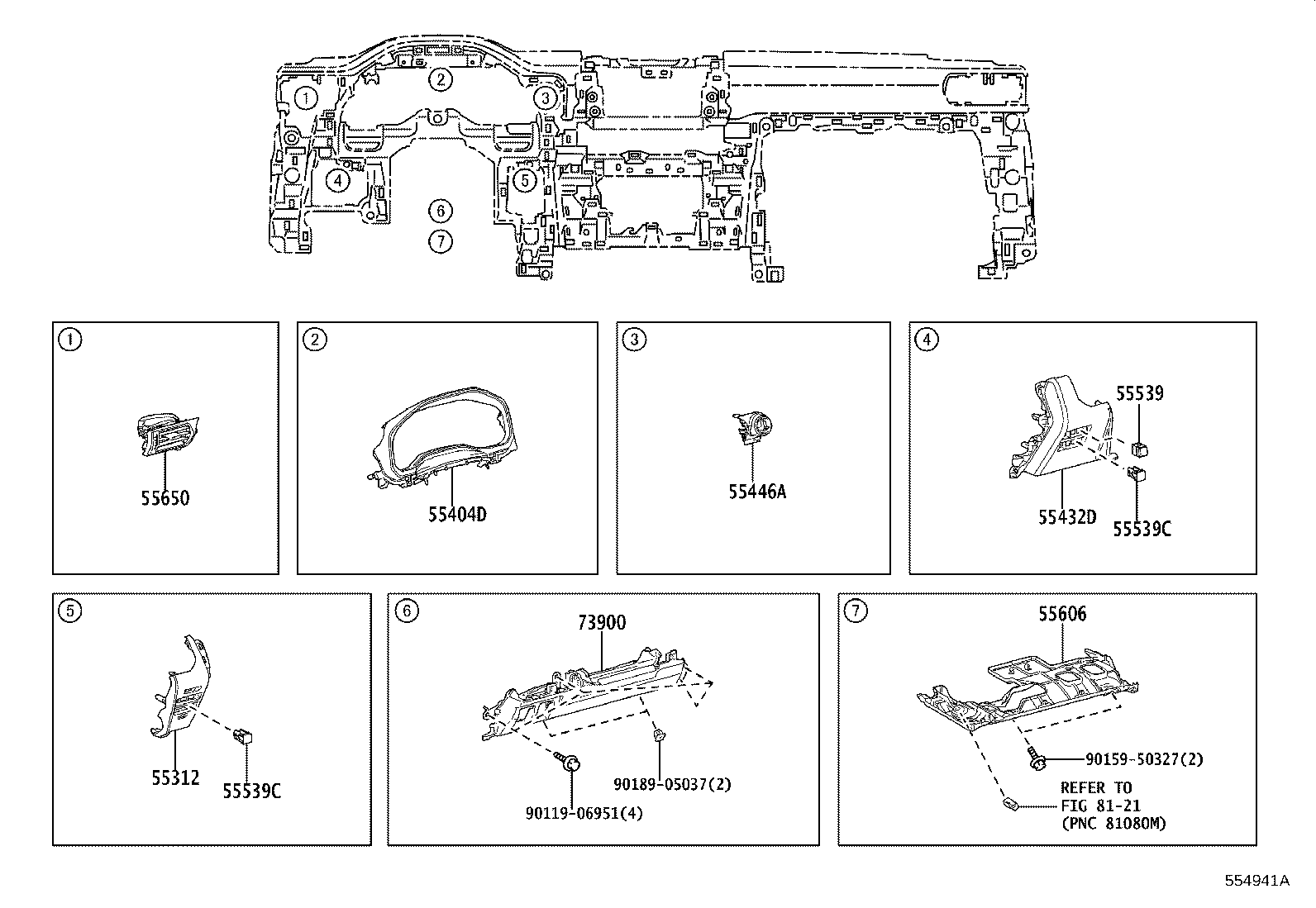

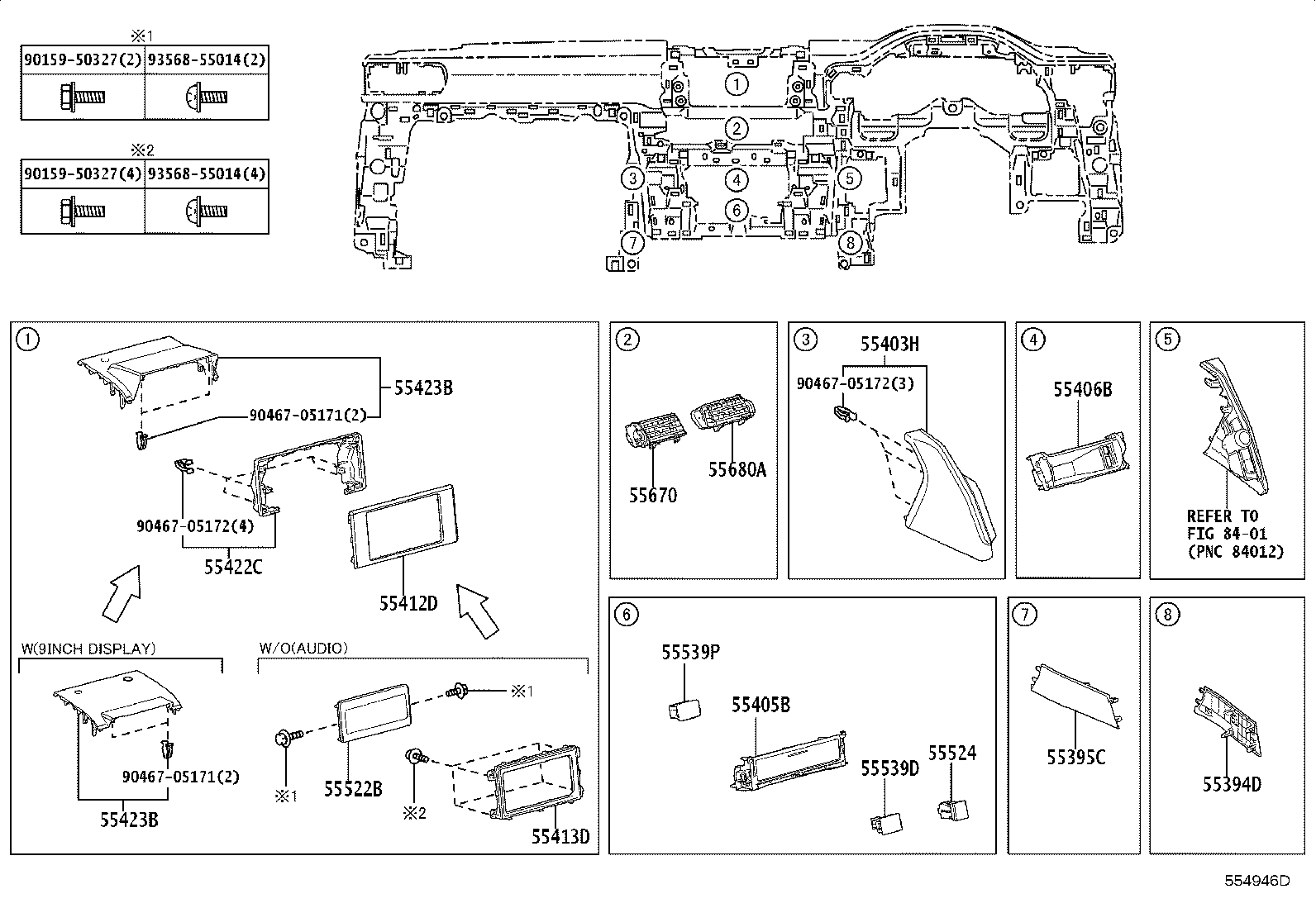

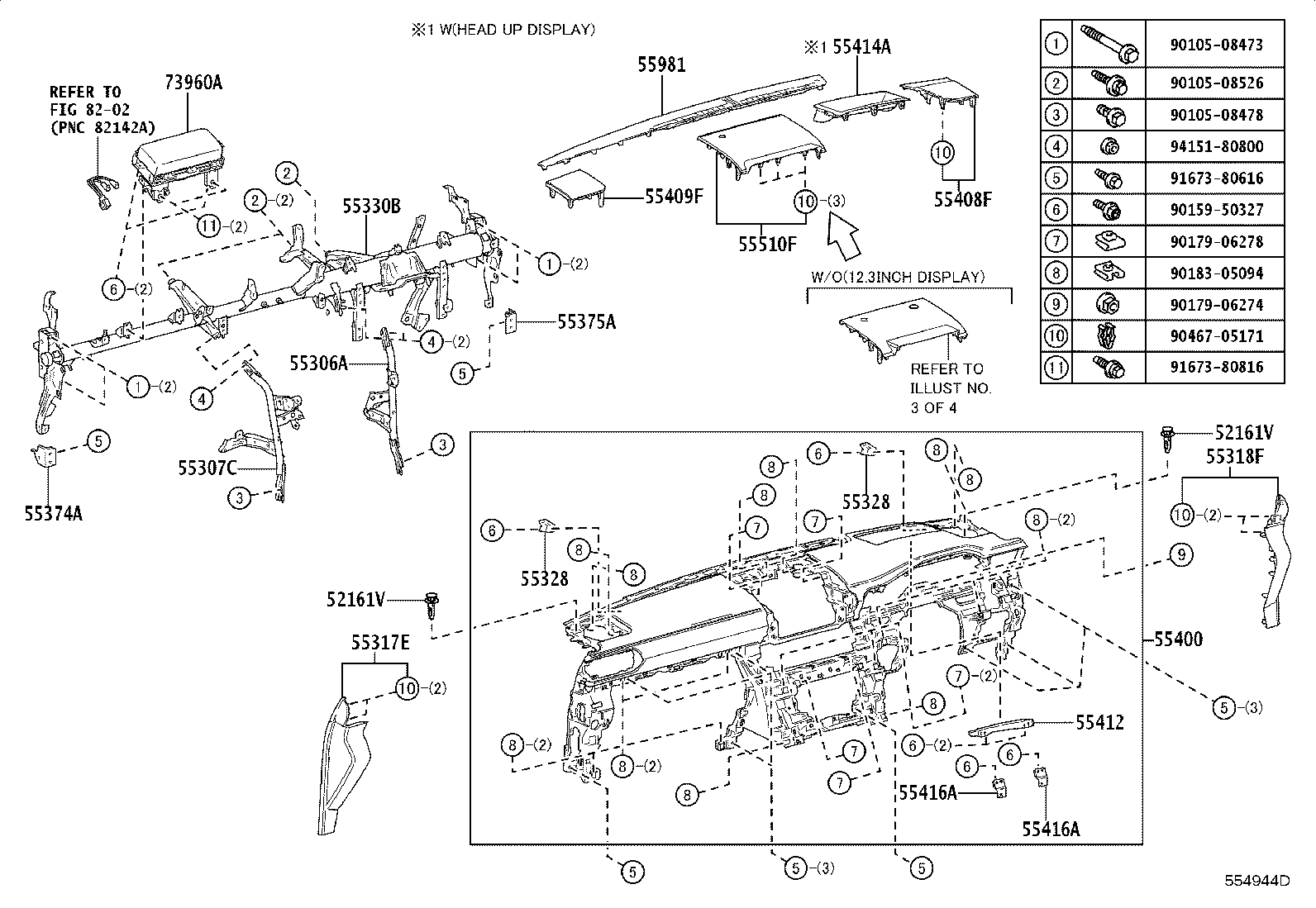

Figure 554940D 554940D 2021-04 → — Figure 554941A 554941A 2021-04 → — Figure 554942C 554942C 2021-04 → — Figure 554943A 554943A 2021-04 → — Figure 554944D 554944D 2021-04 → — Figure 554945A 554945A 2021-04 → — Figure 554946D 554946D 2021-04 → — Figure 554947A 554947A 2021-04 → —

Part groups

PNCDescription
52161V Piece, Instrument Panel
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55312 Panel, Instrument, Lower
55317E Panel, Instrument Side, NO.1
55318F Panel, Instrument Side, NO.2
55320 Panel Assy, Instrument, Lower NO.2
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55374A Bracket, Instrument Panel Lower Mounting, RH
55375A Bracket, Instrument Panel Lower Mounting, LH
55394D Cover, Instrument Panel Bracket, Inner NO.1 RH
55395C Cover, Instrument Panel Bracket, Inner NO.1 LH
55400 Pad Assy, Instrument Panel Safety
55403H Pad Sub-assy, Instrument Panel, Lower NO.2
55404D Panel Sub-assy, Instrument Cluster Finish
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55412 Panel, Instrument Cluster Finish, End
55412D Panel, Instrument Cluster Finish, Center
55413D Panel, Instrument Cluster Finish, Center Lower
55414A Panel, Instrument Cluster Finish, End
55416A Retainer, Meter Hood, NO.1
55422C Panel, Instrument Cluster Finish, Center Upper
55423B Cover, Instrument Cluster Finish Panel
55432D Panel, Instrument Panel Finish, Lower NO.1
55443A Cover, Instrument Panel Box Door
55446A Base, Switch Hole, NO.1
55458B Cover, Instrument, Lwr
55501A Door Sub-assy, Glove Compartment
55510F Cover Assy, Speaker Opening, NO.1
55522B Cover, Radio Tuner Opening
55524 Cover, Switch Bace Hole
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539P Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55981 Garnish, Defroster Nozzle, NO.1
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
