Toyota Land Cruiser
2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe
Supported model
Data version 2024-11

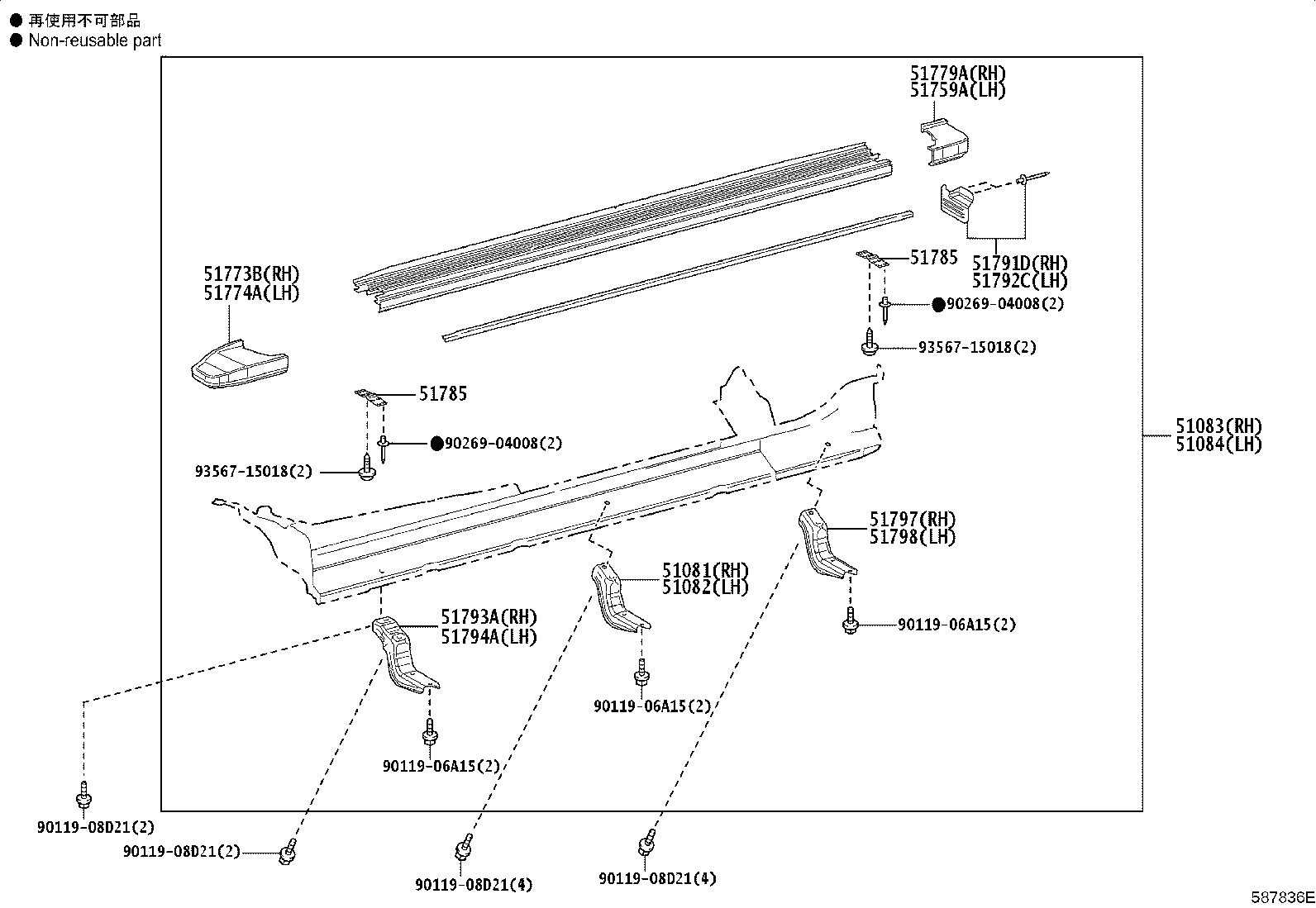

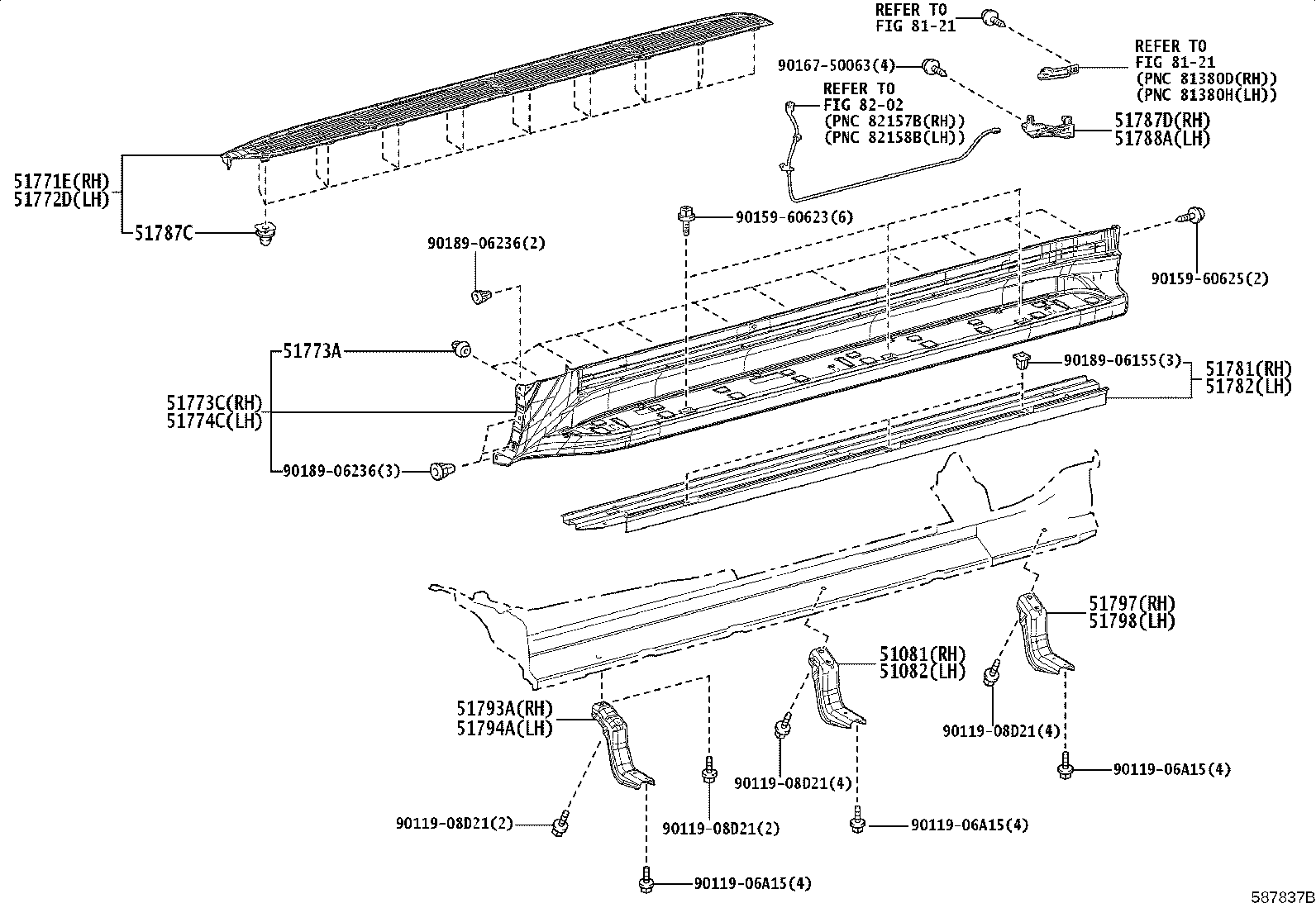

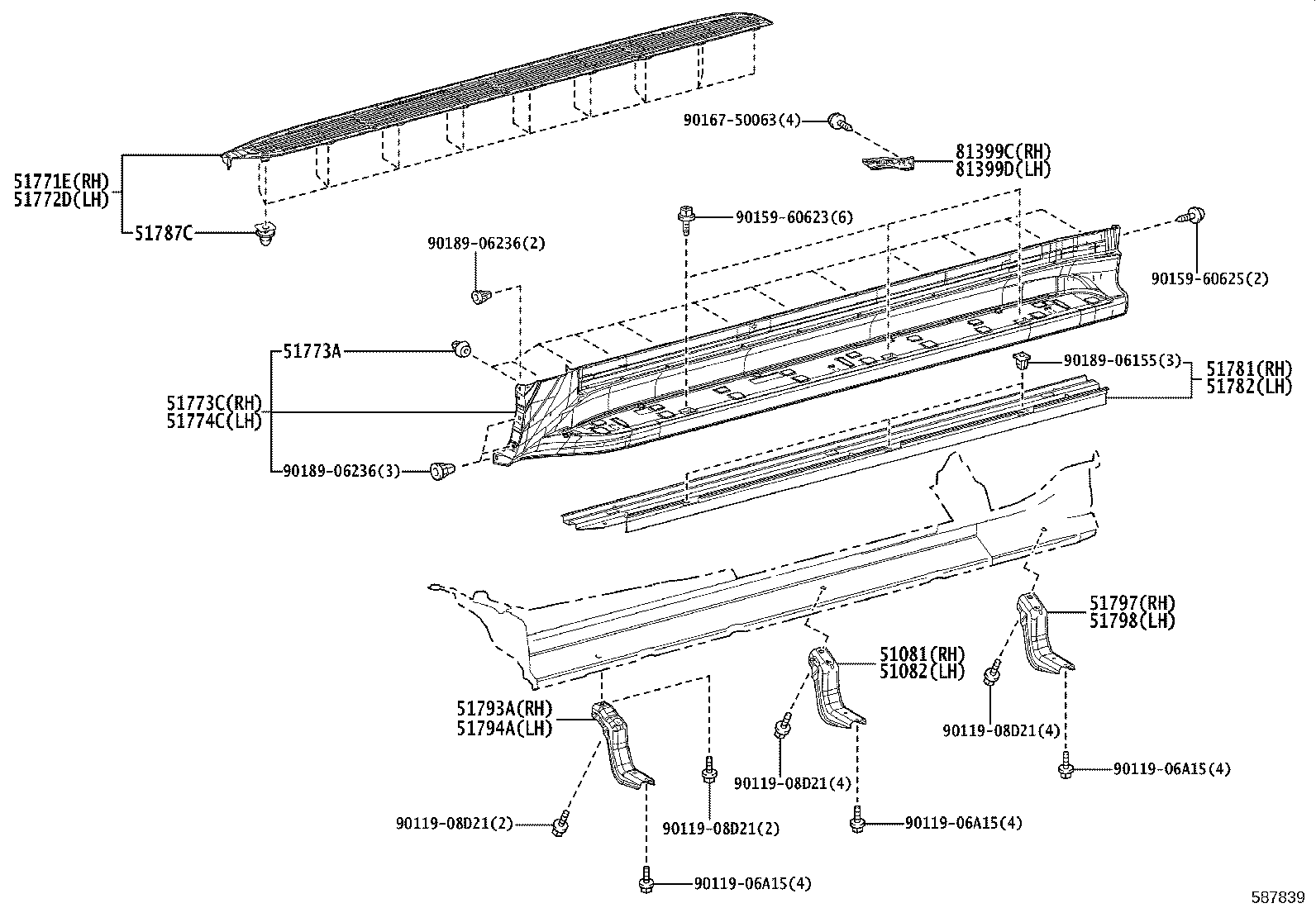

Front Floor Panel & Front Floor Member
46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51081 | Stay Sub-assy, Side Step, NO.1 RH |
| 51082 | Stay Sub-assy, Side Step, NO.1 LH |
| 51083 | Step Sub-assy, RH |
| 51084 | Step Sub-assy, LH |
| 51759A | Cover, Side Door Step Plate, Rear LH |
| 51771E | Plate, Step, RH |
| 51772D | Plate, Step, LH |
| 51773A | Clip, Step Plate Cover |
| 51773B | Cover, Side Door Step Plate, Front RH |
| 51773C | Cover, Step Plate, RH |
| 51774A | Cover, Side Door Step Plate, Front LH |
| 51774C | Cover, Step Plate, LH |
| 51779A | Cover, Side Door Step Plate, Rear RH |
| 51781 | Panel, Step, RH |
| 51782 | Panel, Step, LH |
| 51785 | Gusset, Step Bracket, NO.2 |
| 51787C | Insert, Side Door Step Plate |
| 51787D | Reinforcement, Step Cover, RH |
| 51788A | Reinforcement, Step Cover, LH |
| 51791D | Panel, Step, Rear RH |
| 51792C | Panel, Step, Rear LH |
| 51793A | Bracket, Side Step, NO.1 RH |
| 51794A | Bracket, Side Step, NO.1 LH |
| 51797 | Bracket, Side Step, NO.3 RH |
| 51798 | Bracket, Side Step, NO.3 LH |
| 57047B | Bracket Sub-assy, Floor Housing Seat Anchor, RH |
| 57048A | Bracket Sub-assy, Floor Housing Seat Anchor, LH |
| 57051 | Member Sub-assy, Front Floor Cross, RH |
| 57052 | Member Sub-assy, Front Floor Cross, LH |
| 57057 | Reinforcement Sub-assy, Crossmember Floor, NO.7 RH |
| 57058 | Reinforcement Sub-assy, Crossmember Floor, NO.7 LH |
| 57401C | Member Sub-assy, Floor Side, Inner RH |
| 57402A | Member Sub-assy, Floor Side, Inner LH |
| 57494 | Brace, Front Floor Cross, NO.2 LH |
| 57501C | Brace Sub-assy, Front Floor, Center |
| 57505B | Reinforcement Sub-assy, Front Floor Under, RH |
| 57506C | Reinforcement Sub-assy, Front Floor Under, LH |
| 57508A | Reinforcement Sub-assy, Front Floor, RH |
| 57509A | Reinforcement Sub-assy, Front Floor, LH |
| 58102A | Reinforcement Sub-assy, Front Floor |
| 58111 | Pan, Front Floor |
| 58123A | Support, Shift & Select Lever |
| 61043B | Extension Sub-assy, Front Body Pillar, Outer RH |
| 61044B | Extension Sub-assy, Front Body Pillar, Outer LH |
| 81399C | Bracket, Step Lamp |
| 81399D | Bracket, Step Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
