Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

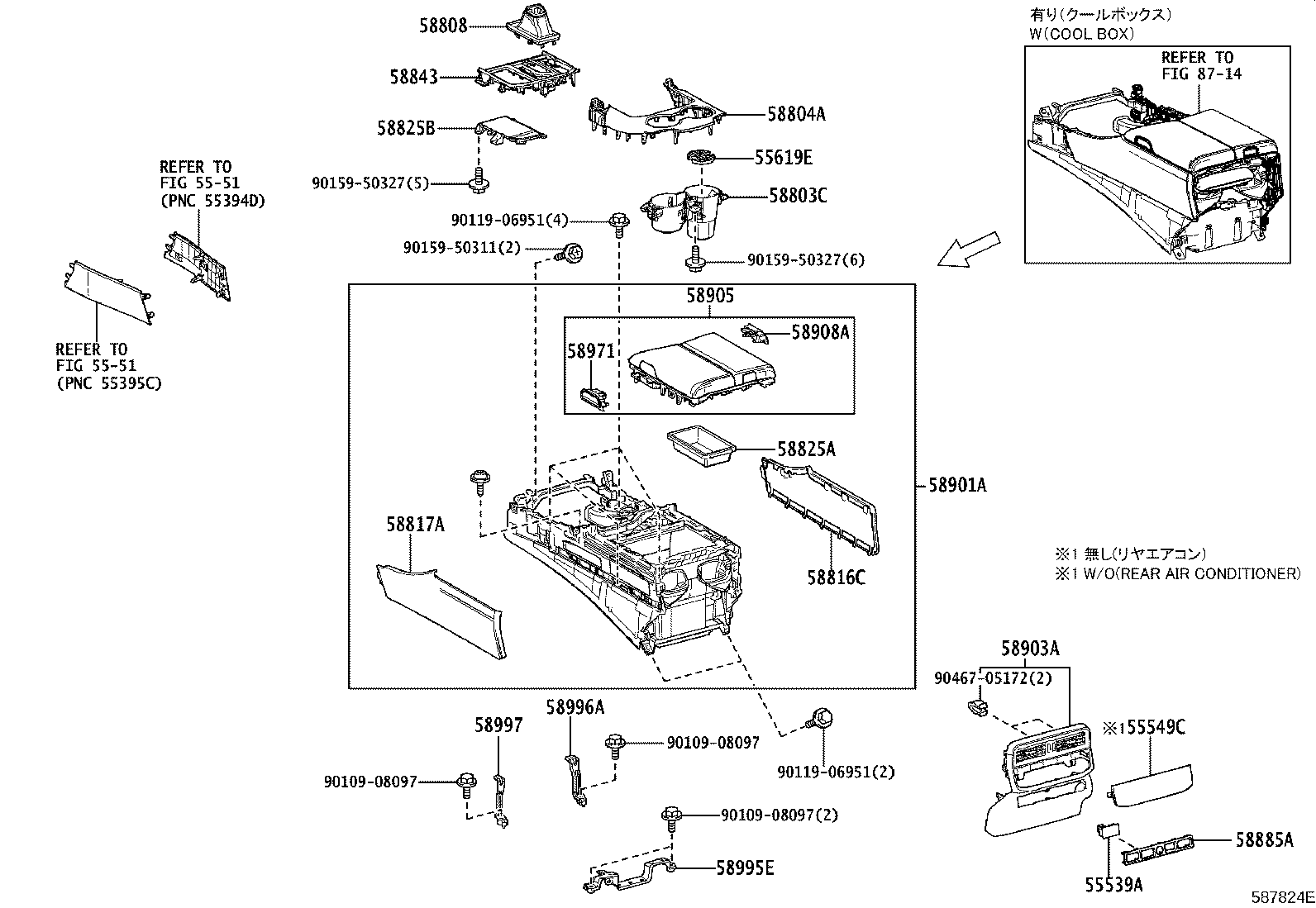

Figure 587823E 587823E 2021-04 → — Figure 587824E 587824E 2021-04 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55549C Cover, Rear Cooler Switch Hole
55619E Cover, Cup Holder Hole
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58816C Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58825A Pocket, Console Box
58825B Pocket, Console Box
58843 Bezel, Shifting Hole
58885A Panel, Equipment Set
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58971 Lock, Console Compartment Door
58995E Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
