Toyota Land Cruiser
2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe
Supported model
Data version 2024-11

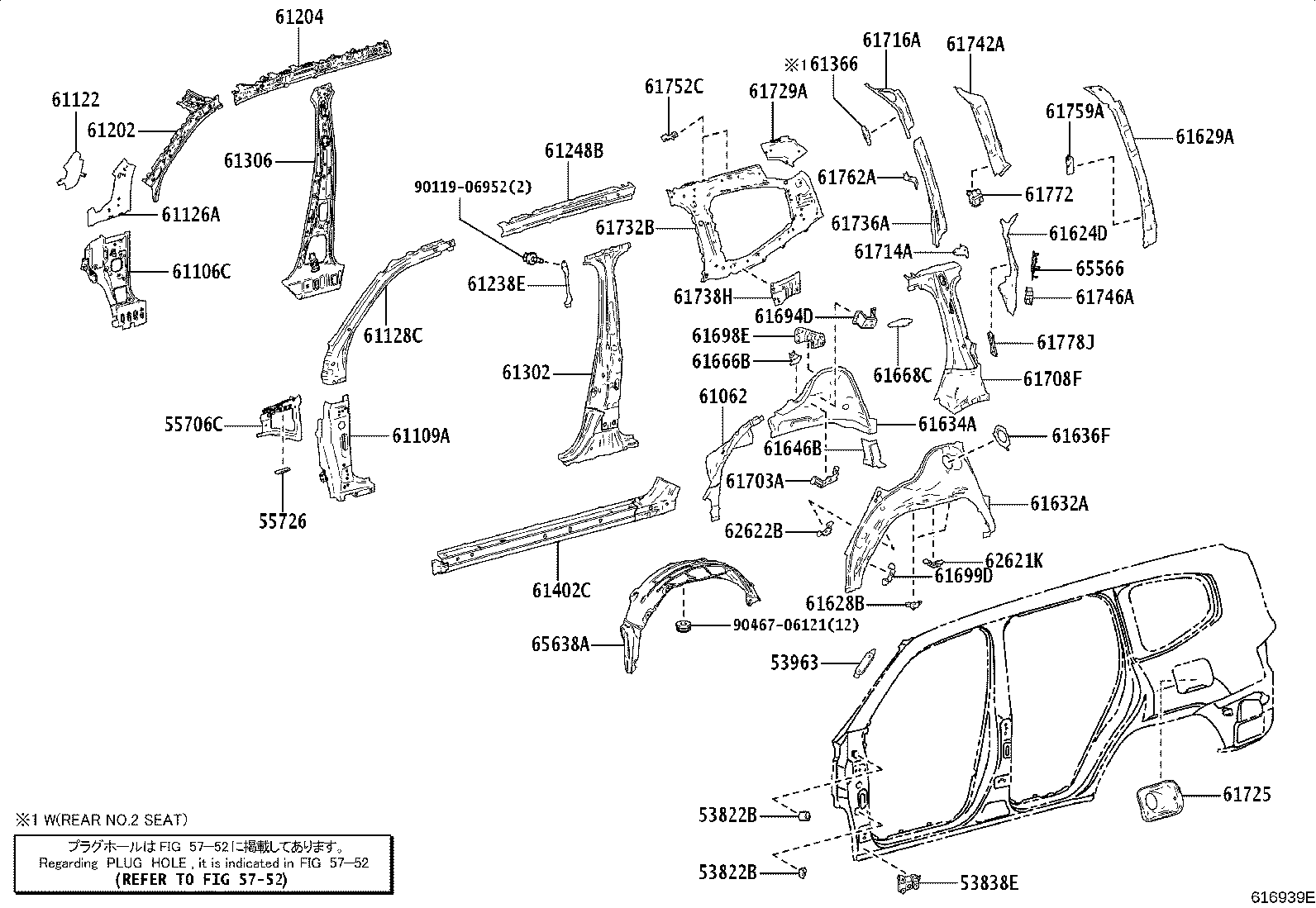

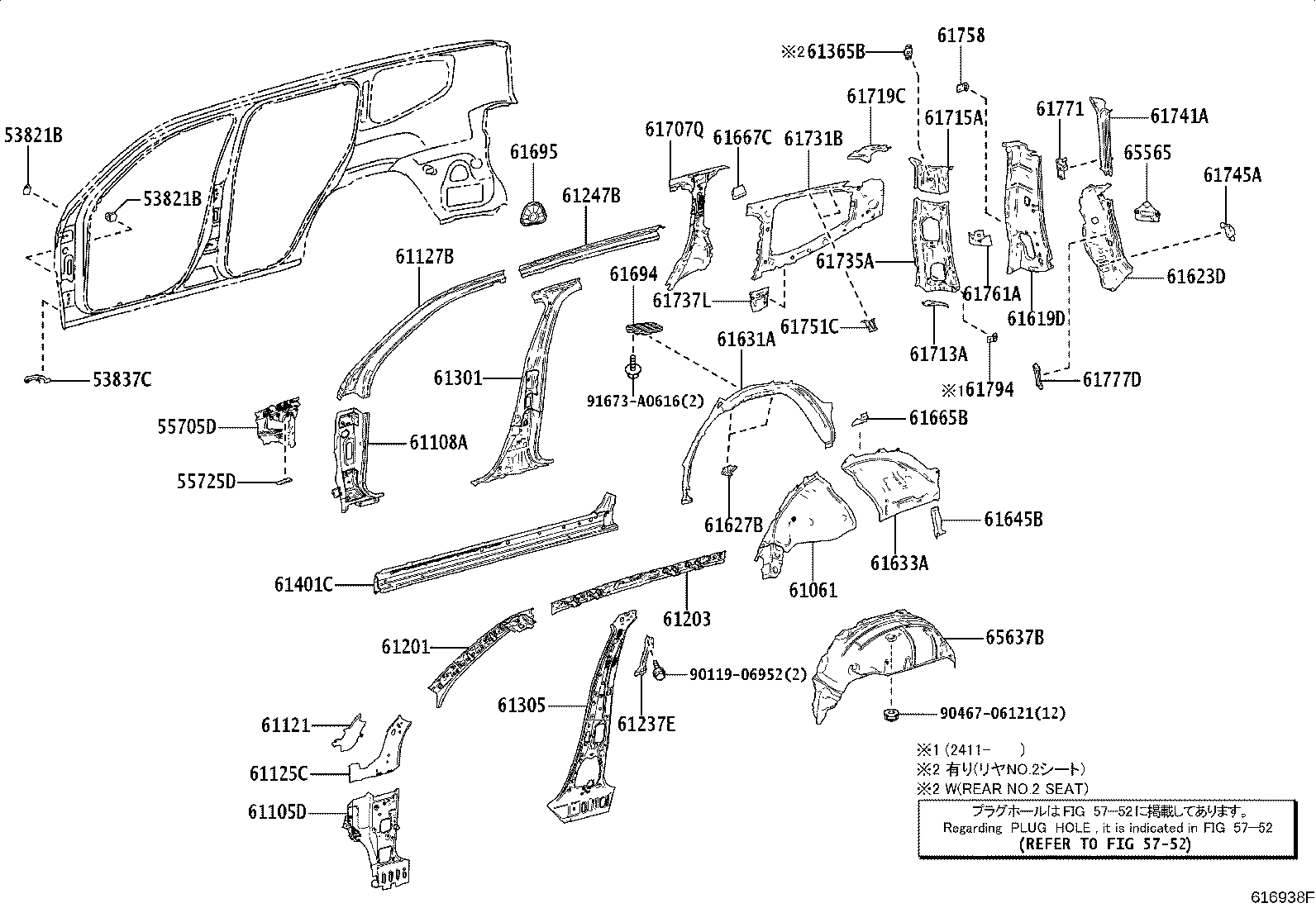

Side Member
104 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53821B | Bracket, Front Fender, Rear RH |
| 53822B | Bracket, Front Fender, Rear LH |
| 53837C | Bracket, Front Side Panel, NO.2 RH |
| 53838E | Bracket, Front Side Panel, NO.2 LH |
| 53963 | Retainer, Air Cleaner Inlet Pipe, NO.4 |
| 55705D | Panel Sub-assy, Cowl Top Side, RH, |
| 55706C | Panel Sub-assy, Cowl Top Side, LH |
| 55725D | Reinforcement, Hood Hinge Mounting, RH |
| 55726 | Reinforcement, Hood Hinge Mounting, LH |
| 61061 | Reinforcement Sub-assy, Wheel House, RH |
| 61062 | Reinforcement Sub-assy, Wheel House, LH |
| 61105D | Panel Sub-assy, Side, NO.3 RH |
| 61106C | Panel Sub-assy, Side, NO.3 LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61113A | Panel, Side, Outer NO.2 RH |
| 61114B | Panel, Side, Outer NO.2 LH |
| 61121 | Panel, Cowl Side, Outer RH |
| 61122 | Panel, Cowl Side, Outer LH |
| 61125C | Reinforcement, Cowl Side Panel, RH |
| 61126A | Reinforcement, Cowl Side Panel, LH |
| 61127B | Reinforcement, Cowl Side Panel, NO.2 RH |
| 61128C | Reinforcement, Cowl Side Panel, NO.2 LH |
| 61131C | Pillar, Front Body, Outer RH |
| 61132B | Pillar, Front Body, Outer LH |
| 61201 | Rail Sub-assy, Roof Side, RH |
| 61202 | Rail Sub-assy, Roof Side, LH |
| 61203 | Rail Sub-assy, Roof Side, Inner RH |
| 61204 | Rail Sub-assy, Roof Side, Inner LH |
| 61237E | Bracket, Assist Grip, NO.1 |
| 61238E | Bracket, Assist Grip, NO.2 |
| 61247B | Reinforcement, Roof Side Rail, Inner RH |
| 61248B | Reinforcement, Roof Side Rail, Inner LH |
| 61301 | Pillar Sub-assy, Center Body, RH |
| 61302 | Pillar Sub-assy, Center Body, LH |
| 61305 | Reinforce Sub-assy, Center Body Pillar, Lower RH |
| 61306 | Reinforce Sub-assy, Center Body Pillar, Lower LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61365B | Reinforce, Belt Anchor TO Center Pillar, NO.3 RH |
| 61366 | Reinforce, Belt Anchor TO Center Piller, NO.3 LH |
| 61401C | Panel Sub-assy, Rocker, Outer RH |
| 61402C | Panel Sub-assy, Rocker, Outer LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61619D | Reinforcement, Quarter Panel, RH |
| 61623D | Extension, Quarter Panel, Front RH |
| 61624D | Extension, Quarter Panel, Front LH |
| 61627B | Extension, Quarter Panel, Upper Rear RH |
| 61628B | Extension, Quarter Panel, Upper Rear LH |
| 61629A | Reinforcement, Quarter Panel, LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61636F | Reinforcement, Quarter Panel, Upr LH |
| 61645B | Gusset, Quarter Wheel House, Rear RH |
| 61646B | Gusset, Quarter Wheel House, Rear LH |
| 61665B | Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH |
| 61666B | Reinforce, Seat Belt Anchorage TO Quarter Wheel House, LH |
| 61667C | Seal, Qaurter Panel, NO.1 |
| 61668C | Seal, Quarter Panel, NO.2 |
| 61694 | Cover, Quarter Inner, NO.1 |
| 61694D | Bracket, Rear Wheel Opening, NO.2 |
| 61695 | Cover, Quarter Inner, NO.2 |
| 61698E | Bracket, Rear Wheel Opening, NO.6 |
| 61699D | Bracket, Rear Wheel |
| 61703A | Bracket,Fuel Tank Fillter Pipe Protector |
| 61707Q | Plate Sub-assy, Quarter Window Lock Gusset, RH |
| 61708F | Plate Sub-assy, Quarter Window Lock Gusset, LH |
| 61713A | Extension, Roof Side, Outer RH |
| 61714A | Extension, Roof Side, Outer LH |
| 61715A | Extension, Roof Side, Inner Upper RH |
| 61716A | Extension, Roof Side, Inner Upper LH |
| 61719C | Bracket, Roof Side Rail, RH |
| 61725 | Box, Fuel Inlet |
| 61729A | Bracket, Roof Side Rail, LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61737L | Reinforcement, Roof Side, Inner RH |
| 61738H | Reinforcement, Roof Side, Inner LH |
| 61741A | Reinforcement, Back Door Opening, Upper RH |
| 61742A | Reinforcement, Back Door Opening, Upper LH |
| 61745A | Reinforcement, Back Door Opening, Lower RH |
| 61746A | Reinforcement, Back Door Opening, Lower LH |
| 61751C | Retainer, Quarter Trim, Upper RH |
| 61752C | Retainer, Quarter Trim, Upper LH |
| 61758 | Retainer, Back Door Stopper, Lower |
| 61759A | Bracket, Roof Side Reinforcement |
| 61761A | Reinforce, Seat Belt Anchor, NO.1 Upper RH |
| 61762A | Reinforce, Seat Belt Anchor, NO.1 Upper LH |
| 61771 | Patch, Back Door Opening, Upper RH |
| 61772 | Patch, Back Door Opening, Upper LH |
| 61777D | Retainer, Back Door Side Stopper, RH |
| 61778J | Retainer, Back Door Side Stopper, LH |
| 61794 | Bracket, Radio Speaker, NO.1 |
| 62621K | Pad, Quarter Wheel House, Inner |
| 62622B | Pad, Quarter Wheel House, Inner Front LH |
| 65565 | Patch, Side Panel Rear End, RH |
| 65566 | Patch, Side Panel Rear End, LH |
| 65637B | Liner, Rear Wheel House, RH |
| 65638A | Liner, Rear Wheel House, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
