Toyota Land Cruiser
2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe
Supported model
Data version 2024-11

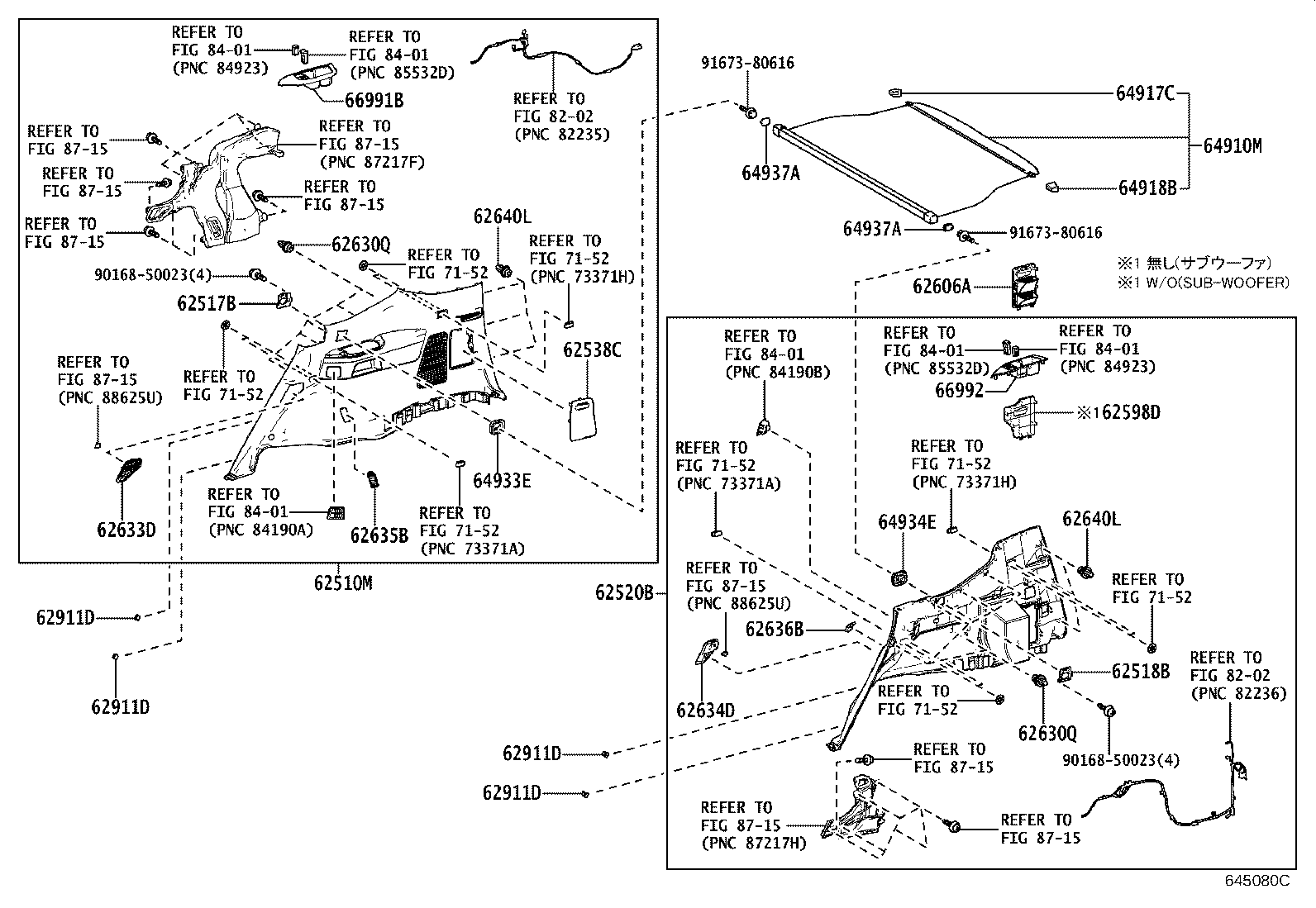

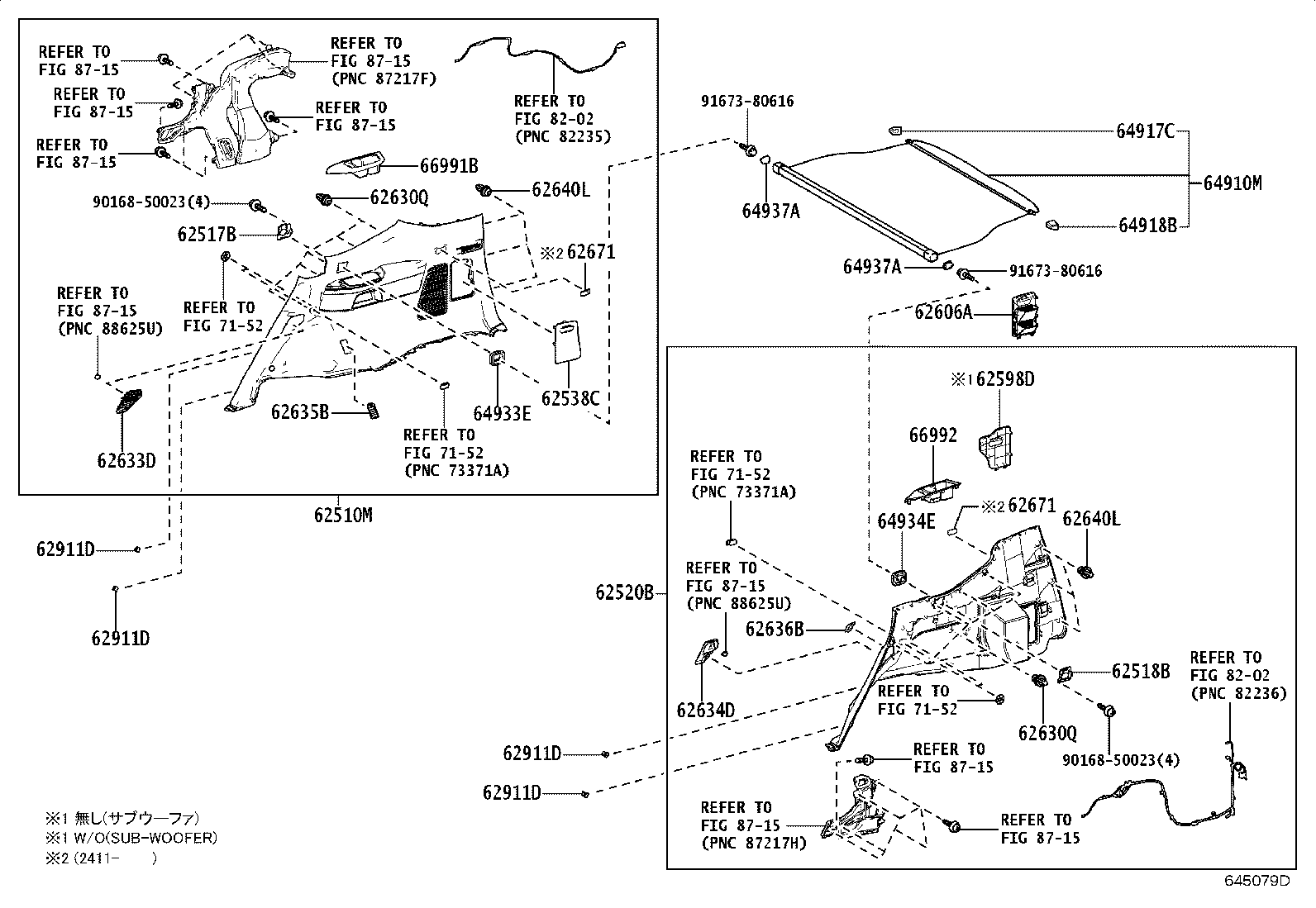

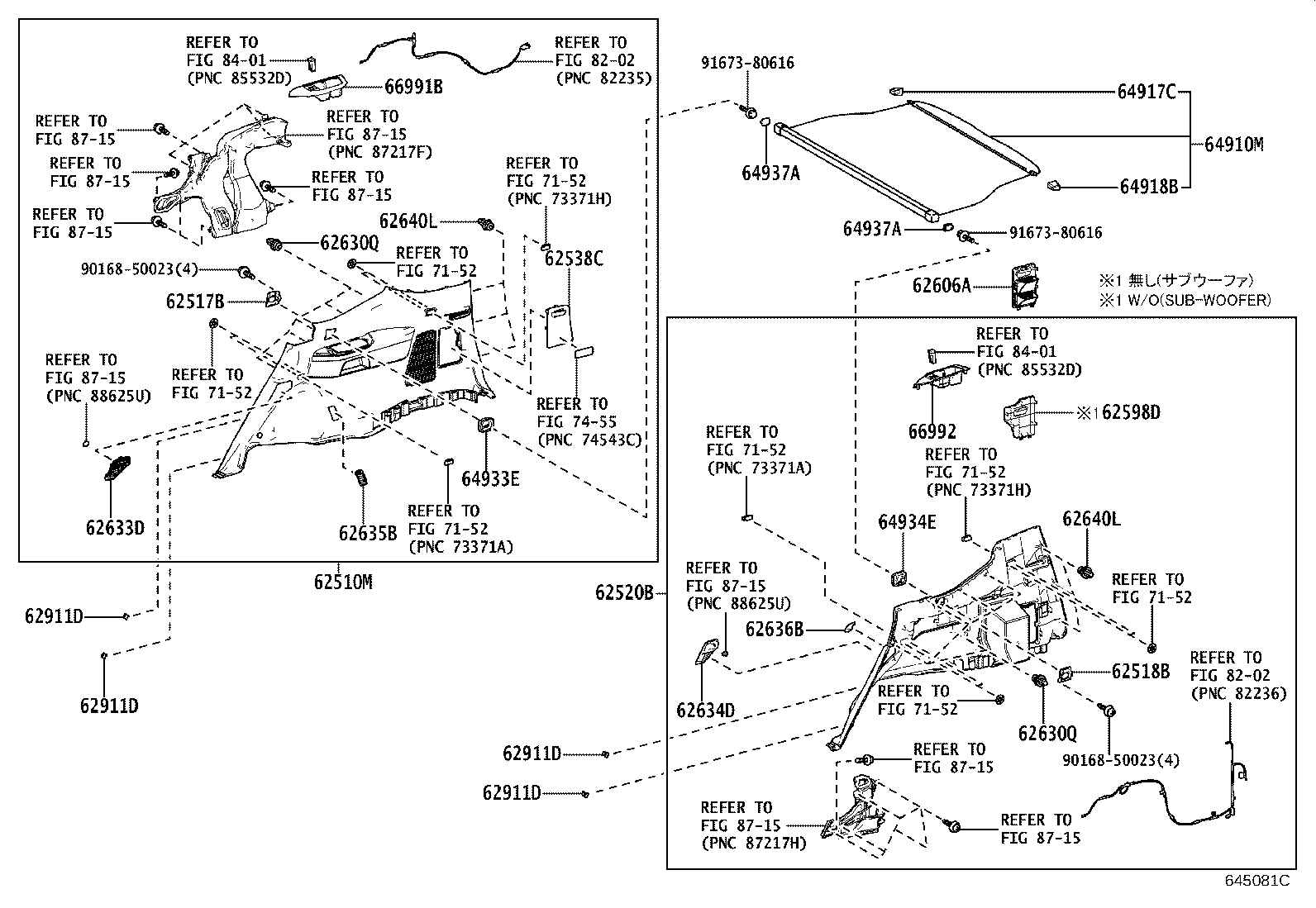

Inside Trim Board
61 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62170C | Clip, Curtain Shield Airbag |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62211U | Garnish Assy, Front Pillar, RH |
| 62212B | Garnish Assy, Front Pillar, LH |
| 62217H | Clip, Center Piller Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411F | Clip, Center Pillar Garnish, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62412E | Clip, Center Pillar Garnish, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430A | Clip, Roof Side Rail Garnish |
| 62431B | Garnish, Roof Side Rail, NO.1 RH |
| 62432B | Garnish, Roof Side Rail, NO.1 LH |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471G | Clip, Roof Side Inner Garnish |
| 62472A | Garnish, Roof Side, Inner LH |
| 62510M | Panel Assy, Quarter Trim, RH |
| 62517B | Base, Quarter Trim, Front RH |
| 62518B | Base, Quarter Trim, Front LH |
| 62520B | Panel Assy, Quarter Trim, LH |
| 62538C | Cover, Quarter Trim, Hole |
| 62566B | Clamp, Rocker Panel Inner Protecter, NO.1 |
| 62581E | Garnish, Quarter Pillar, RH |
| 62582E | Garnish, Quarter Pillar, LH |
| 62598D | Cover, Side Trim Box |
| 62606A | Lid Sub-assy, Quarter Trim, LH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62633D | Cover, Quarter Trim Base, Front RH |
| 62634D | Cover, Quarter Trim Base, Front LH |
| 62635B | Cover, Quarter Trim Base, Rear RH |
| 62636B | Cover, Quarter Trim Base, Rear LH |
| 62638B | Clip |
| 62640L | Clip(FOR QUARTER TRIM) |
| 62671 | Board Sub-assy, Quarter Trim, Lower |
| 62911D | Hook, Side Window Lock |
| 64910M | Cover Assy, Tonneau |
| 64917C | Cap, Tonneau Cover Hinge End, Rear RH |
| 64918B | Cap, Tonneau Cover Hinge End, Rear LH |
| 64933E | Bracket, Tonneau Cover Holder, Front RH |
| 64934E | Bracket, Tonneau Cover Holder, Front LH |
| 64937A | Cap, Tonneau Cover Holder, NO.1 |
| 66991B | Holder, Cup, NO.1 |
| 66992 | Holder, Cup, NO.2 |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918D | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
