Toyota Land Cruiser
2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe
Supported model
Data version 2024-11

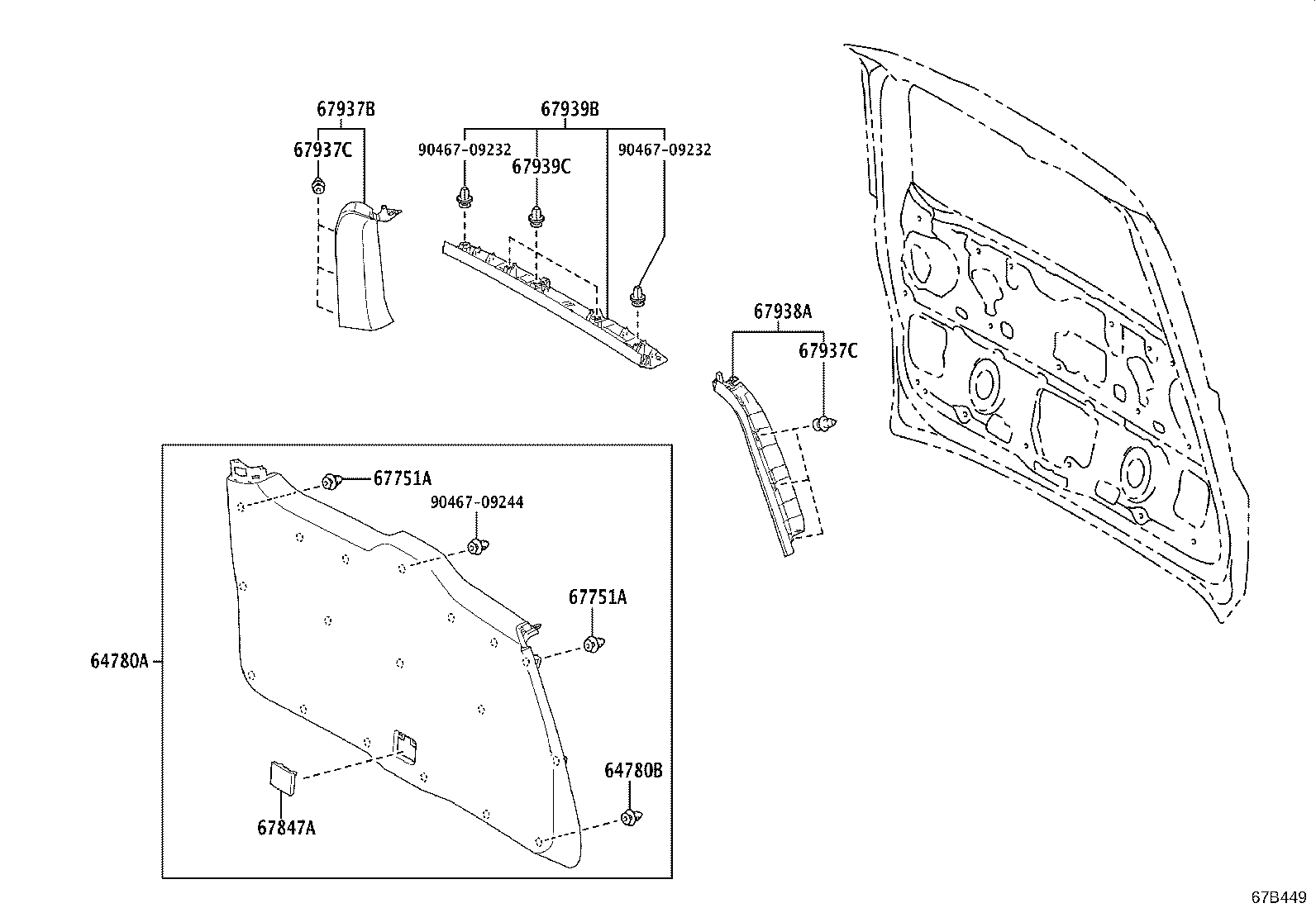

Back Door Panel & Glass
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64780A | Panel Assy, Back Door Trim |
| 64780B | Clip(FOR BACK DOOR TRIM PANEL) |
| 64785A | Base, Back Door Trim |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819C | Spacer, Back Door Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 64885C | Channel, Back Door Glass, RH |
| 64886B | Channel, Back Door Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67837L | Seal, Door Dust Proof |
| 67847A | Cover, Back Door Service Hole |
| 67868G | Retainer, Door Weatherstrip |
| 67881A | Weatherstrip, Back Door |
| 67882C | Weatherstrip, Back Door, NO.2 |
| 67883E | Weatherstrip, Back Door, NO.3 |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68294B | Dam, Back Door Glass Adhesive |
| 74811G | Handle, Door Pull |
| 75573C | Moulding, Back Window, Outside |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76839C | Cover, Back Door Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
