Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

22 part groups · 2 illustrations

Illustrations

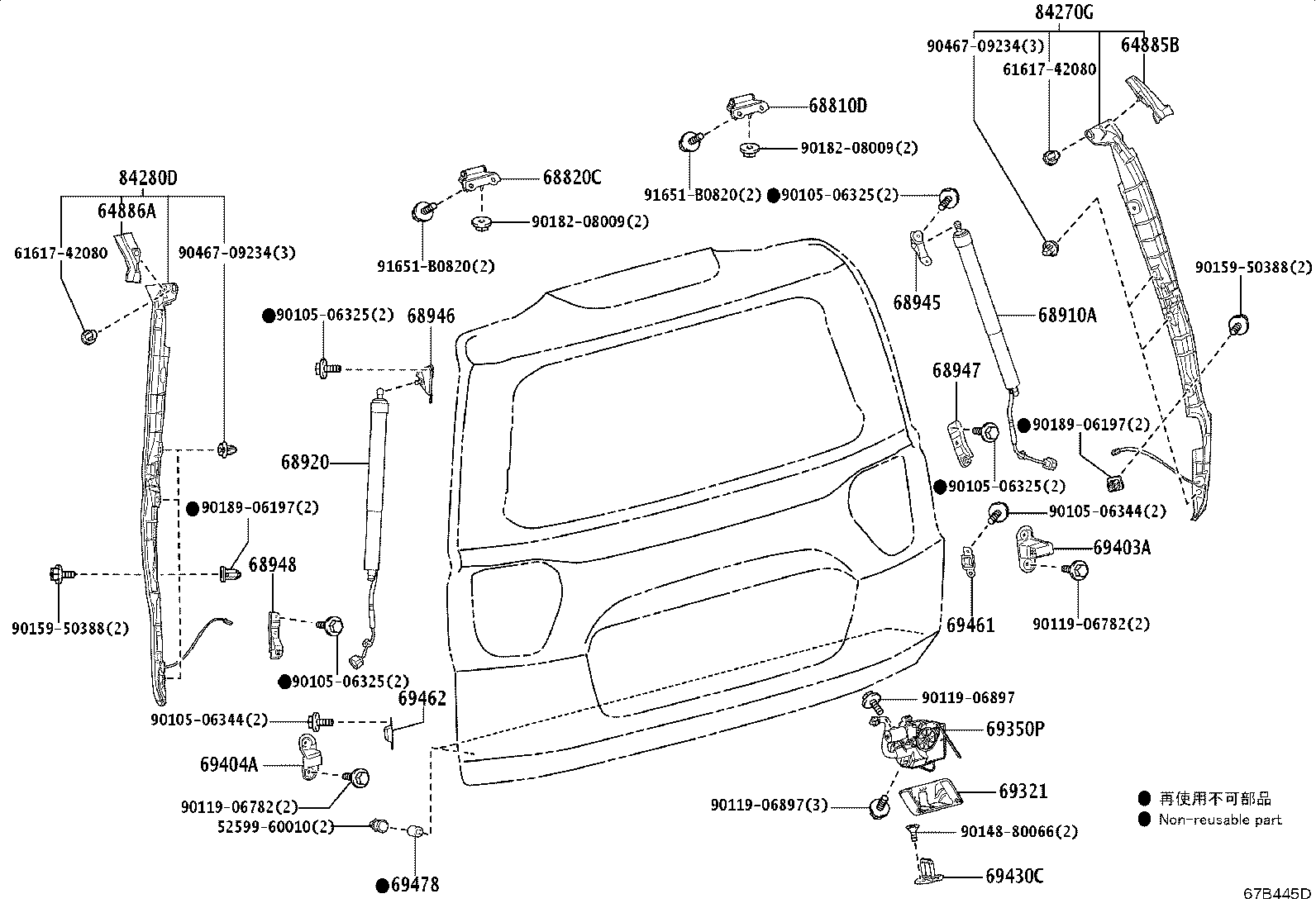

Figure 67B837B 67B837B 2021-04 → — Figure 67B445D 67B445D 2021-04 → —

Part groups

PNCDescription
64885B Channel, Back Window Glass, RH
64886A Channel, Back Window Glass, LH
68810D Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68910A Unit Assy Set, Power Back Door, RH
68920 Unit Assy Set, Power Back Door, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960C Stay Set, Back Door, LH
69321 Cover, Back Door Lock
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69403A Stopper Sub-assy, Back Door Side Female, RH
69404A Stopper Sub-assy, Back Door Side Female, LH
69430C Striker Assy, Back Door Lock
69461 Stopper, Back Door Side Male, RH
69462 Stopper, Back Door Side Male, LH
69478 Cushion, Back Door Lower Stopper
84270G Sensor Assy, Power Back Door, RH
84280D Sensor Assy, Power Back Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
