Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

16 part groups · 2 illustrations

Illustrations

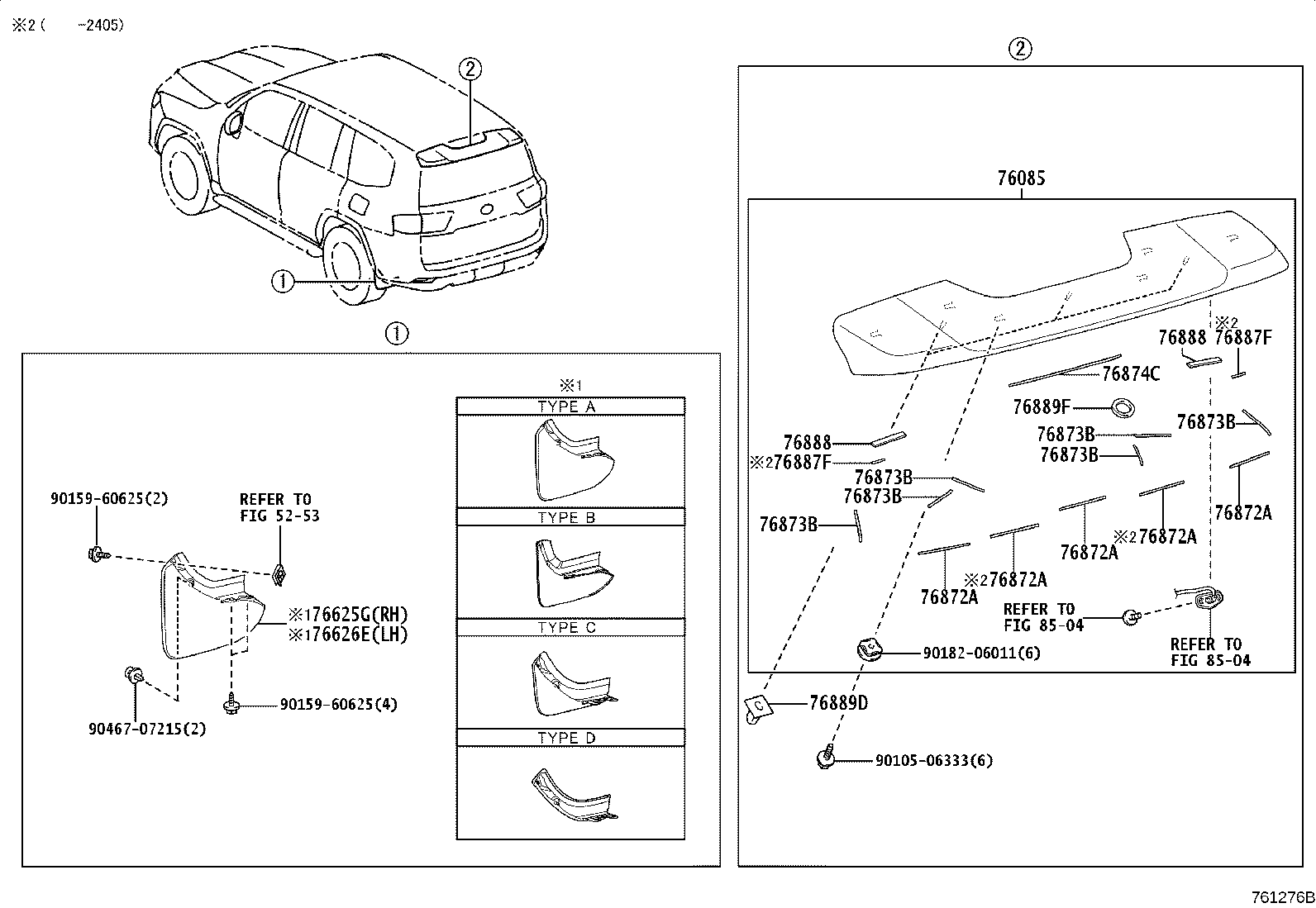

Figure 761272A 761272A 2021-04 → — Figure 761276B 761276B 2021-04 → —

Part groups

PNCDescription
53885J Shield, Front Fender Splash, Rear RH
53886J Shield, Front Fender Splash, Rear LH
61478B Bracket, Mudguard, Front RH
61488B Bracket, Mudguard, Front LH
76085 Spoiler Sub-assy, Rear
76621D Mudguard, Front Fender, RH
76622D Mudguard, Front Fender, LH
76625G Mudguard, Quarter Panel, Rear RH
76626E Mudguard, Quarter Panel, Rear LH
76872A Protector, Rear Spoiler, NO.1
76873B Protector, Rear Spoiler, NO.2
76874C Protector, Rear Spoiler, NO.3
76887F Seal, Rear Spoiler, NO.2
76888 Protector, Rear Spoiler Side, NO.3
76889D Clip, Rear Spoiler, NO.2
76889F Seal, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
