Toyota Land Cruiser
2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe
Supported model
Data version 2024-11
Fuel Tank & Tube
106 part groups · 12 illustrations

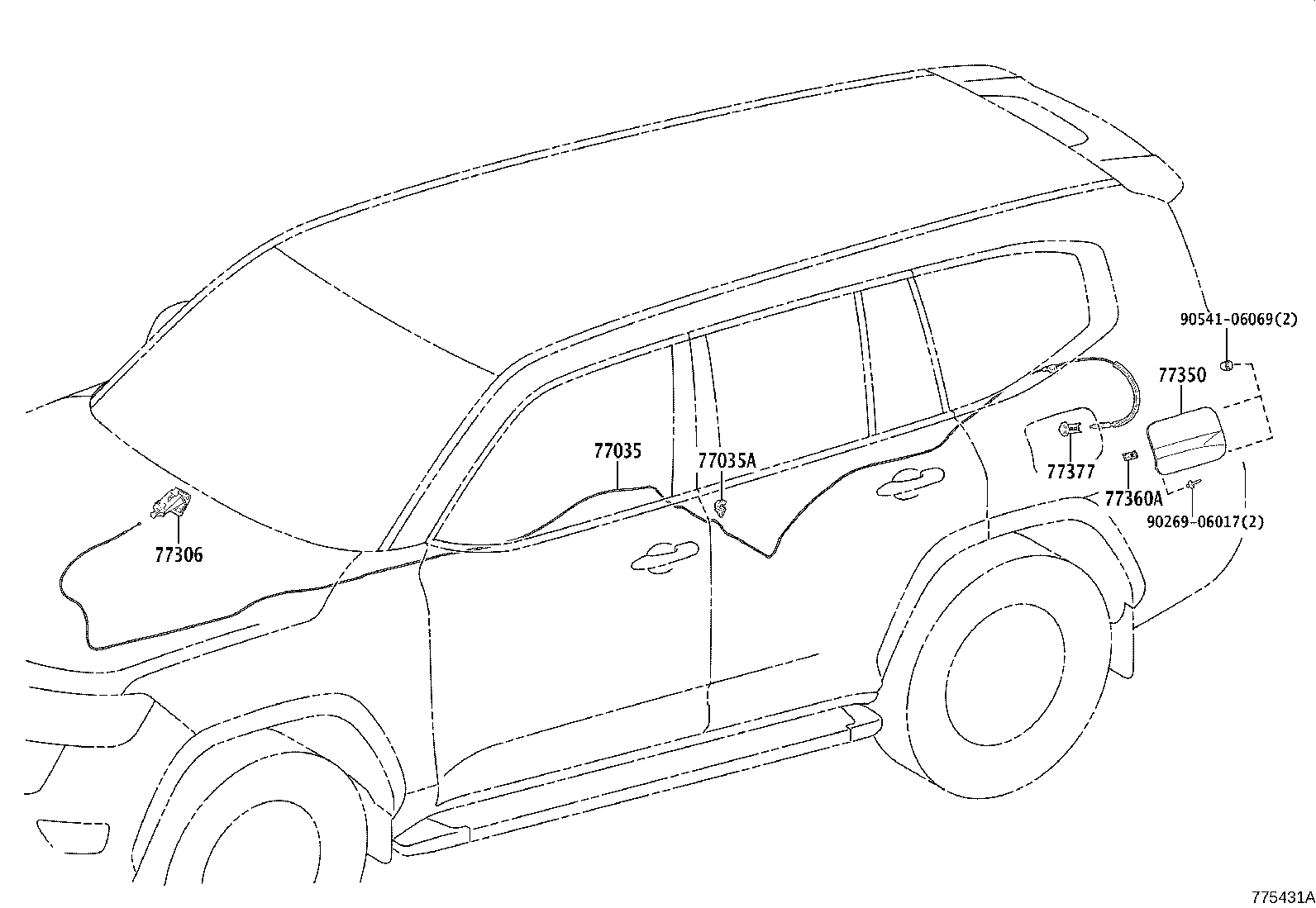

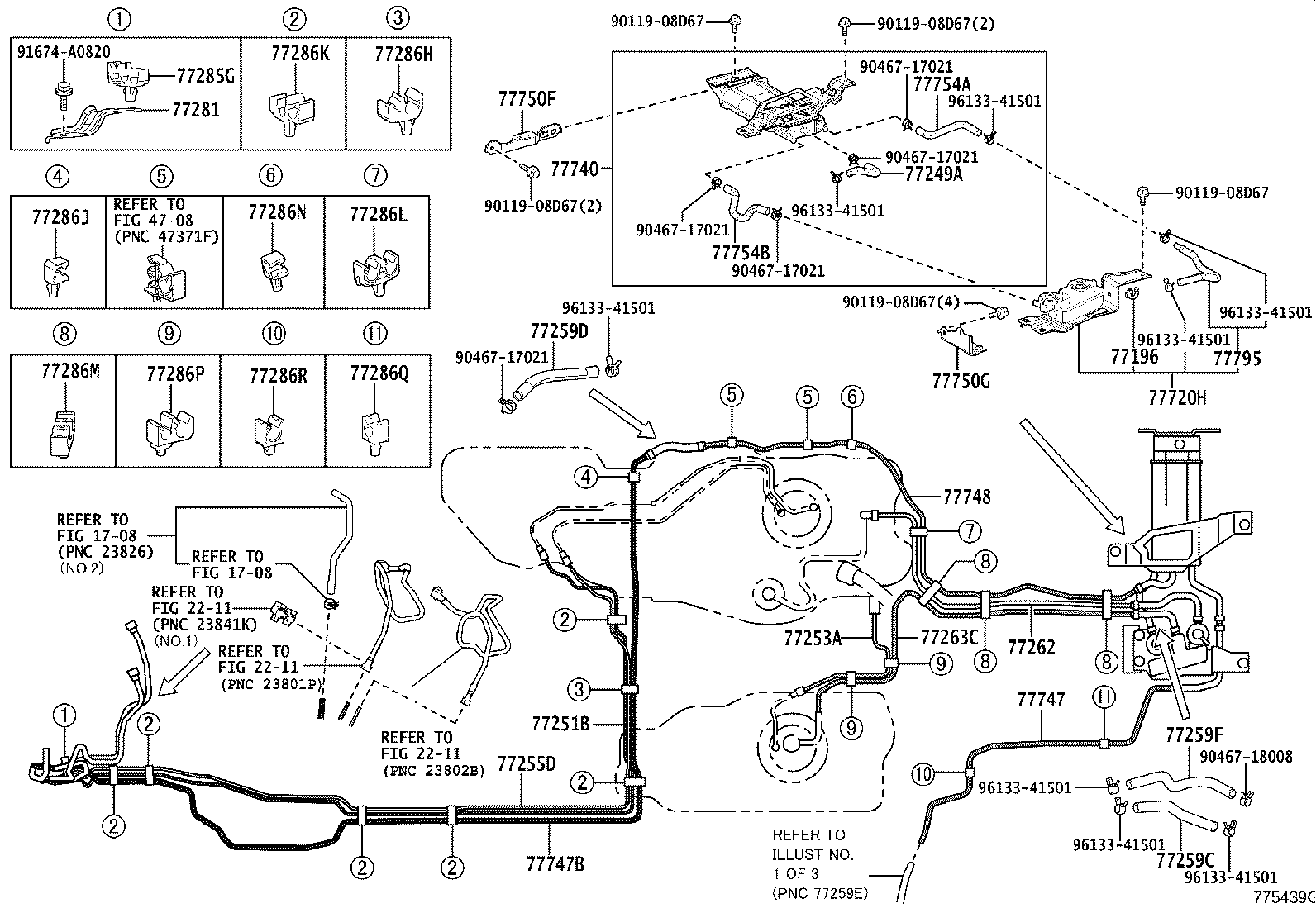

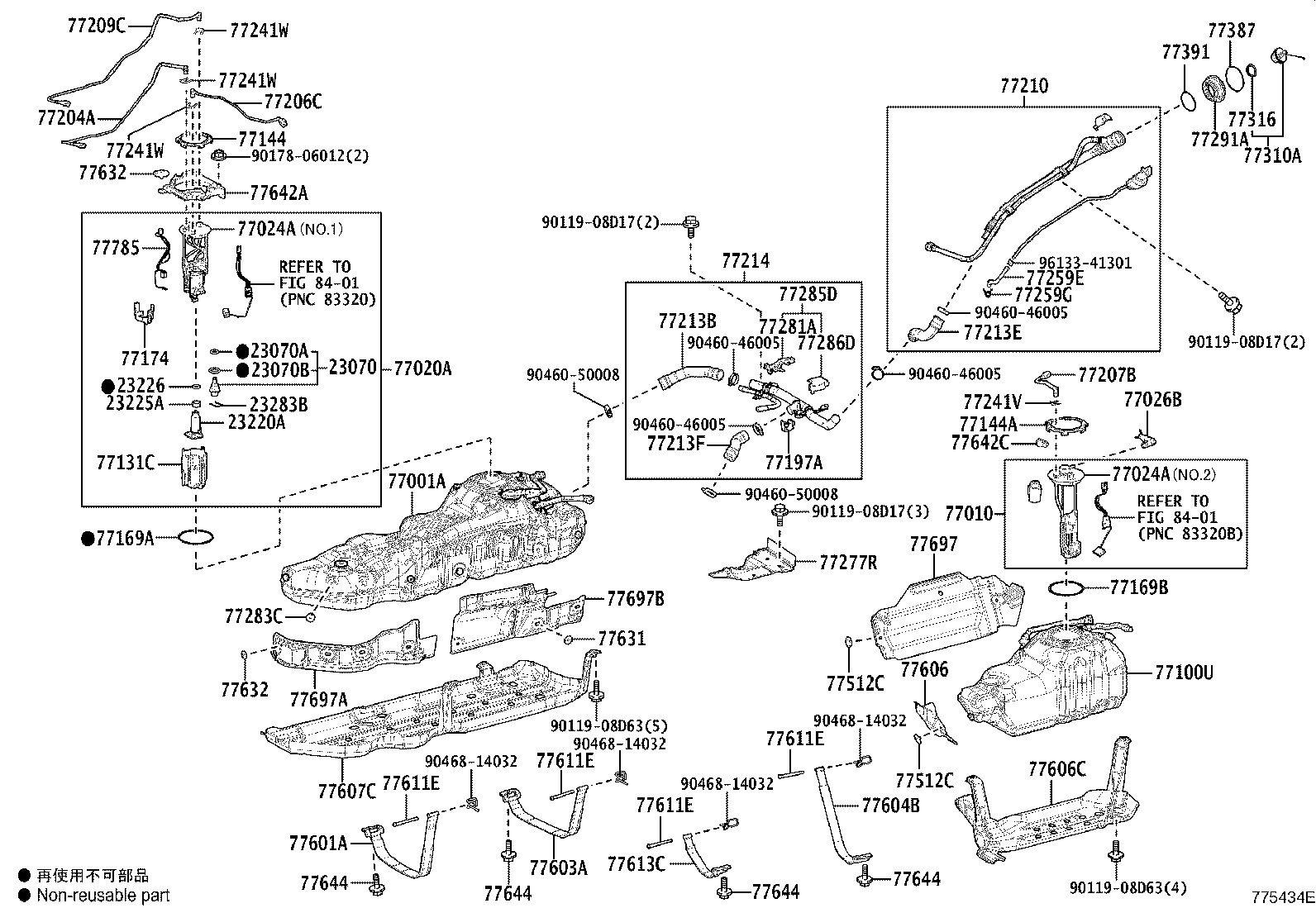

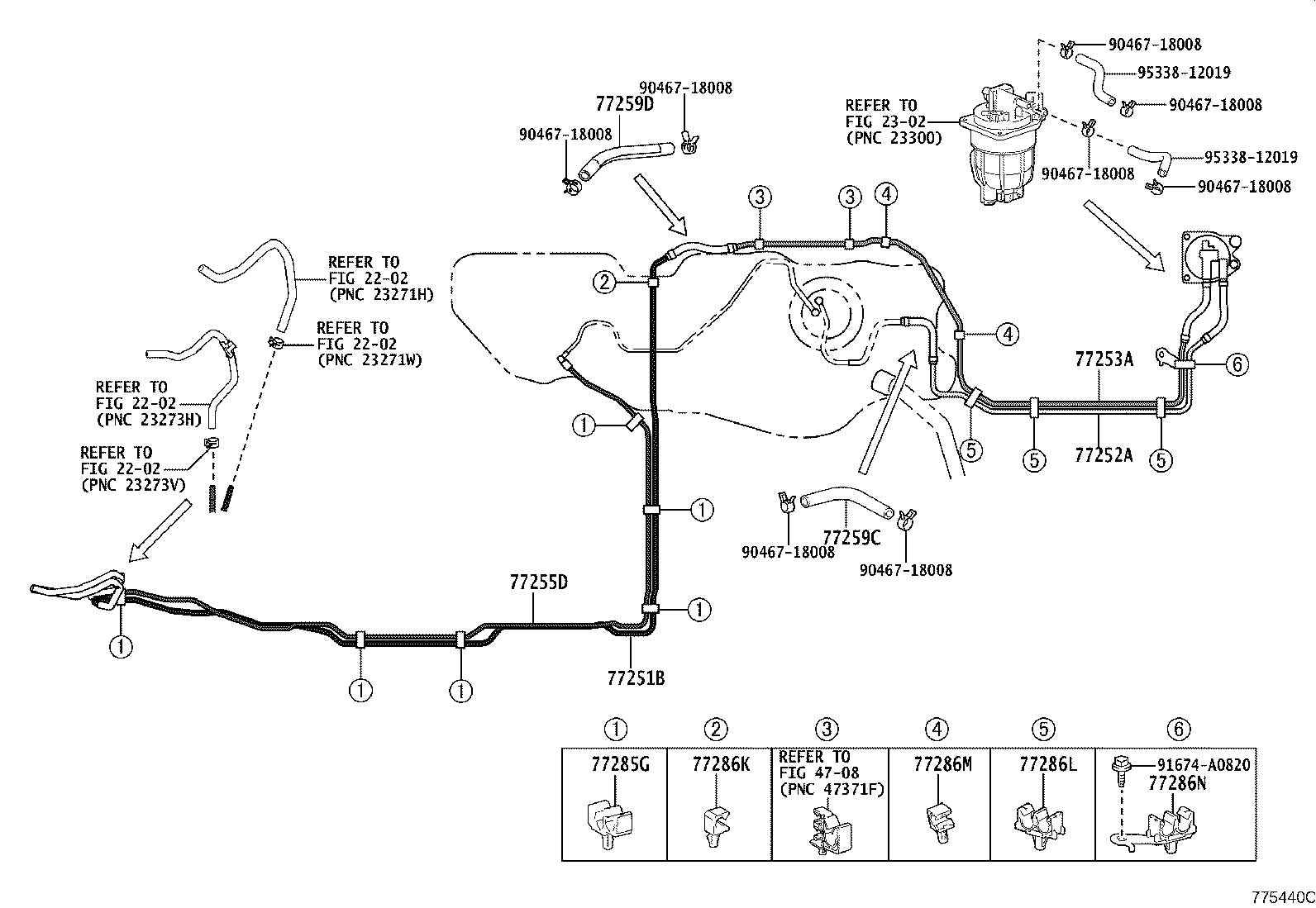

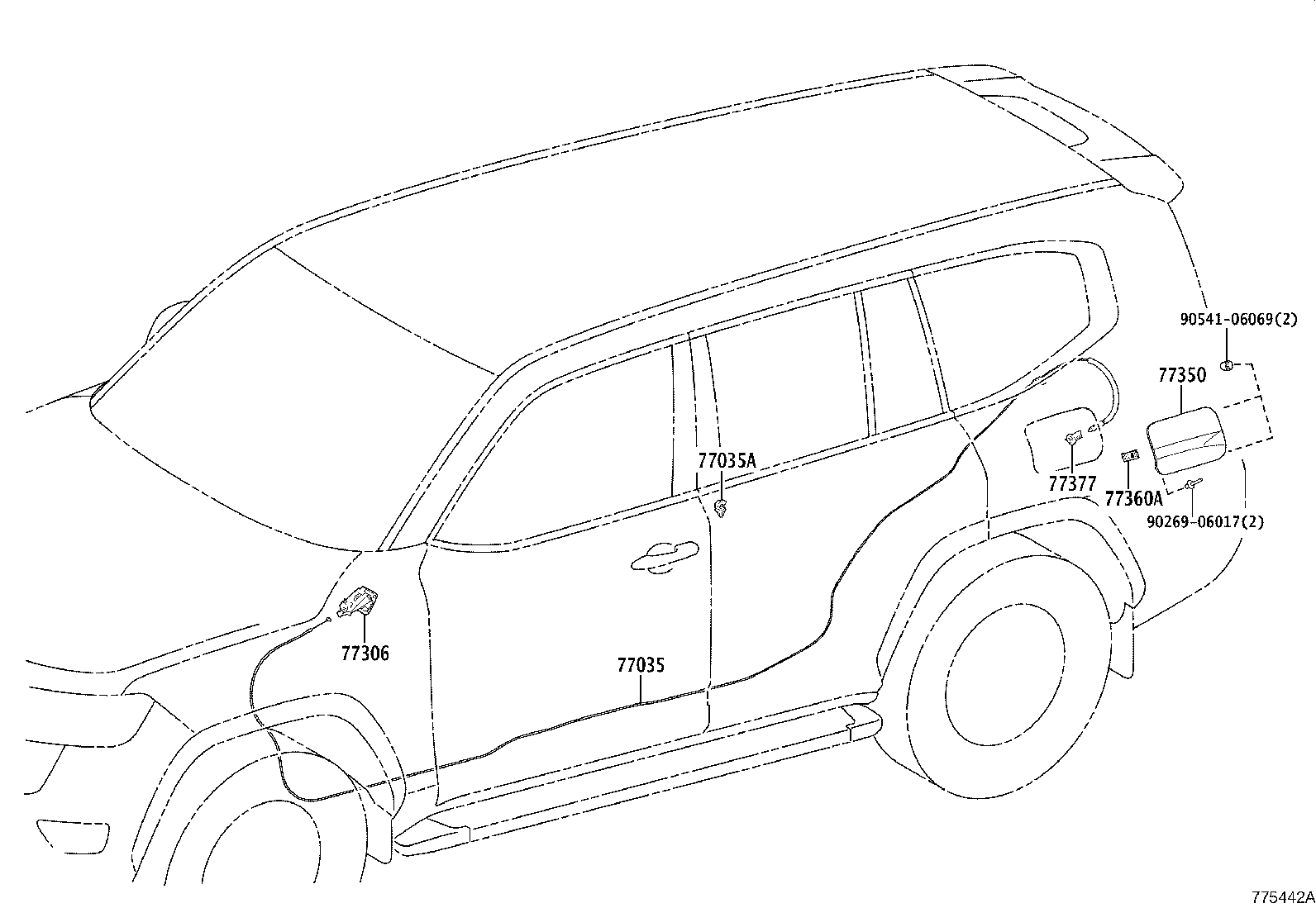

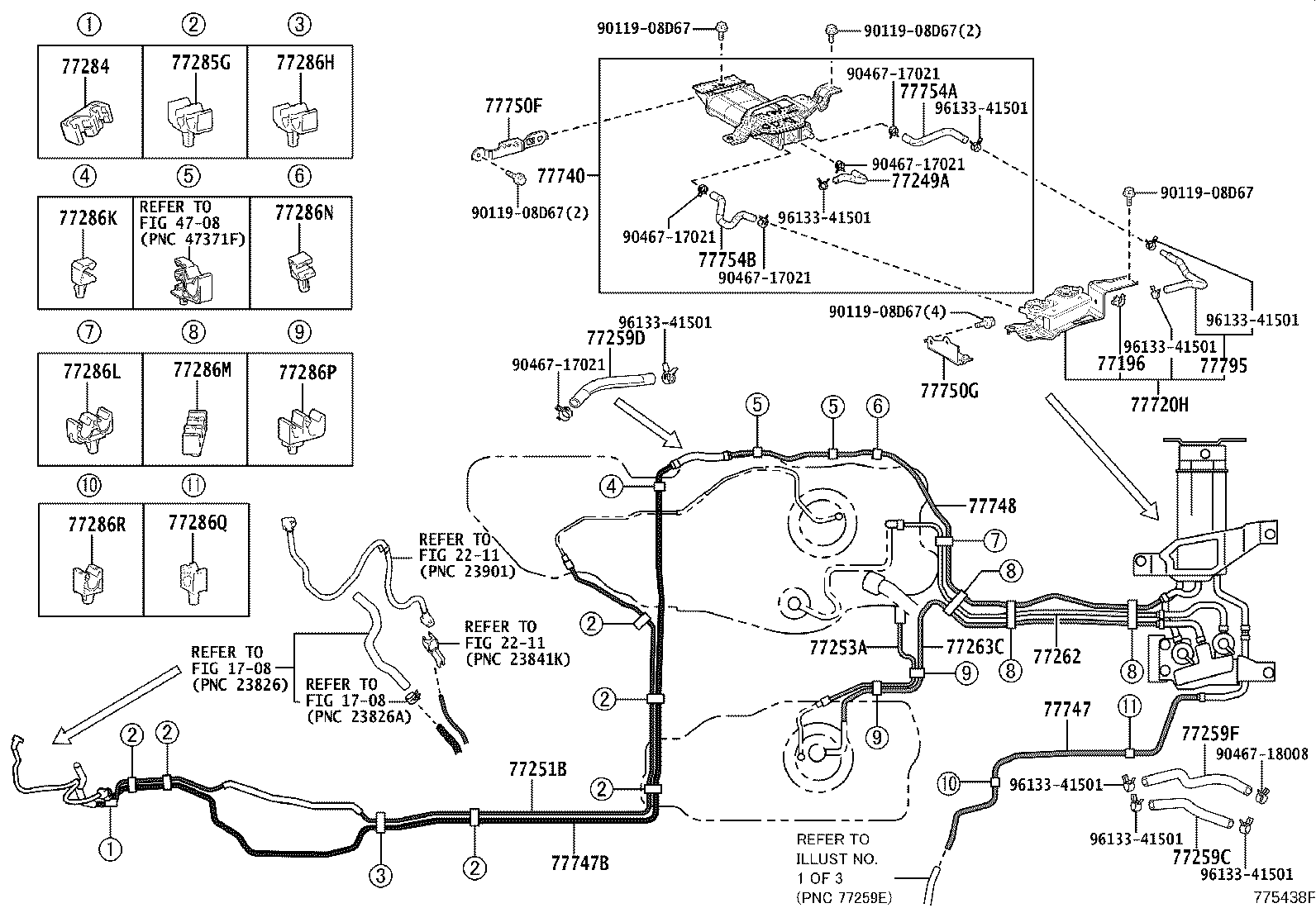

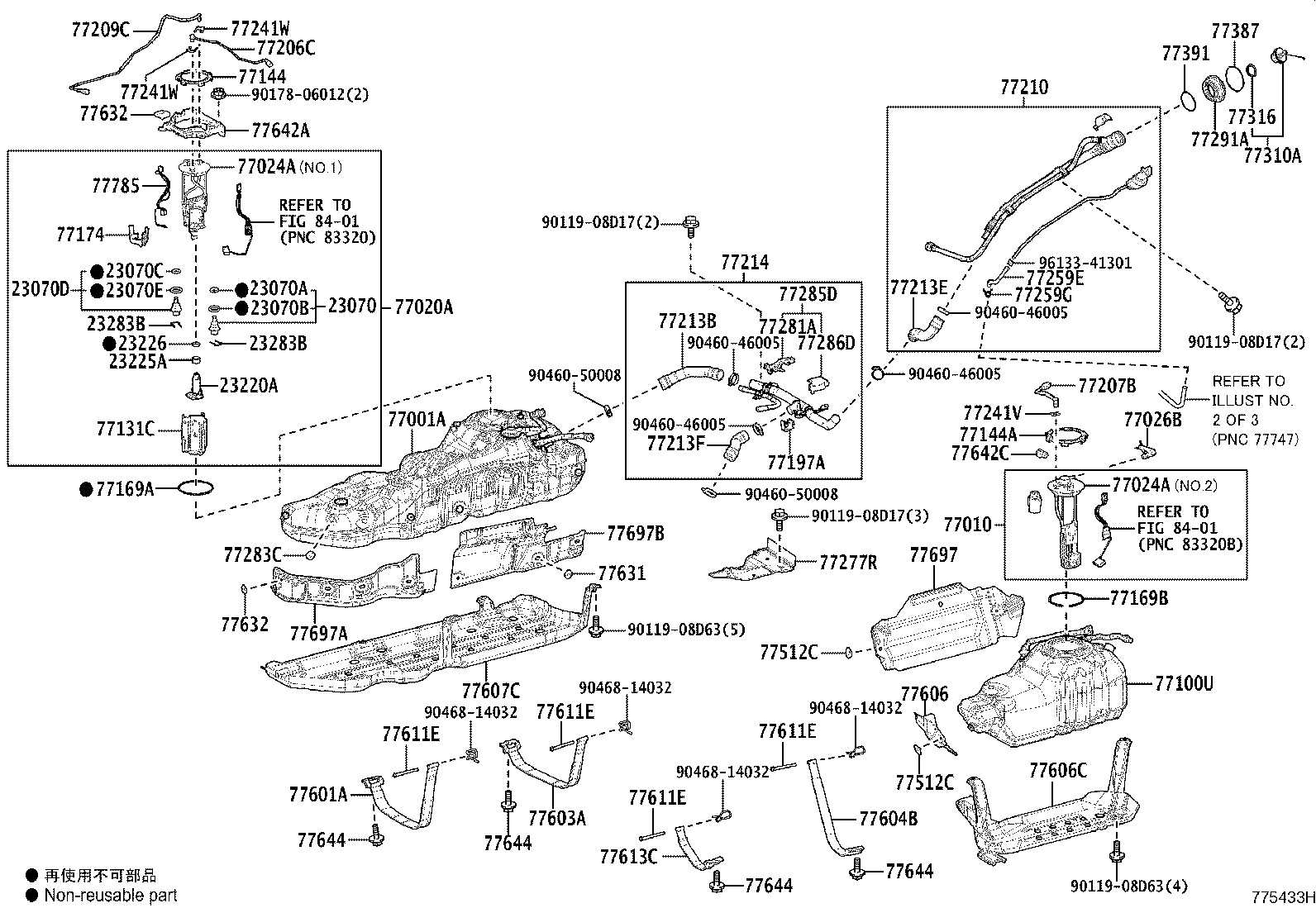

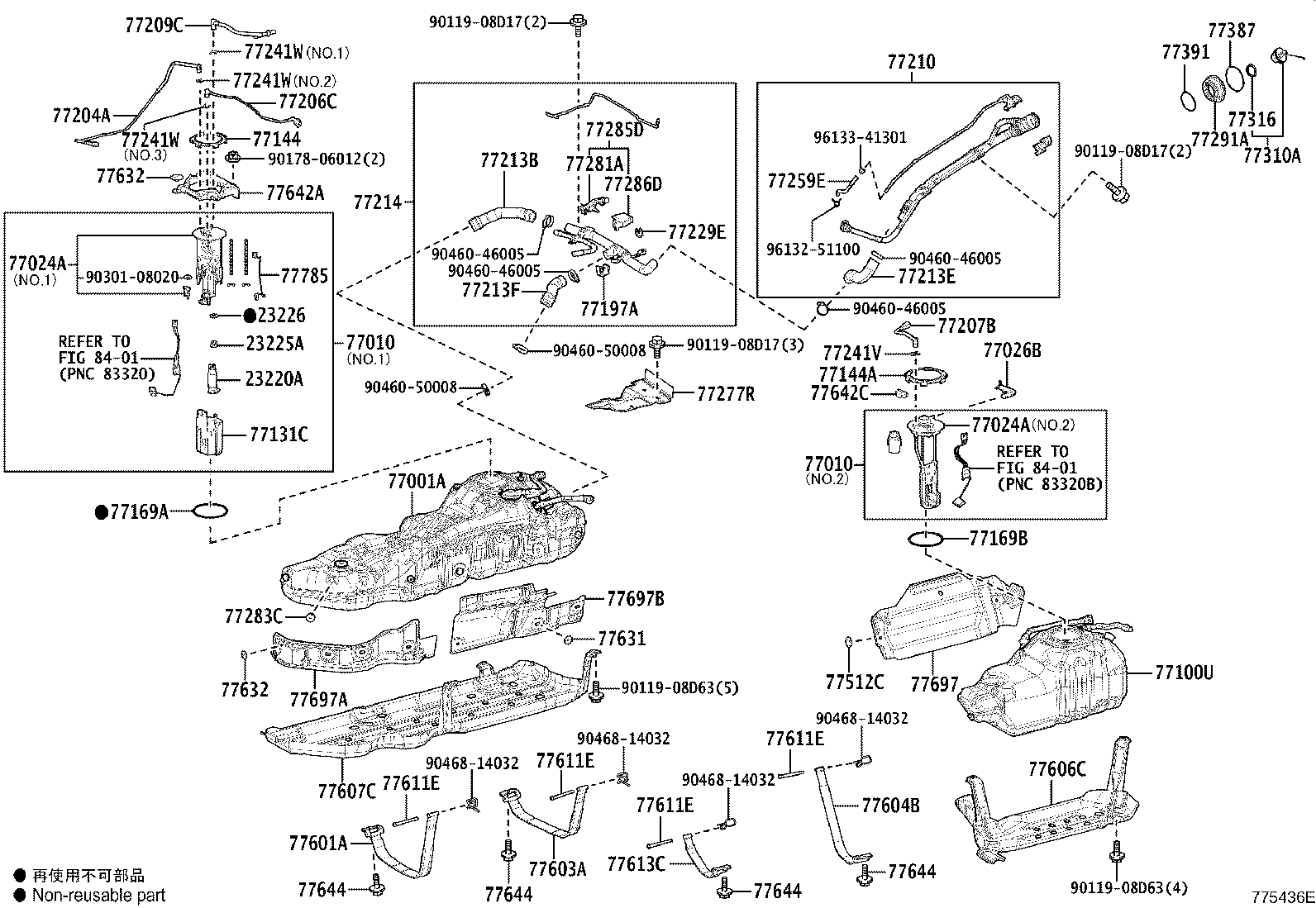

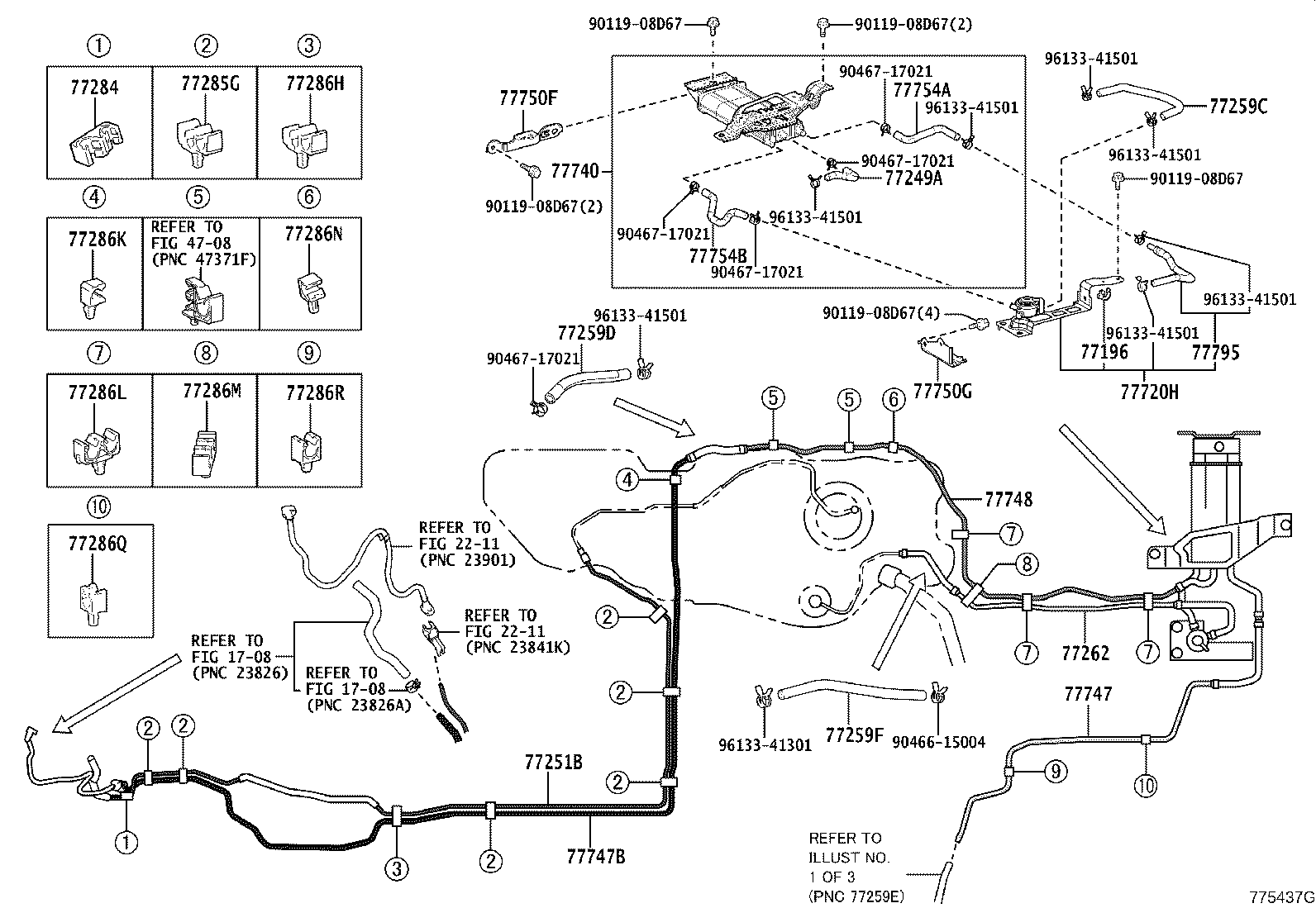

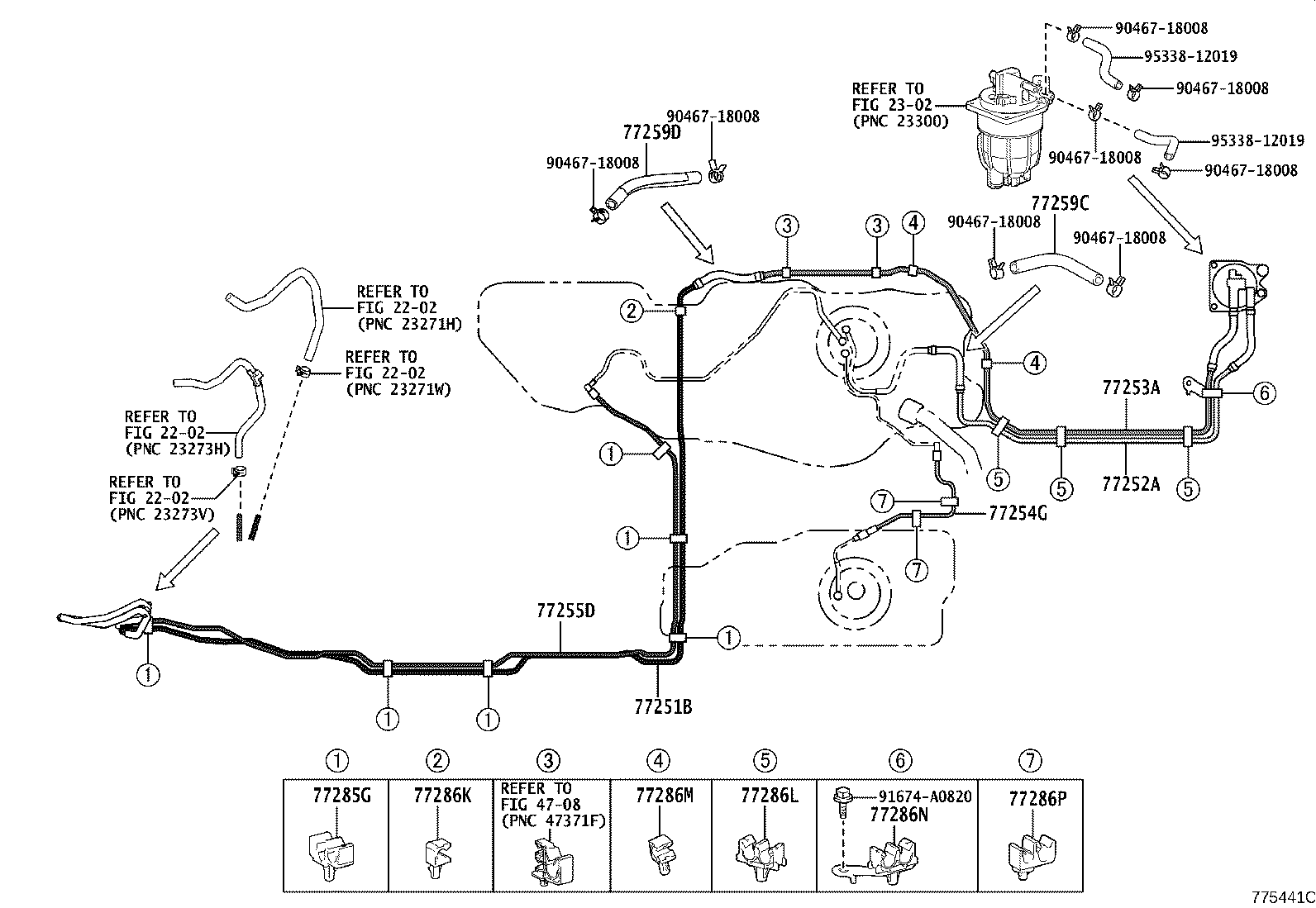

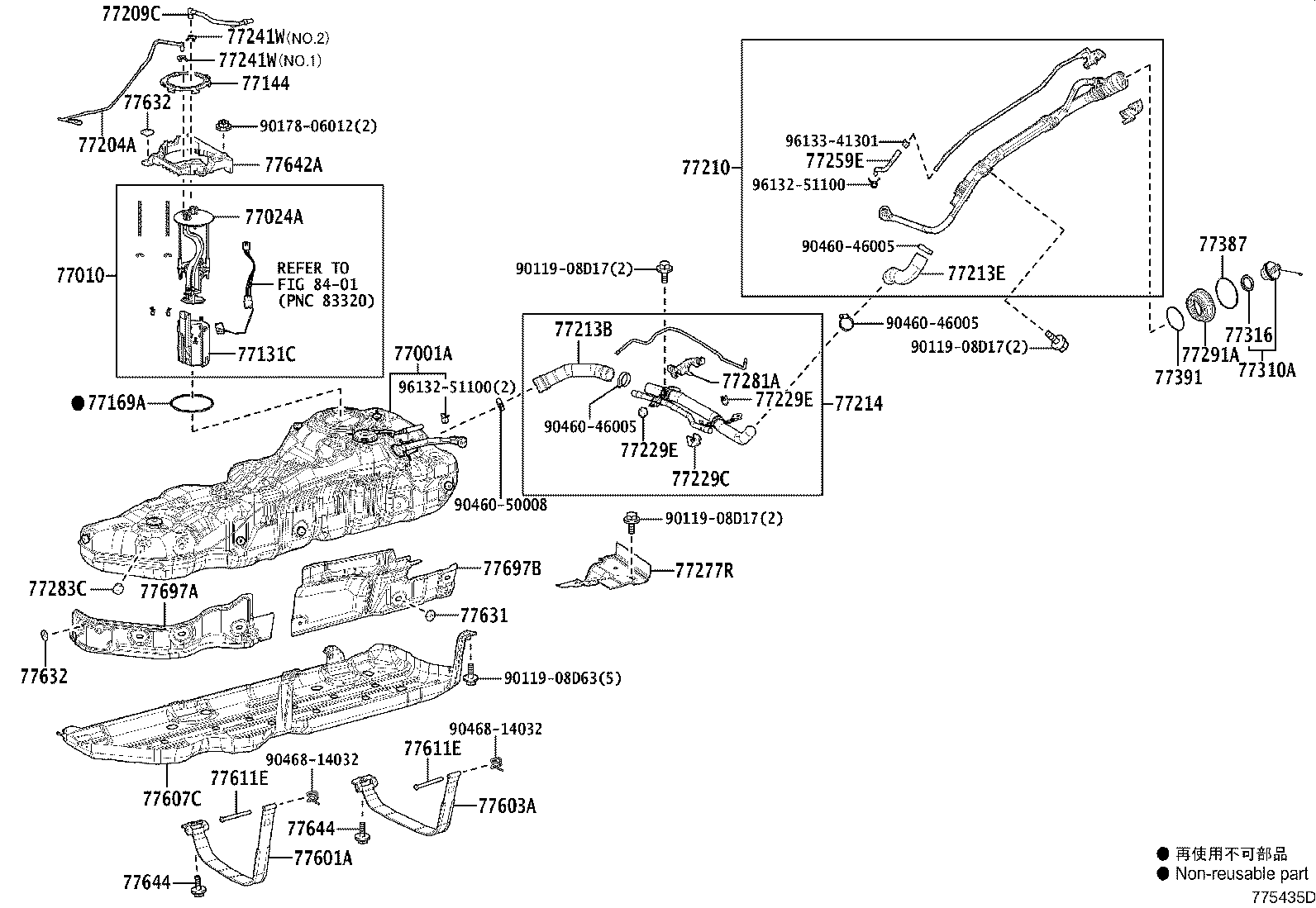

Illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23070A | Ring, O, NO.1(FOR FUEL MAIN VALVE) |
| 23070B | Ring, O, NO.2(FOR FUEL MAIN VALVE) |
| 23070C | Ring, O, NO.3(FOR FUEL MAIN VALVE) |
| 23070D | Valve Assy, Fuel Main, NO.2 |
| 23070E | Ring, O, NO.4(FOR FUEL MAIN VALVE) |
| 23220A | Pump Assy, Fuel W/Filter |
| 23225A | Spacer, Fuel Pump |
| 23226 | Ring, O(FOR FUEL PUMP) |
| 23283B | Holder, Fuel Pressure Regulator |
| 77001A | Tank Sub-assy, Fuel |
| 77010 | Tube Assy, Fuel Tank Vent |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77026B | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77100U | Tank Sub-assy, Fuel |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77144 | Retainer, Fuel Pump Gauge |
| 77144A | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77169B | Gasket, Fuel Suction Tube Set, NO.1 |
| 77174 | Support, Fuel Suction, NO.1 |
| 77196 | Clamp, Evaporation Vent Tube, NO.1 |
| 77197A | Clamp, Evaporation Vent Tube, NO.2 |
| 77204A | Tube, Fuel Tank Return |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77207B | Tube Sub-assy, Fuel Main, NO.3 |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77210 | Pipe Assy, Fuel Tank Filler |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77213F | Hose, Fuel Tank TO Filler Pipe |
| 77214 | Pipe, Fuel Tank Filler |
| 77229C | Clamp, Breather Tube |
| 77229E | Clamp, Breather Tube |
| 77241V | Clip, Tube Joint |
| 77241W | Clip, Tube Joint |
| 77249A | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77252A | Tube, Fuel Main, NO.2 |
| 77253A | Tube, Fuel Main, NO.3 |
| 77254G | Tube, Fuel Main, NO.4 |
| 77255D | Tube, Fuel Return |
| 77259C | Hose, Fuel |
| 77259D | Hose, Fuel, NO.1 |
| 77259E | Hose, Fuel |
| 77259F | Hose, Fuel |
| 77259G | Clip, Fuel Hose |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77263C | Tube, Fuel Emission, NO.3 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77283C | Bracket, Fuel Tank Protector |
| 77284 | Clamp, Fuel Tube |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77286N | Clamp, Fuel Tube, NO.7 |
| 77286P | Clamp, Fuel Tube, NO.8 |
| 77286Q | Clamp, Fuel Tube, NO.9 |
| 77286R | Clamp, Fuel Tube, NO.10 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77360A | Spring Assy, Fuel Filler Opening Lid |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77387 | Ring, Fuel Inlet Box |
| 77391 | Ring, Fuel Inlet Box |
| 77512C | Bracket, Fuel Tank |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77604B | Band Sub-assy, Fuel Tank, NO.2 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77607C | Protector Sub-assy, Fuel Tank, NO.2 |
| 77611E | Pin, Fuel Tank Band |
| 77613C | Band, Fuel Tank, NO.3 |
| 77631 | Bracket, Fuel Tank, NO.1 |
| 77632 | Bracket, Fuel Tank, NO.2 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77642C | Protector, Fuel Tank, NO.2 |
| 77644 | Bolt, Fuel Tank |
| 77697 | Insulator, Fuel Tank Heat, NO.1 |
| 77697A | Insulator, Fuel Tank Heat, NO.2 |
| 77697B | Insulator, Fuel Tank Heat, NO.3 |
| 77720H | Valve Assy, Fuel Outlet |
| 77740 | Canister Assy, Charcoal |
| 77747 | Pipe, Charcoal Canister, NO.1 |
| 77747B | Tube, Charcoal Canister, NO.1 |
| 77748 | Pipe, Charcoal Canister, NO.2 |
| 77750F | Bracket Assy, Charcoal Canister, NO.1 |
| 77750G | Bracket Assy, Charcoal Canister, NO.2 |
| 77754A | Hose, Charcoal Canister Outlet, NO.2 |
| 77754B | Hose, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
| 77795 | Hose, Charcoal Canister Outlet, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
