Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

26 part groups · 2 illustrations

Illustrations

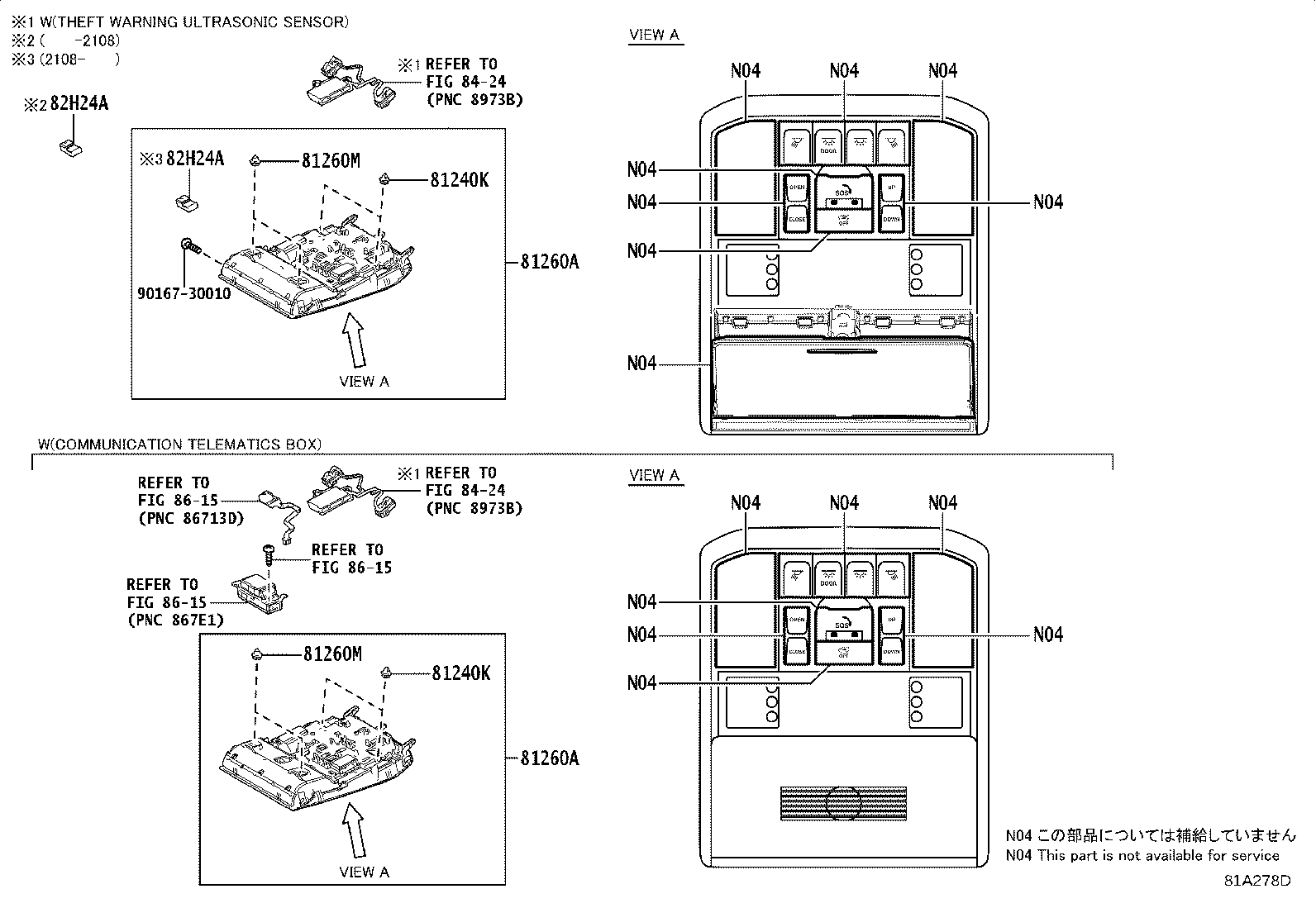

Figure 81A279A 81A279A 2021-04 → — Figure 81A278D 81A278D 2021-04 → —

Part groups

PNCDescription
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080J Lamp Assy, Interior Illumination, NO.1
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080P Lamp Assy, Interior Illumination, NO.1 RH
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81240K Clip, Room Lamp
81260A Lamp Assy, Map
81260M Clip, Room Lamp
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
81360U Bulb, Spot Lamp
81380D Lamp Assy, Step
81380H Lamp Assy, Step
82H24A Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
