Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

206 part groups · 21 illustrations

Illustrations

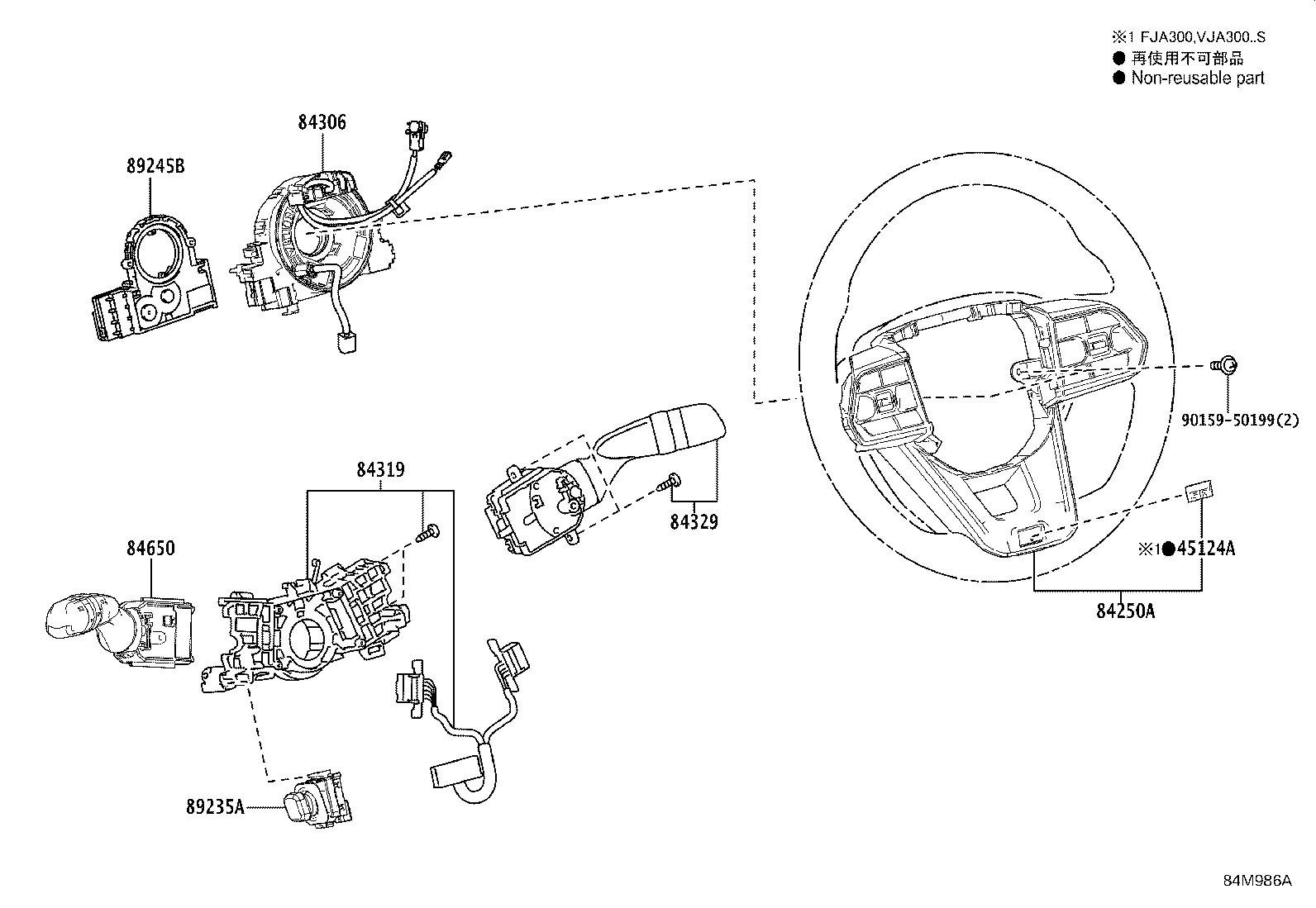

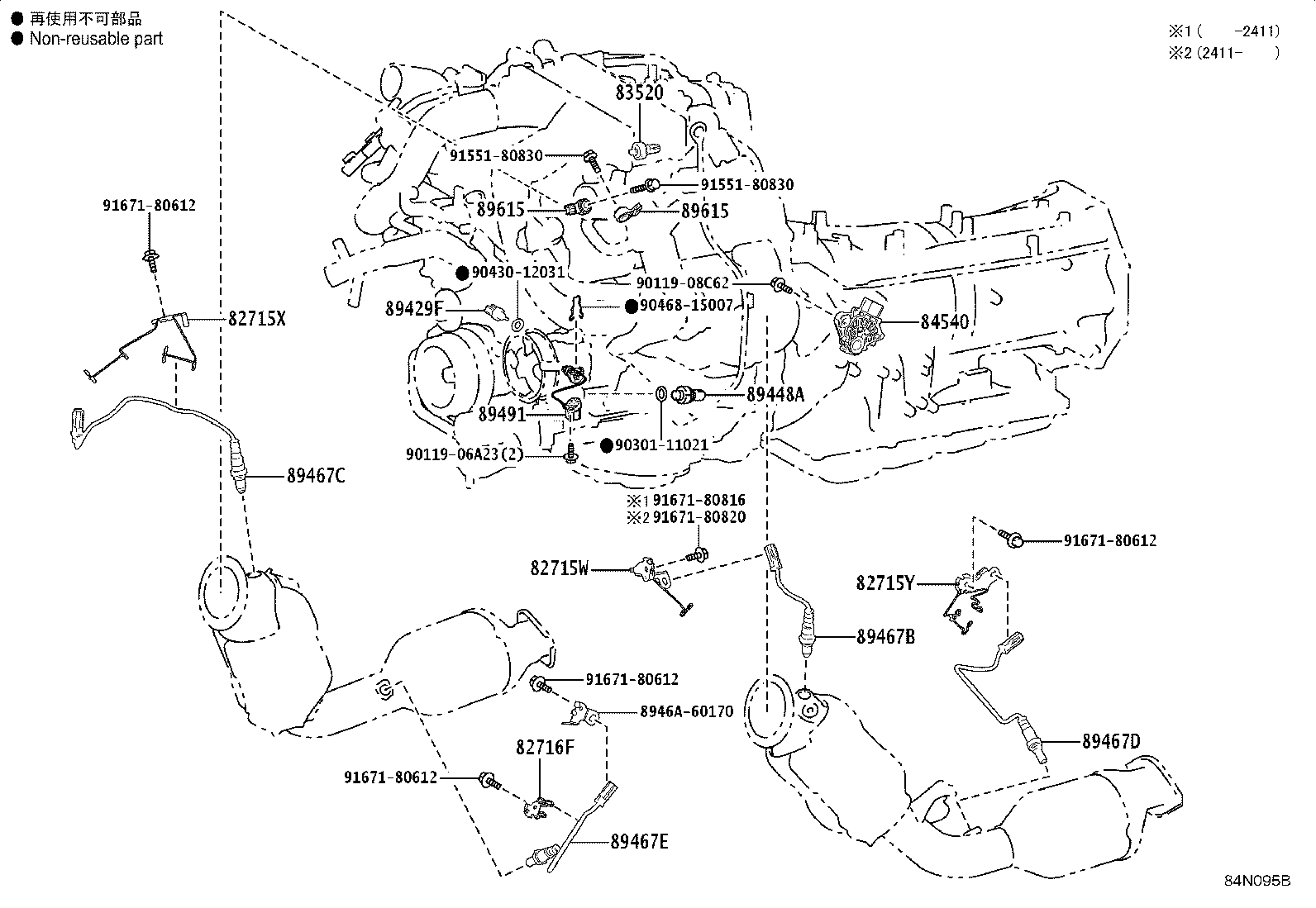

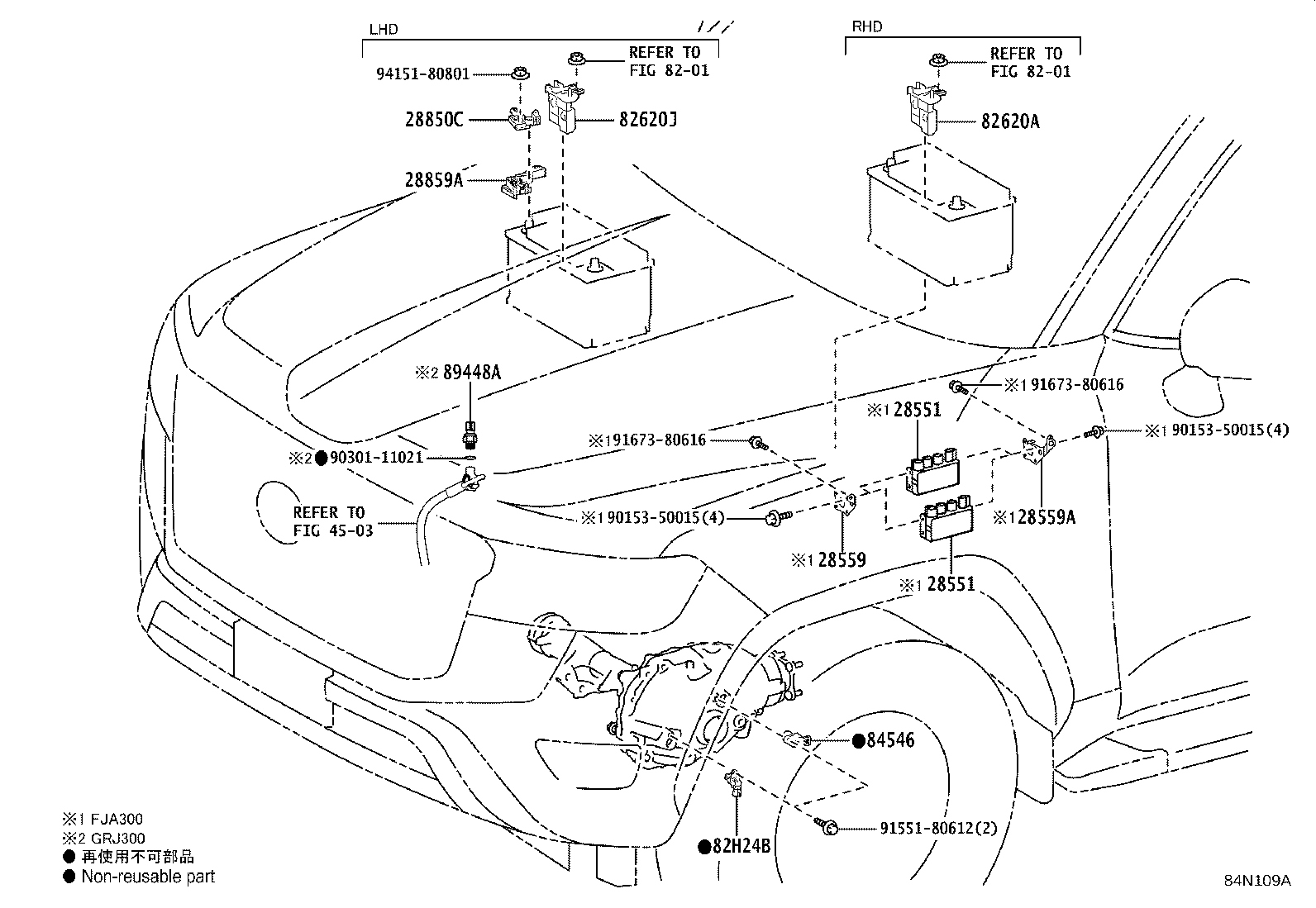

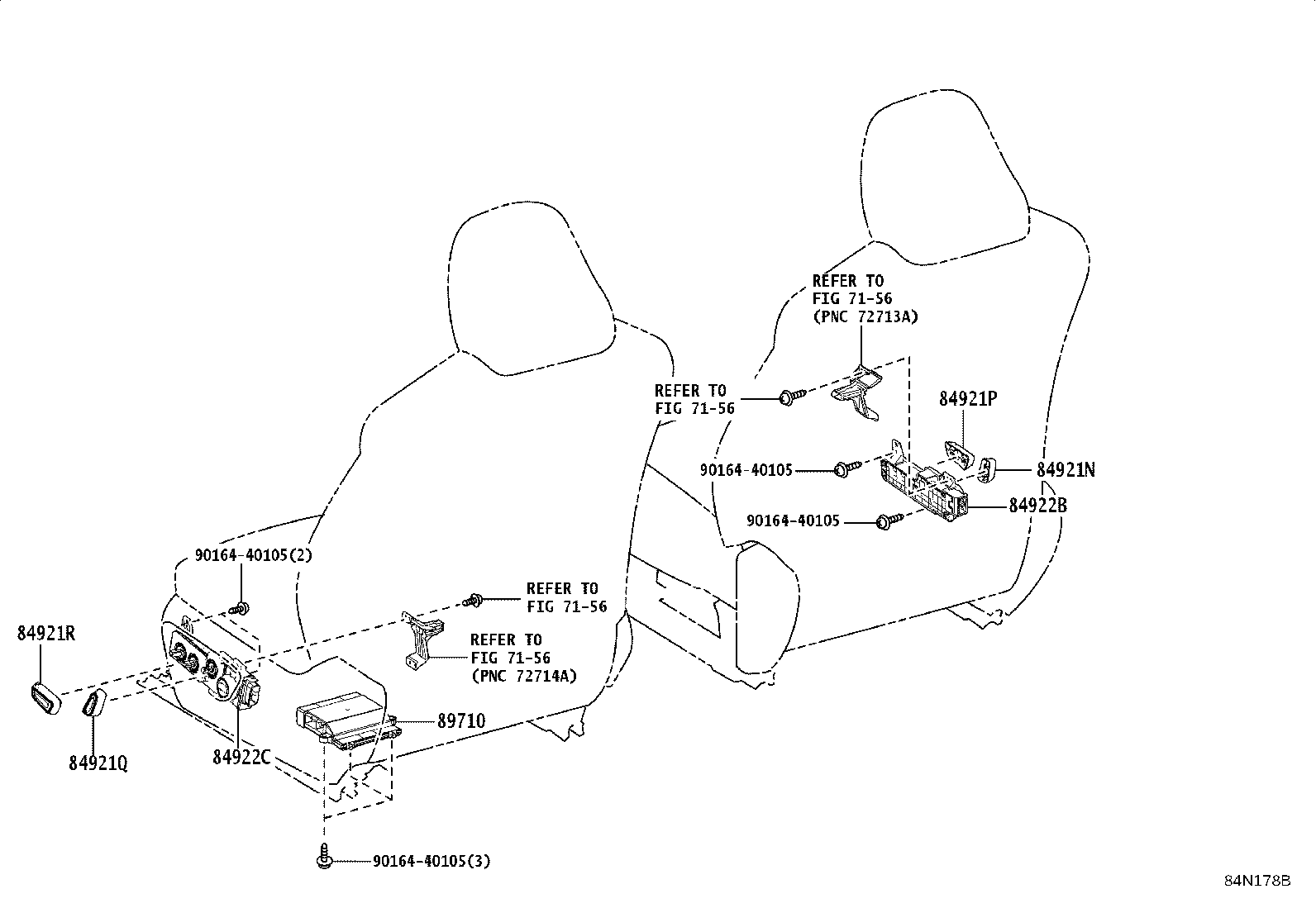

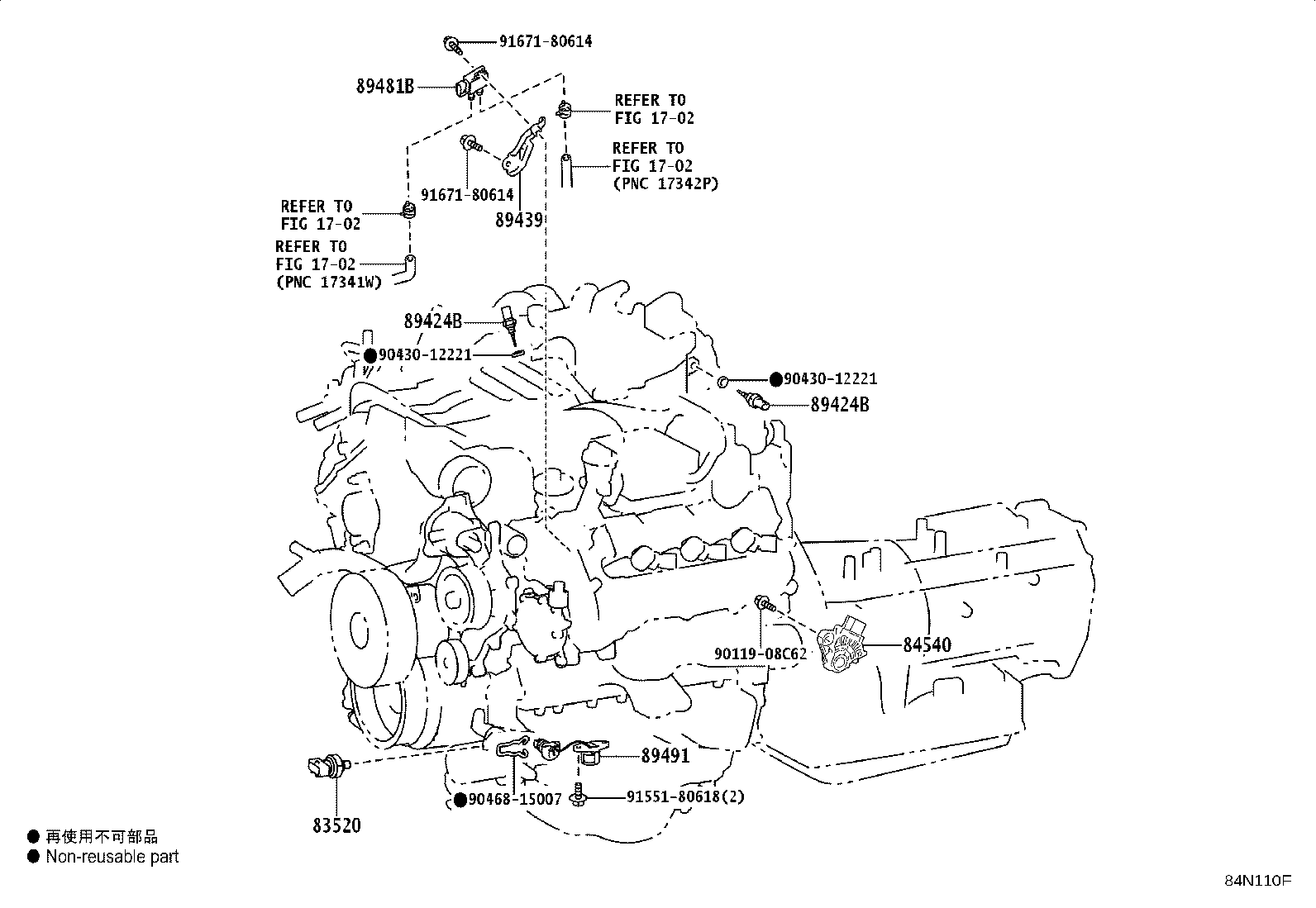

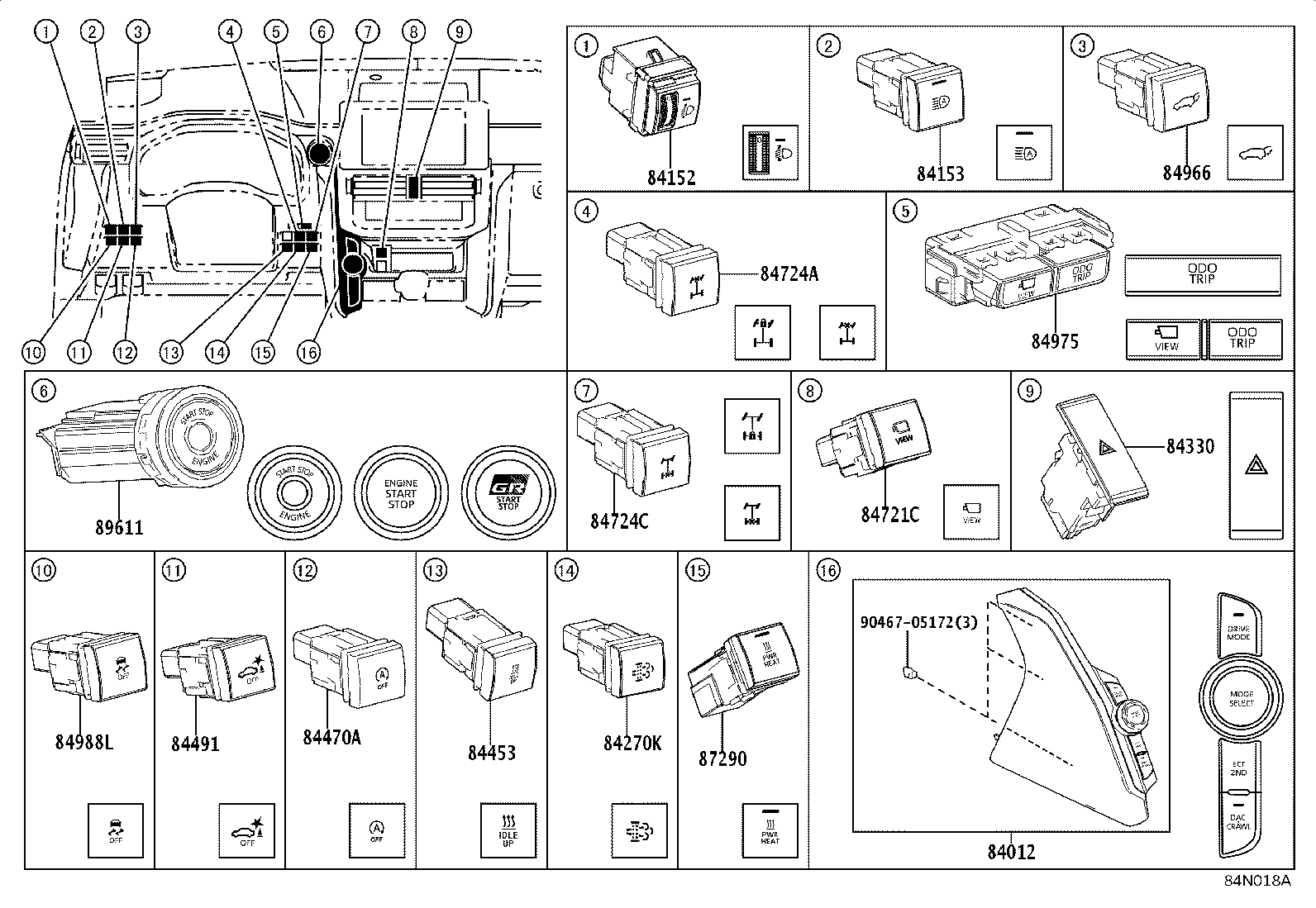

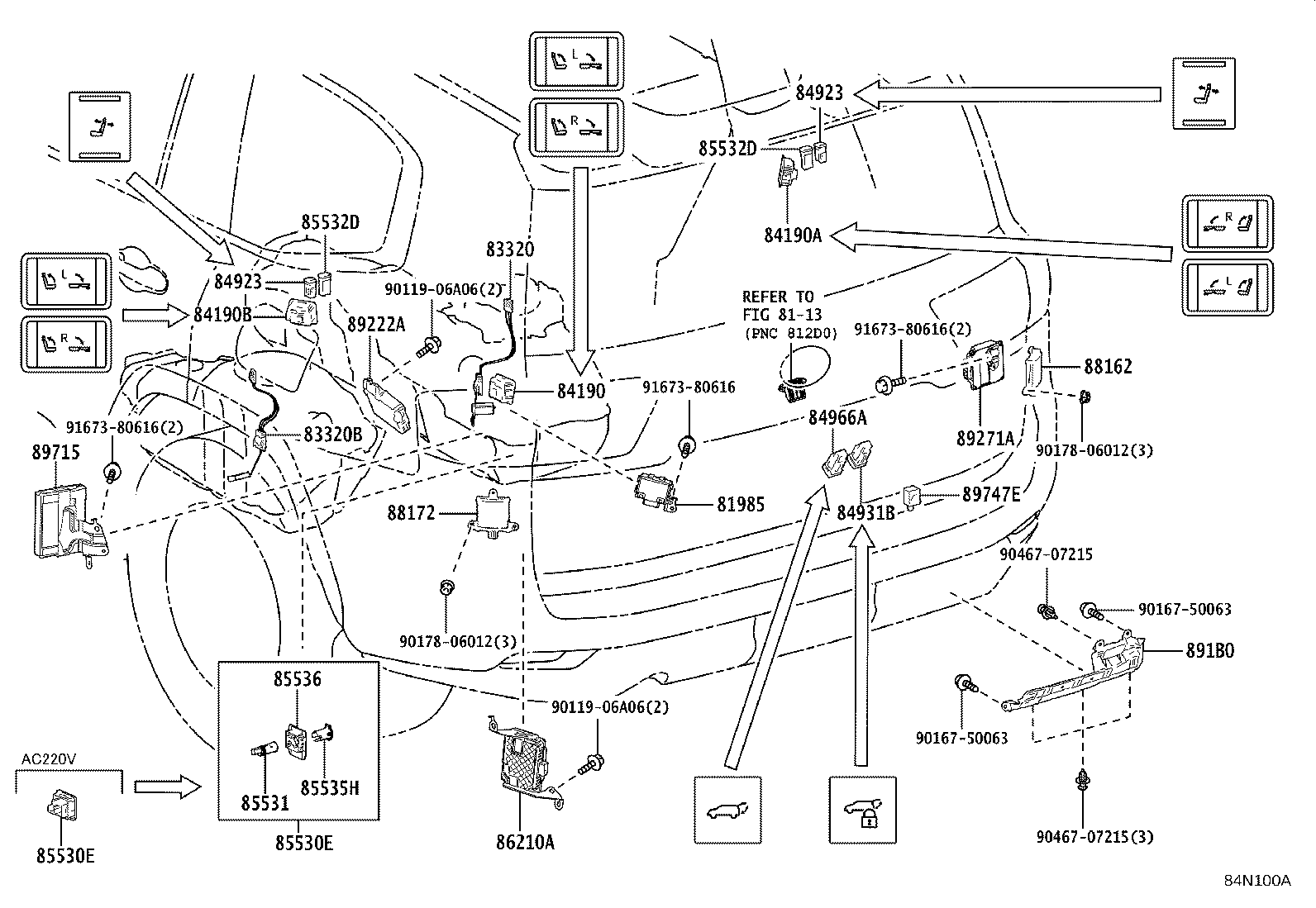

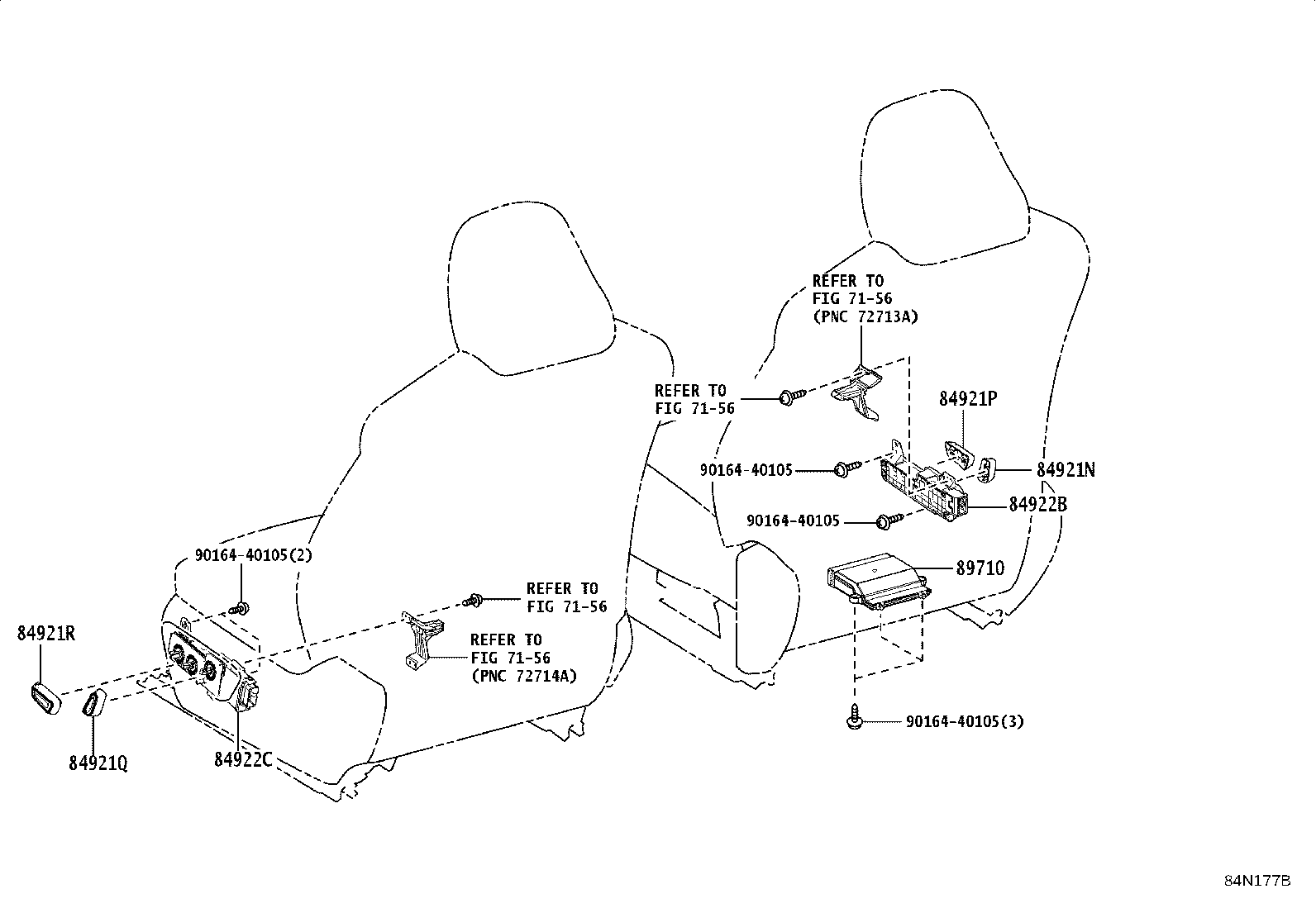

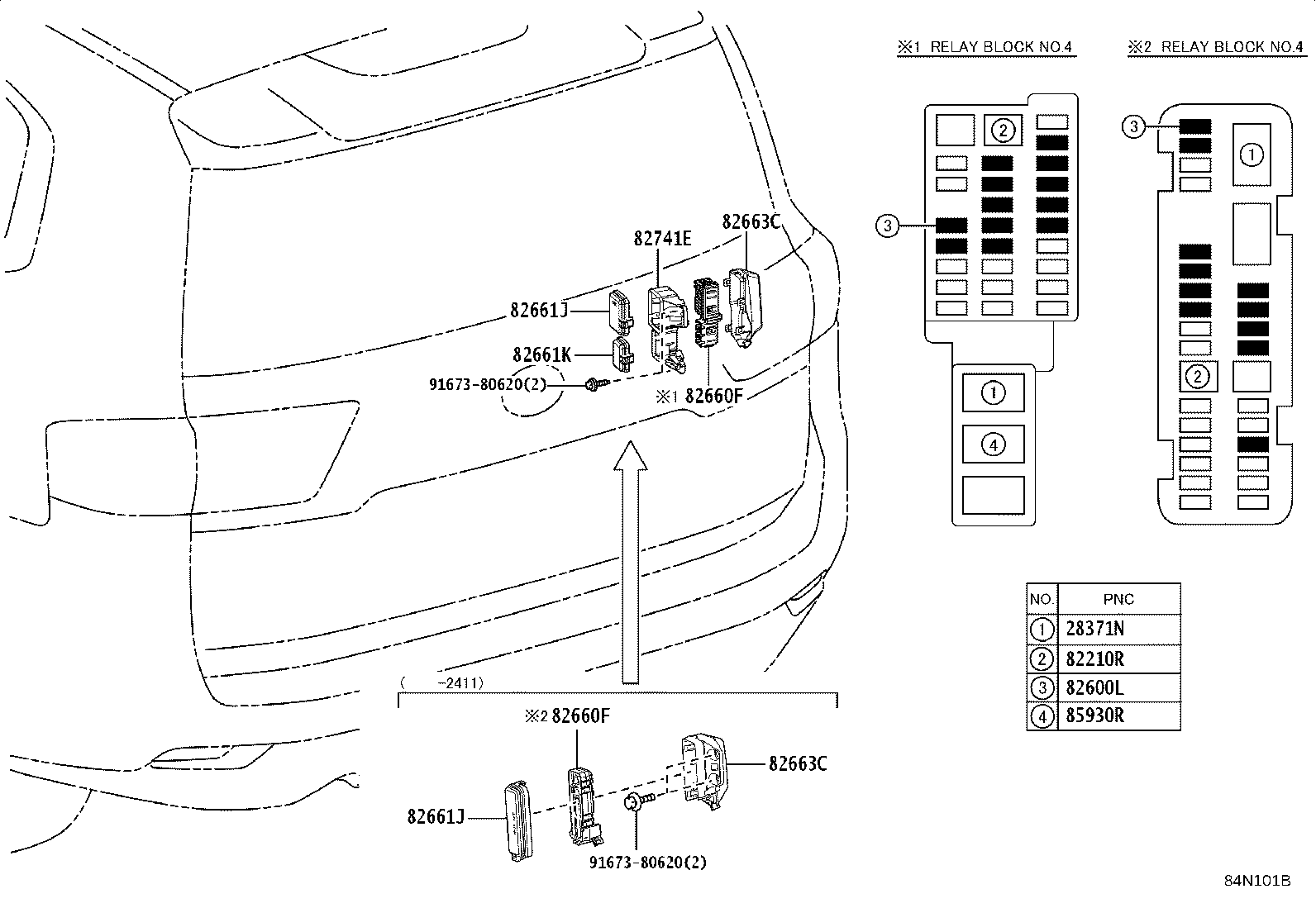

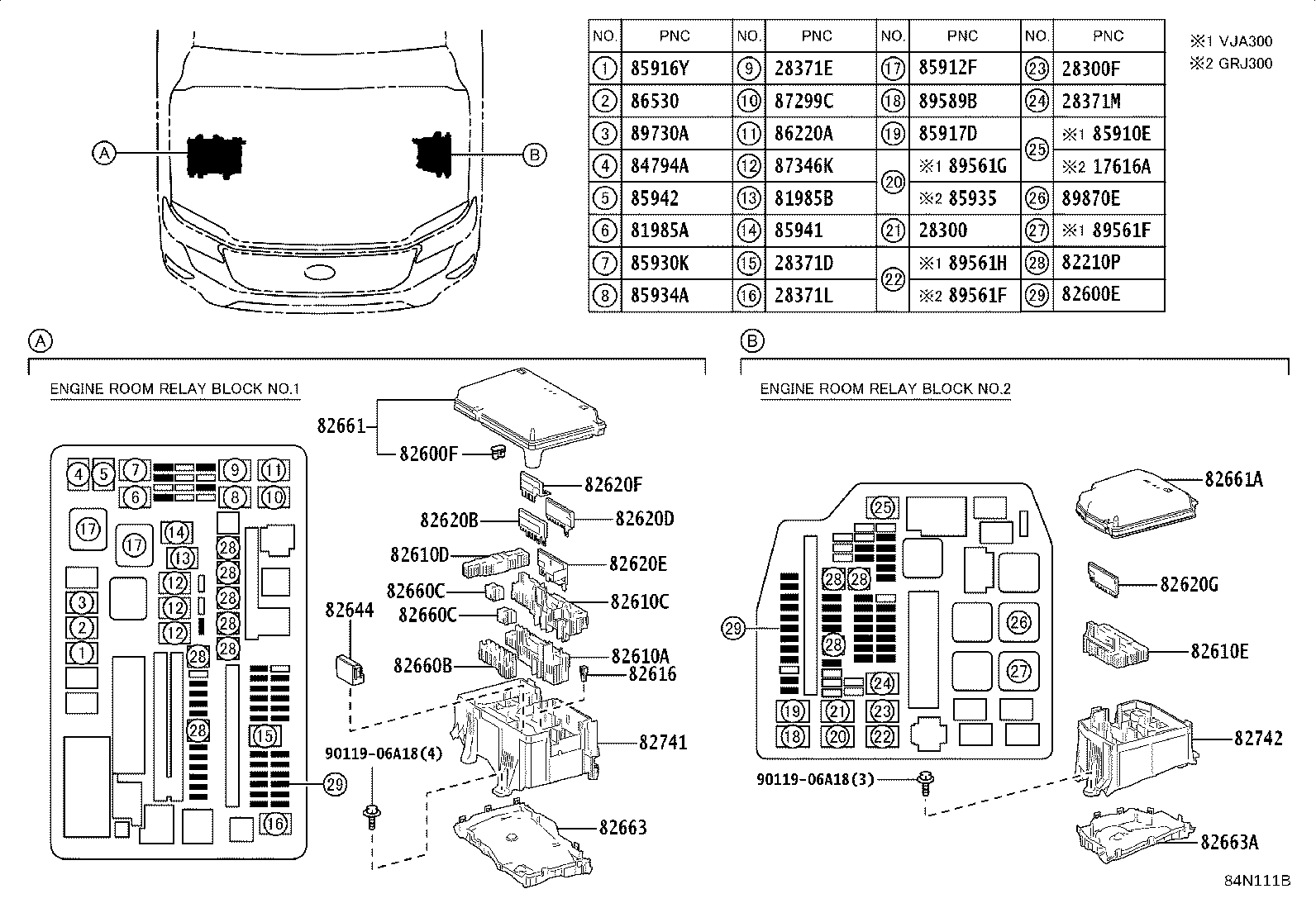

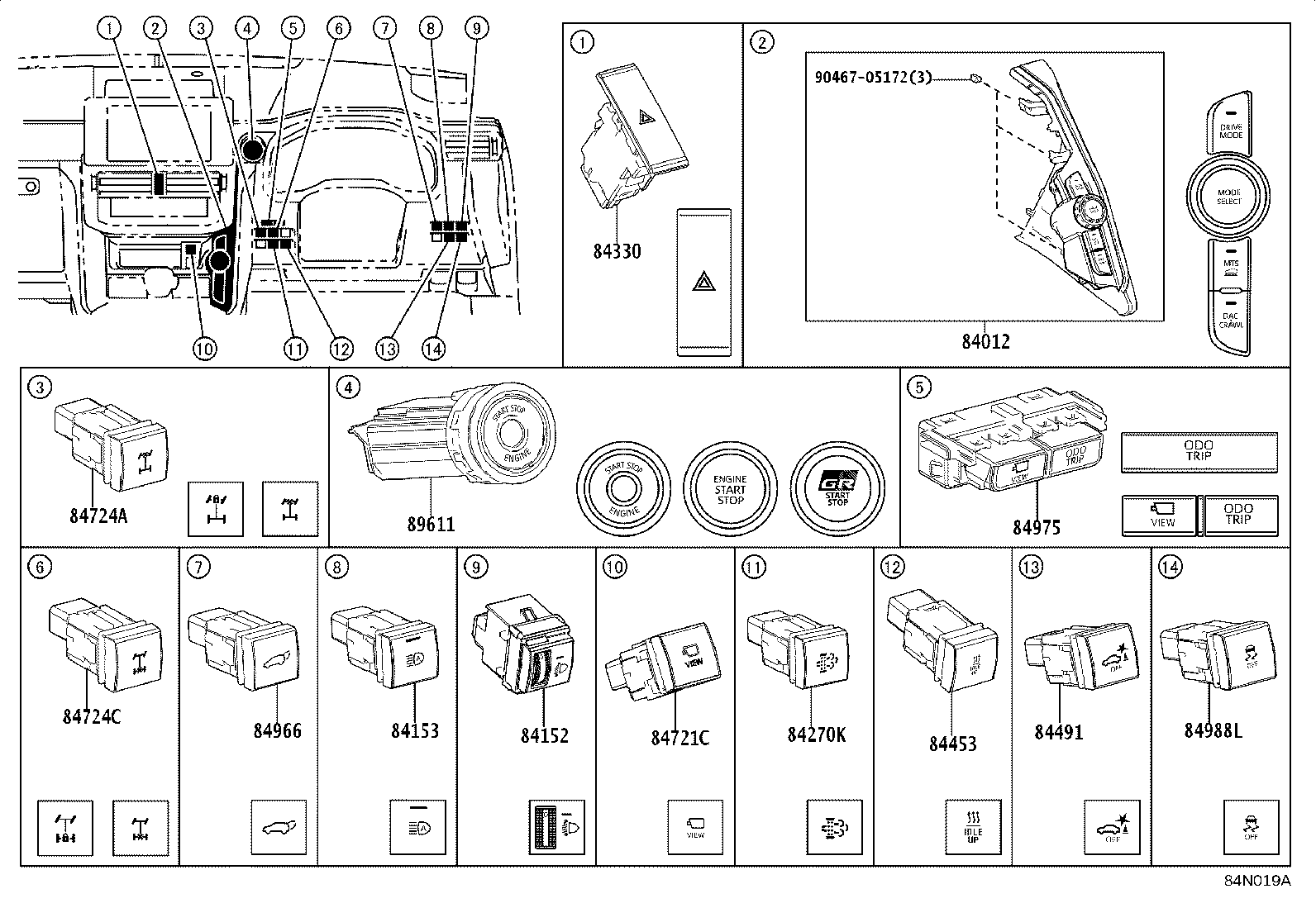

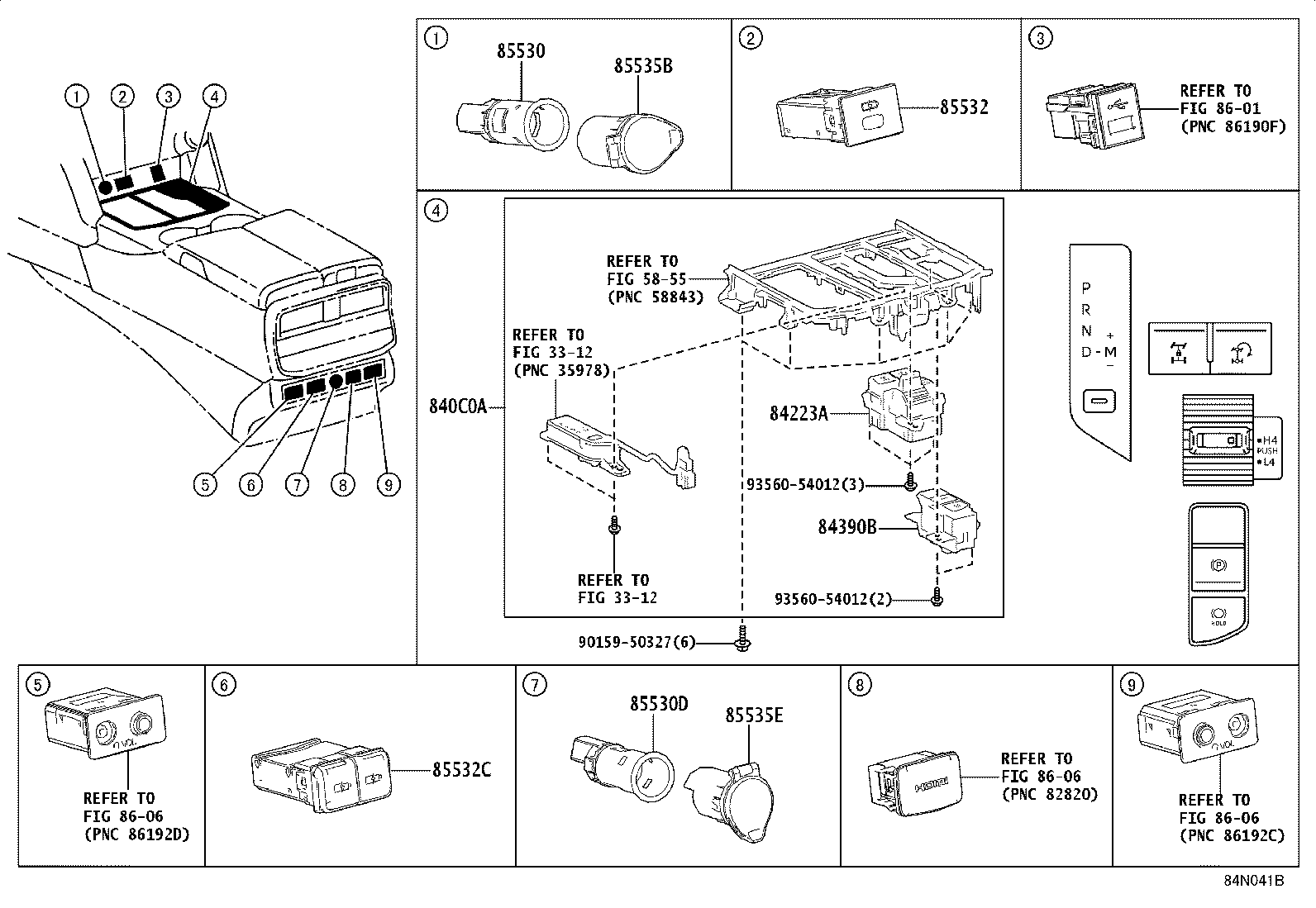

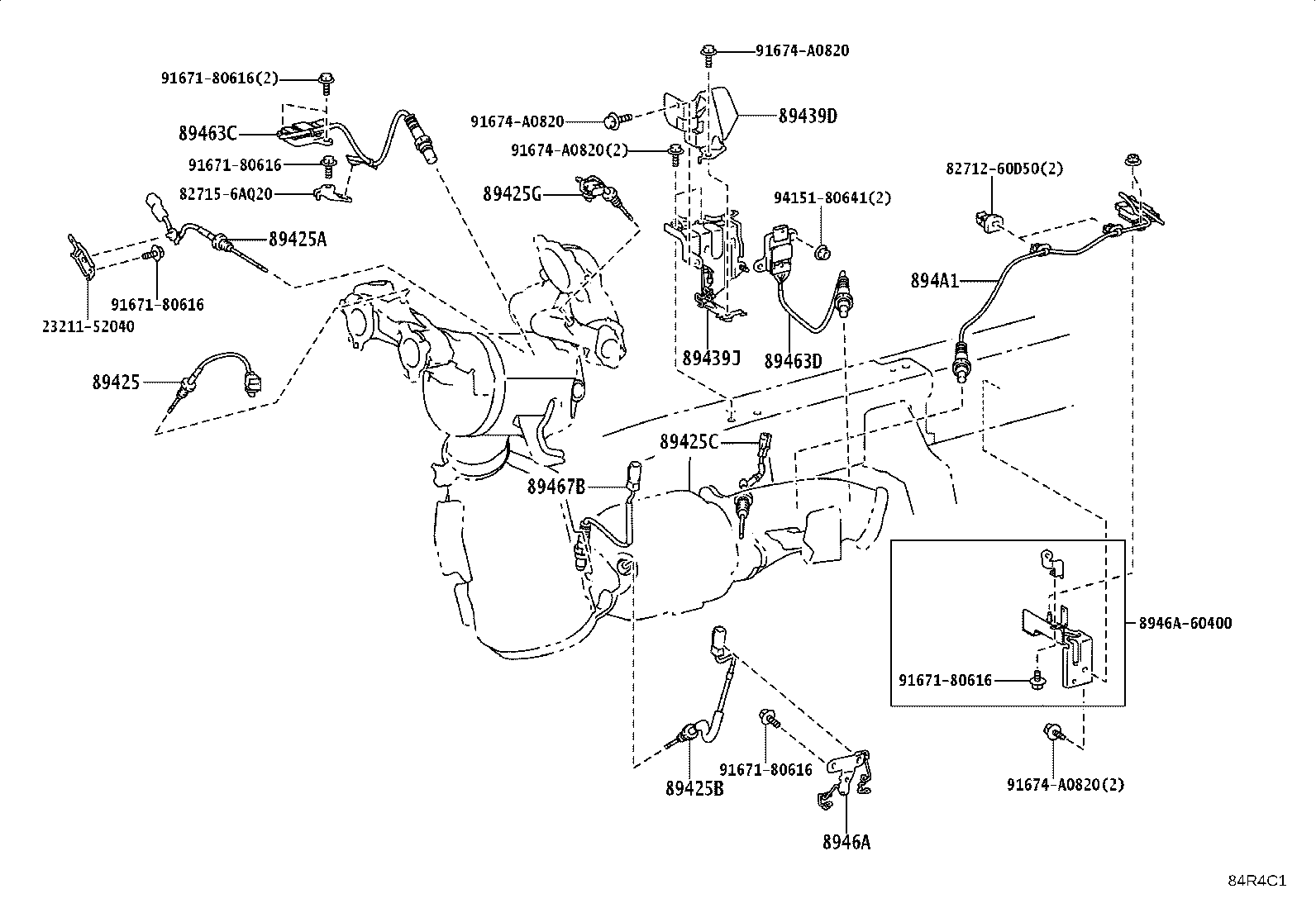

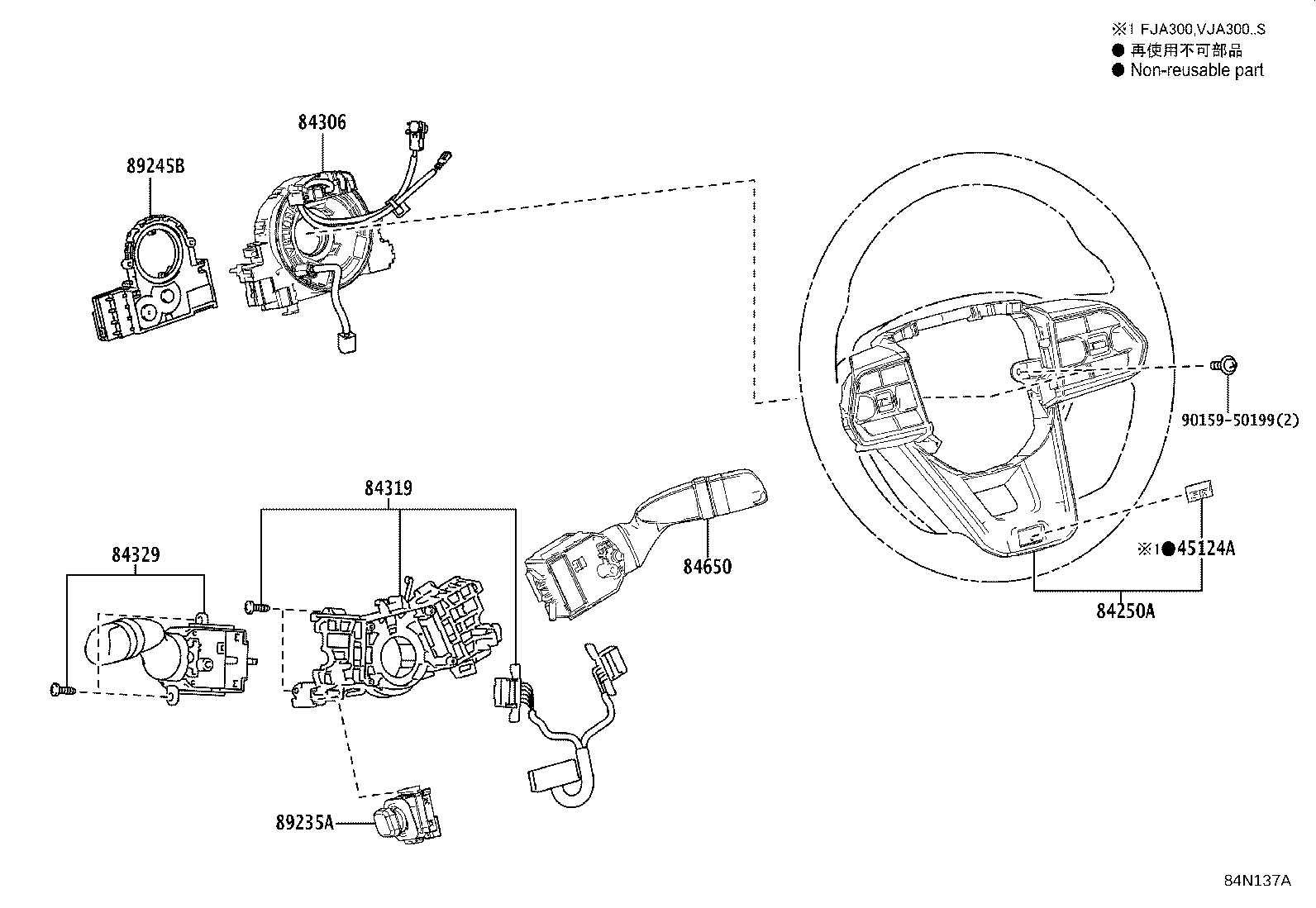

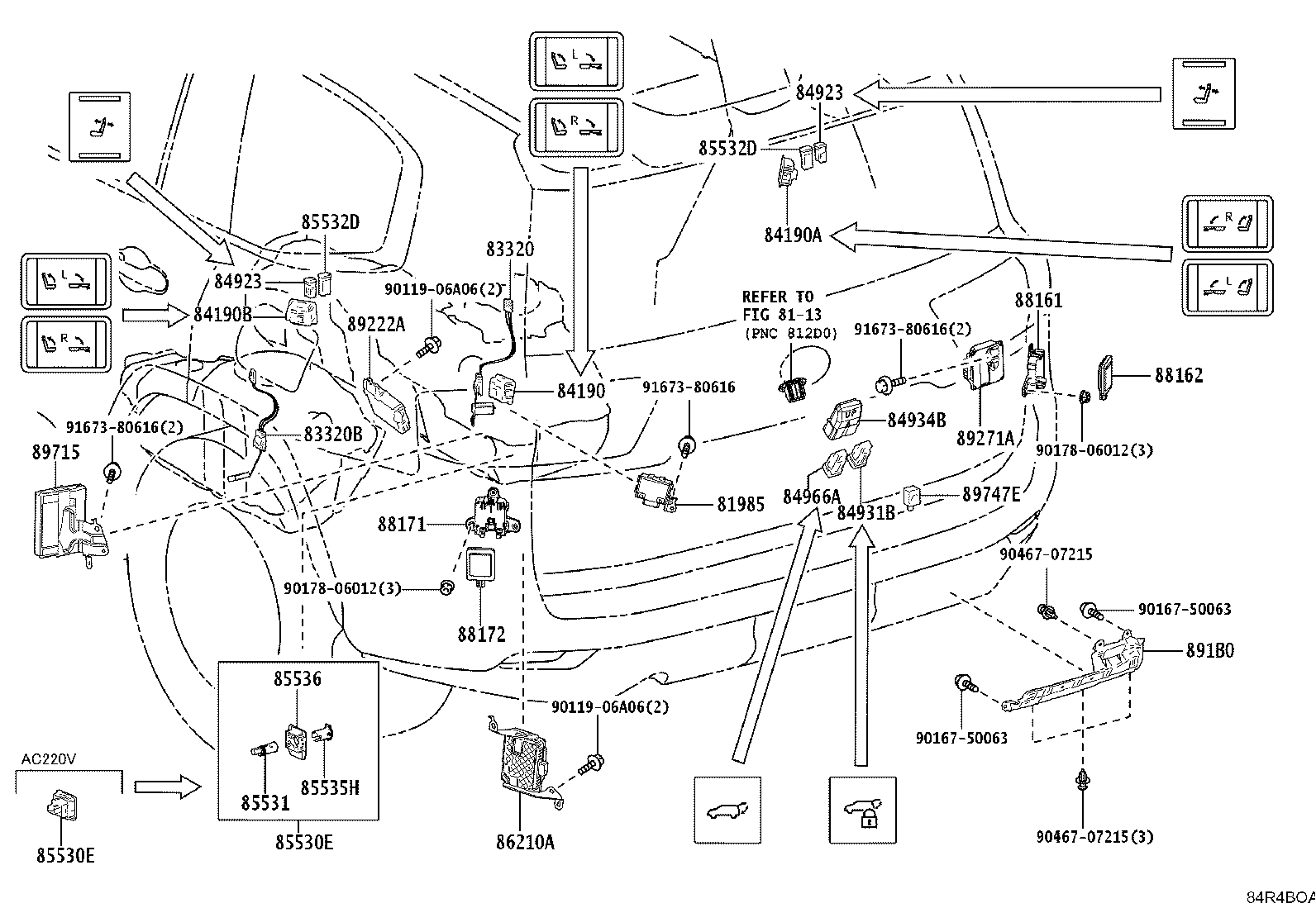

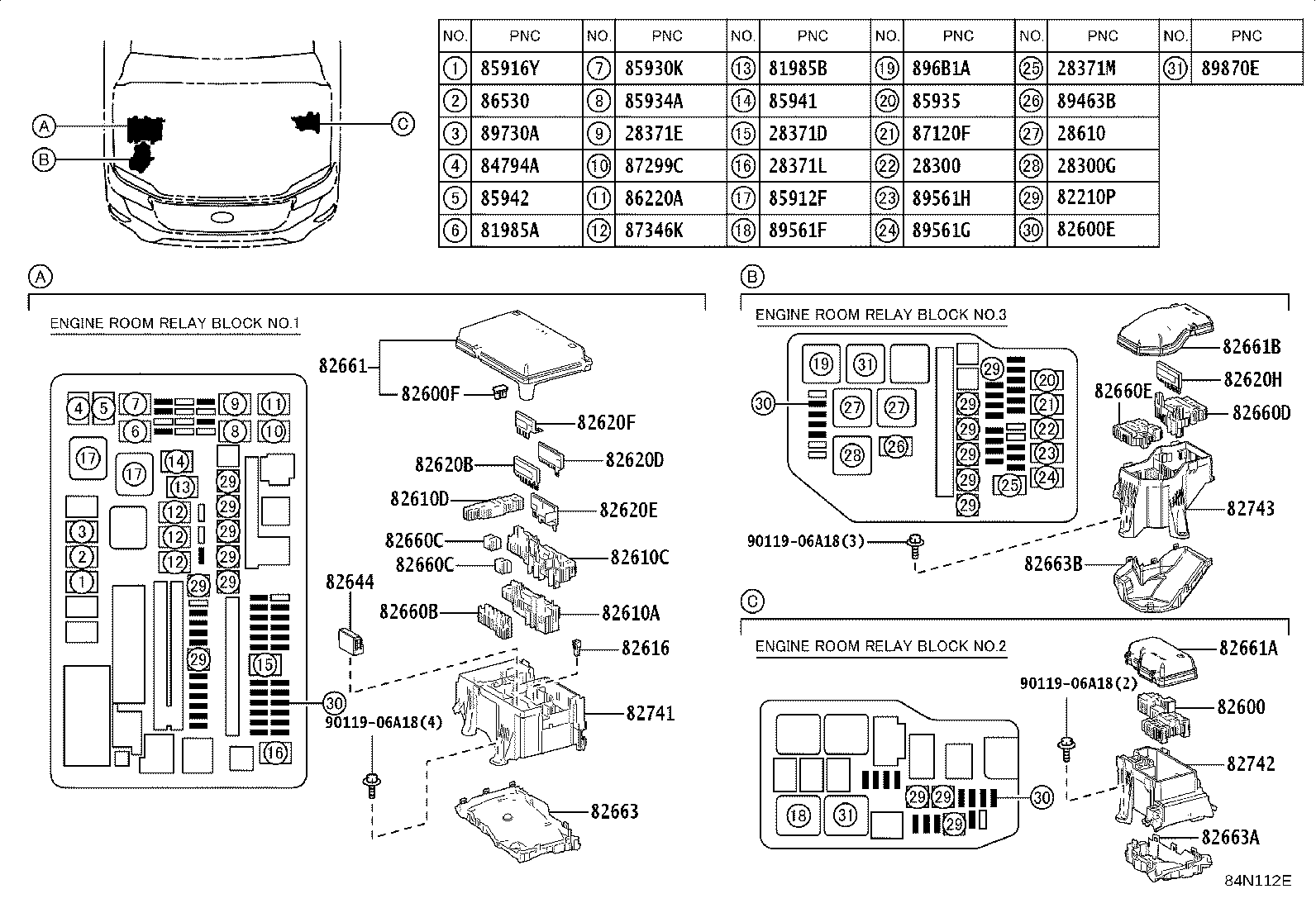

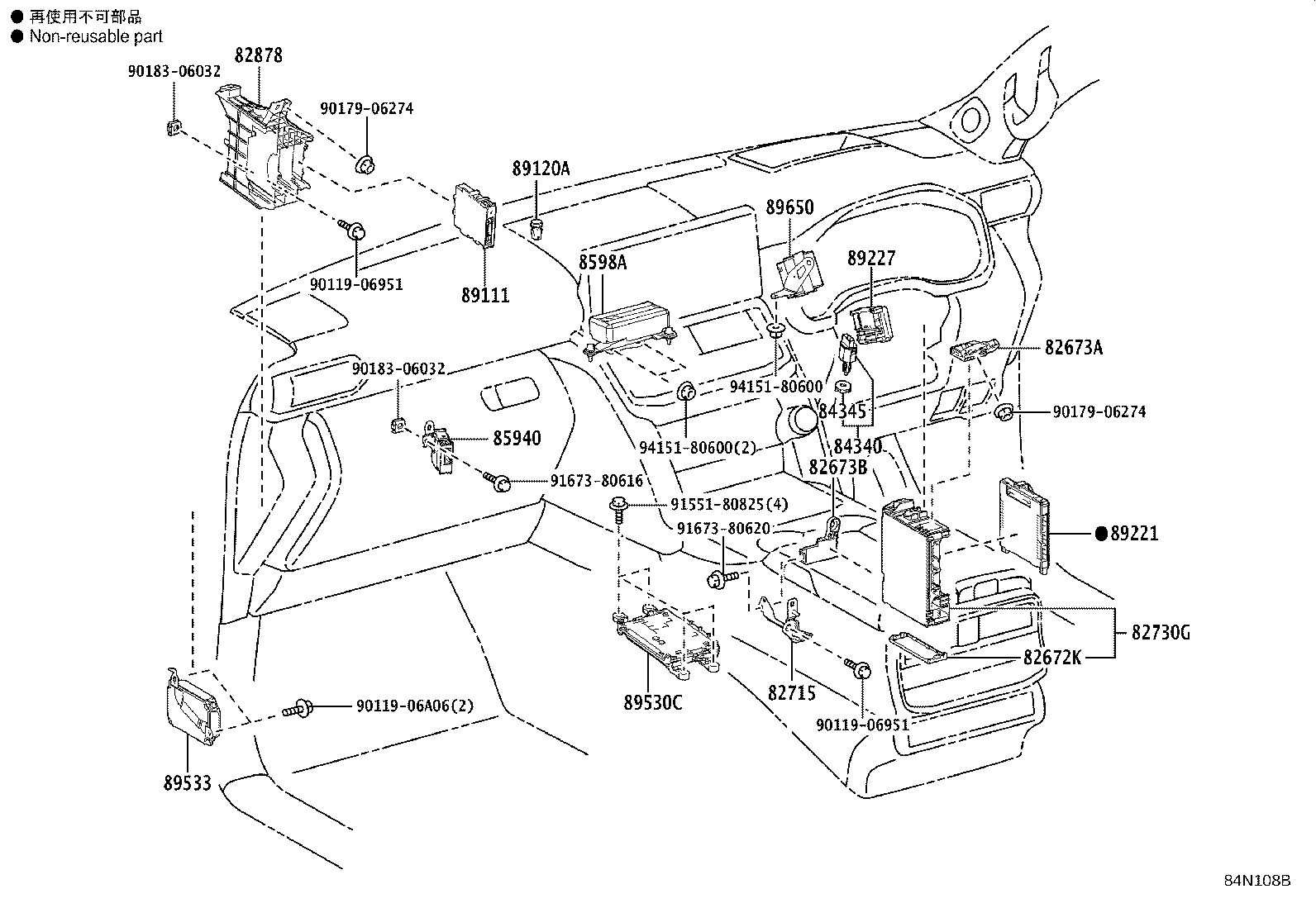

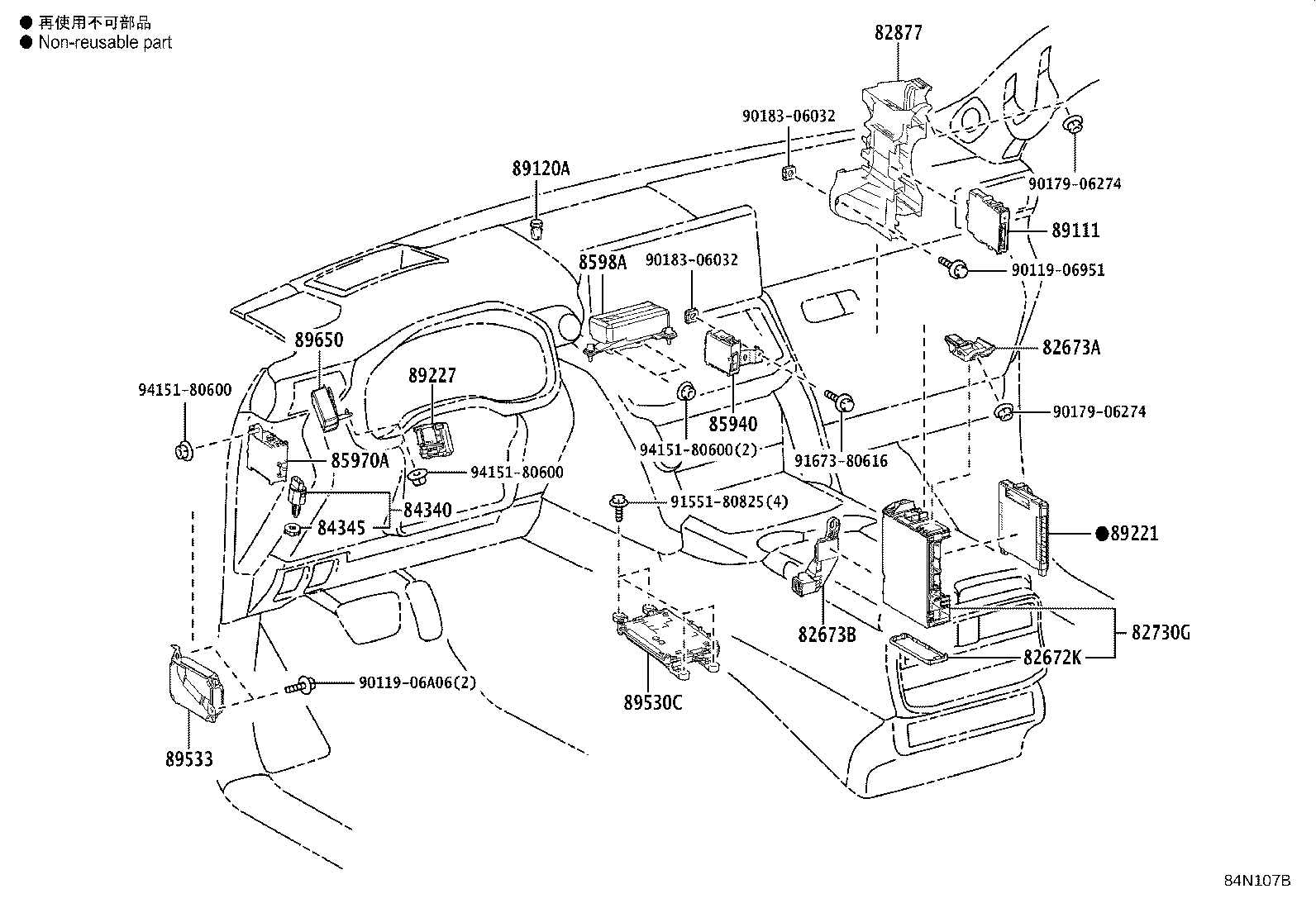

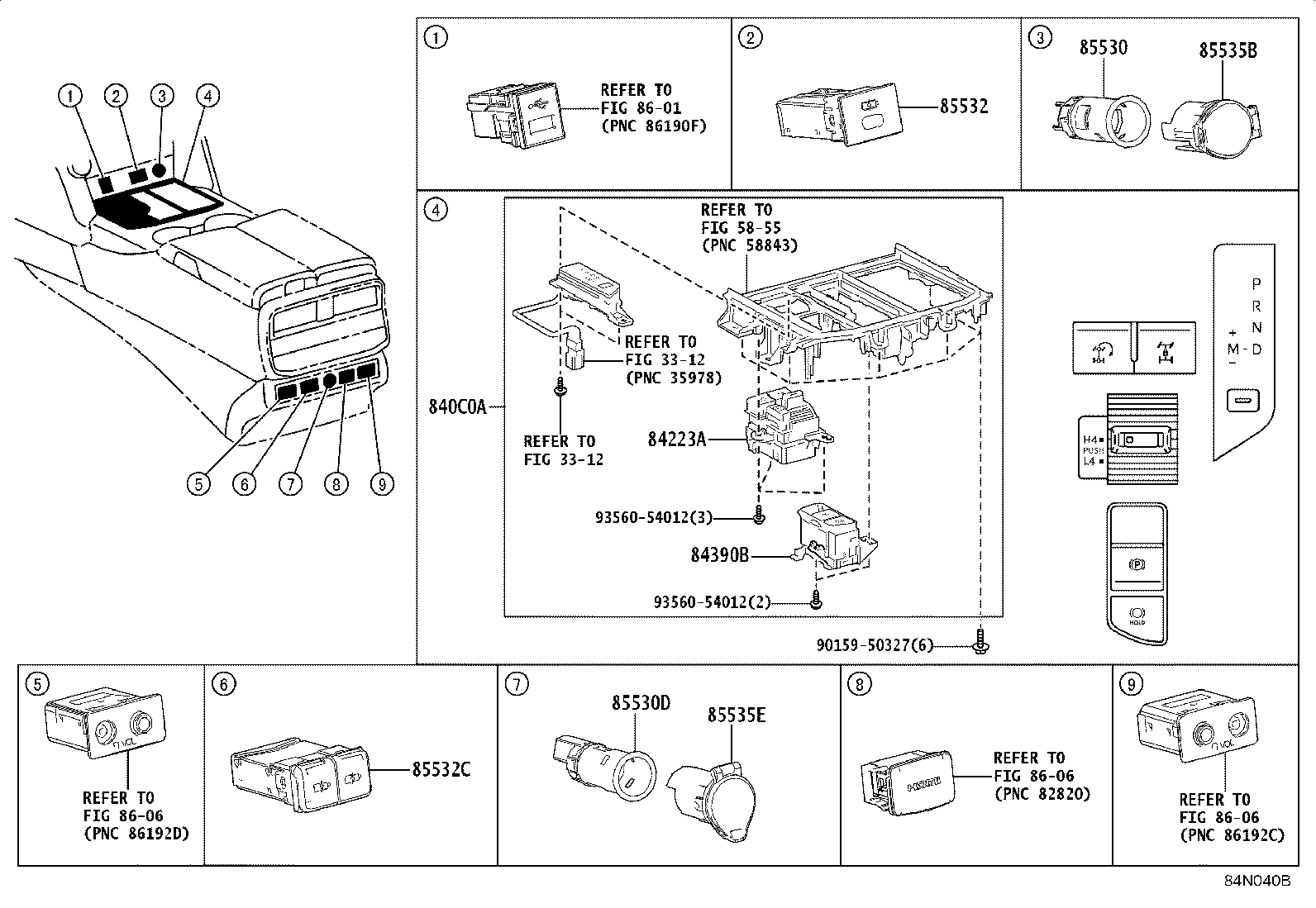

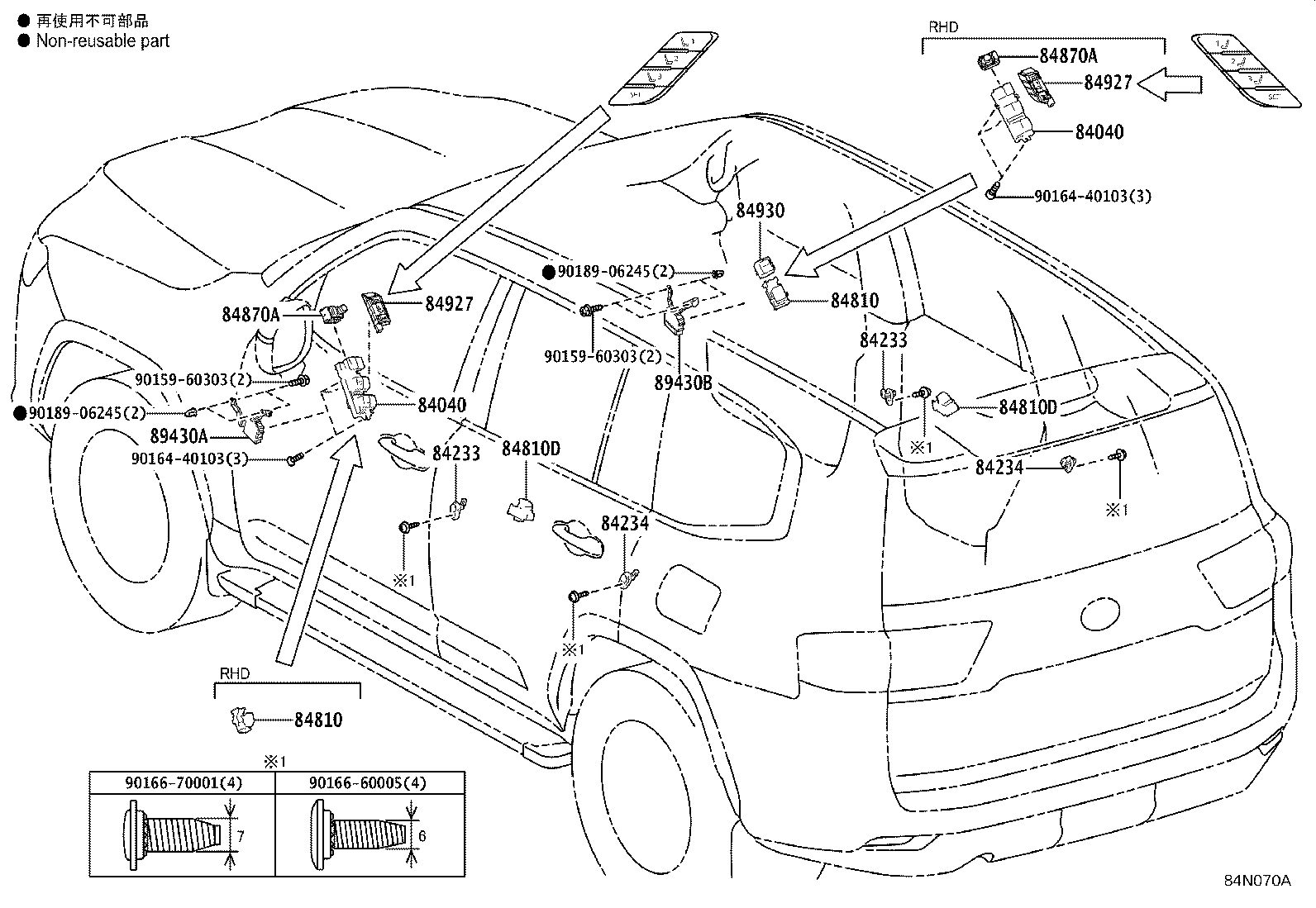

Figure 84N094B 84N094B 2021-04 → — Figure 84N095B 84N095B 2021-04 → — Figure 84N110F 84N110F 2021-07 → — Figure 84R4C1 84R4C1 2021-07 → — Figure 84N109A 84N109A 2021-04 → — Figure 84N111B 84N111B 2021-04 → — Figure 84N112E 84N112E 2021-07 → — Figure 84N107B 84N107B 2021-04 → — Figure 84N108B 84N108B 2021-04 → — Figure 84N018A 84N018A 2021-04 → — Figure 84N019A 84N019A 2021-04 → — Figure 84N040B 84N040B 2021-04 → — Figure 84N041B 84N041B 2021-04 → — Figure 84N137A 84N137A 2021-04 → — Figure 84M986A 84M986A 2021-04 → — Figure 84N178B 84N178B 2021-04 → — Figure 84N177B 84N177B 2021-04 → — Figure 84N070A 84N070A 2021-04 → — Figure 84N100A 84N100A 2021-04 → 2024-11 Figure 84R4BOA 84R4BOA 2024-11 → — Figure 84N101B 84N101B 2021-04 → —

Part groups

PNCDescription
17616A Relay, Air Pump
28300 Relay Assy, Starter
28300F Relay Assy, Starter, NO.2
28300G Relay Assy, Starter, NO.3
28371D Relay, Ignition, NO.3
28371E Relay, Ignition, NO.4
28371L Relay, Igp
28371M Relay, Igp, NO.2
28371N Relay, Igp, NO.3
28551 Controller, Glow Plug
28559 Bracket, Glow Plug Controller, NO.1
28559A Bracket, Glow Plug Controller, NO.2
28610 Relay Assy, Intake Heater OR Glow Plug
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
45124A Ornament, Steering Wheel Mark
81985 Relay, Towing Converter
81985A Relay, Towing Back-up
81985B Relay, Towing Stop Lamp
82210P Engine Room Fusible Link
82210R Luggage Room Fusible Link
82600 Block Assy, Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82600L Luggage Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82610D Block Assy, Fuse
82610E Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82620G Block Assy, Fusible Link
82620H Block Assy, Fusible Link
82620J Block Assy, Fusible Link
82644 Computer, Semiconductor Power Integration
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82661B Cover, Relay Block, NO.3
82661J Cover, Relay Block, NO.4
82661K Cover, Relay Block, NO.5
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672K Cover, Power Distribution Box
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
82715W Bracket, Wiring Harness Clamp
82715X Bracket, Wiring Harness Clamp, NO.2
82715Y Bracket, Wiring Harness Clamp, NO.3
82716F Bracket, Wiring Harness Clamp, NO.4
82730G Box Assy, Power Distribution
82741 Block, Engine Room Relay
82741E Block, Luggage Room Relay, NO.1
82742 Block, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
82H24B Connector, Wiring Harness
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83520 Gage Assy,Oil Pressure Sender
84012 Control & Panel Sub-assy, Integration
84040 Master Switch Assy,Multiplex Network
840C0A Control Assy, Integration
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84190 Switch Assy, Fold Seat
84190A Switch Assy, Fold Seat, NO.1
84190B Switch Assy, Fold Seat, NO.2
84223A Switch, Transfer Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84270K Switch Assy, Dpr
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84453 Switch, Idle UP
84470A Switch Assy, Ecorun Cancel
84491 Switch, Parking Support Brake Cancel
84540 Switch Assy, Neutral Start
84546 Switch, 4 Wheel Drive Position, NO.1
84650 Switch Assy, Windshield Wiper
84721C Switch, Pattern Select
84724A Switch, Front Differential Lock
84724C Switch, Rear Differential Lock
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84870A Switch Assy, Outer Mirror
84921N Knob, Power Seat Switch, RH (FOR RECLINING)
84921P Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL)
84921Q Knob, Power Seat Switch, LH (FOR RECLINING)
84921R Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84923 Switch, Rear Power Seat
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931B Switch, Door Control
84934B Cover, Door Control Switch
84966 Switch, Power Back Door Control
84966A Switch, Power Back Door Control, NO.1
84975 Switch, Trip
84988L Switch, Vsc Off
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85531 Socket, Power Outlet
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85532D Socket, Usb Charger, NO.3
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85535H Cover, Power Outlet Socket, NO.3
85536 Bezel, Power Outlet Socket
85910E Relay, Injector
85912F Relay, Hwd
85916Y Relay, Towing Tail
85917D Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85930K Relay, Acc, NO.2
85930R Relay, +BA
85934A Relay Condenser Fan
85935 Relay, Fuel Pump
85940 Relay Assy, Windshield Wiper
85941 Relay, Windshield Washer
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
8598A Battery, Door Control
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
87120F Relay, Viscous Heater
87290 Switch Assy, Heater
87299C Relay, Washer Nozzle Heater
87346K Relay, Ptc Heater
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B0 Sensor Assy, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89271A Computer, Stabilizer Control
89424B Switch, Inlet Air Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89425B Sensor, Exhaust Gas Temperature, NO.3
89425C Sensor, Exhaust Gas Temperature, NO.4
89425G Sensor, Egr Gas Temperature
89429F Sensor, Temperature
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89439 Bracket, Sensor
89439D Bracket, Sensor, NO.1
89439J Bracket, Sensor, NO.2
89448A Sensor, Power Steering Oil Pressure
89463B Relay, Nitrogen Oxides
89463C Sensor, Nitrogen Oxides, NO.1
89463D Sensor, Nitrogen Oxides, NO.2
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89467D Sensor, Air Fuel Ratio, NO.3
89467E Sensor, Air Fuel Ratio, NO.4
8946A Bracket, Exhaust Sensor Clamp
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
894A1 Sensor, Particulate Matter
89530C Computer Assy, Transmission Control
89533 Computer, 4 Wheel Drive Control
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89589B Relay, AI Valve
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
896B1A Relay, Dcu Main
89710 Computer Assy, Position Control
89715 Computer, Fold Seat Control
89730A Relay(FOR SECURITY WARNING)
89747E Buzzer, Power Back Door Warning
89870E Relay, Electronic Driver Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
