Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

4 part groups · 2 illustrations

Illustrations

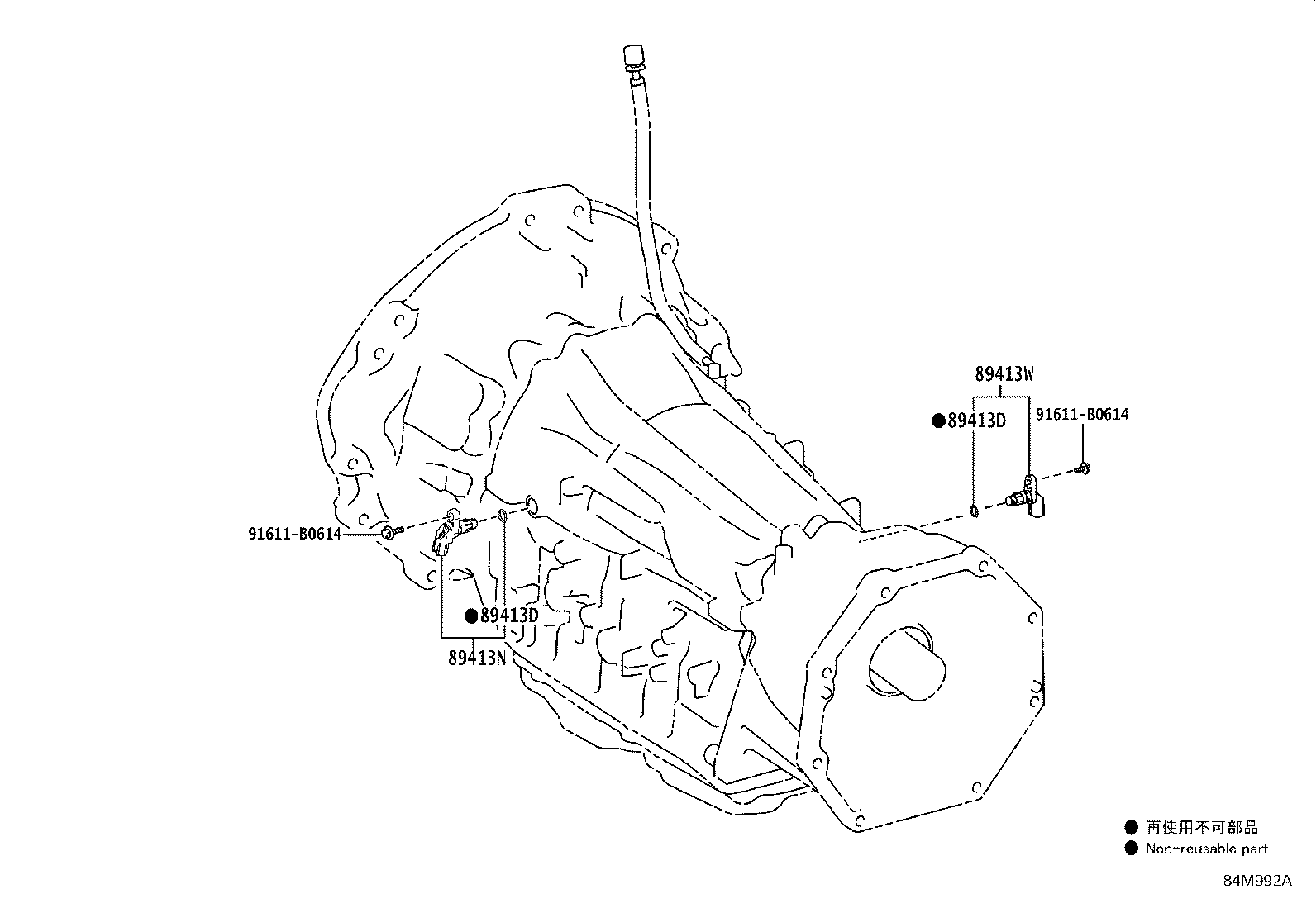

Figure 84M991 84M991 2021-04 → — Figure 84M992A 84M992A 2021-04 → —

Part groups

PNCDescription
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413N Sensor, Transmission Revolution, (NT)
89413V Sensor, Transmission Revolution (NO)
89413W Sensor, Transmission Revolution (SP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
