Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

12 part groups · 3 illustrations

Illustrations

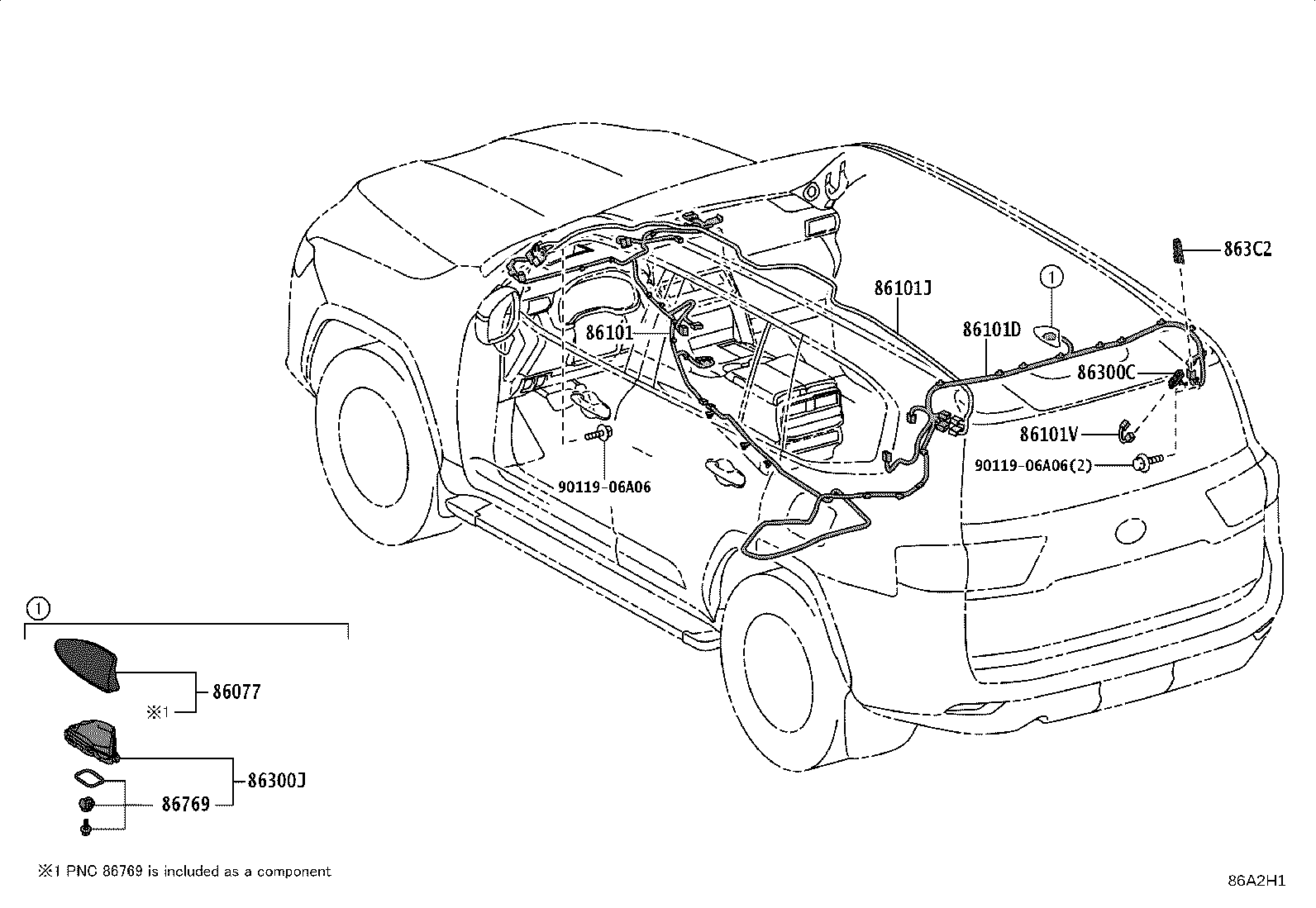

Figure 868625A 868625A 2021-04 → 2024-11 Figure 86A2H1 86A2H1 2024-11 → — Figure 86A2H1 86A2H1 2024-11 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101R Cord Sub-assy, Antenna, NO.5
86101V Cord Sub-assy, Antenna, NO.6
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86300J Antenna Assy, Roof
863C2 Base, Digital Audio Broadcasting Antenna
86681C Divider, Antenna
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
