Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

43 part groups · 10 illustrations

Illustrations

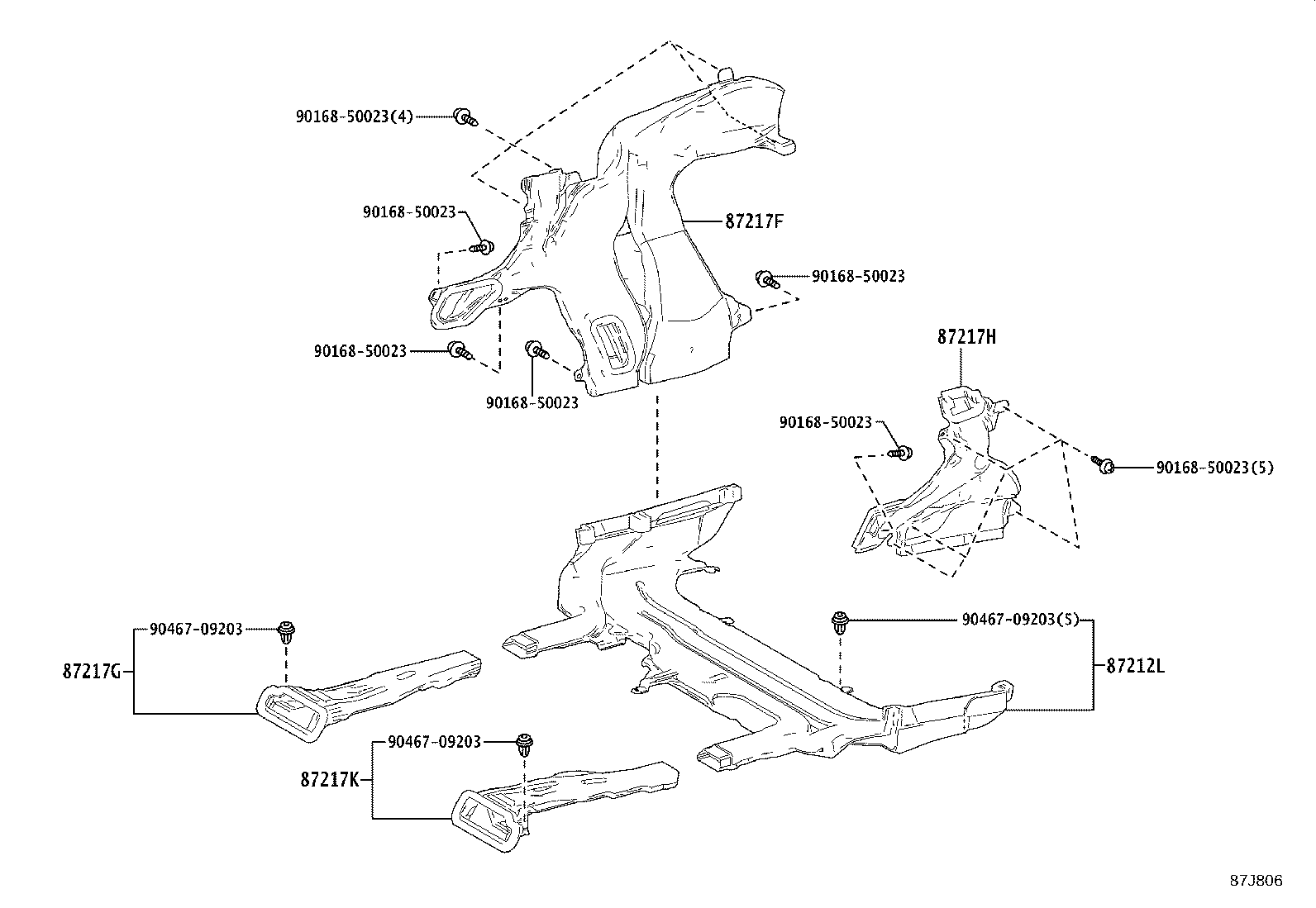

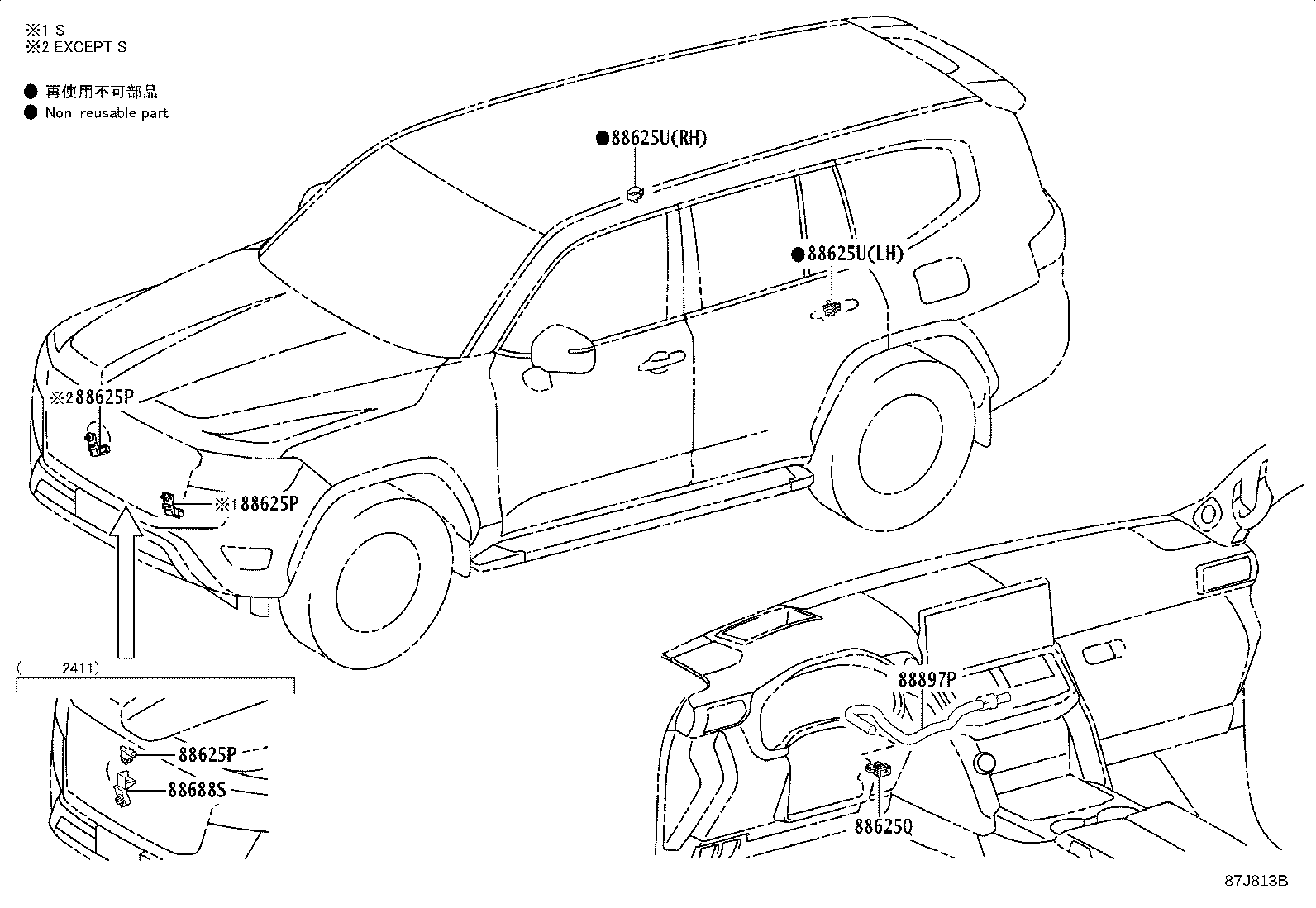

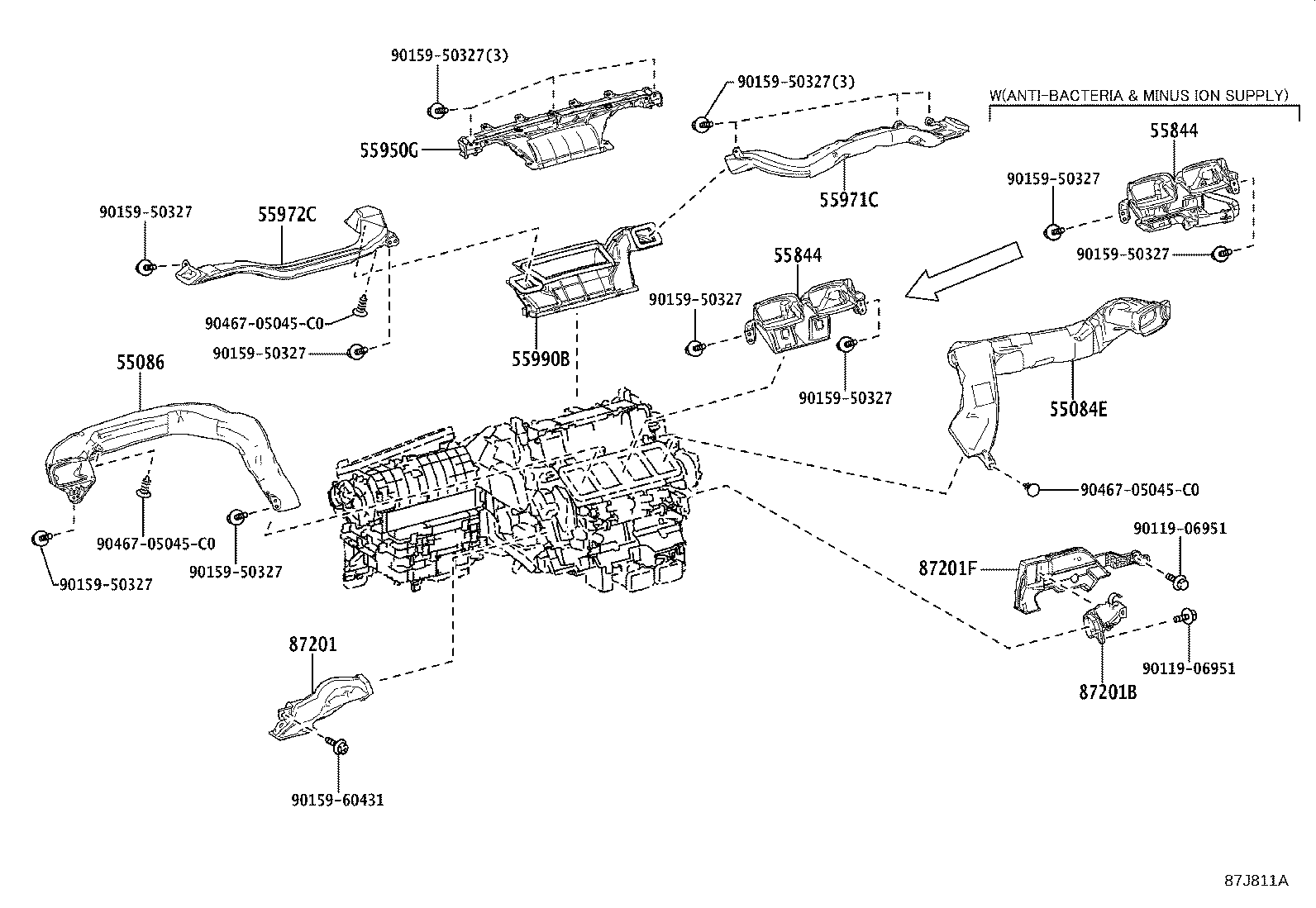

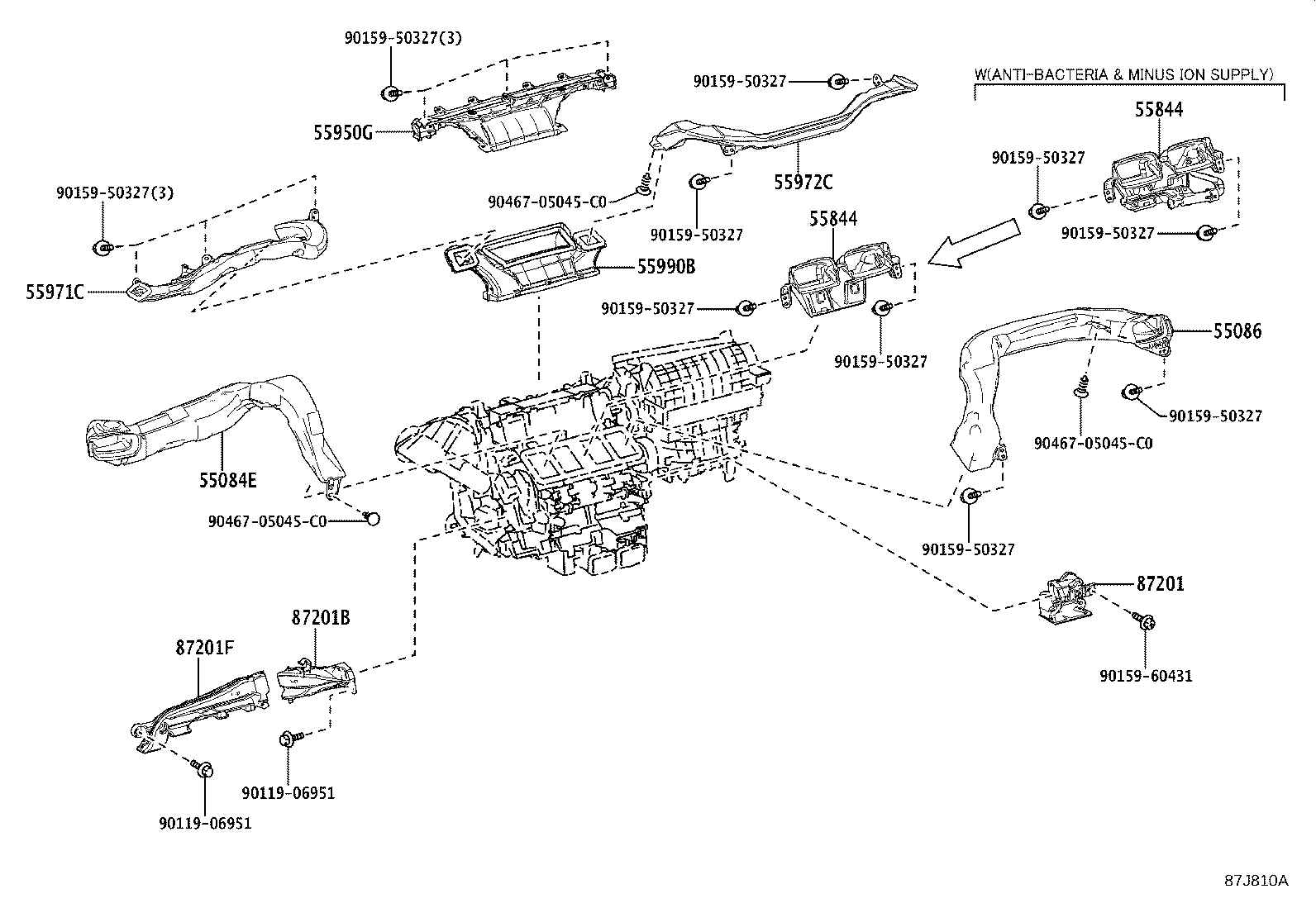

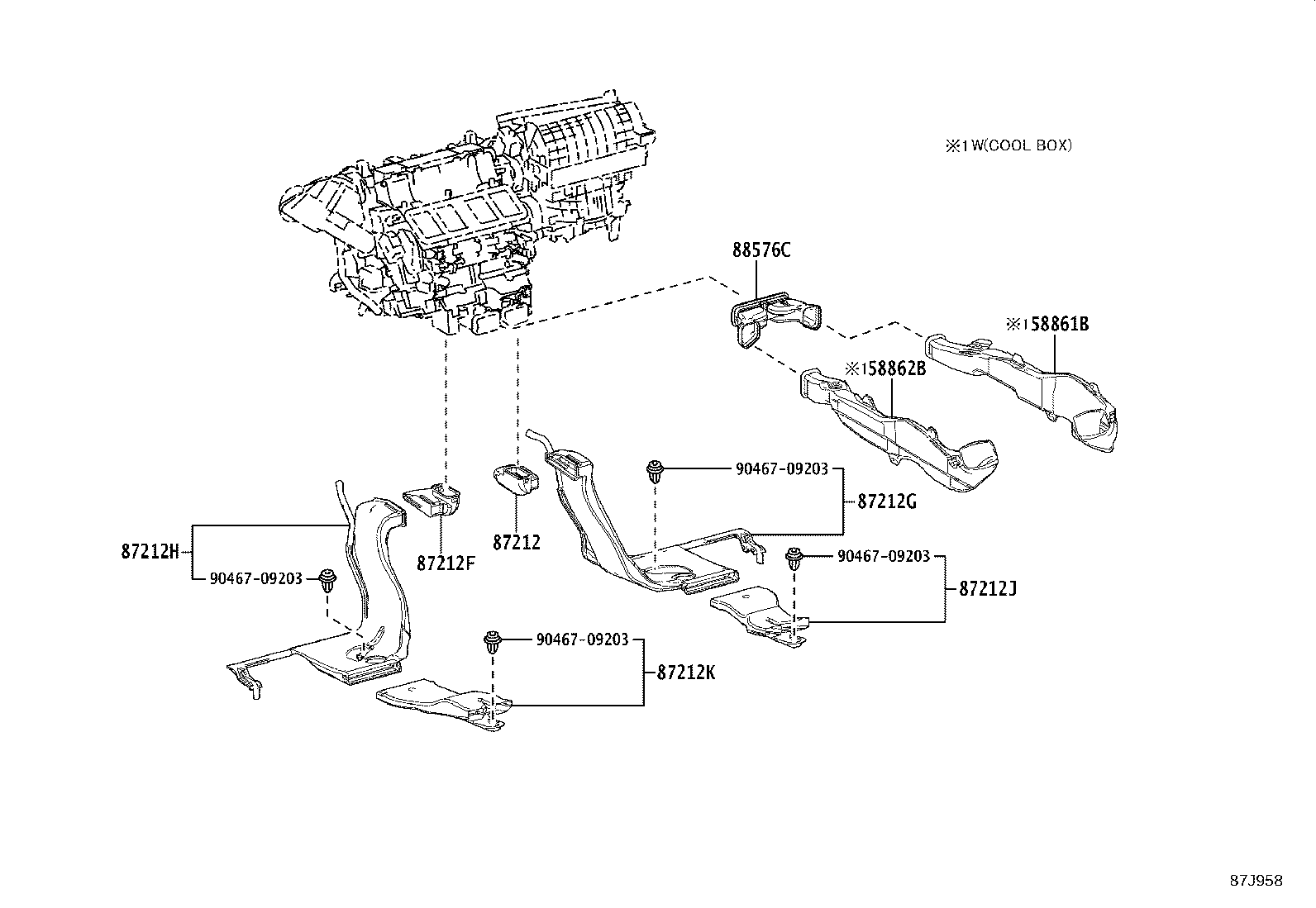

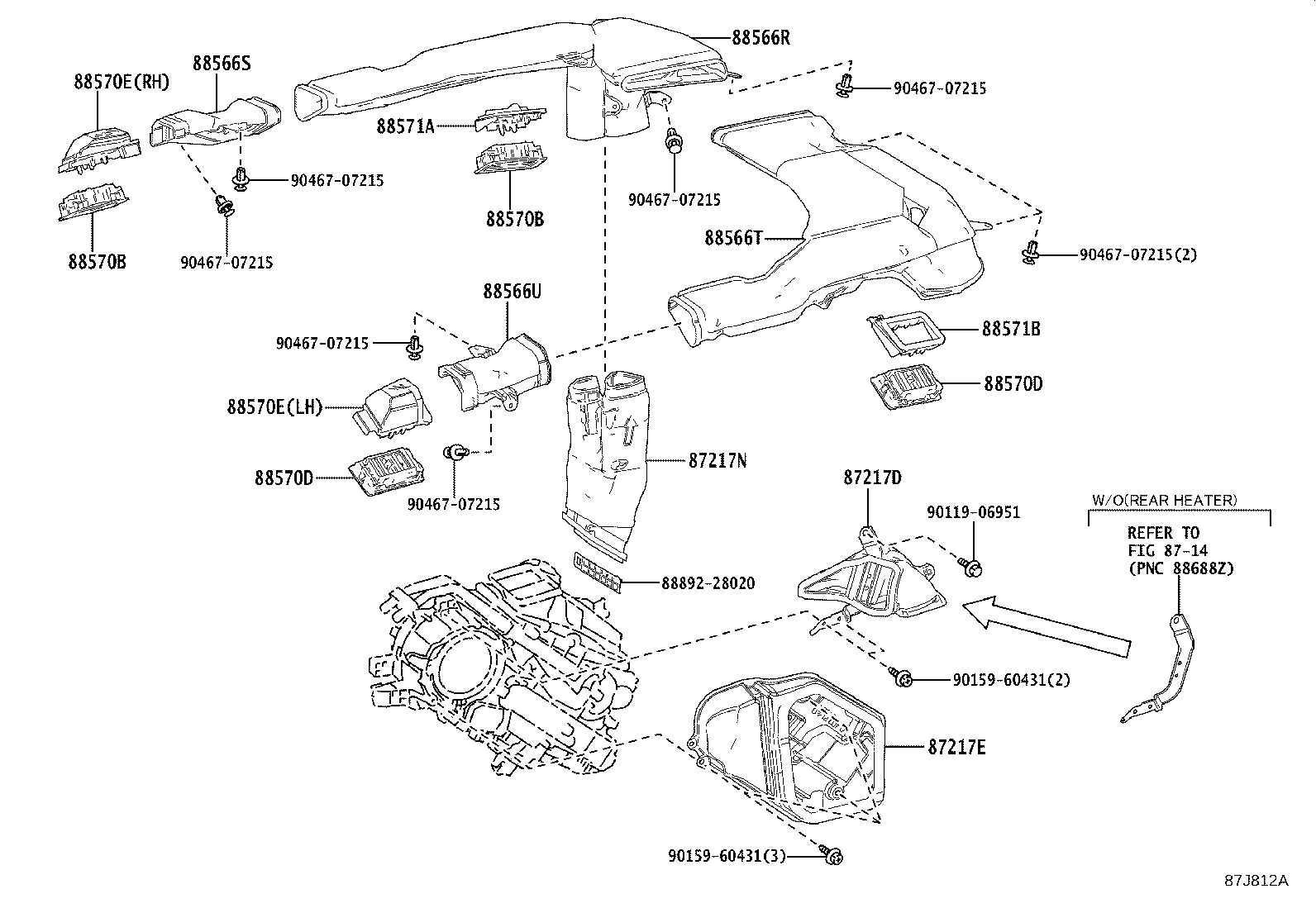

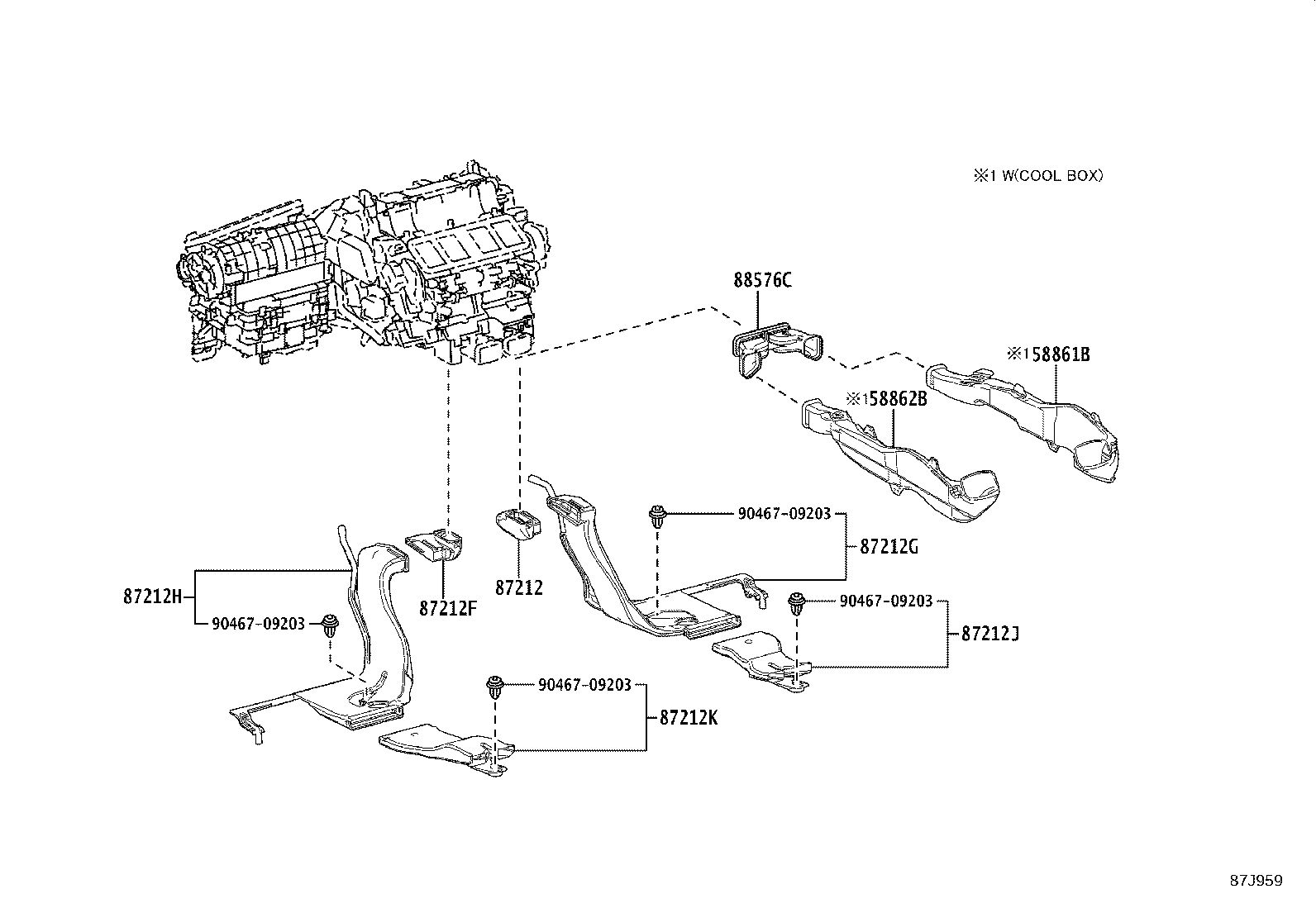

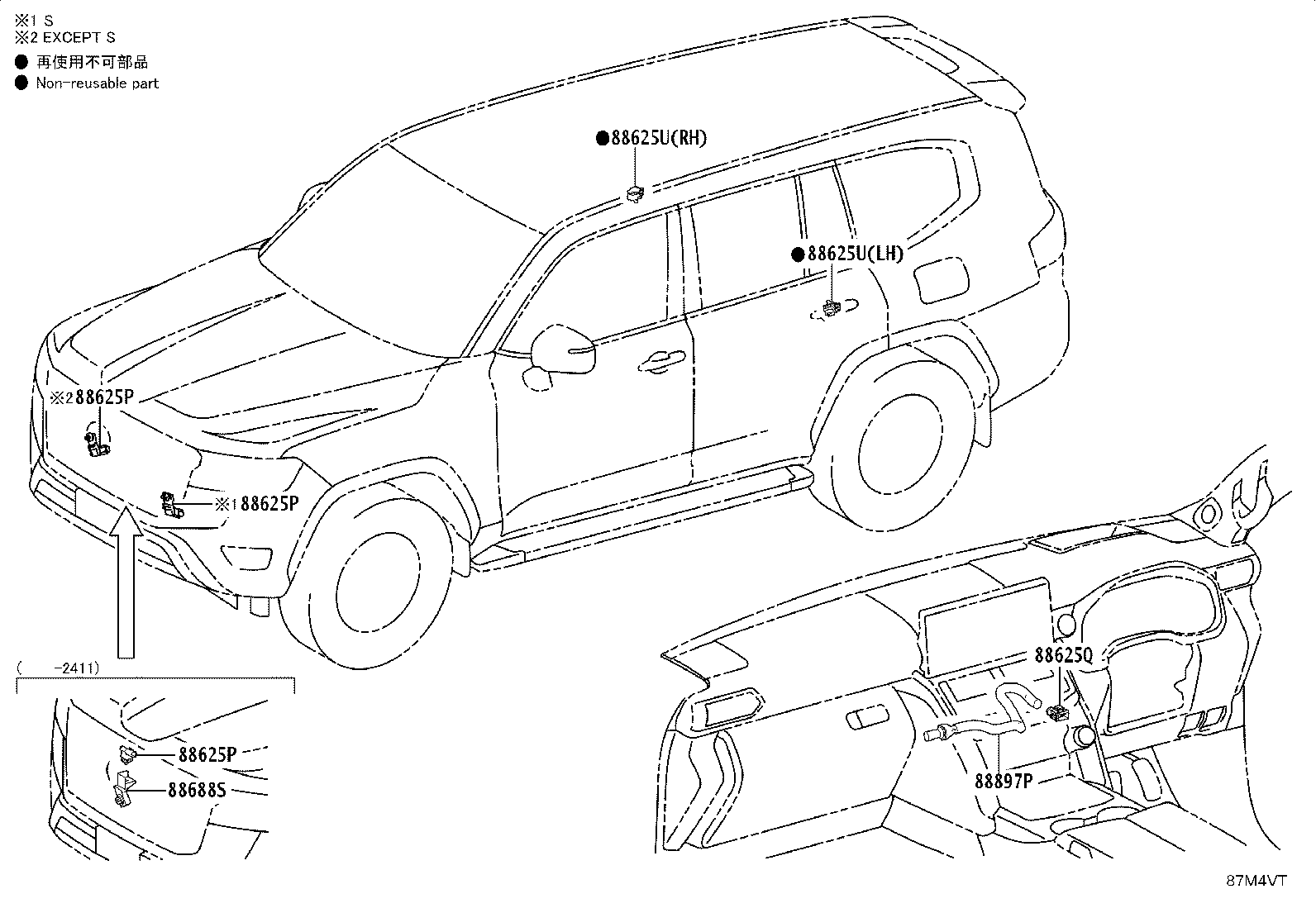

Figure 87J803 87J803 2021-04 → — Figure 87J809 87J809 2021-04 → — Figure 87J810A 87J810A 2021-04 → — Figure 87J811A 87J811A 2021-04 → — Figure 87J958 87J958 2021-04 → — Figure 87J959 87J959 2021-04 → — Figure 87J806 87J806 2021-04 → — Figure 87J812A 87J812A 2021-04 → — Figure 87J813B 87J813B 2021-04 → — Figure 87M4VT 87M4VT 2021-04 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55086 Duct Sub-assy, Heater TO Register, NO.3
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
84660H Switch Assy, Cooler Control
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87212J Duct, Air, Rear NO.5
87212K Duct, Air, Rear NO.6
87212L Duct, Air, Rear NO.7
87217D Duct, Air, Rear Side NO.1
87217E Duct, Air, Rear Side NO.2
87217F Duct, Air, Rear Side NO.3
87217G Duct, Air, Rear Side NO.4
87217H Duct, Air, Rear Side NO.5
87217K Duct, Air, Rear Side NO.6
87217N Duct, Air, Rear Side NO.9
88566R Duct, Air, Rear Roof NO.1
88566S Duct, Air, Rear Roof NO.2
88566T Duct, Air, Rear Roof NO.3
88566U Duct, Air, Rear Roof NO.4
88570B Grille Assy, Air Outlet, NO.1
88570D Grille Assy, Air Outlet, NO.2
88570E Grille Assy, Air Outlet
88571A Grille, Air Outlet
88571B Grille, Air Outlet
88576C Duct, Cooler Air, NO.1
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88625U Thermistor, Cooler (DUCT SENSOR)
88688S Bracket (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
