Heating & Air Conditioning - Water Piping

37 part groups · 16 illustrations

Illustrations

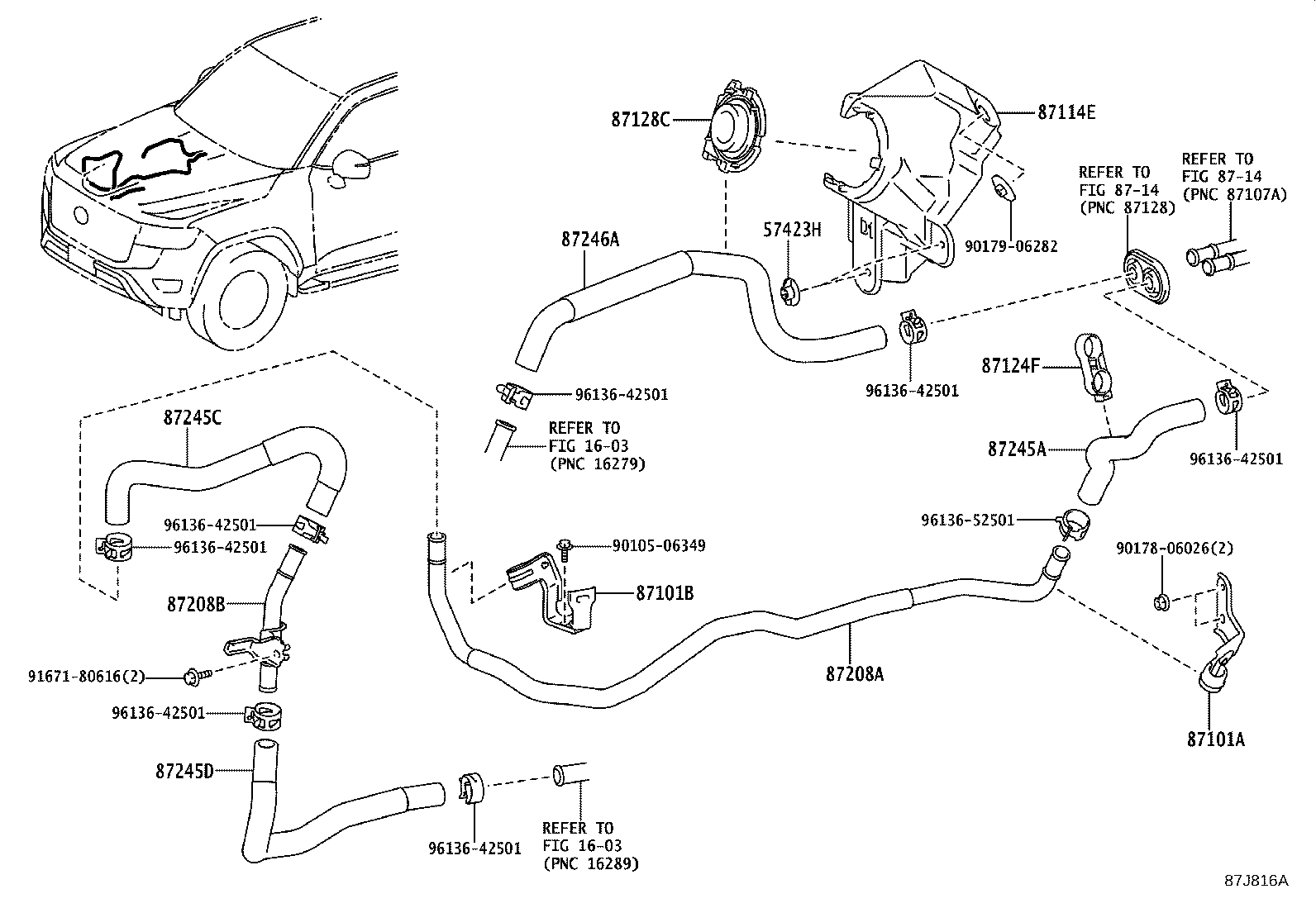

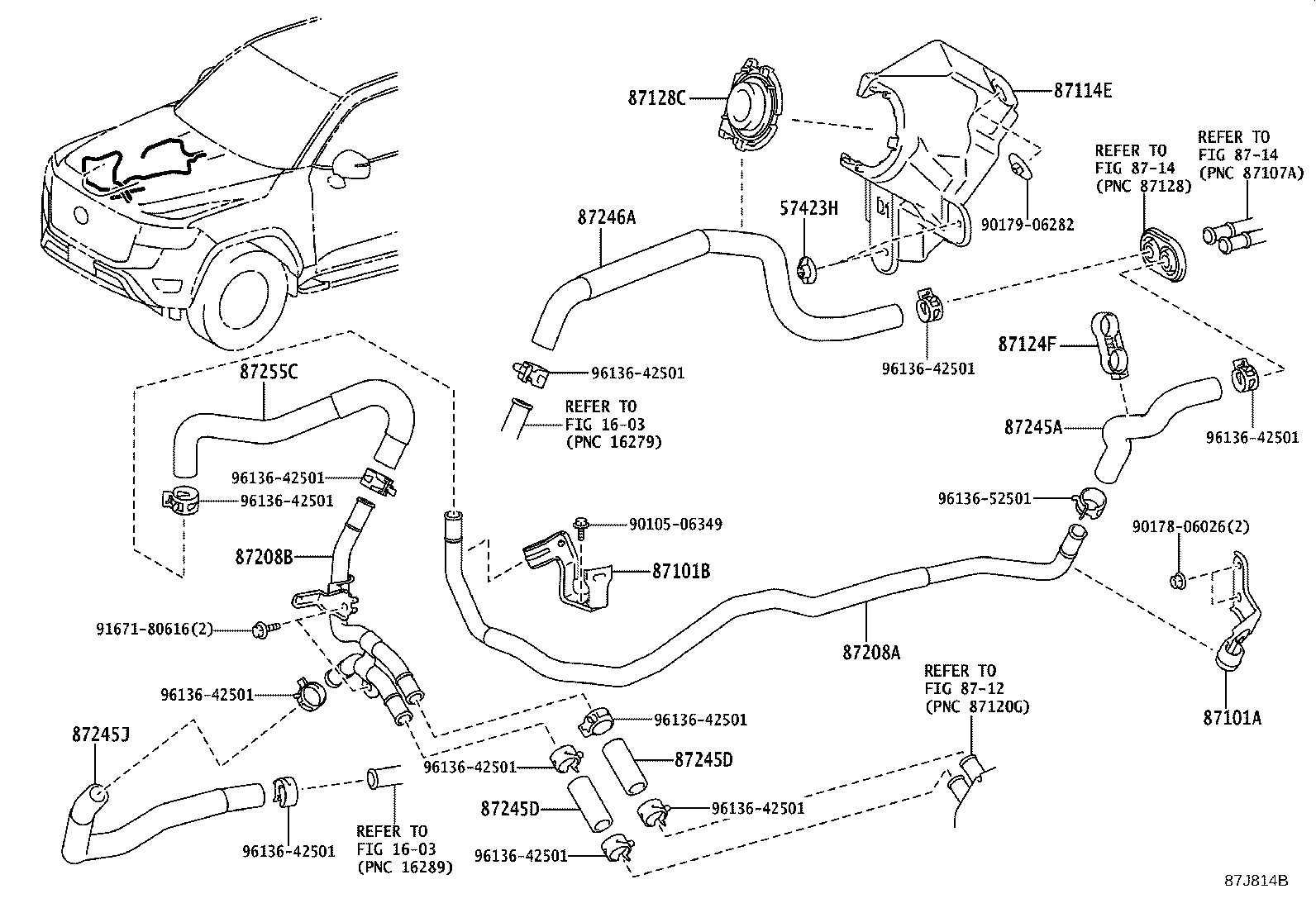

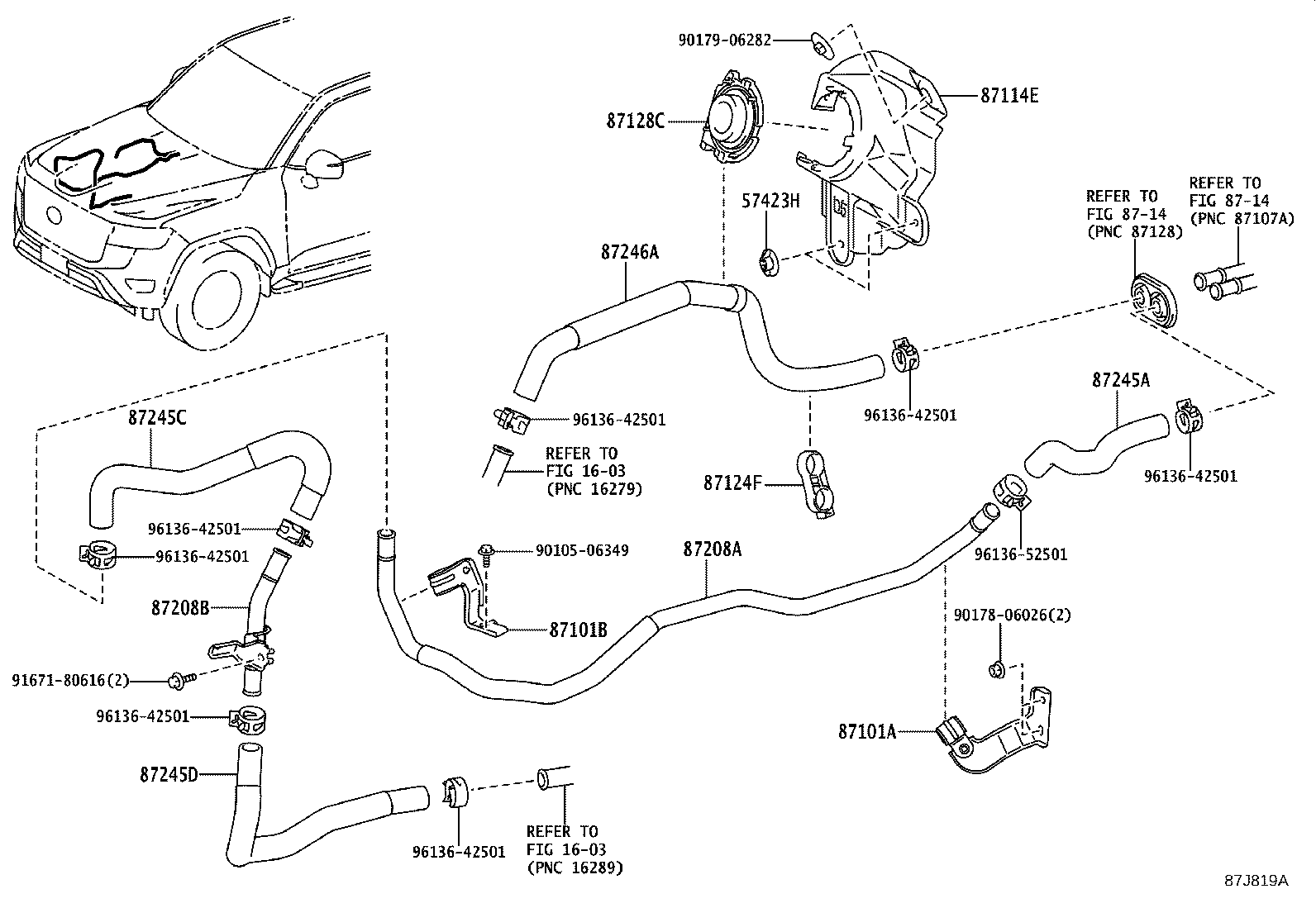

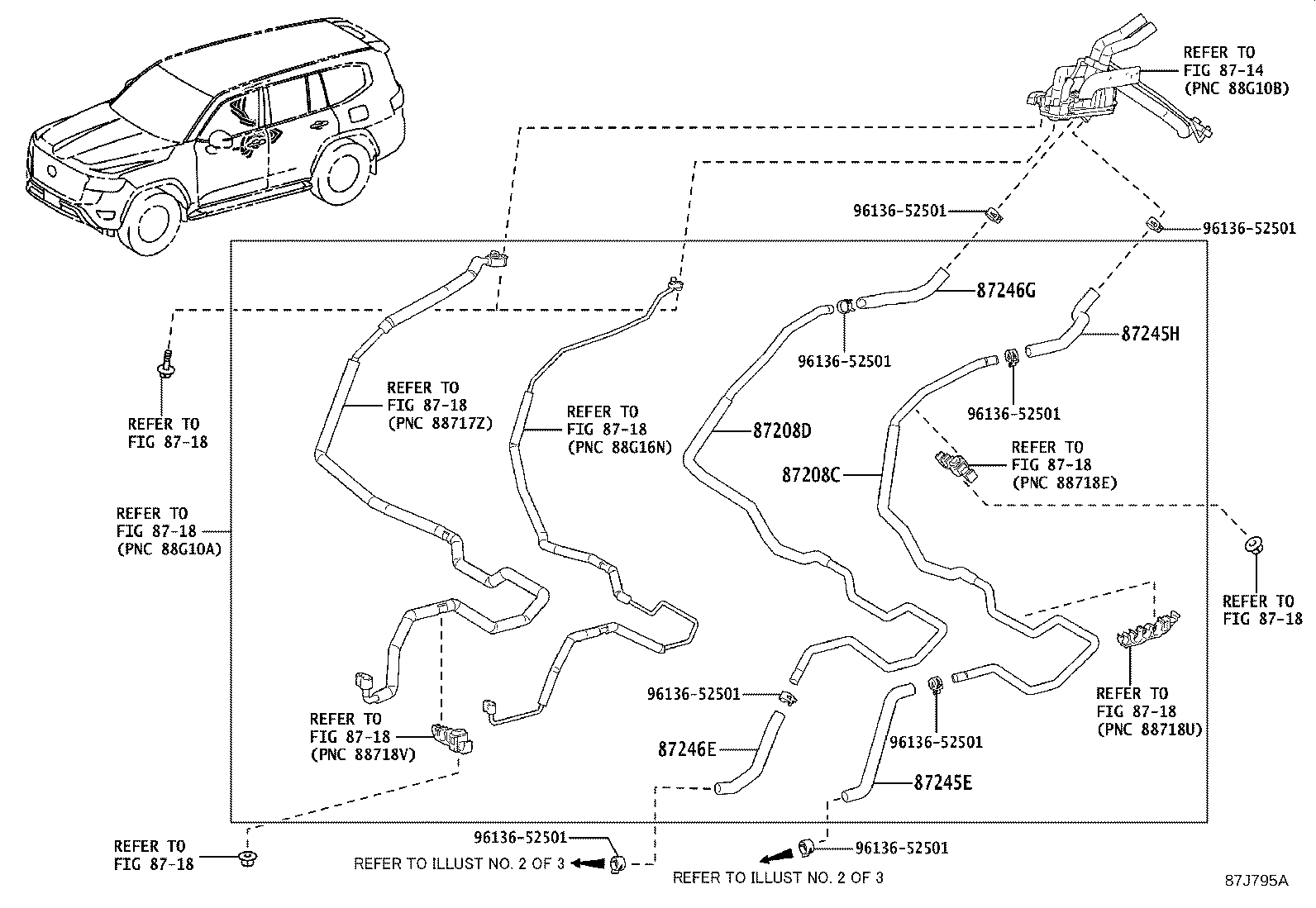

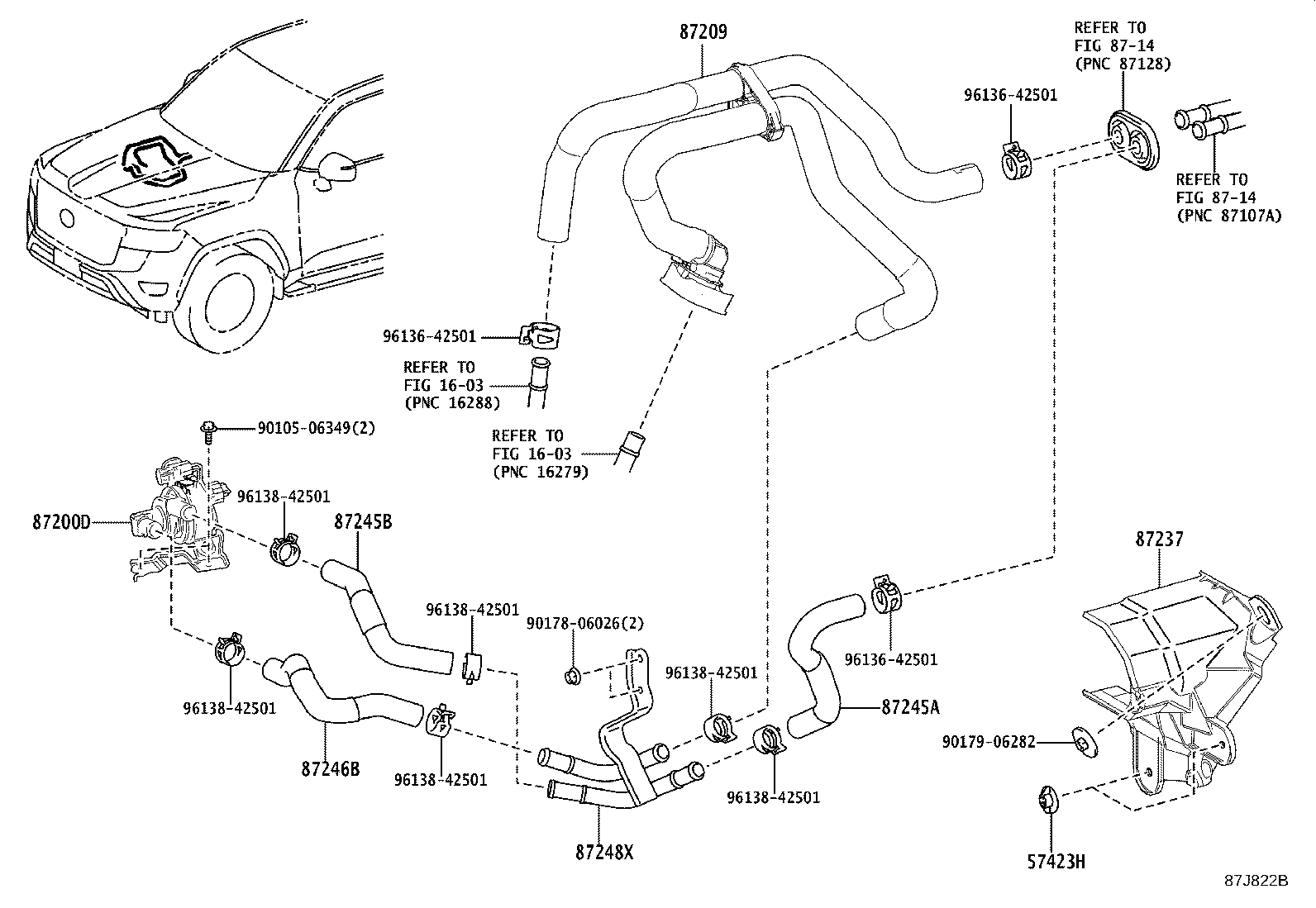

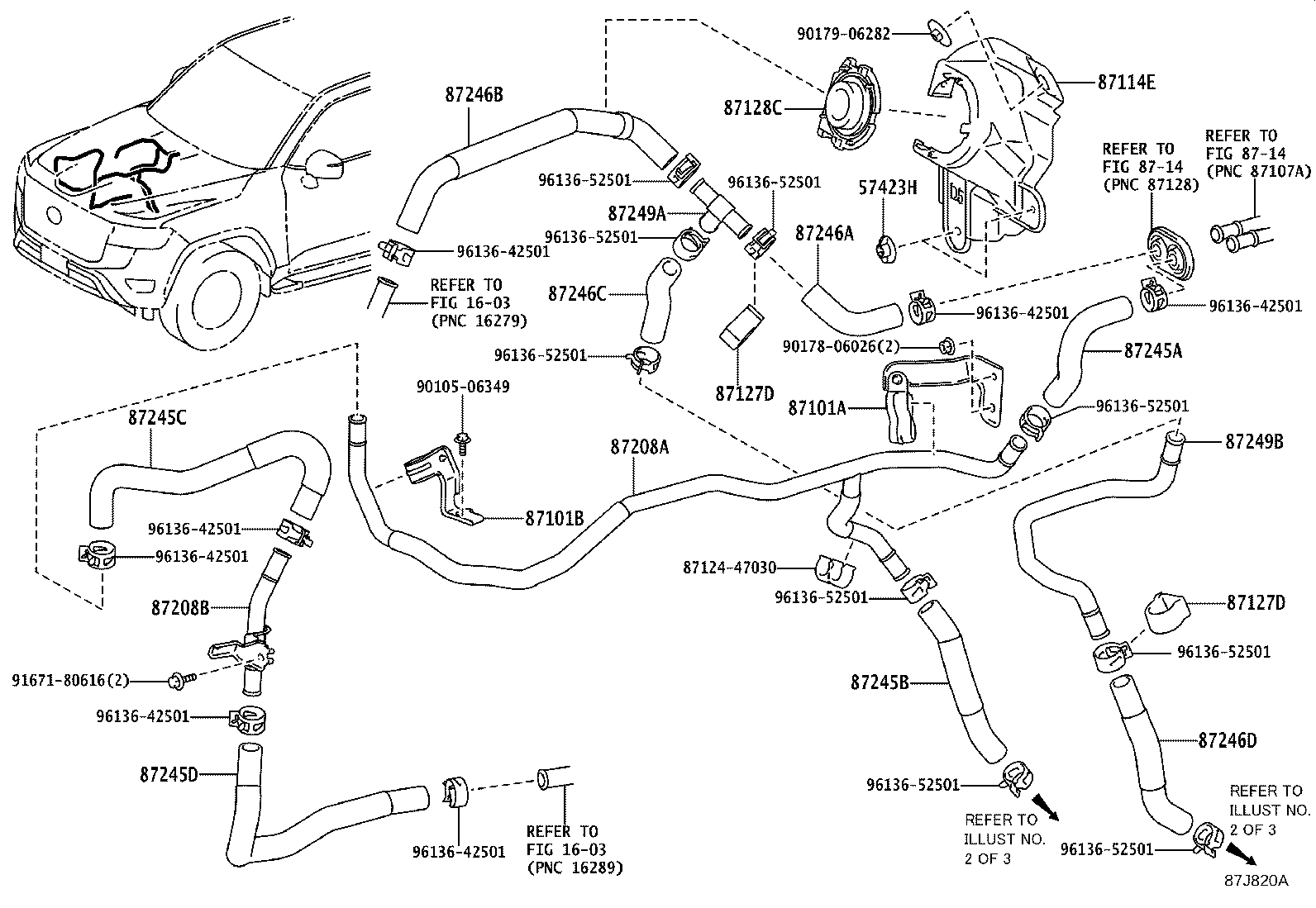

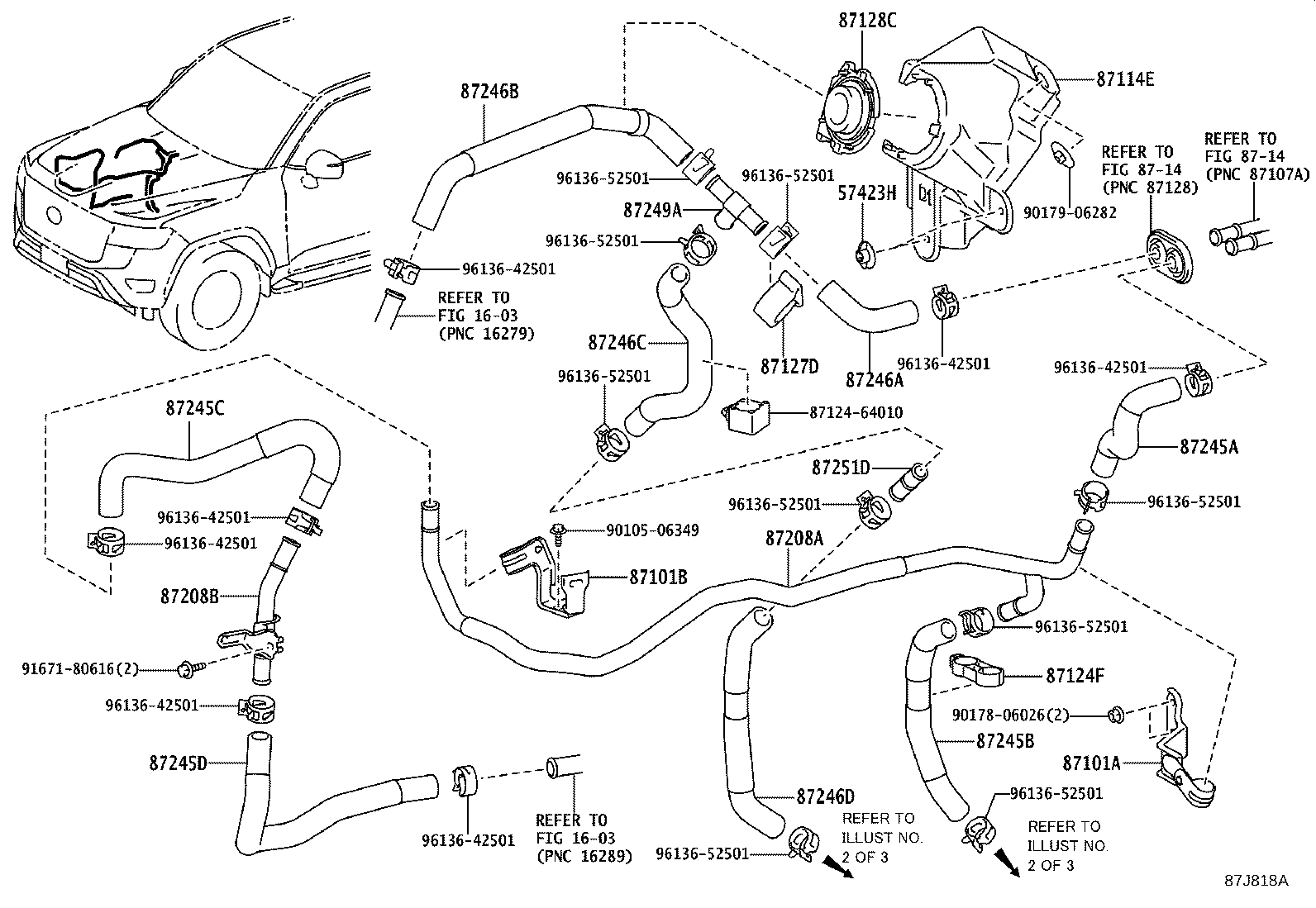

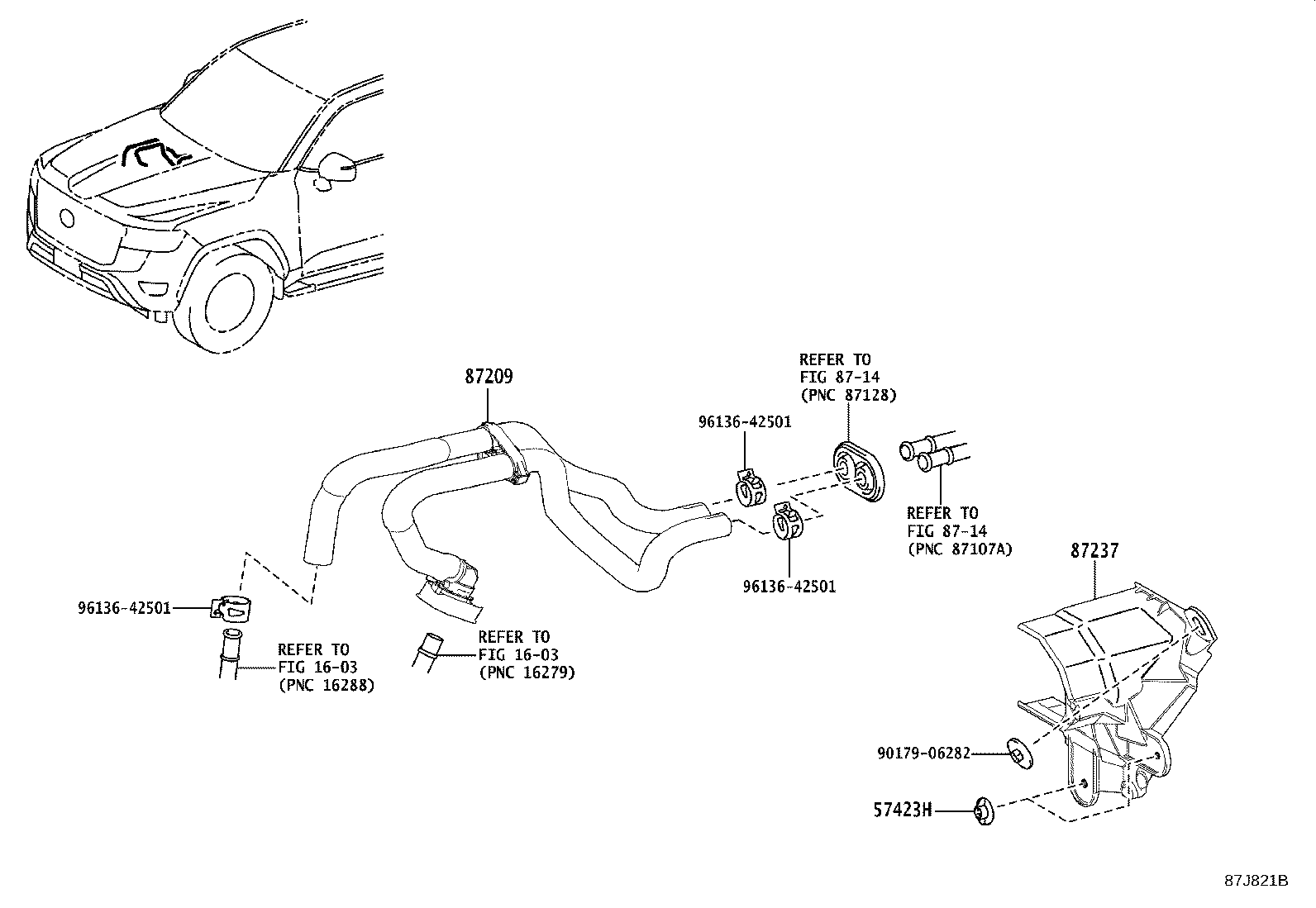

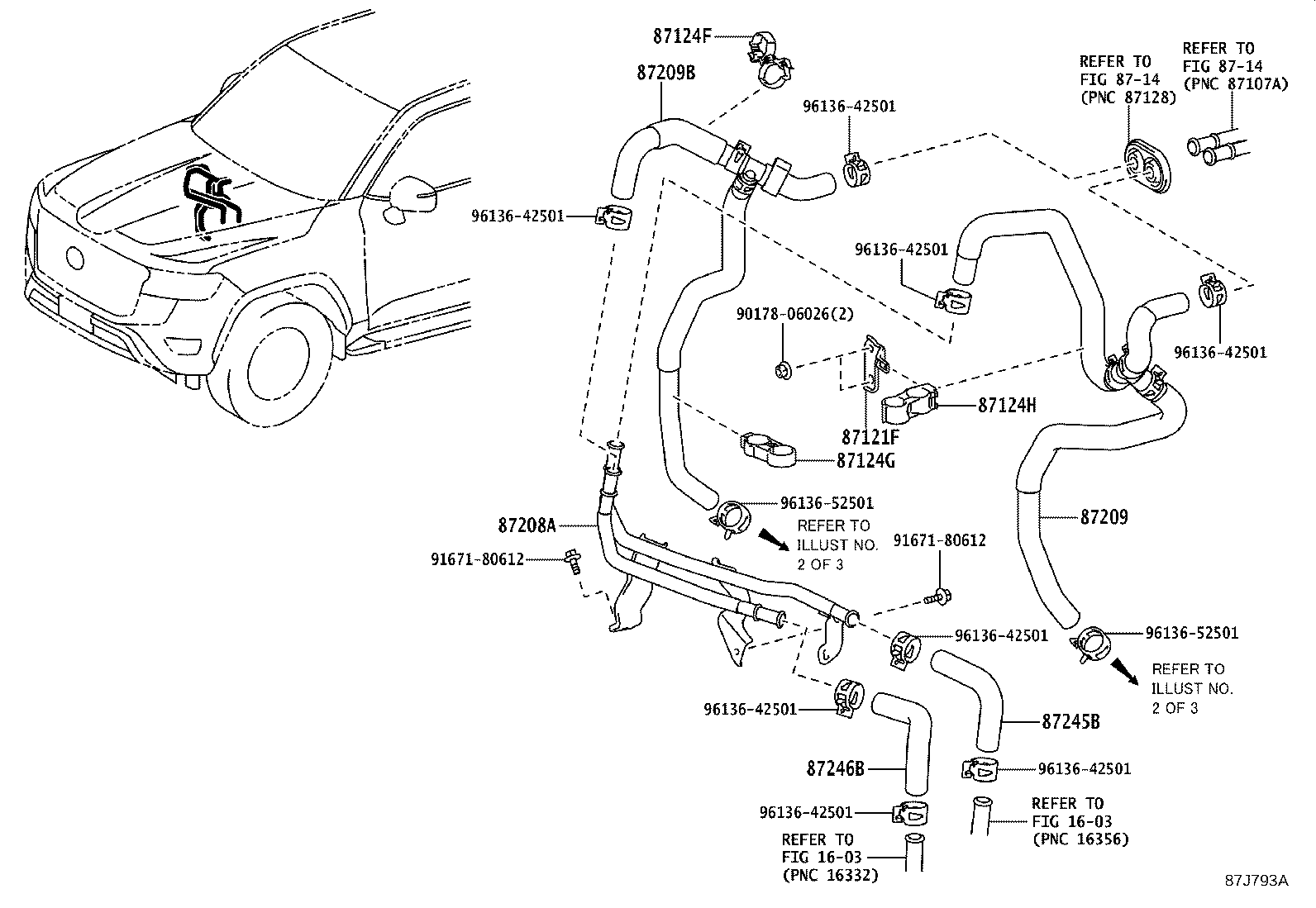

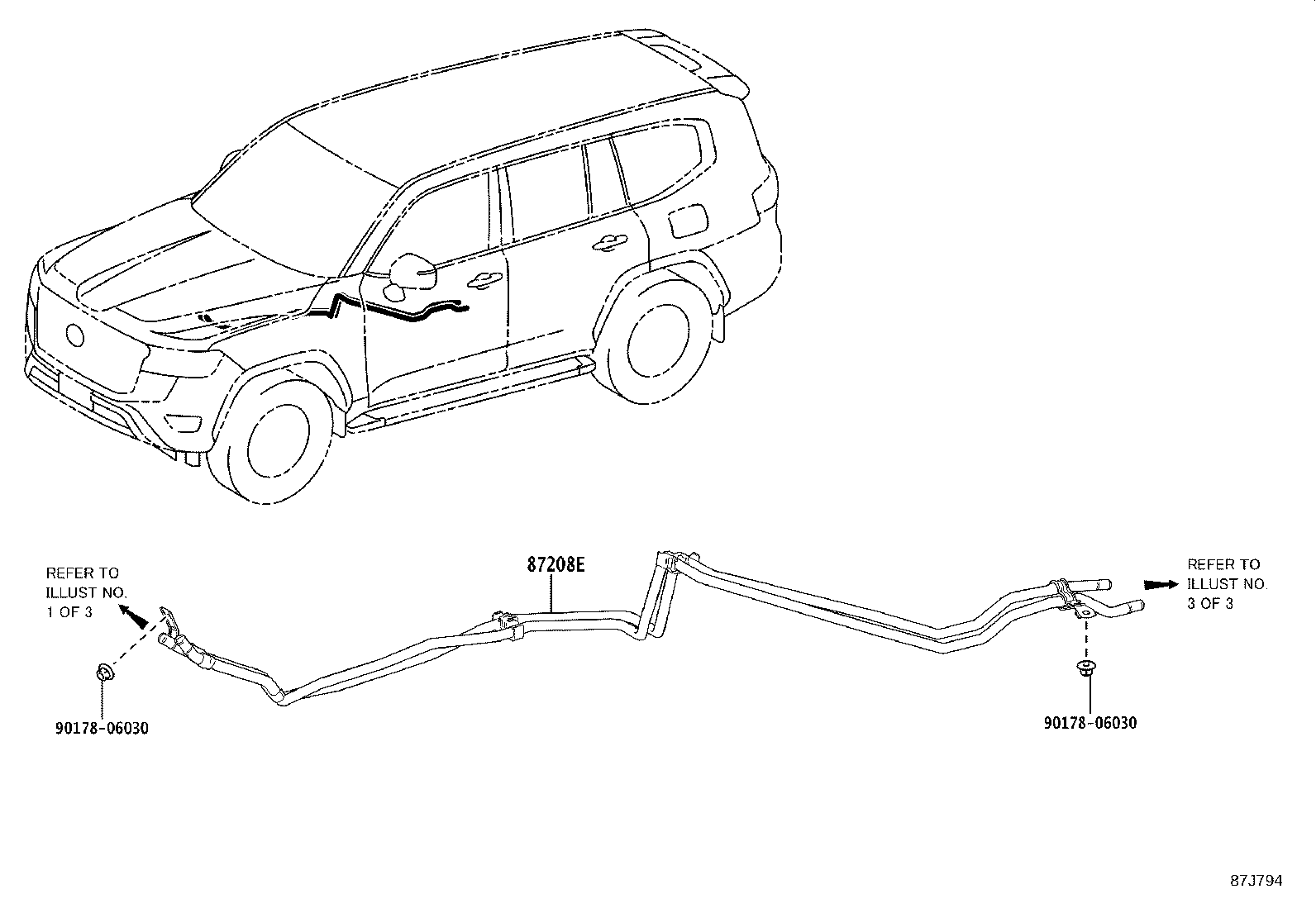

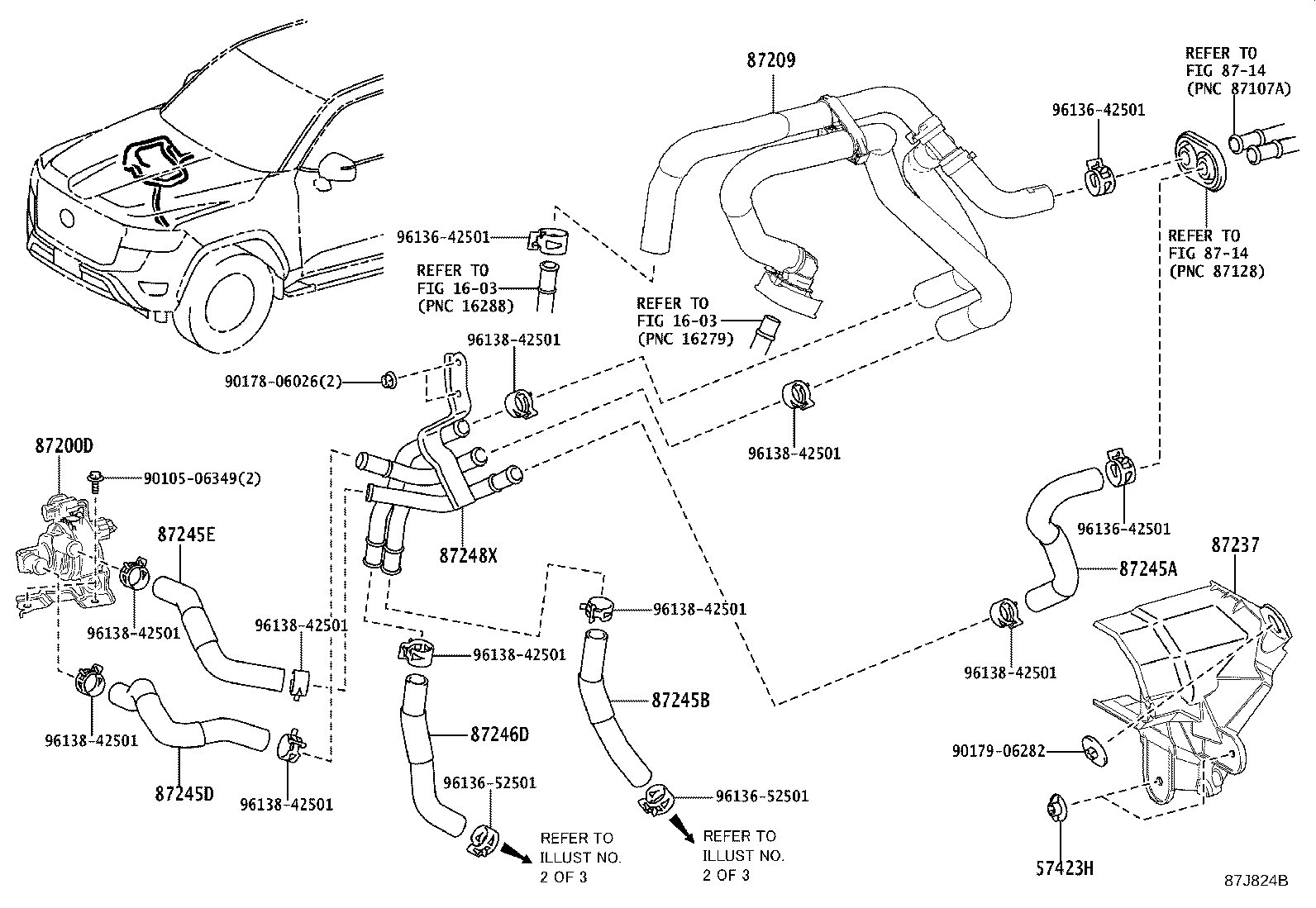

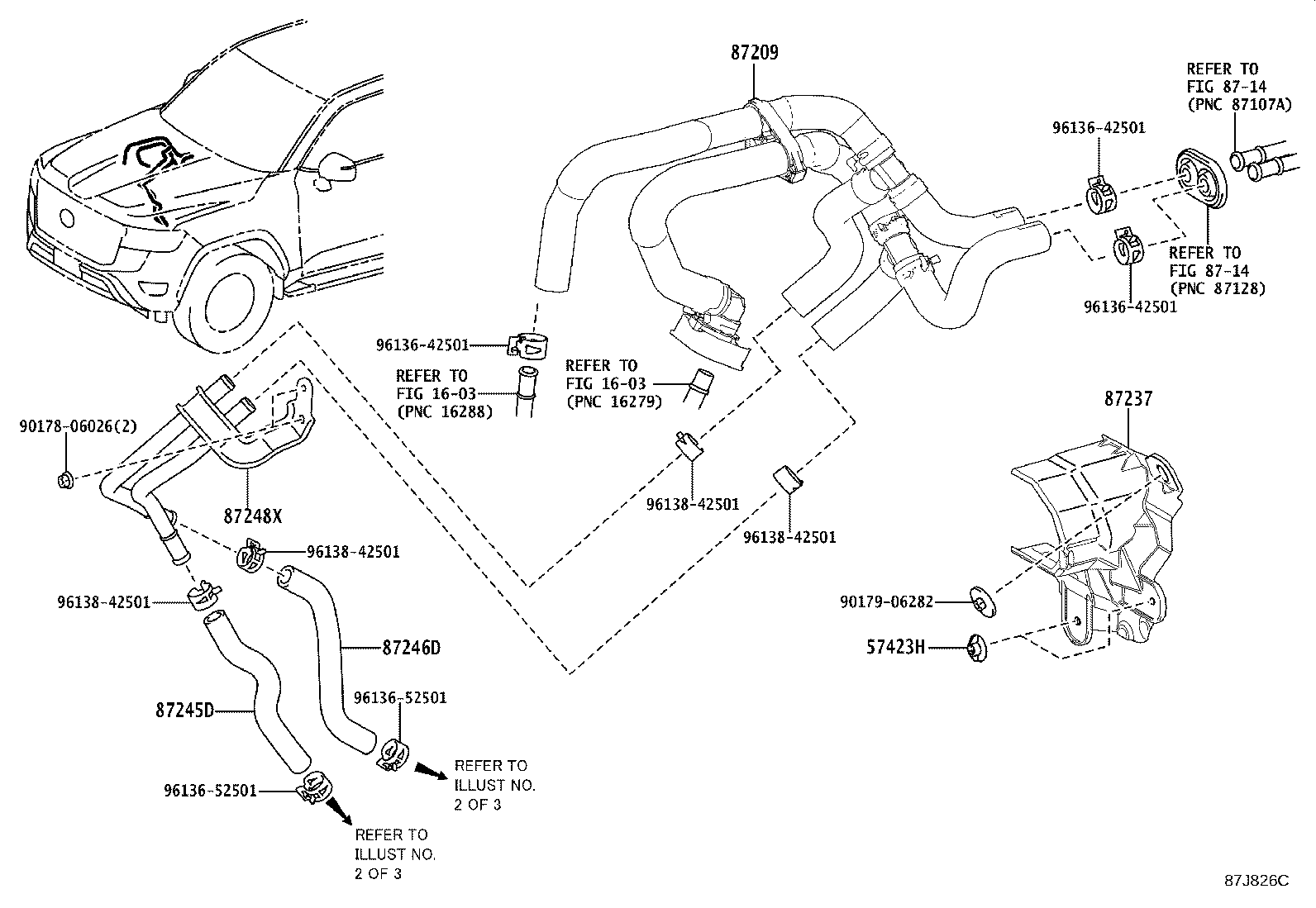

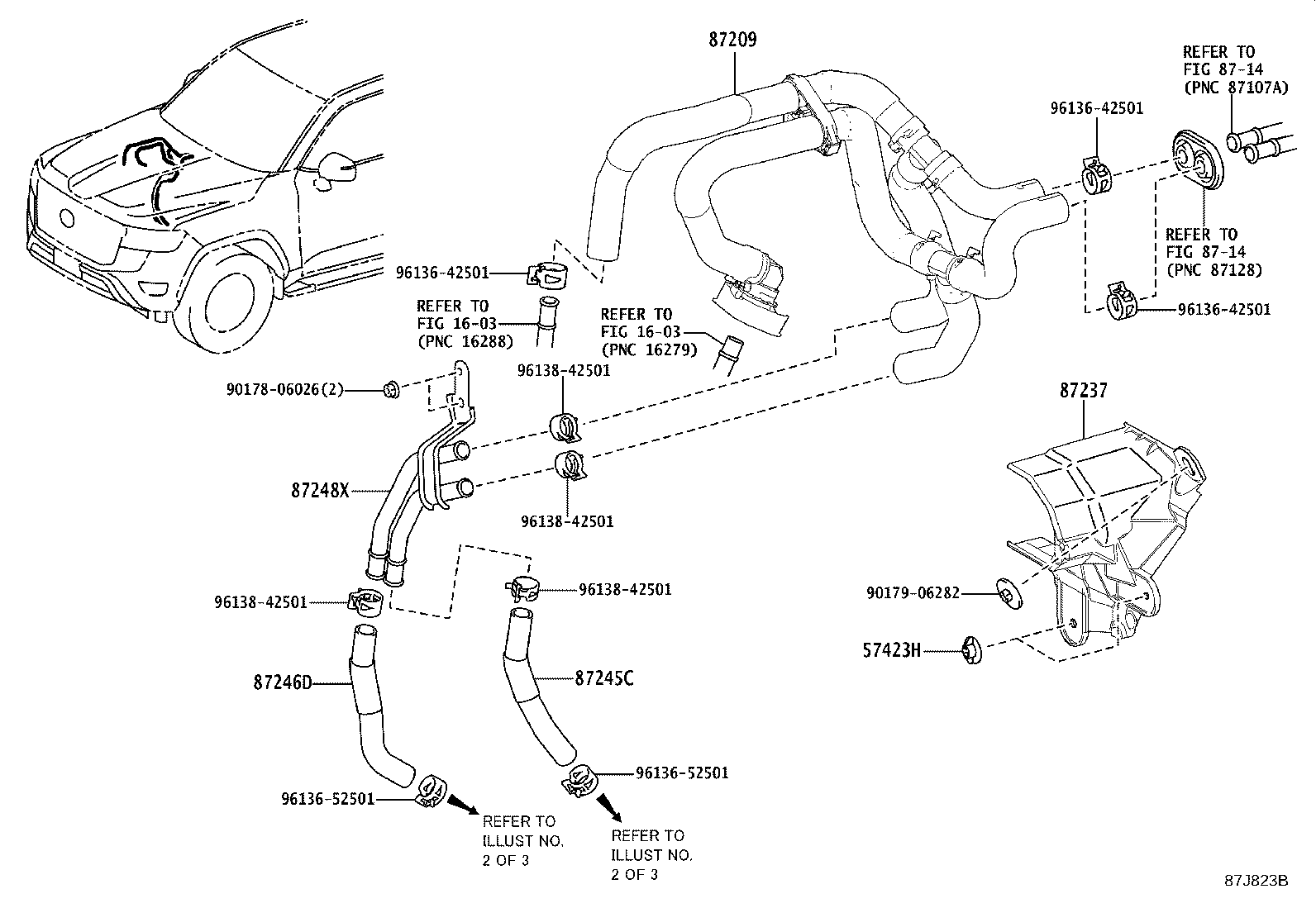

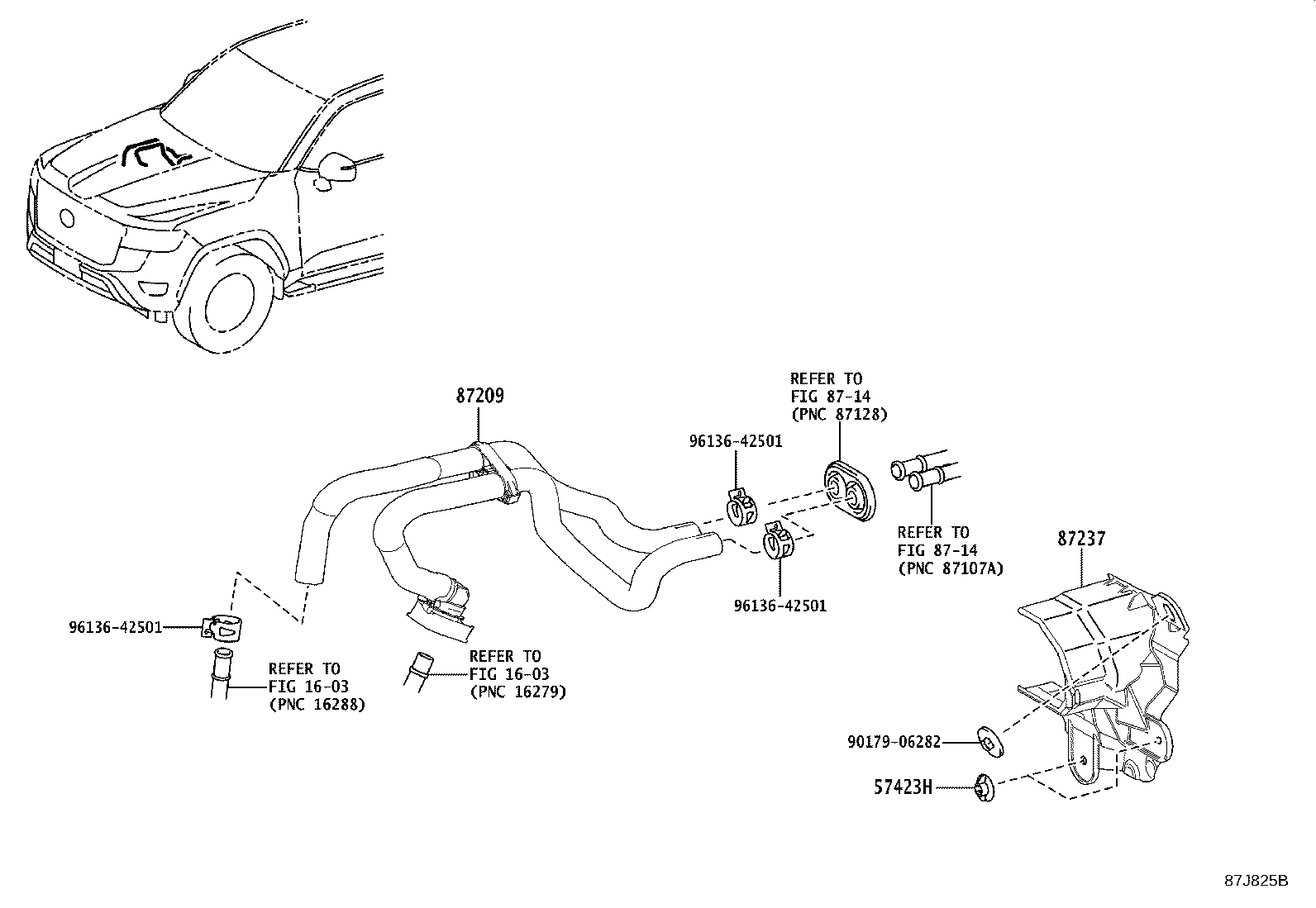

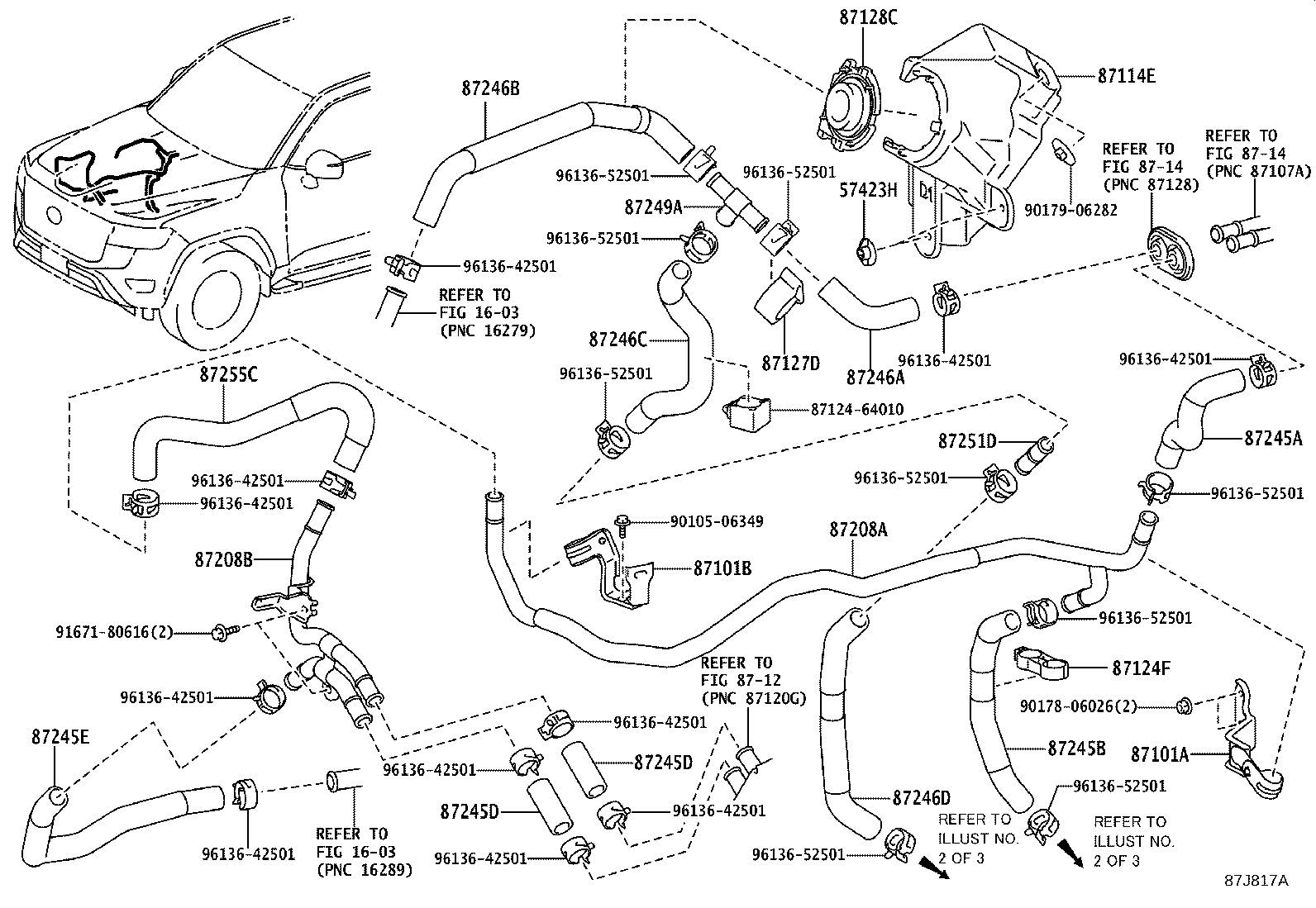

Figure 87J792A 87J792A 2021-04 → — Figure 87J793A 87J793A 2021-04 → — Figure 87J821B 87J821B 2021-04 → — Figure 87J822B 87J822B 2021-04 → — Figure 87J823B 87J823B 2021-04 → — Figure 87J824B 87J824B 2021-04 → — Figure 87J825B 87J825B 2021-04 → — Figure 87J826C 87J826C 2021-04 → — Figure 87J814B 87J814B 2021-07 → — Figure 87J816A 87J816A 2021-07 → — Figure 87J817A 87J817A 2021-07 → — Figure 87J818A 87J818A 2021-07 → — Figure 87J819A 87J819A 2021-07 → — Figure 87J820A 87J820A 2021-07 → — Figure 87J794 87J794 2021-04 → — Figure 87J795A 87J795A 2021-04 → —

Part groups

PNCDescription
57423H Clamp, Heater Cover
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87114E Cover, Heater, NO.1
87121F Bracket, Heater
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87124H Clamp, Heater Hose, NO.3
87127D Packing, Heater Hose, NO.1
87128C Grommet, Heater, NO.2
87200D Accessory Assy, Heater
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87237 Cover, Heater Piping
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245J Hose, Heater Water, Inlet J
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251D Joint, Water, NO.1
87255C Hose, Rear Heater Water Inlet, C
