Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

59 part groups · 23 illustrations

Illustrations

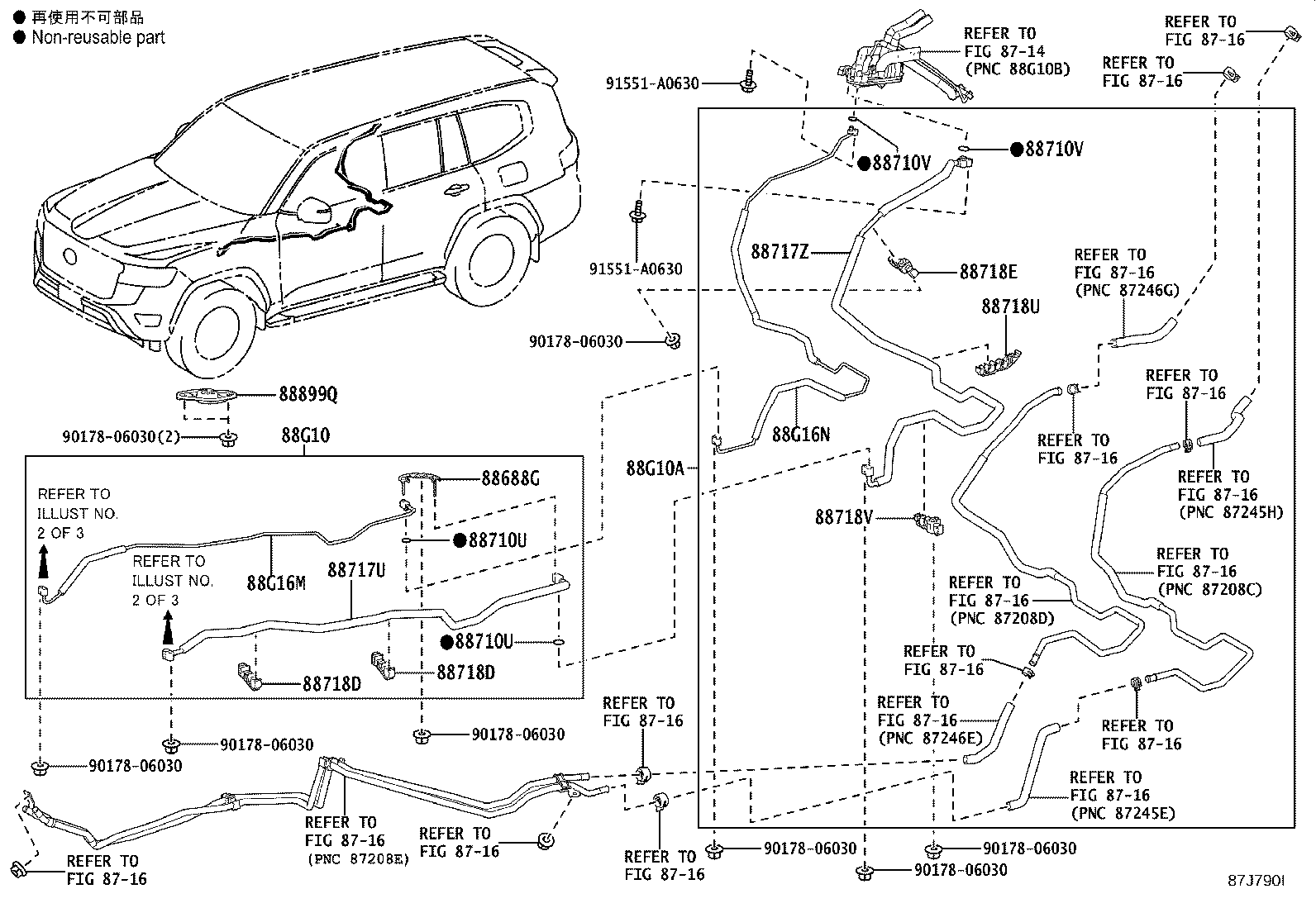

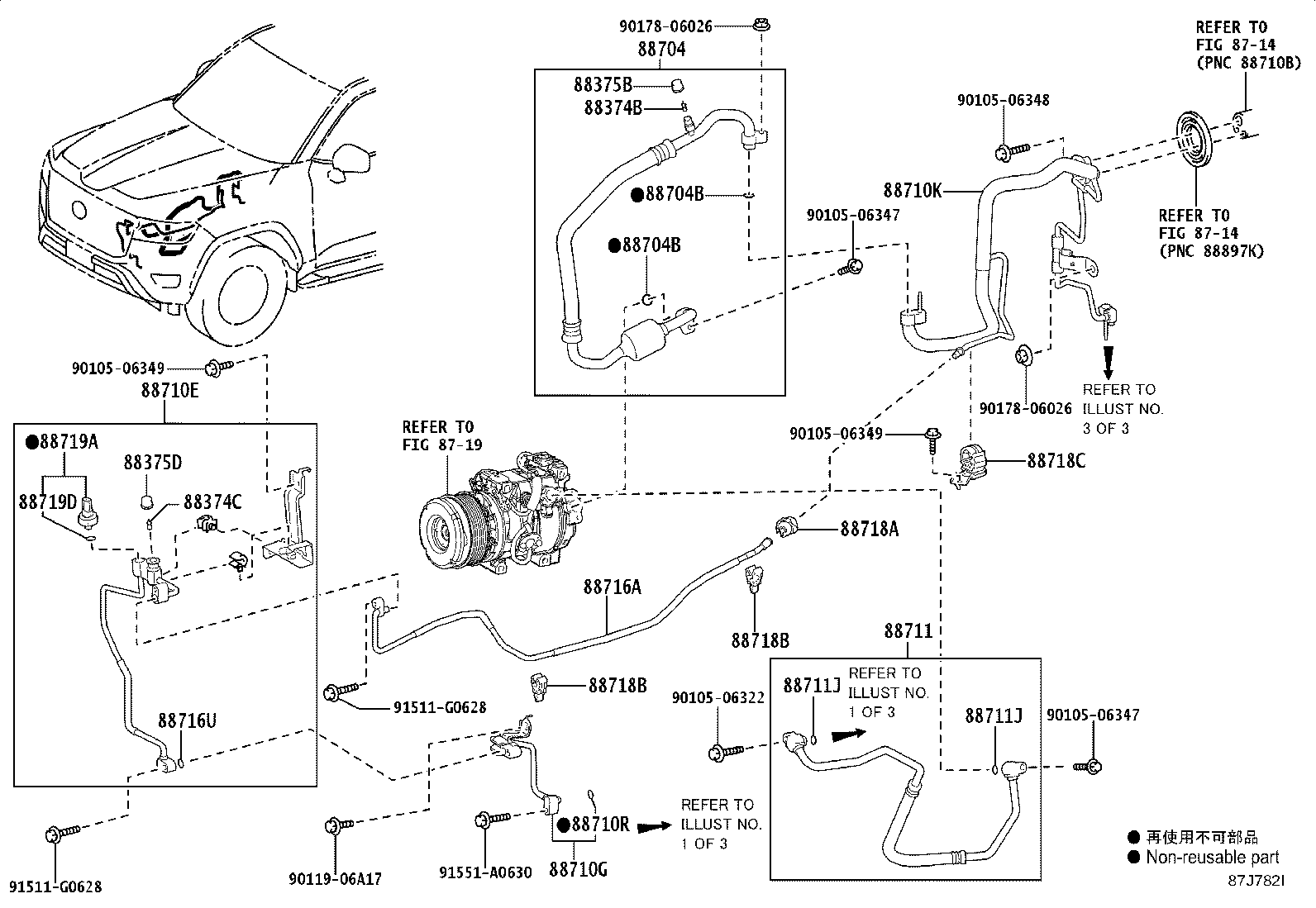

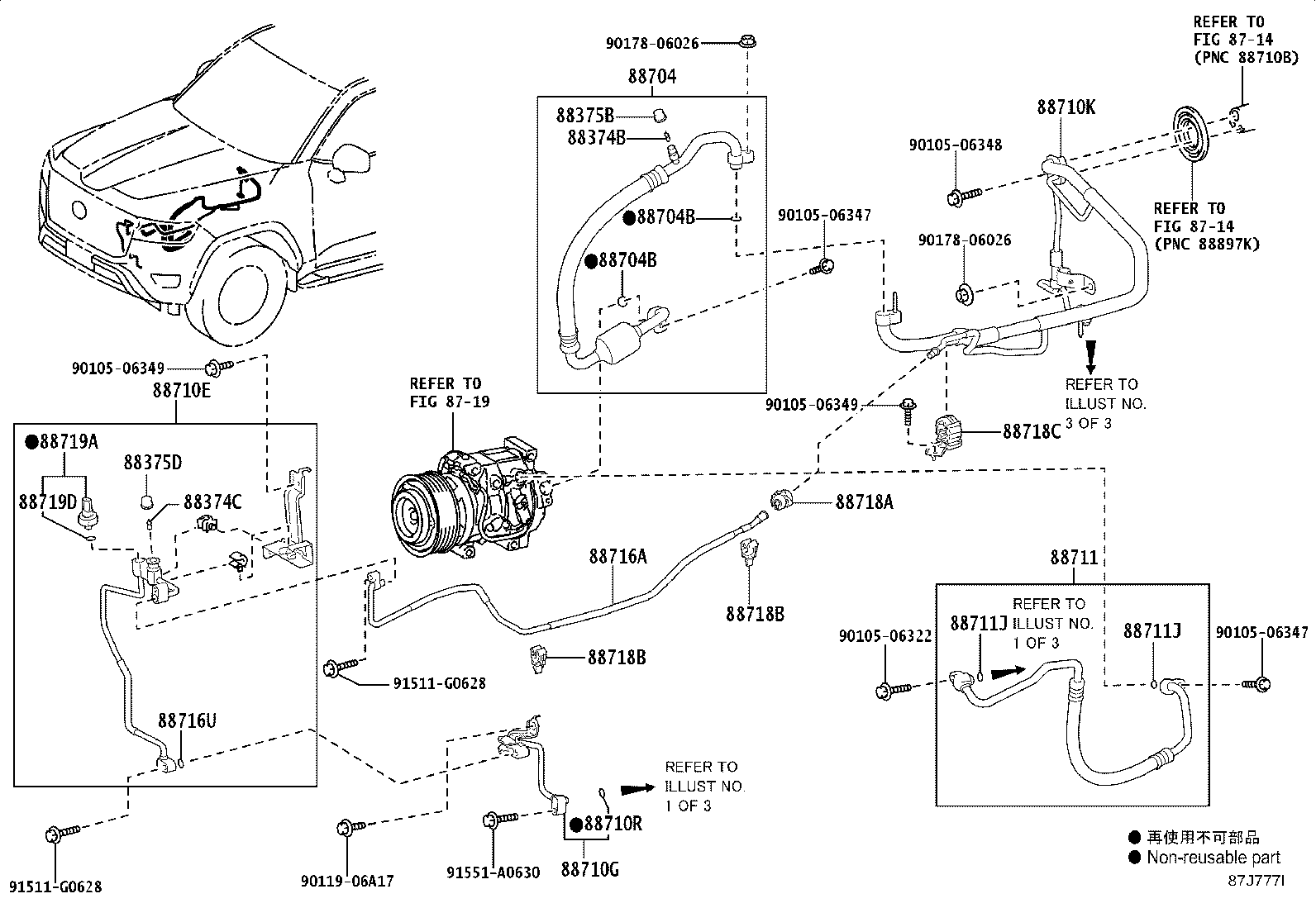

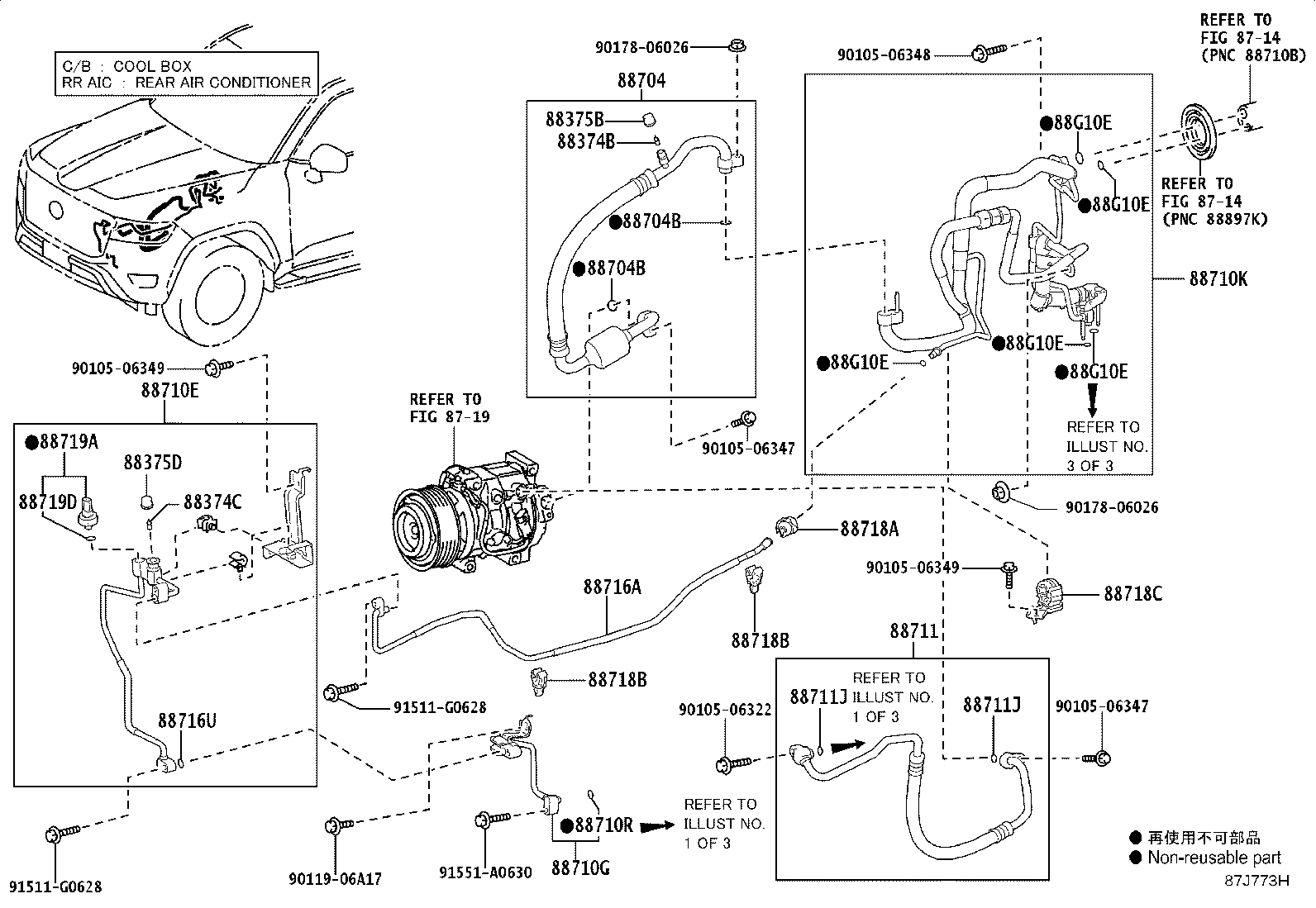

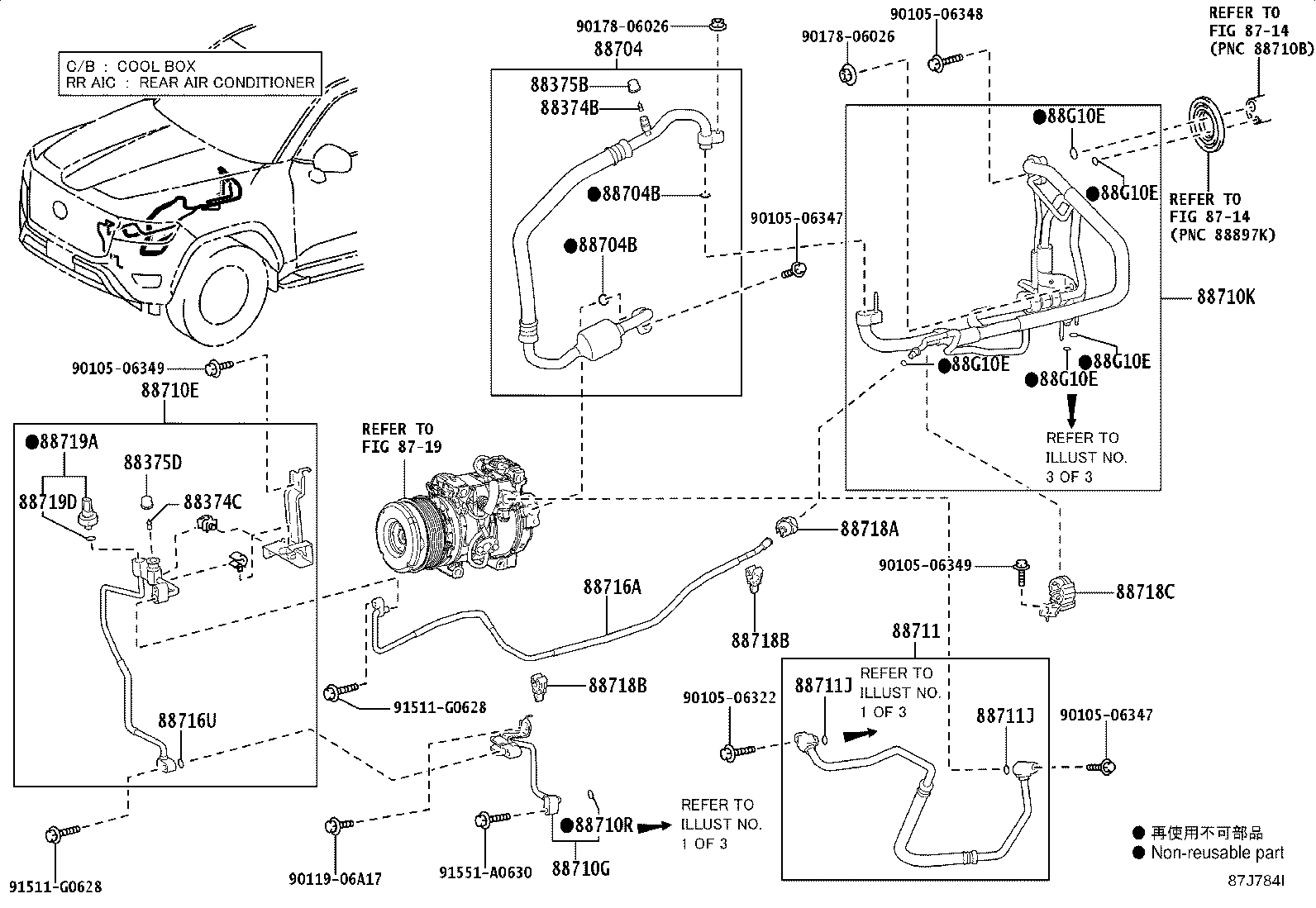

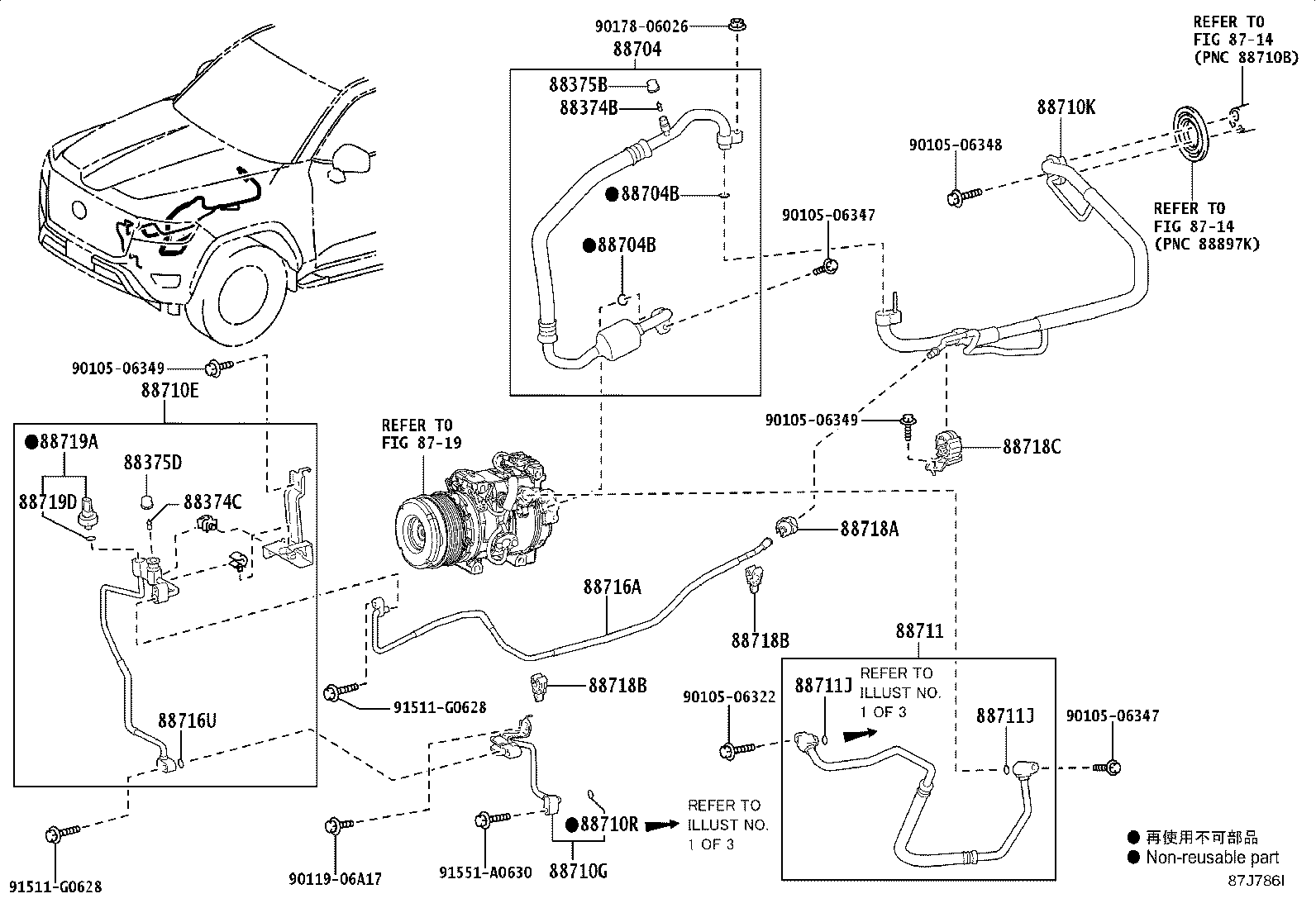

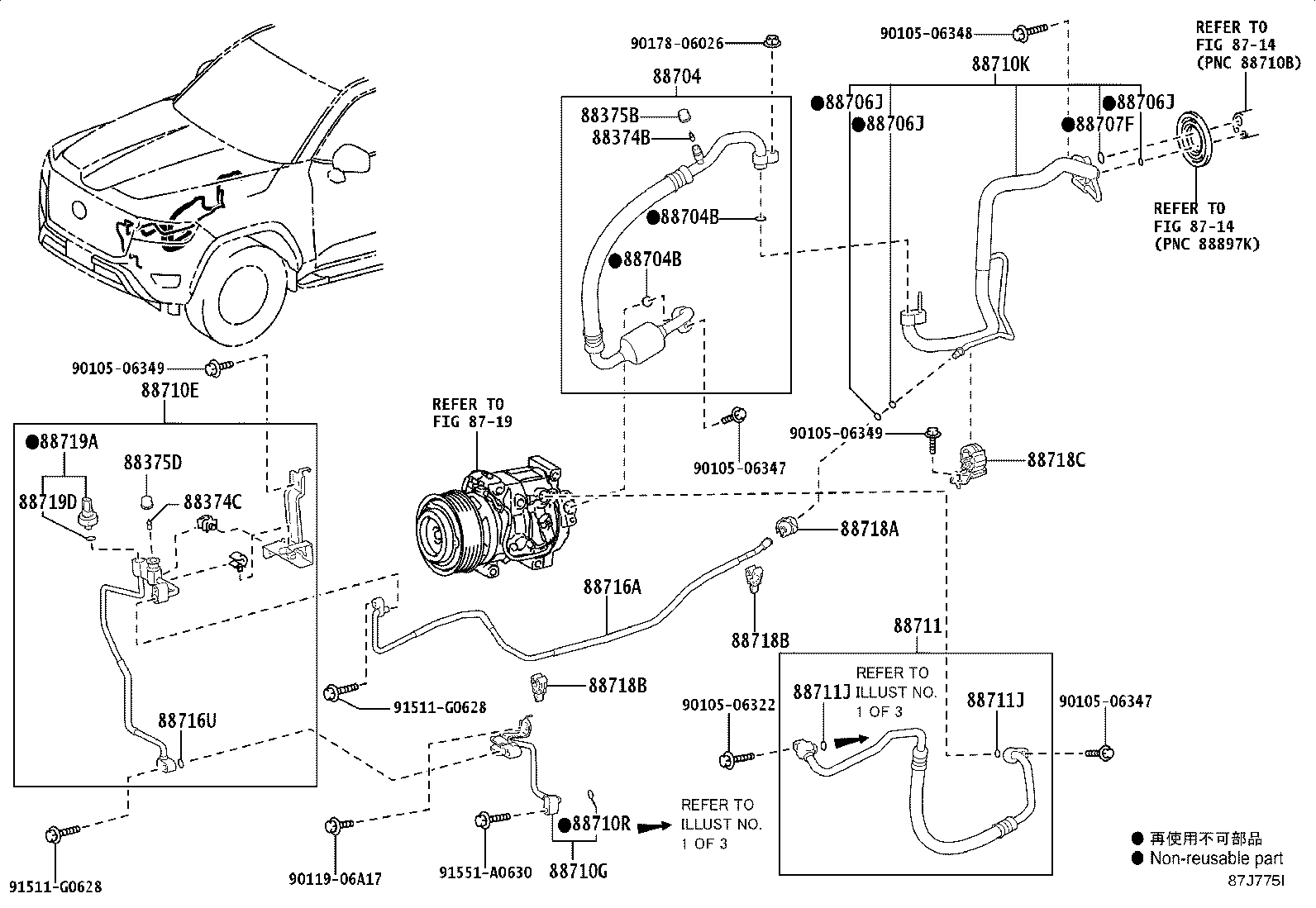

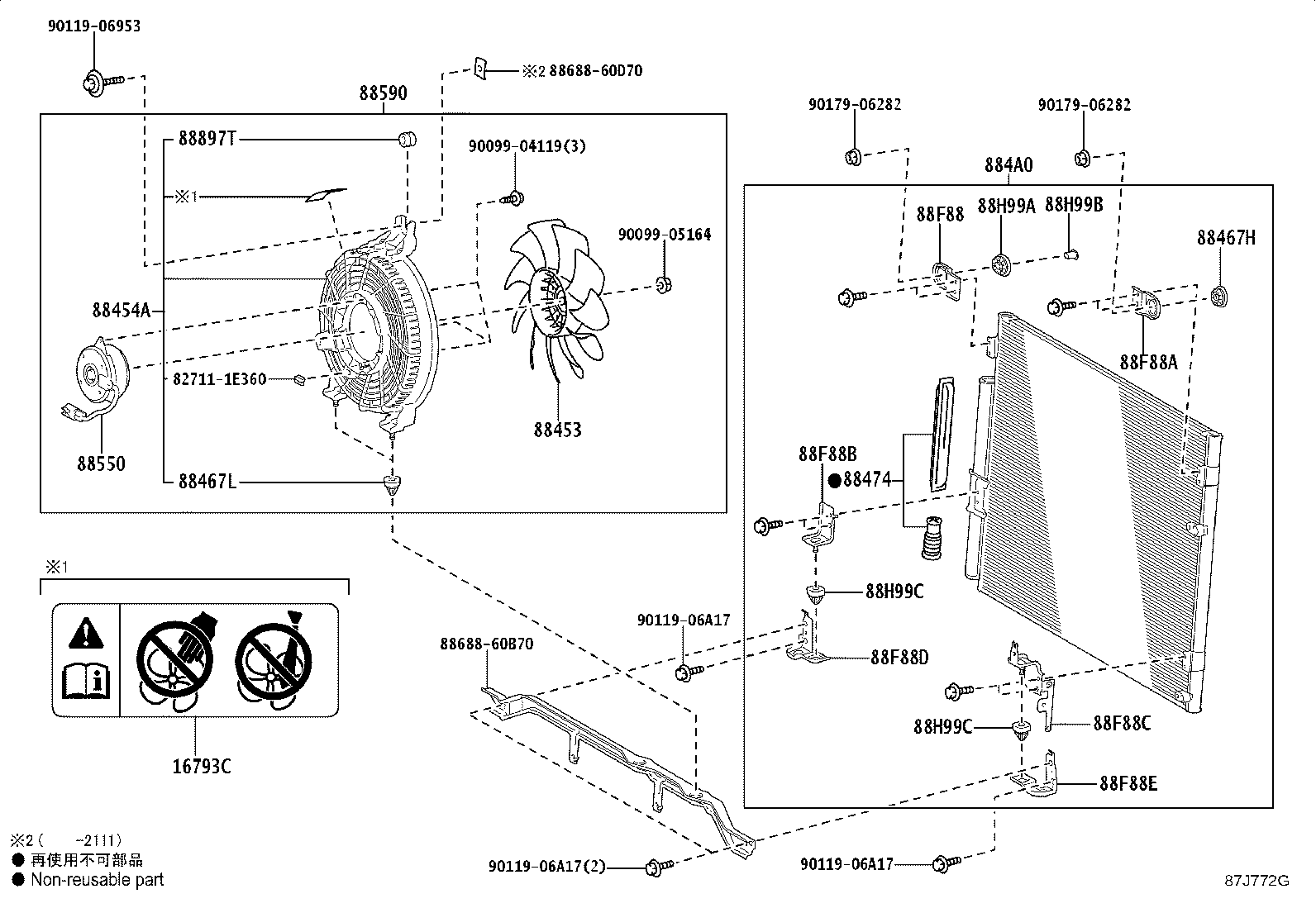

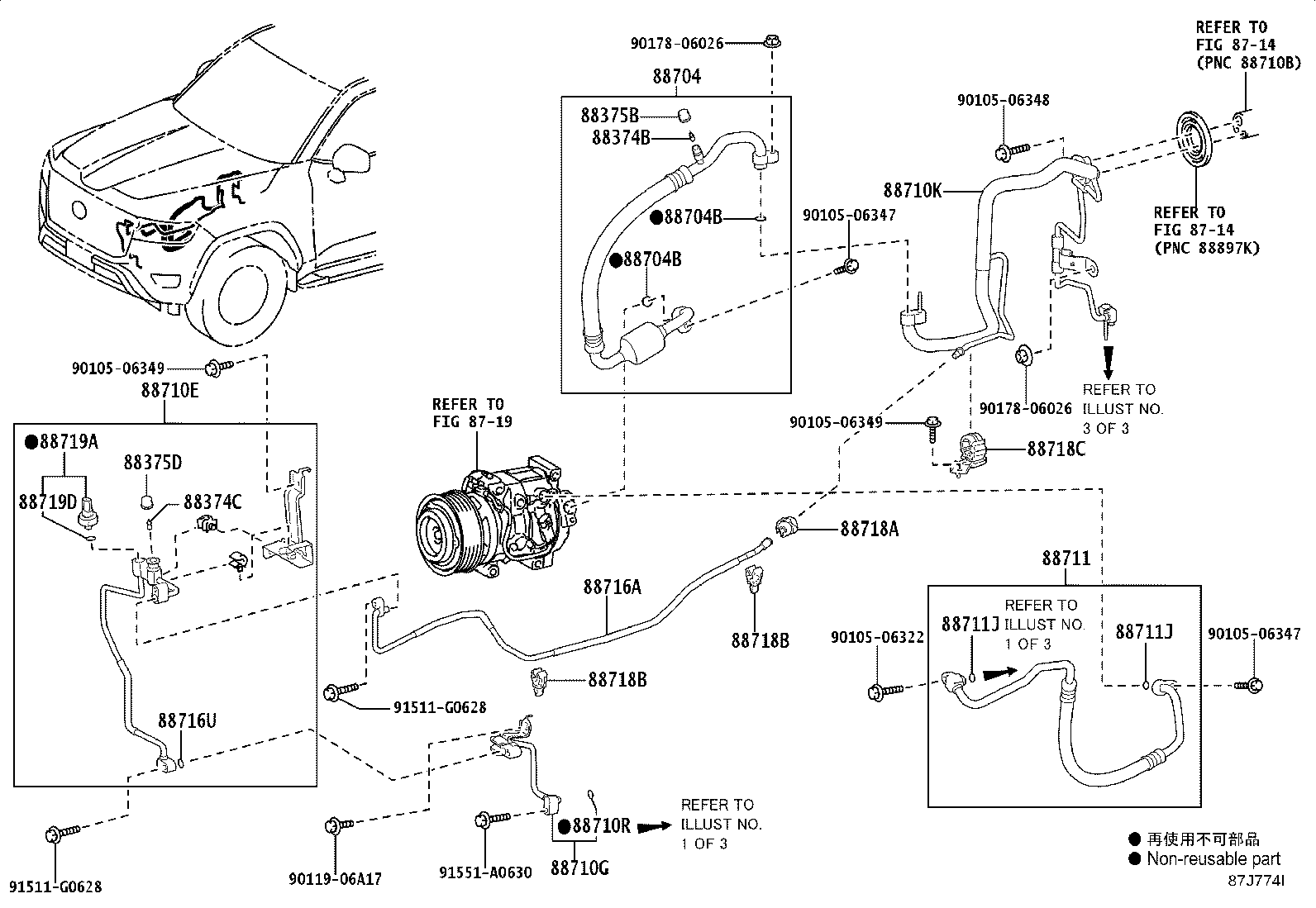

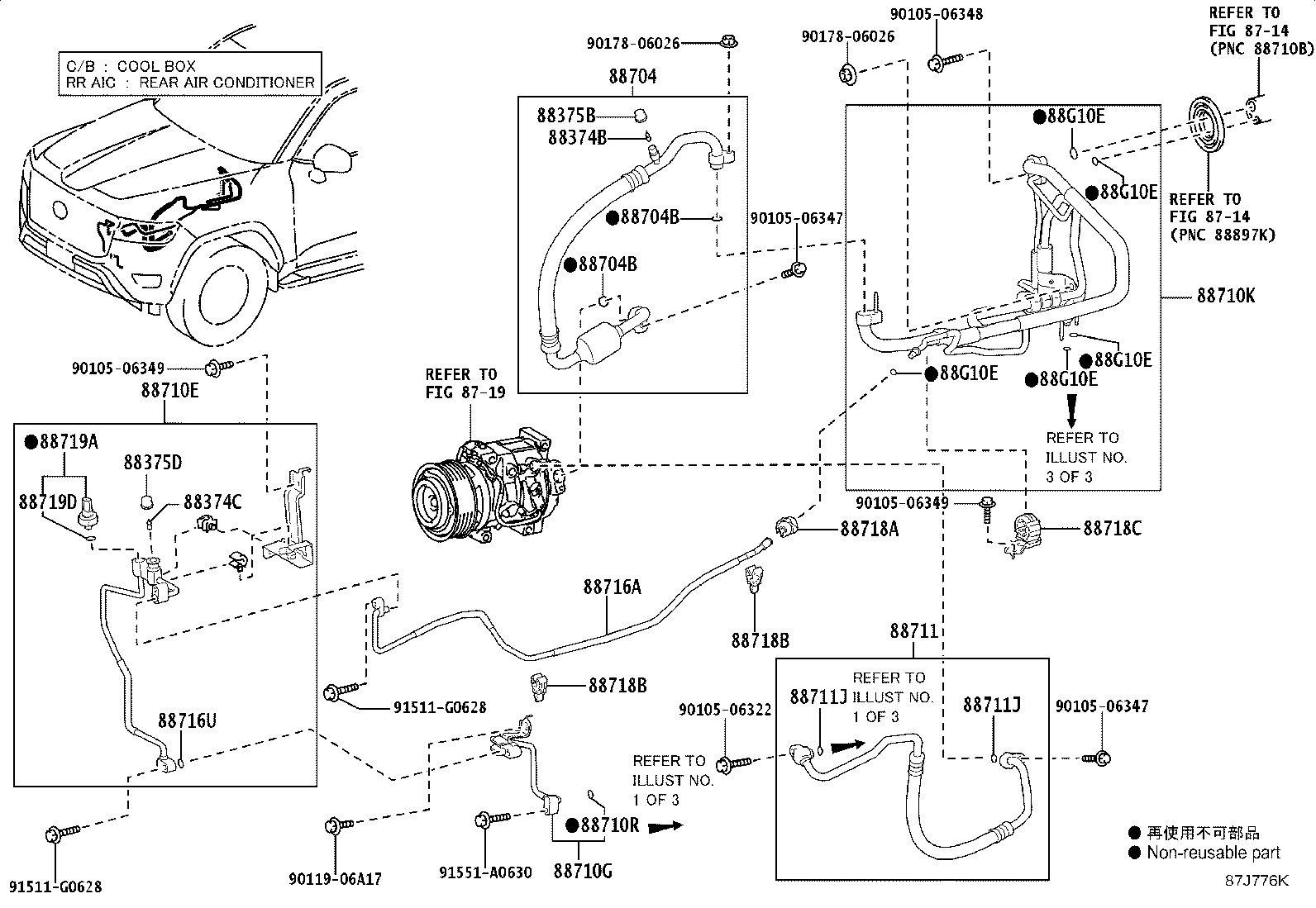

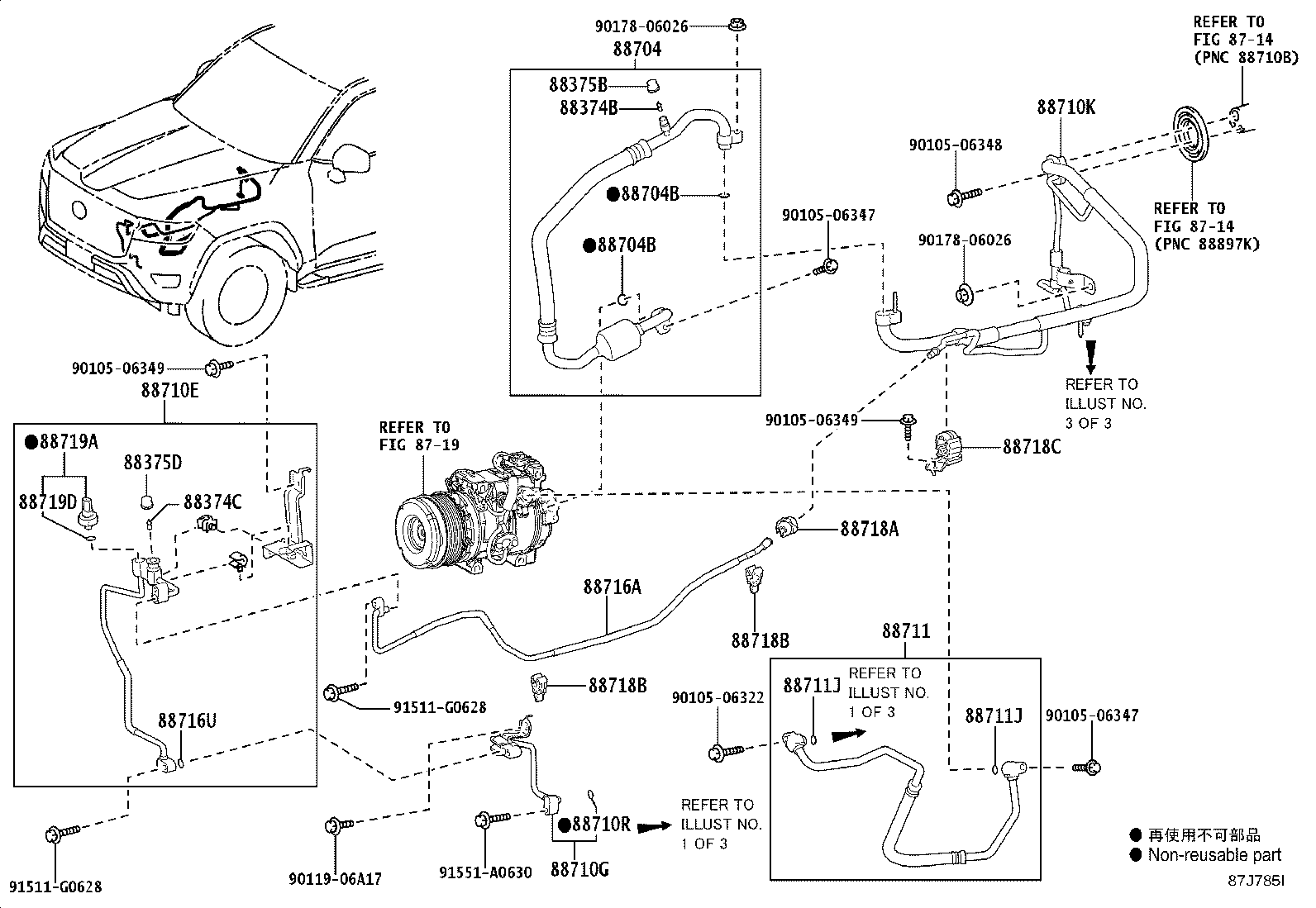

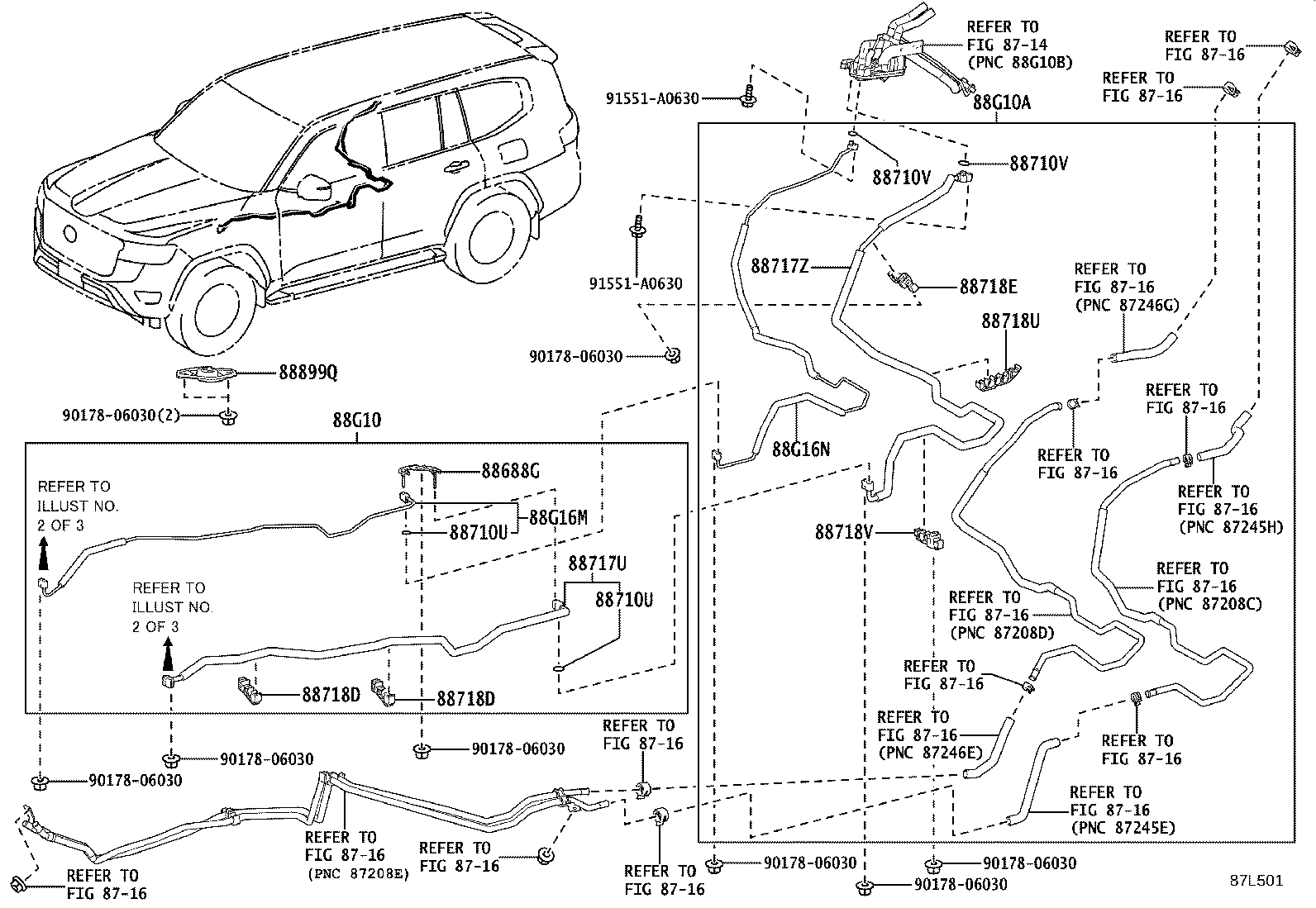

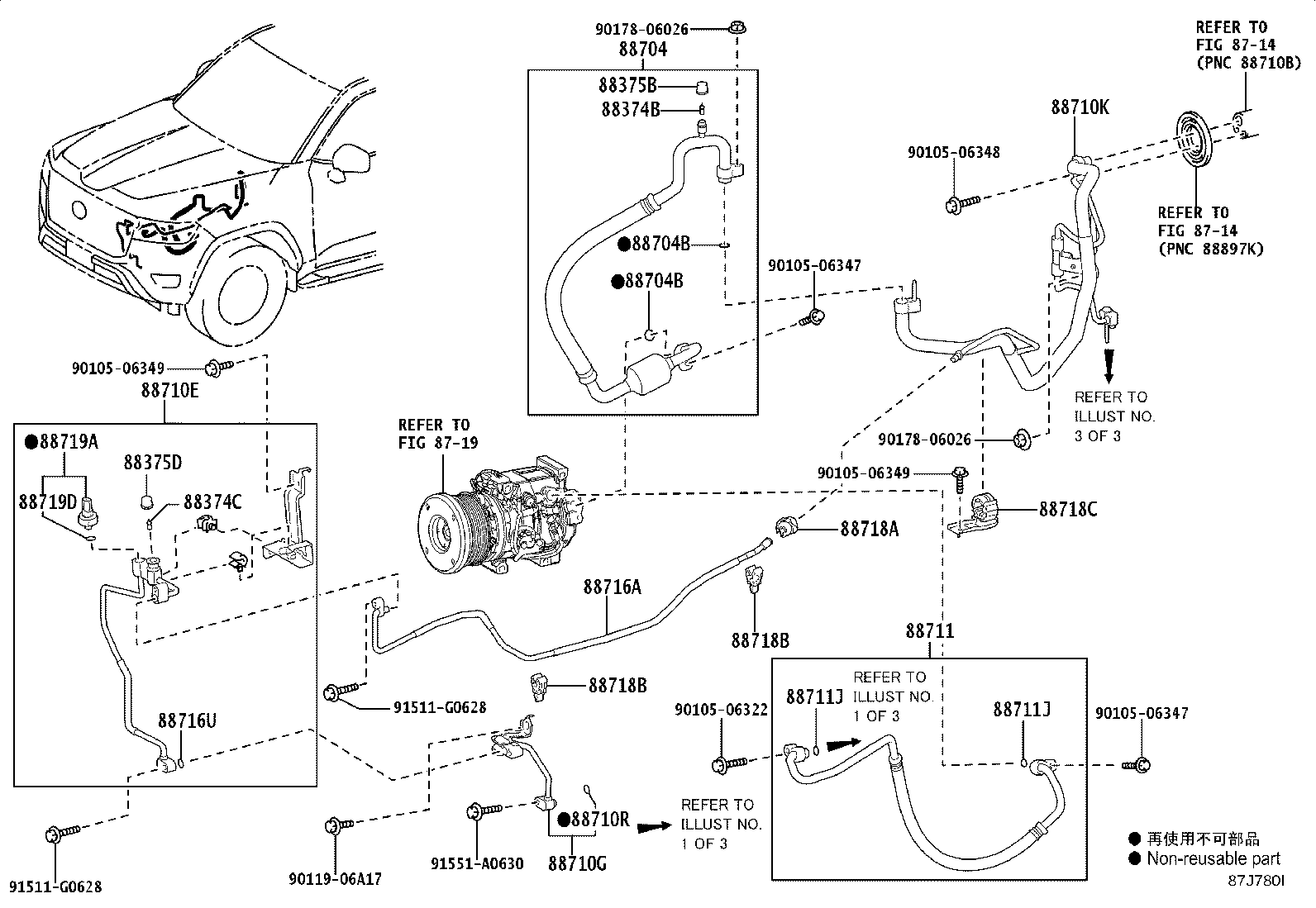

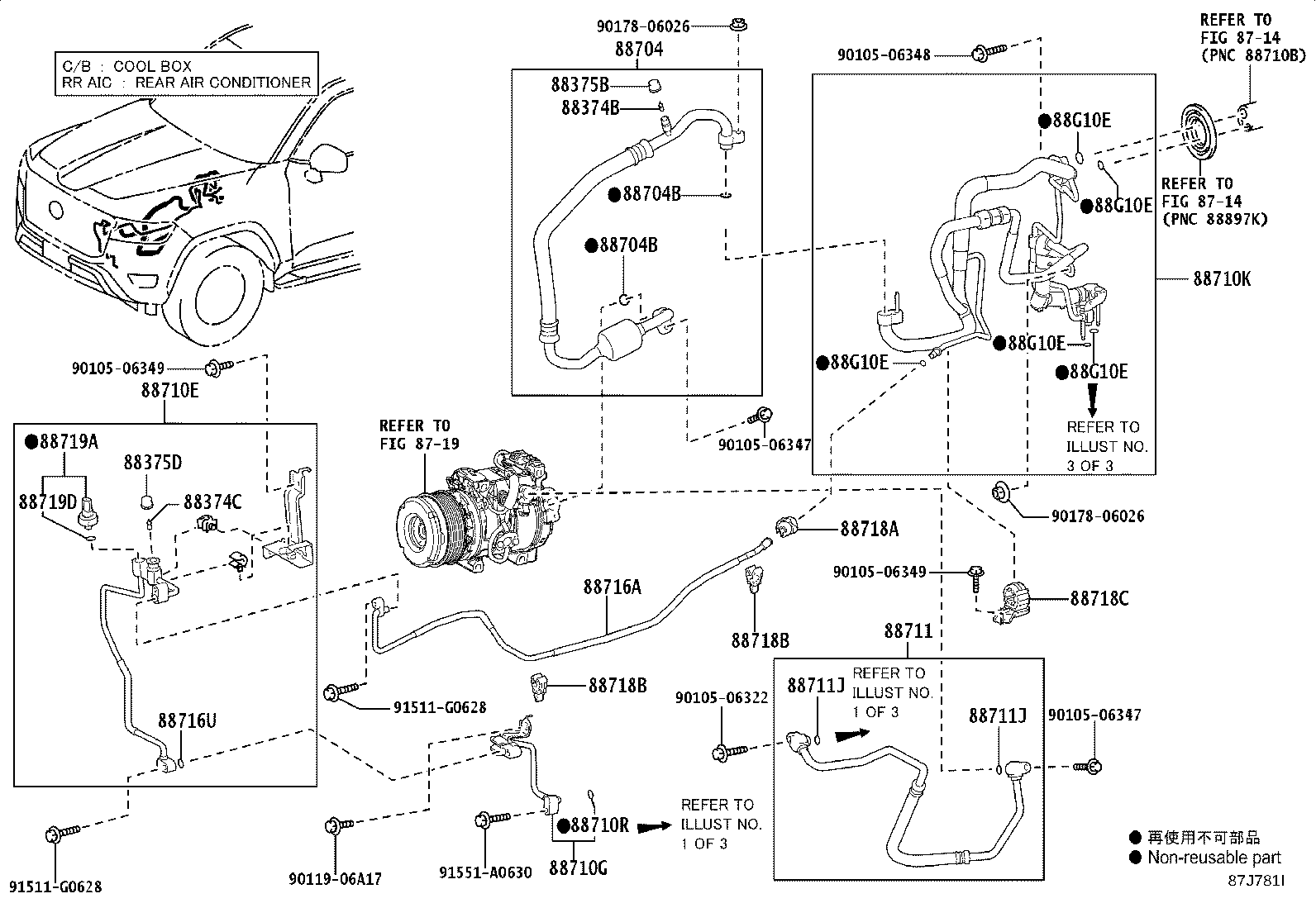

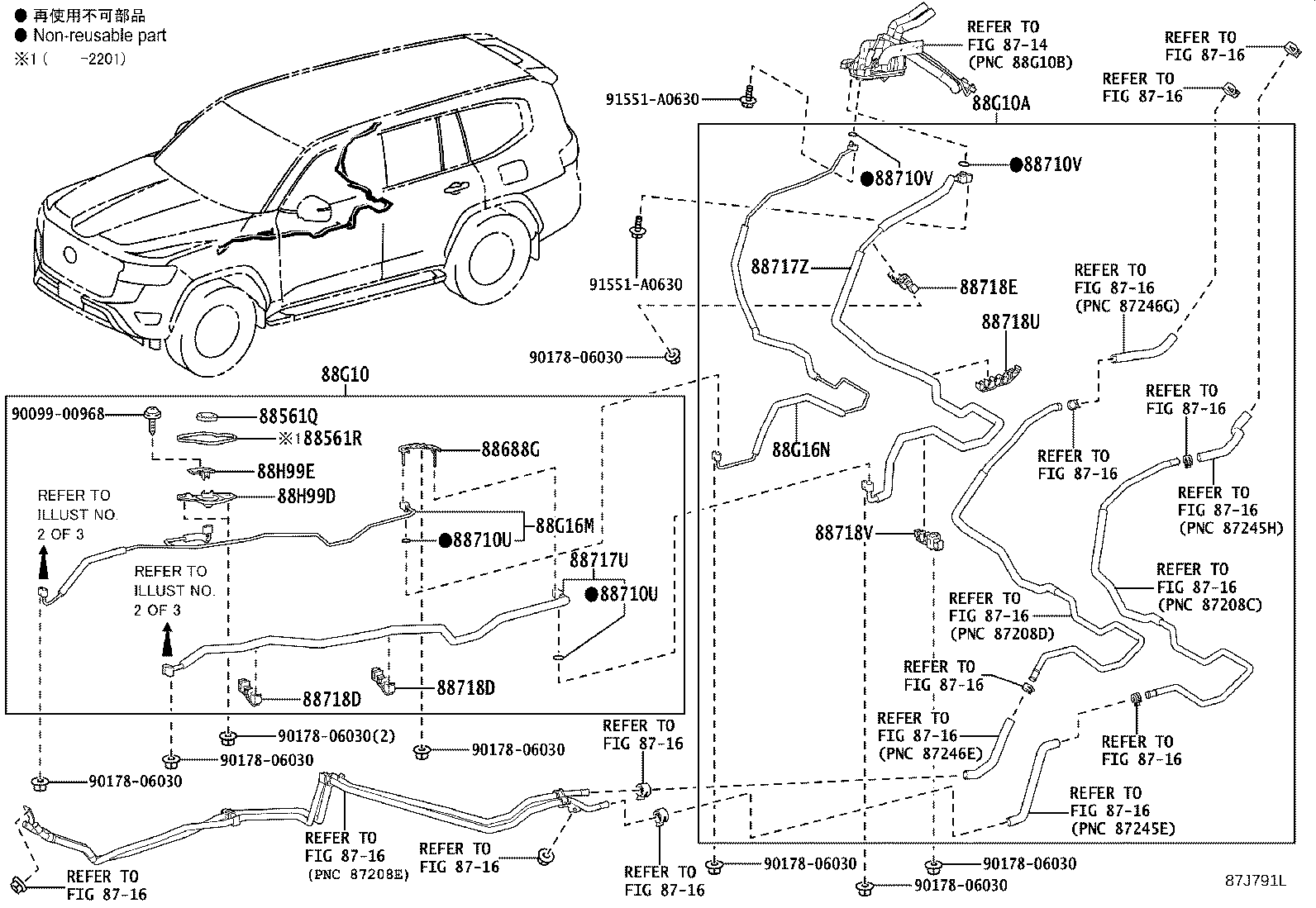

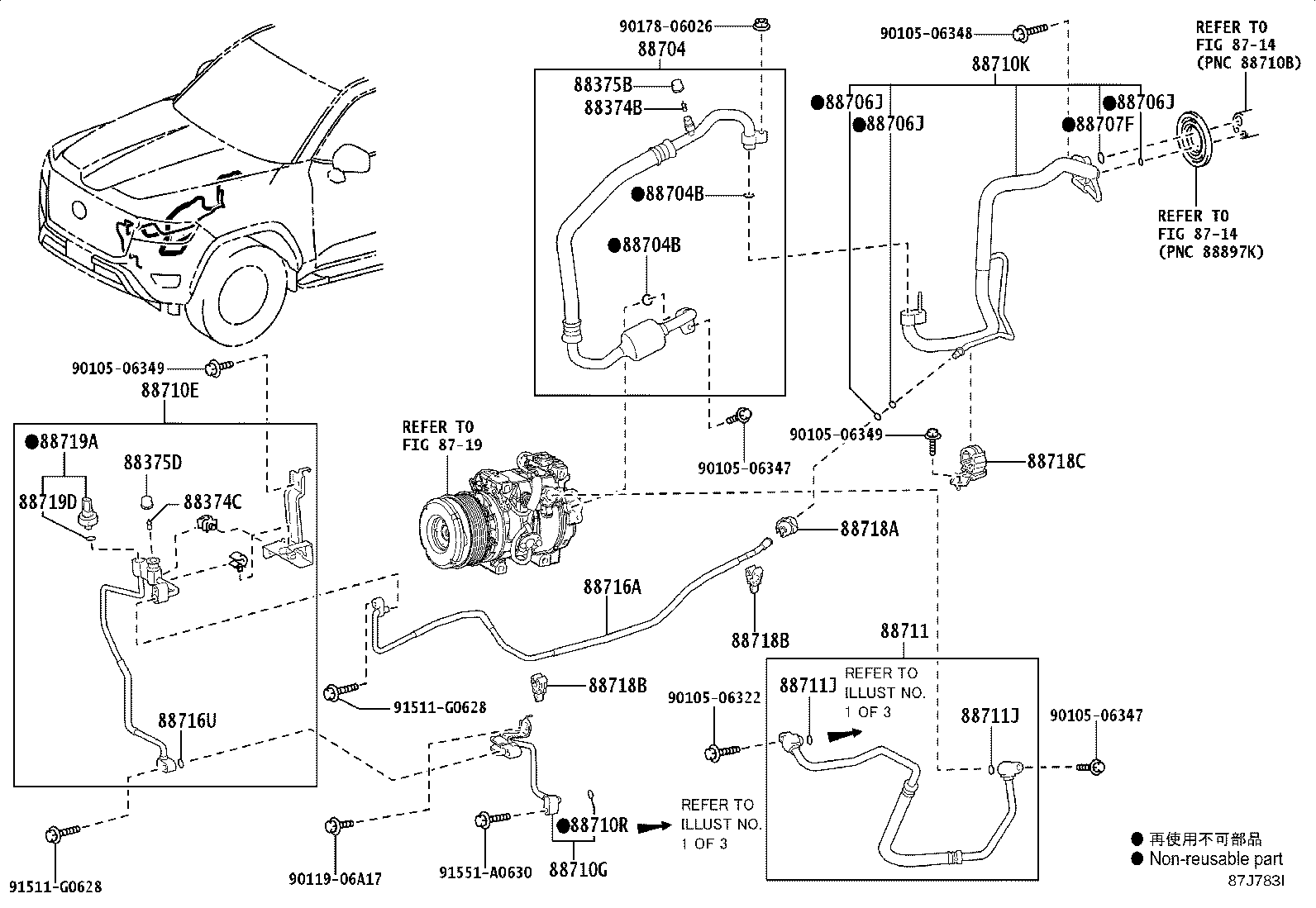

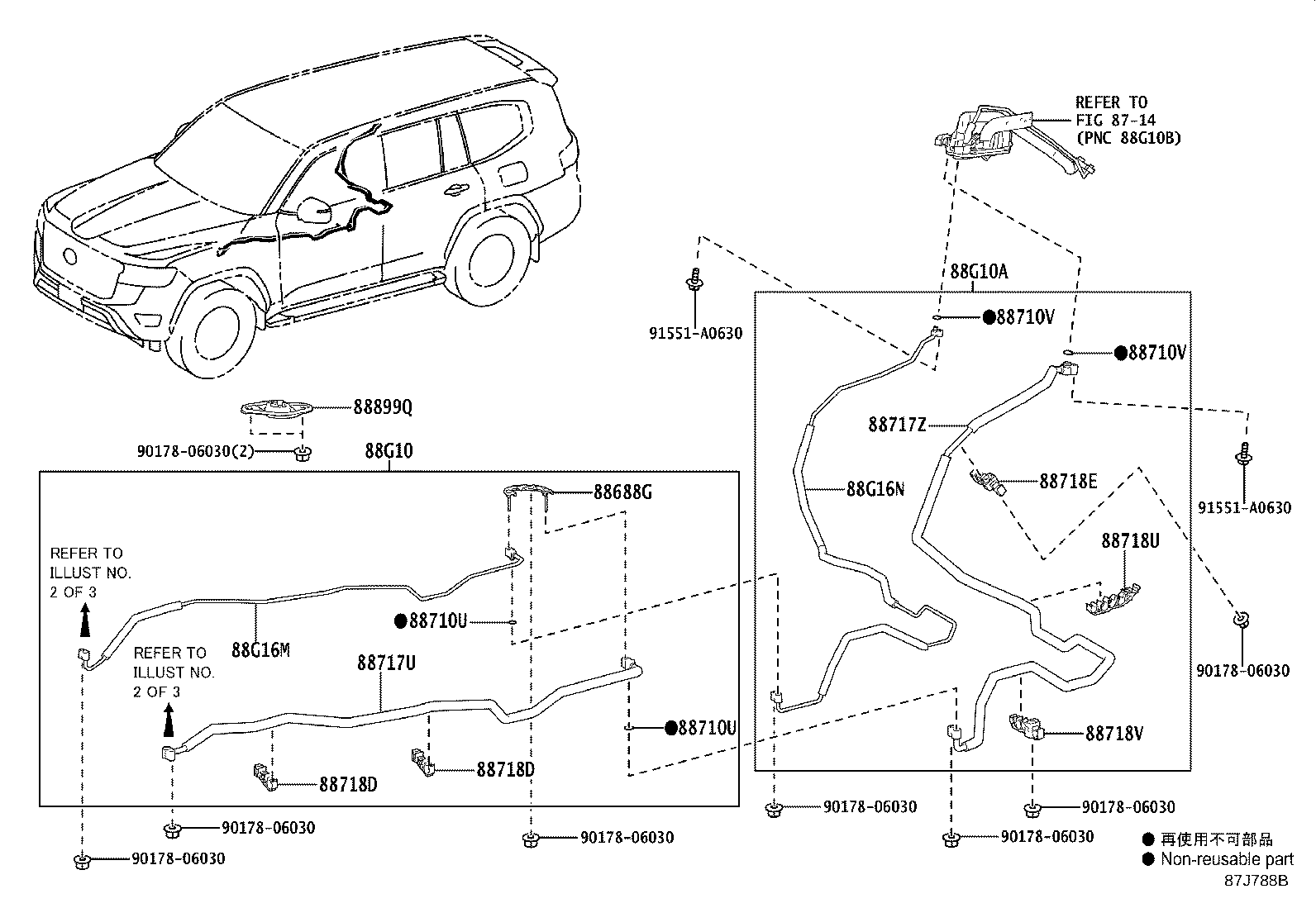

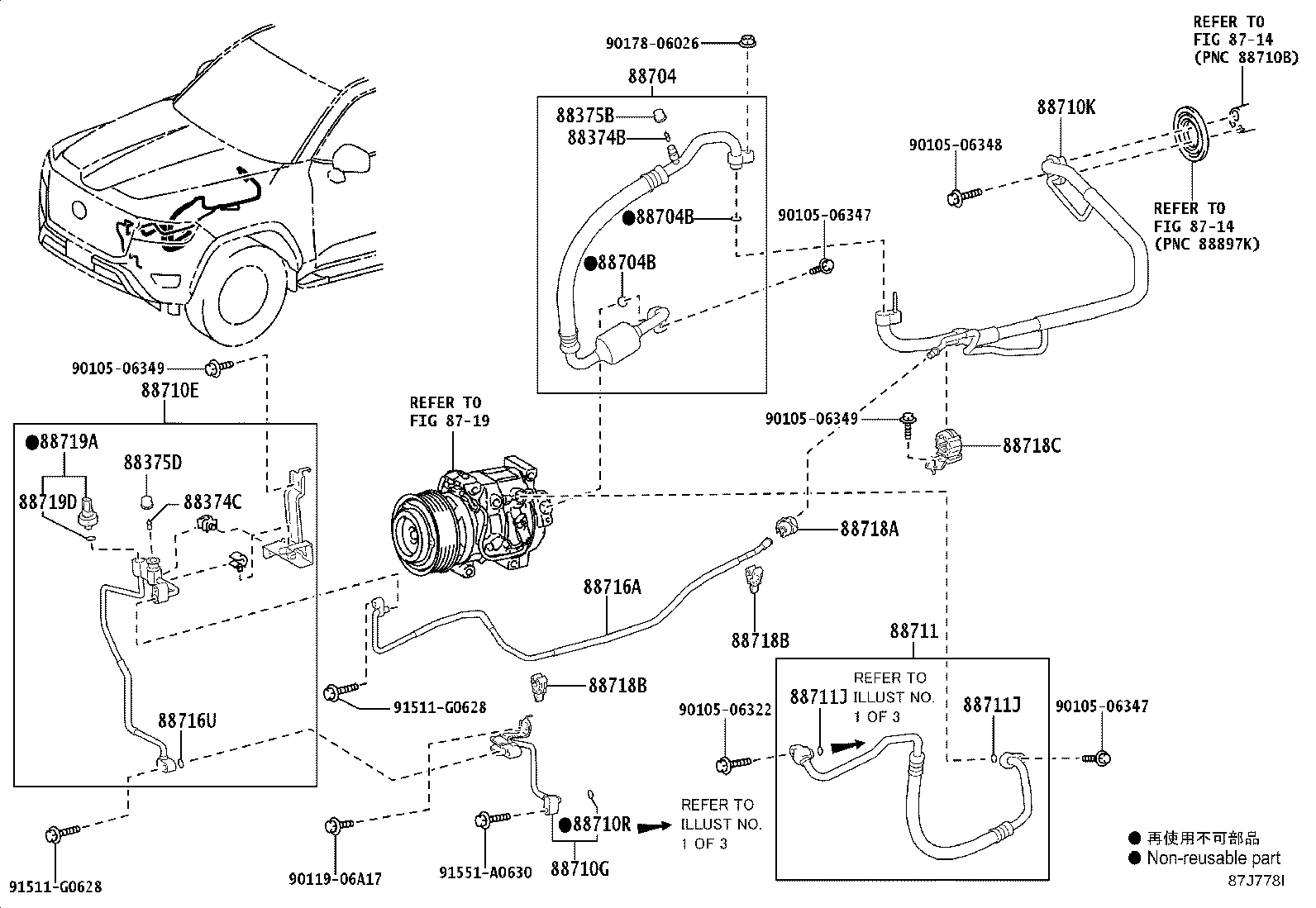

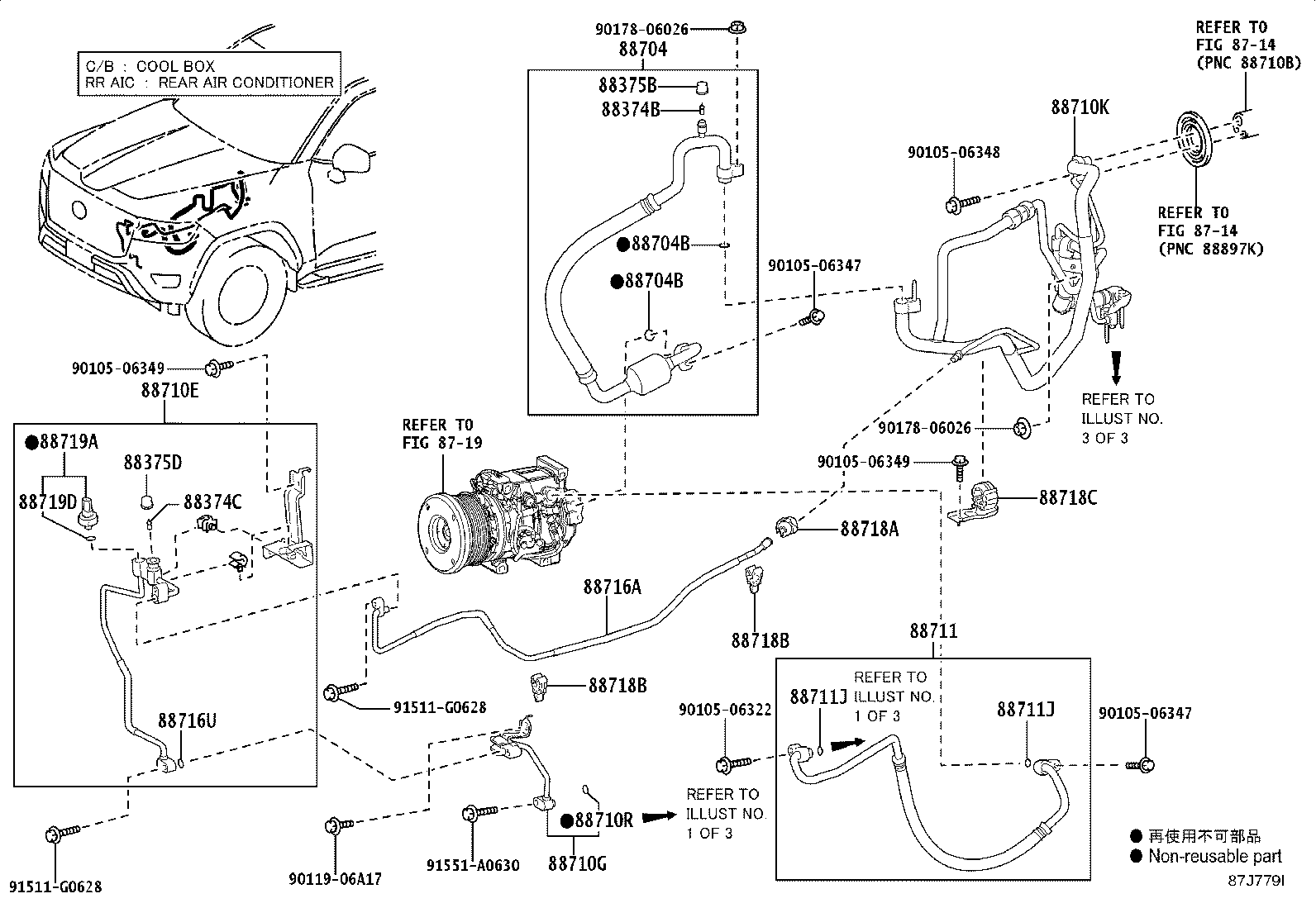

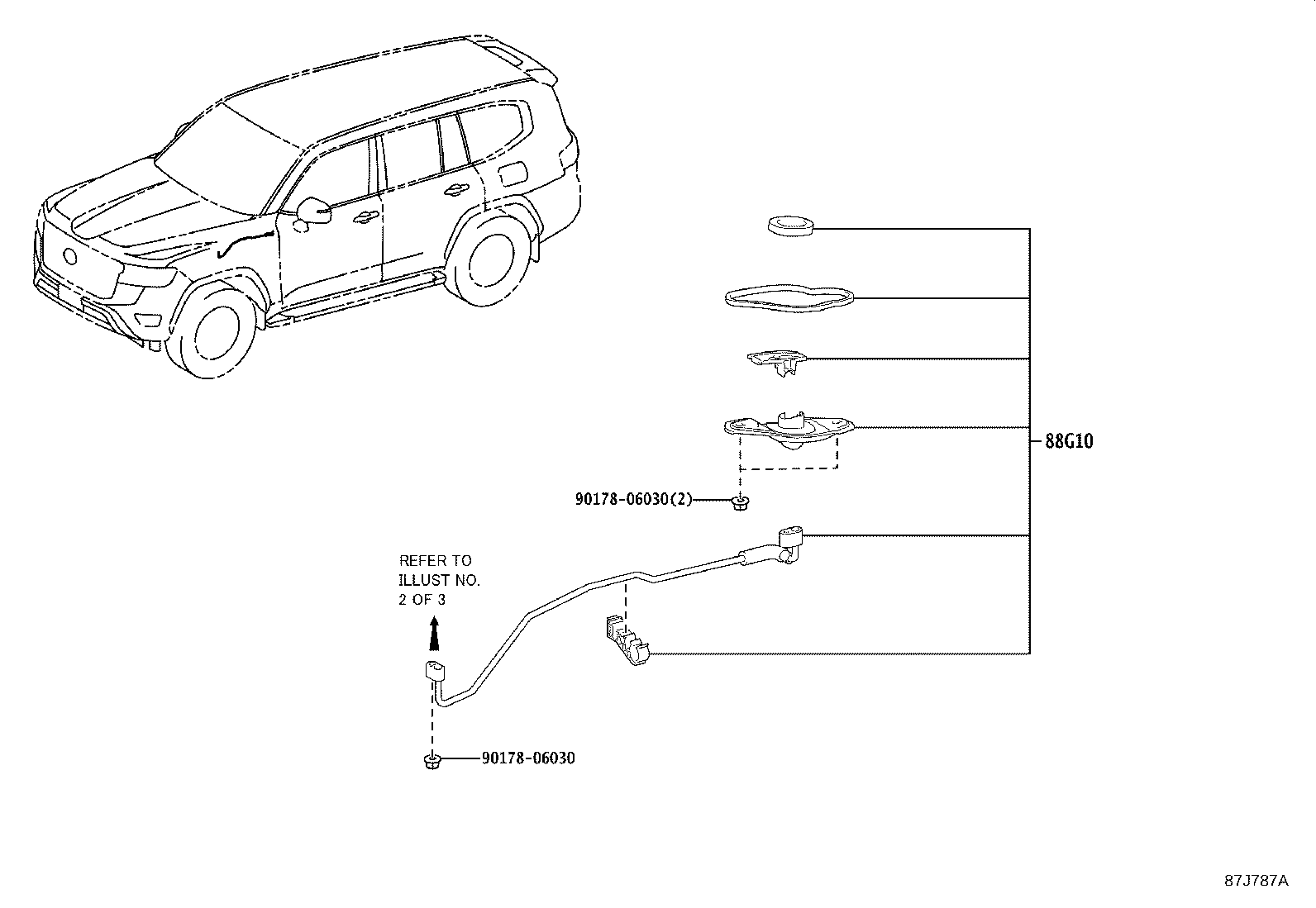

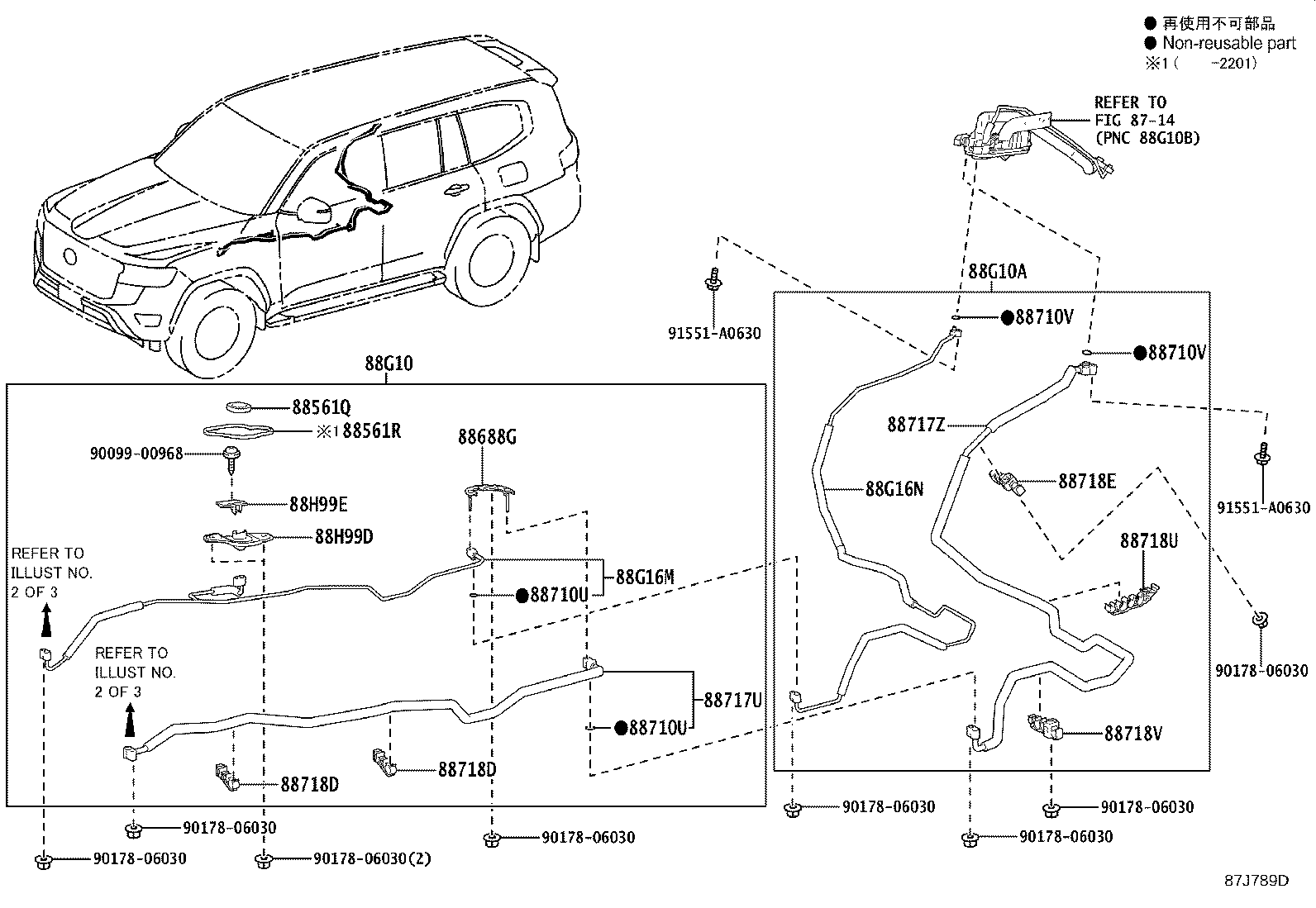

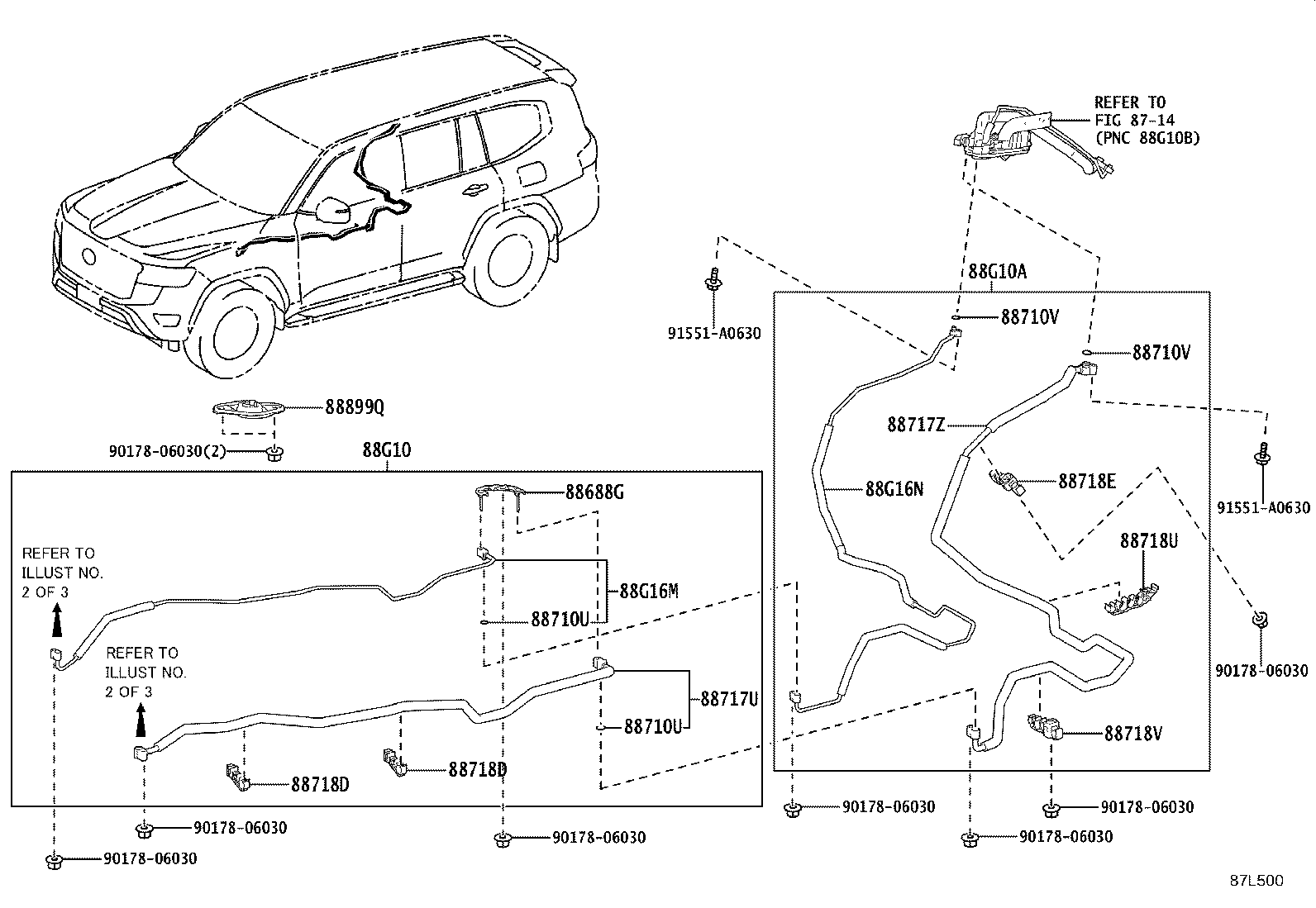

Figure 87J771D 87J771D 2021-04 → — Figure 87J772G 87J772G 2021-04 → — Figure 87J779I 87J779I 2021-04 → — Figure 87J780I 87J780I 2021-04 → — Figure 87J781I 87J781I 2021-04 → — Figure 87J782I 87J782I 2021-04 → — Figure 87J783I 87J783I 2021-04 → — Figure 87J784I 87J784I 2021-04 → — Figure 87J785I 87J785I 2021-04 → — Figure 87J786I 87J786I 2021-04 → — Figure 87J773I 87J773I 2021-07 → — Figure 87J774I 87J774I 2021-07 → — Figure 87J775I 87J775I 2021-07 → — Figure 87J776K 87J776K 2021-07 → — Figure 87J777I 87J777I 2021-07 → — Figure 87J778I 87J778I 2021-07 → — Figure 87J787A 87J787A 2021-04 → — Figure 87J788B 87J788B 2021-04 → 2022-04 Figure 87L500 87L500 2022-04 → — Figure 87J789D 87J789D 2021-04 → — Figure 87J790I 87J790I 2021-04 → 2022-04 Figure 87L501 87L501 2022-04 → — Figure 87J791L 87J791L 2021-04 → —

Part groups

PNCDescription
16793C Label, Cooling Fan Caution
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88467H Cushion, Condenser Bracket, NO.1
88467L Cushion, Cooler, NO.1
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88561Q Packing, Cooling Box Cover, NO.1
88561R Packing, Cooling Box Cover, NO.2
88590 Blower Assy, W/Shroud
88688G Bracket, Cooler Refrigerant Pipe
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88706J Ring, O, NO.3(FOR LIQUID TUBE)
88707F Ring, O, NO.3(FOR SUCTION TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88710R Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710U Ring, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710V Ring, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711J Ring, O, NO.1(FOR DISCHARGE HOSE)
88716A Pipe, Cooler Refrigerant Liquid, A
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717U Tube, Suction, NO.1
88717Z Tube, Suction, NO.2
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718U Clamp, NO.6(FOR COOLER REFRIGERANT PIPE)
88718V Clamp, NO.7(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88897T Grommet, Cooler
88899Q Plate, Cover
88F88 Bracket, Condenser, NO.1
88F88A Bracket, Condenser, NO.2
88F88B Bracket, Condenser, NO.3
88F88C Bracket, Condenser, NO.4
88F88D Bracket, Condenser, NO.5
88F88E Bracket, Condenser, NO.6
88G10 Tube & Accessory Assy, Air Conditioner, NO.4
88G10A Tube & Accessory Assy, Air Conditioner, NO.5
88G10E Ring, O, NO.1 (FOR TUBE & ACCESSORY ASSY, A/C, NO.3)
88G16M Tube, Liquid, NO.1
88G16N Tube, Liquid, NO.2
88H99A Bush, Condenser Bracket, NO.1
88H99B Bush, Condenser Bracket, NO.2
88H99C Bush, Condenser Bracket, NO.3
88H99D Cover, Cooling Box, NO.1
88H99E Cover, Cooling Box, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
