Toyota Land Cruiser

2021-04 → present · chassis FJA300,GRJ300,VJA300 · catalogue 791270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

8 part groups · 3 illustrations

Illustrations

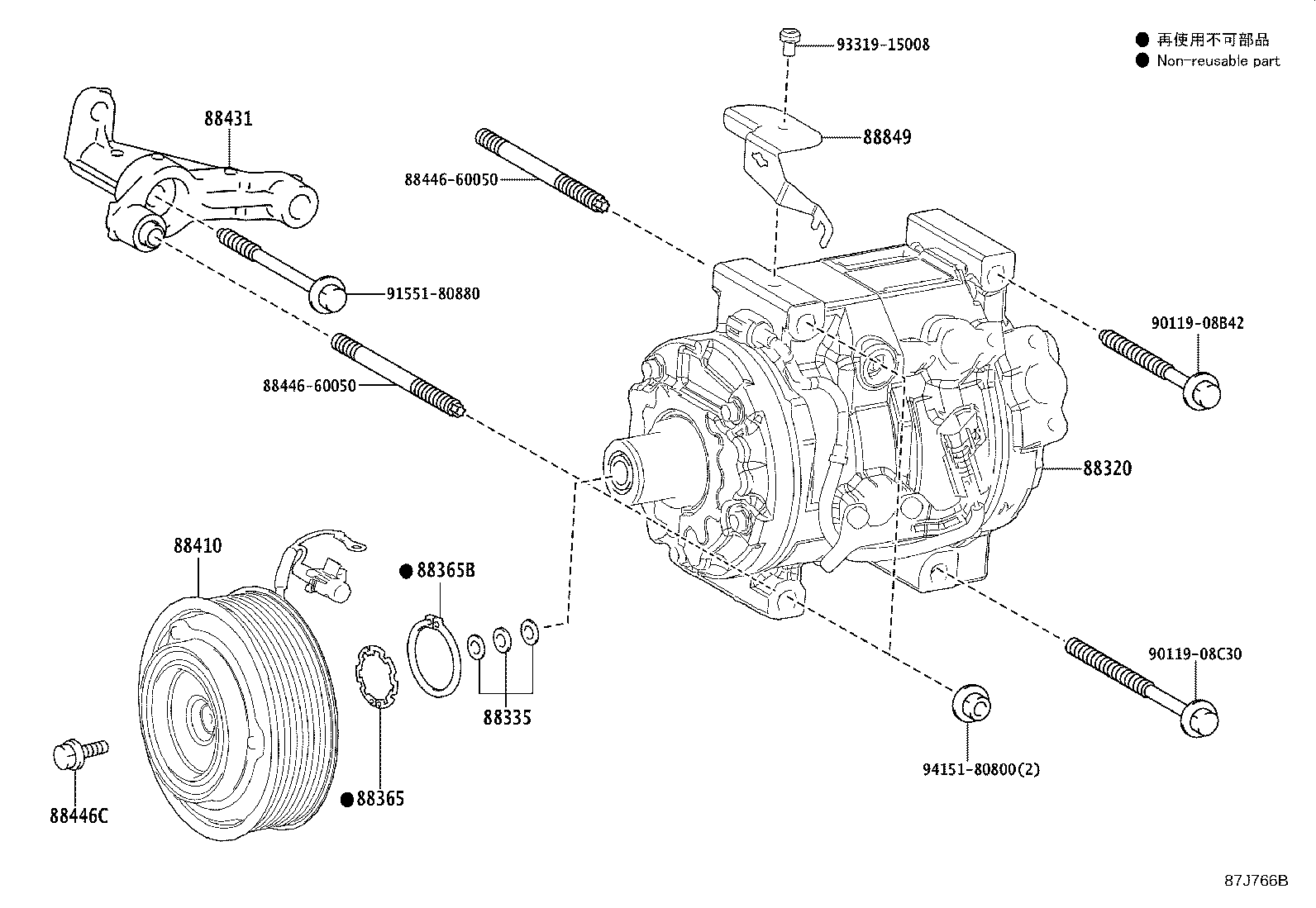

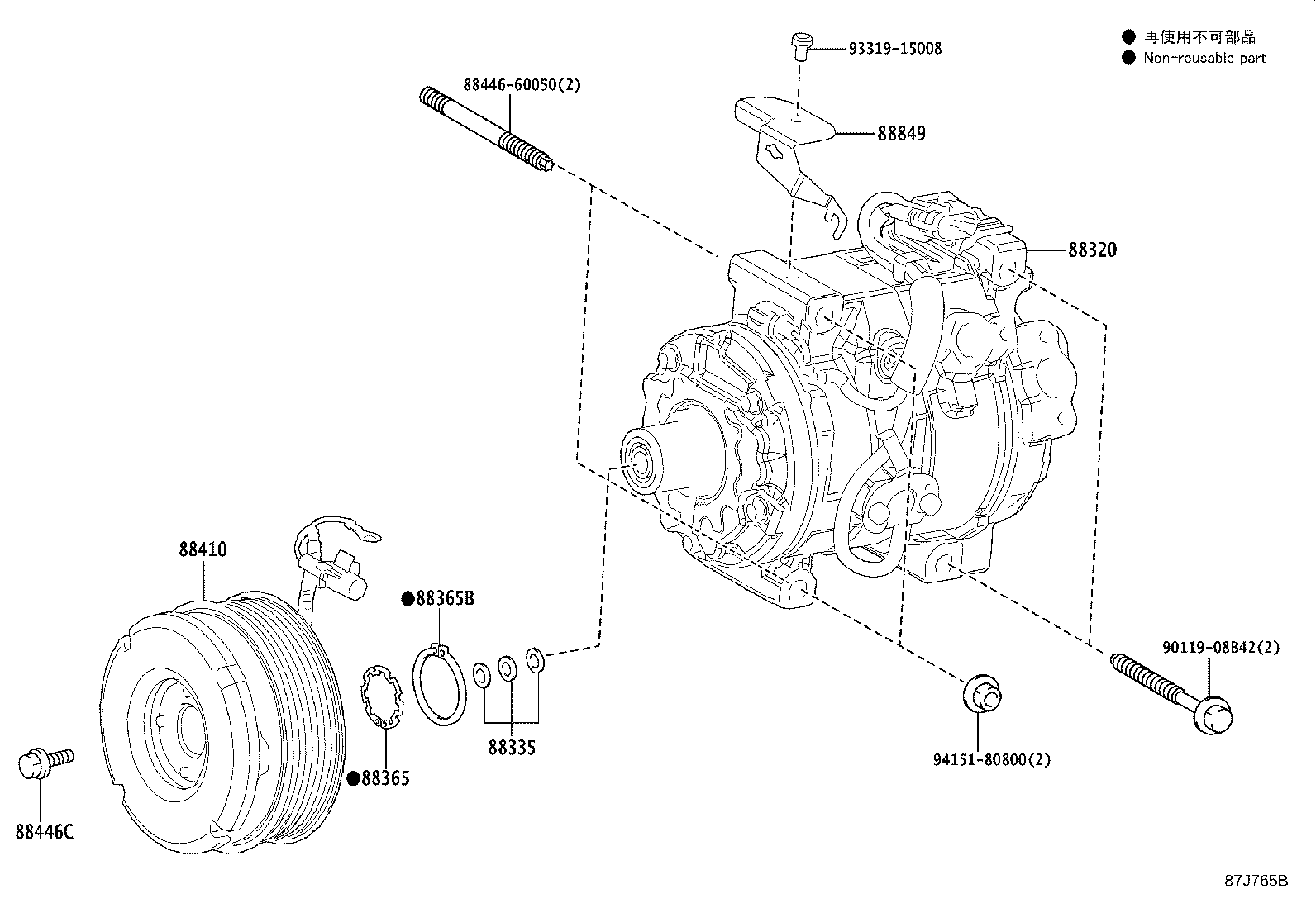

Figure 87J764B 87J764B 2021-04 → — Figure 87J765B 87J765B 2021-04 → — Figure 87J766B 87J766B 2021-07 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88335 Gasket Kit, Overhaul
88365 Ring, Snap
88365B Ring, Snap, NO.2
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88446C Bolt, Magnet Clutch Setting
88849 Bracket, Cooler Compressor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
