Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

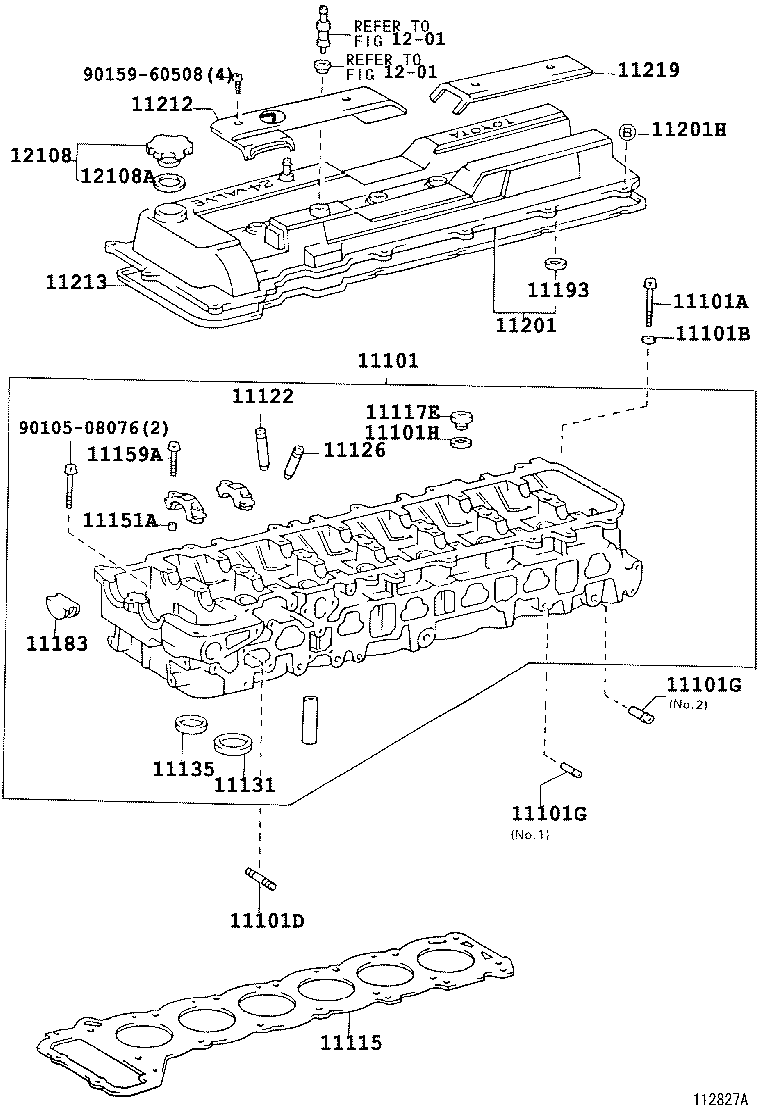

Exploded illustration 112827A 9015960508 — not listed in this catalogue 11213 — GASKET, CYLINDER HEAD COVER (2 parts) 12108A — GASKET(FOR OIL FILLER CAP) (3 parts) 12108 — CAP SUB-ASSY, OIL FILLER (5 parts) 11212 — COVER, CYLINDER HEAD, NO.2 (2 parts) 1201 — not listed in this catalogue 1201 — not listed in this catalogue 11219 — COVER, CYLINDER HEAD, NO.3 (2 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (2 parts) 11193 — GASKET, SPARK PLUG TUBE (1 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (4 parts) 11101 — HEAD SUB-ASSY, CYLINDER (6 parts) 11101H — GASKET(FOR CYLINDER HEAD SCREW PLUG) (1 parts) 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (1 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (3 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (1 parts) 11101G — UNION(FOR CYLINDER HEAD) (2 parts) 11101G — UNION(FOR CYLINDER HEAD) (2 parts) 11131 — SEAT, INTAKE VALVE (4 parts) 11135 — SEAT, EXHAUST VALVE (4 parts) 11101D — BOLT, STUD(FOR WATER OUTLET) (1 parts) 11115 — GASKET, CYLINDER HEAD (2 parts) 11183 — PLUG, SEMICIRCULAR (1 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (1 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (1 parts) 9010508076 — not listed in this catalogue 11122 — BUSH, INTAKE VALVE GUIDE (4 parts) 11201H — BOLT(FOR CYLINDER HEAD COVER) (1 parts)
112827A · 24 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-61080 Head Sub-assy, Cylinder
1990-01 → 1992-08 ended
3FE FJ80 —
11101-69105 Head Sub-assy, Cylinder
1992-08 → 1995-06 ended
1FZFE FZJ80 —
11101-69106 Head Sub-assy, Cylinder
1995-06 → 1998-01 ended
1FZFE FZJ80 —
11101-69105 Head Sub-assy, Cylinder
1992-08 → 1995-06 ended
1FZFE FZJ80 —
11101-69106 Head Sub-assy, Cylinder
1995-06 → 1997-12 ended
1FZFE FZJ80 —
11101-69107 Head Sub-assy, Cylinder
1997-12 → 1998-01 ended
1FZFE FZJ80 —
11101A — Bolt(FOR CYLINDER HEAD SET)
90105-13005 note Bolt(FOR CYLINDER HEAD SET)
1990-01 → 1992-08 ended
3FE FJ80 —
90910-02050 note Bolt(FOR CYLINDER HEAD SET)
1990-01 → 1992-08 ended
3FE FJ80 —
90910-02111 Bolt(FOR CYLINDER HEAD SET)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-12222 Washer, Plate(FOR CYLINDER HEAD SET)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11101D — Bolt, Stud(FOR WATER OUTLET)
90126-08008 Bolt, Stud(FOR WATER OUTLET)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11101G — Union(FOR CYLINDER HEAD)
90406-08011 note Union(FOR CYLINDER HEAD)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
90406-17007 note Union(FOR CYLINDER HEAD)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11101H — Gasket(FOR CYLINDER HEAD SCREW PLUG)
90430-27005 Gasket(FOR CYLINDER HEAD SCREW PLUG)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11115 — Gasket, Cylinder Head
11115-61030 note Gasket, Cylinder Head
1990-01 → 1992-08 ended
3FE FJ80 —
11115-66020 Gasket, Cylinder Head
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11117E — Plug, W/Head Straight Screw, NO.1
90341-27006 Plug, W/Head Straight Screw, NO.1
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11122 — Bush, Intake Valve Guide
11122-61011 note Bush, Intake Valve Guide
1990-01 → 1992-08 ended
3FE FJ80 —
11122-66020 note Bush, Intake Valve Guide
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11123-61011 note Bush, Intake Valve Guide
1990-01 → 1992-08 ended
3FE FJ80 —
11123-66020 note Bush, Intake Valve Guide
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11126 — Bush, Exhaust Valve Guide
11122-66020 note Bush, Exhaust Valve Guide
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11123-66020 note Bush, Exhaust Valve Guide
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11126-61011 note Bush, Exhaust Valve Guide
1990-01 → 1992-08 ended
3FE FJ80 —
11127-61011 note Bush, Exhaust Valve Guide
1990-01 → 1992-08 ended
3FE FJ80 —
11131 — Seat, Intake Valve
11131-61010 note Seat, Intake Valve
1990-01 → 1992-08 ended
3FE FJ80 —
11131-66020 note Seat, Intake Valve
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11132-61010 note Seat, Intake Valve
1990-01 → 1992-08 ended
3FE FJ80 —
11132-66020 note Seat, Intake Valve
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11135 — Seat, Exhaust Valve
11135-60010 note Seat, Exhaust Valve
1990-01 → 1992-08 ended
3FE FJ80 —
11135-66010 note Seat, Exhaust Valve
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11136-60030 note Seat, Exhaust Valve
1990-01 → 1992-08 ended
3FE FJ80 —
11136-66010 note Seat, Exhaust Valve
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
90253-10006 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07005 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11183 — Plug, Semicircular
11183-50010 Plug, Semicircular
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11193 — Gasket, Spark Plug Tube
11193-15010 Gasket, Spark Plug Tube
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11201 — Cover Sub-assy, Cylinder Head
11201-61041 Cover Sub-assy, Cylinder Head
1990-01 → 1992-08 ended
3FE FJ80 —
11201-66020 Cover Sub-assy, Cylinder Head
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11201H — Bolt(FOR CYLINDER HEAD COVER)
90105-06221 Bolt(FOR CYLINDER HEAD COVER)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11212 — Cover, Cylinder Head, NO.2
11212-66010 Cover, Cylinder Head, NO.2
1992-08 → 1995-01 ended
1FZFE FZJ80 —
11212-66011 Cover, Cylinder Head, NO.2
1995-01 → 1998-01 ended
1FZFE FZJ80 —
11213 — Gasket, Cylinder Head Cover
11213-61020 Gasket, Cylinder Head Cover
1990-01 → 1992-08 ended
3FE FJ80 —
11213-66020 Gasket, Cylinder Head Cover
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11219 — Cover, Cylinder Head, NO.3
11219-66010 Cover, Cylinder Head, NO.3
1992-08 → 1995-01 ended
1FZFE FZJ80 —
11219-66011 Cover, Cylinder Head, NO.3
1995-01 → 1998-01 ended
1FZFE FZJ80 —
12108 — Cap Sub-assy, Oil Filler
12180-15010 Cap Sub-assy, Oil Filler
1993-06 → 1993-09 ended
1FZFE FZJ80 —
12180-61010 Cap Sub-assy, Oil Filler
1990-01 → 1992-08 ended
3FE FJ80 —
12180-65020 Cap Sub-assy, Oil Filler
1992-08 → 1993-06 ended
1FZFE FZJ80 —
12180-65021 Cap Sub-assy, Oil Filler
1993-09 → 1995-01 ended
1FZFE FZJ80 —
12180-75021 Cap Sub-assy, Oil Filler
1995-01 → 1998-01 ended
1FZFE FZJ80 —
12108A — Gasket(FOR OIL FILLER CAP)
12195-71020 Gasket(FOR OIL FILLER CAP)
1990-01 → 1992-08 ended
3FE FJ80 —
90430-37004 Gasket(FOR OIL FILLER CAP)
1992-08 → 1995-01 ended
1FZFE FZJ80 —
90430-37140 Gasket(FOR OIL FILLER CAP)
1995-01 → 1998-01 ended
1FZFE FZJ80 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
