Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

11 part groups · 2 illustrations

Illustrations

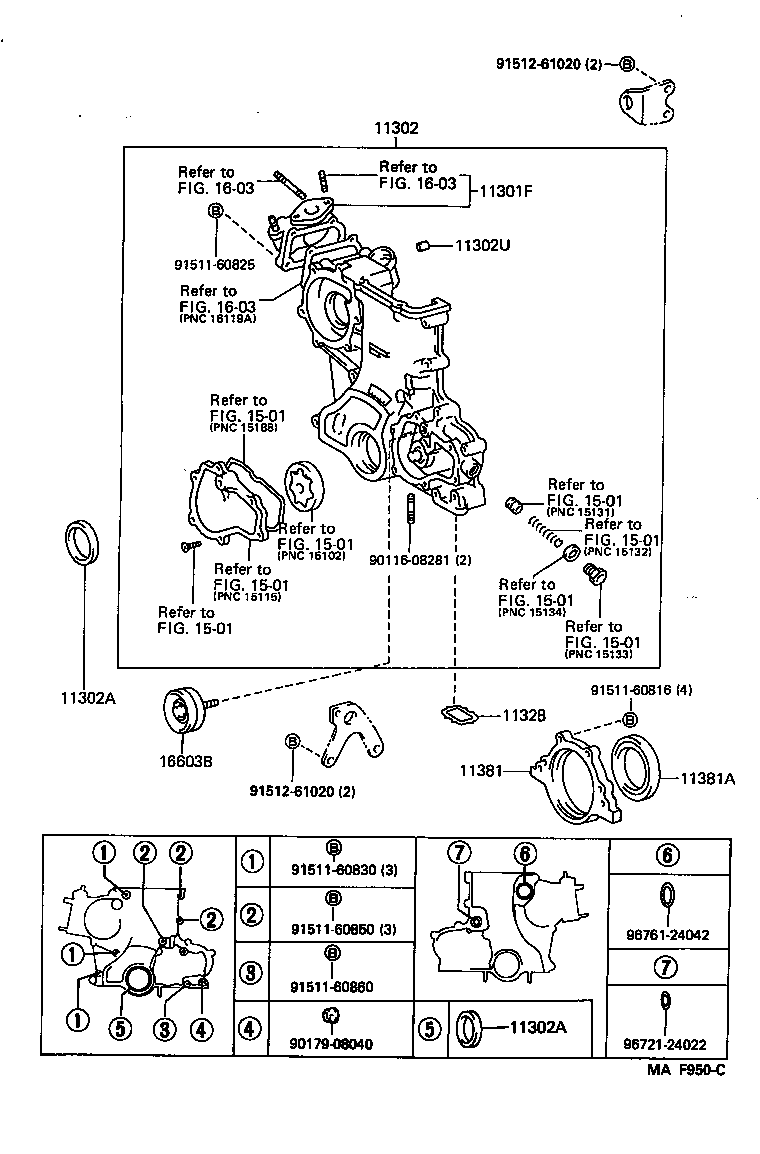

Figure MAD438 MAD438 1990-01 → 1992-08 Figure MAF950C MAF950C 1992-08 → —

Part groups

PNCDescription
11301F Plate, Water Pump Thermostat Guide
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302U Pin, Ring
11311 Plate, Front End
11312 Gasket, Front End Plate
11328 Gasket, Timing Gear OR Chain Cover
11369 Cover, Flywheel Housing Front
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
16603B Pulley Sub-assy, Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
