Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe
Discontinued model
Data version 1998-01

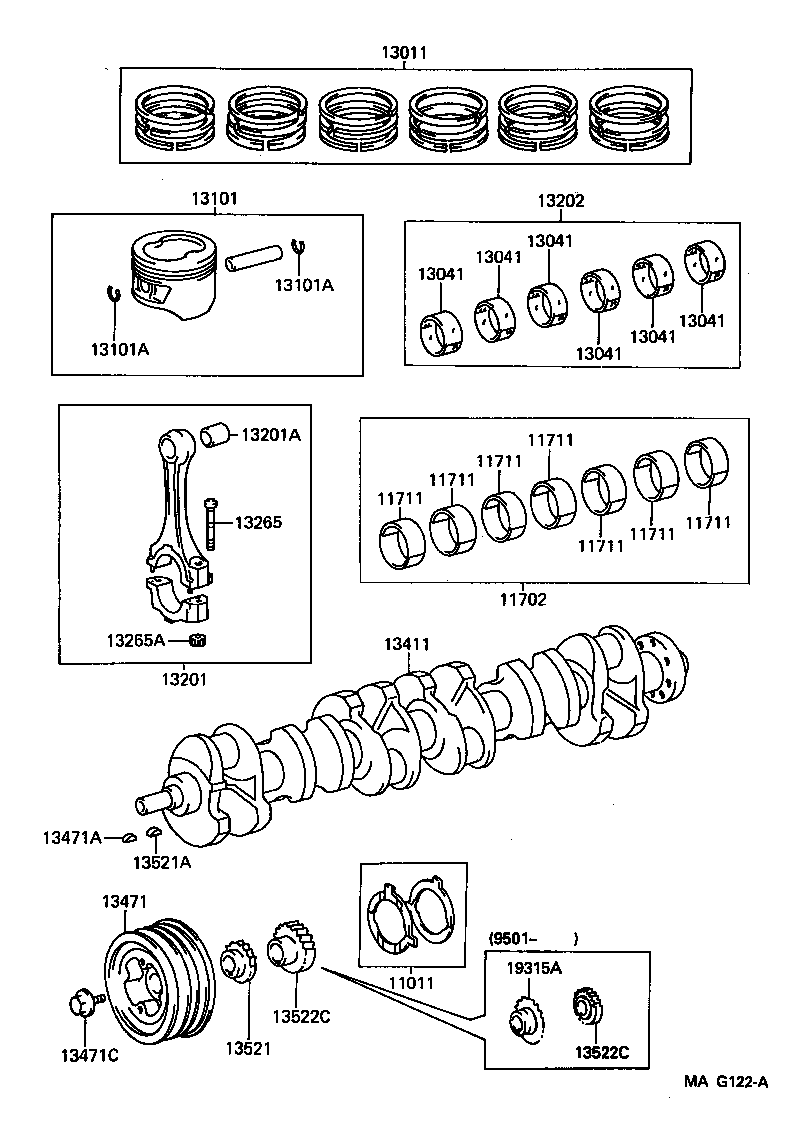

Crankshaft & Piston
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11011 | Washer Set, Crankshaft Thrust |
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13101A | Ring, Hole Snap(FOR PISTON PIN) |
| 13201 | Rod Sub-assy, Connecting |
| 13201A | Bush(FOR CONNECTING ROD SMALL END) |
| 13202 | Bearing Set, Connecting Rod |
| 13265 | Bolt, Connecting Rod |
| 13265A | Nut, Hexagon(FOR CONNECTING ROD BOLT) |
| 13411 | Crankshaft |
| 13411C | Pin, Straight(FOR CRANKSHAFT) |
| 13411D | Seal, Oil(FOR CRANKSHAFT) |
| 13471 | Pulley, Crankshaft |
| 13471A | Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13471E | Nut(FOR CRANKSHAFT PULLEY) |
| 13477 | Pulley, Crankshaft, NO.2 |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13521A | Key(FOR CRANKSHAFT TIMING GEAR) |
| 13522C | Gear, Pump Drive Shaft |
| 19315A | Rotor, Crank Position Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
