Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe
Discontinued model
Data version 1998-01

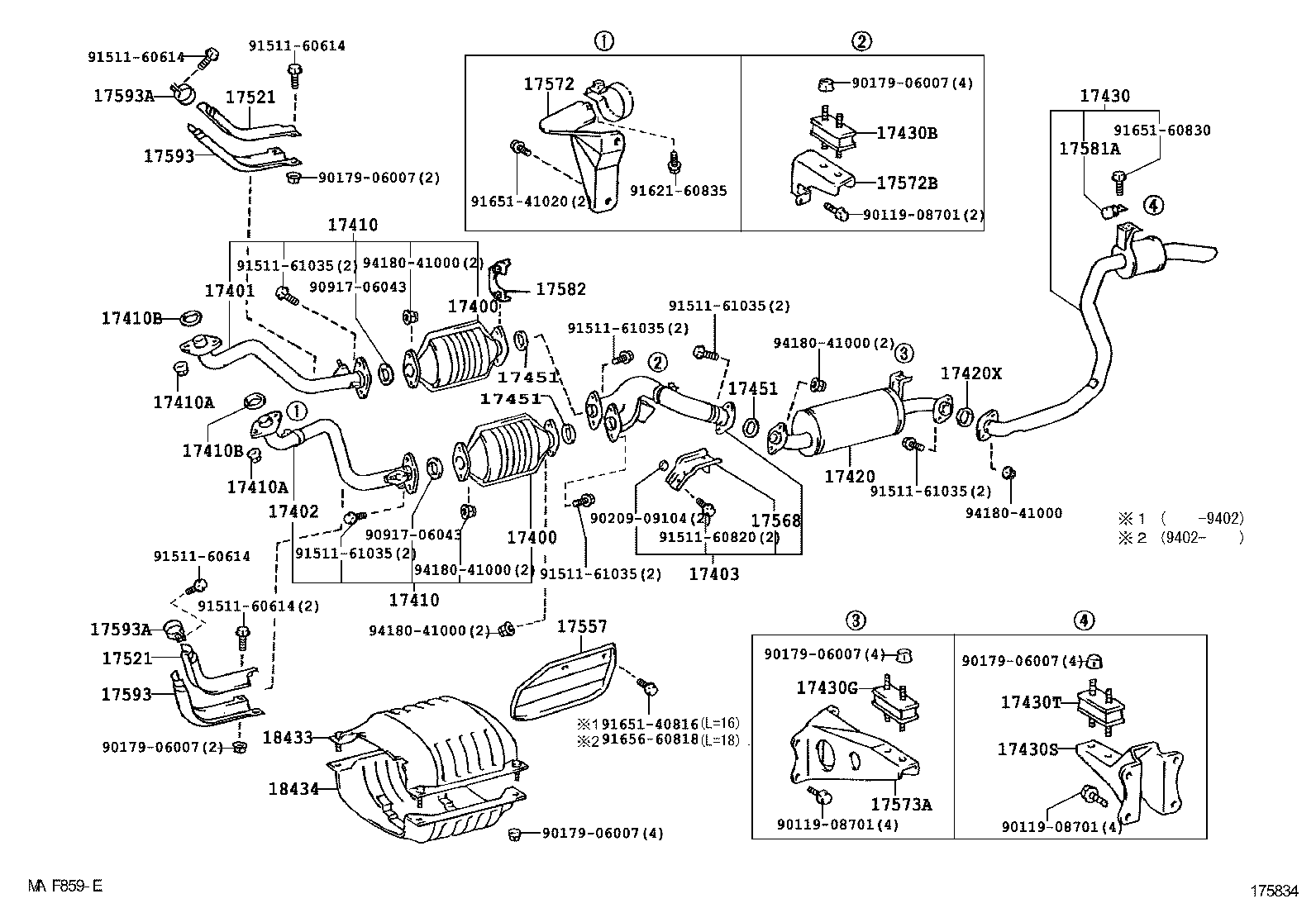

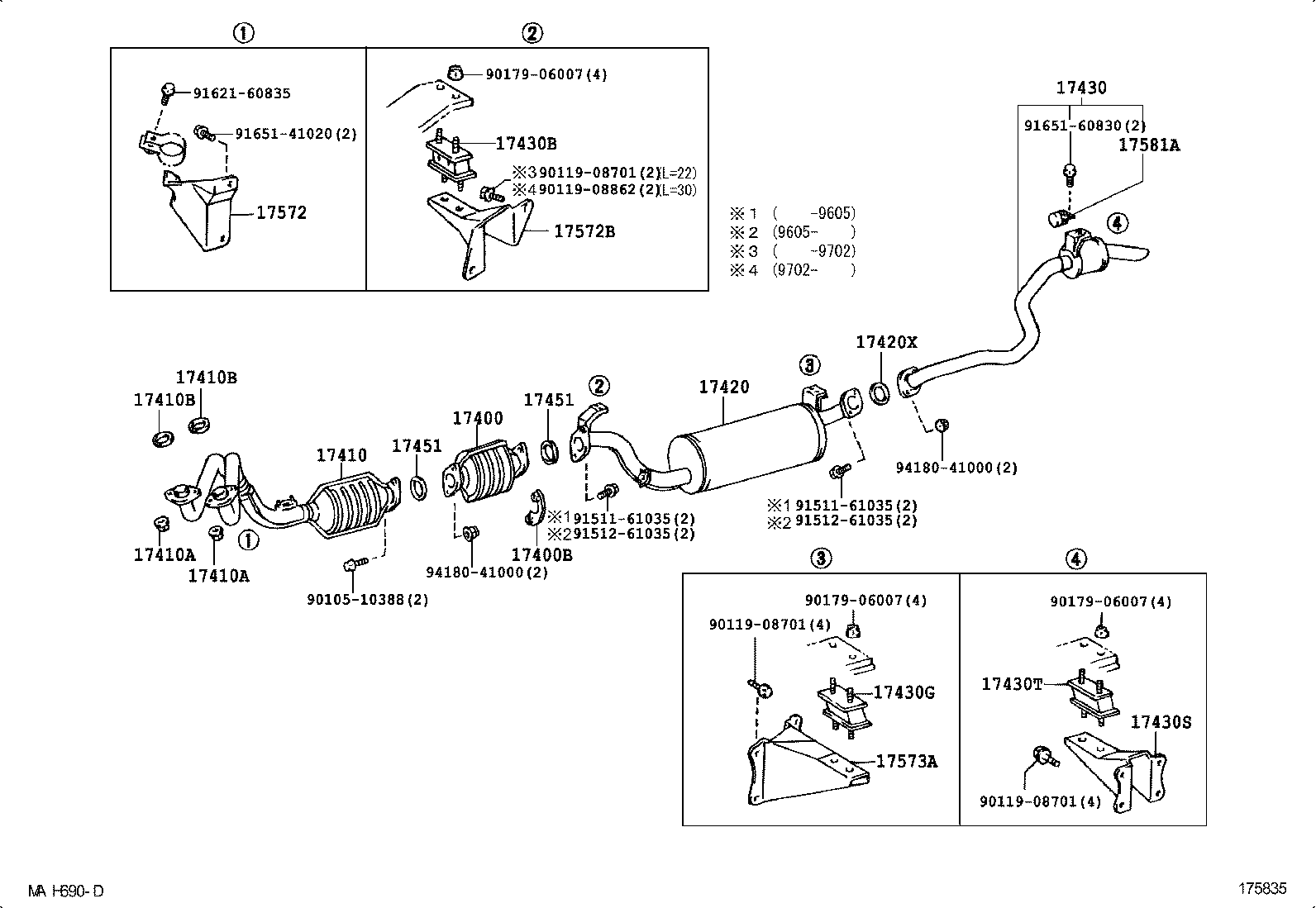

Exhaust Pipe
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400B | Retainer, Exhaust Pipe |
| 17401 | Pipe Sub-assy, Exhaust, Front |
| 17402 | Pipe Sub-assy, Exhaust, Front NO.2 |
| 17403 | Pipe Sub-assy, Exhaust, Front NO.3 |
| 17404 | Pipe Sub-assy, Exhaust Forked |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430B | Cushion, Exhaust Tailpipe(FOR FRONT) |
| 17430G | Cushion, Exhaust Tailpipe(FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17451 | Gasket, Exhaust Pipe |
| 17516 | Retainer, Exhaust Pipe, NO.2 |
| 17521 | Protector, Exhaust Pipe, Front NO.1 |
| 17552 | Insulator, Exhaust Pipe Heat, NO.2 |
| 17557 | Insulator, Exhaust Pipe Heat, NO.7 |
| 17558 | Insulator, Exhaust Pipe Heat, NO.8 |
| 17568 | Stay, Exhaust Pipe Support |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17581A | Damper, Exhaust Pipe |
| 17582 | Bracket, Catalytic Converter Support, Upper |
| 17593 | Protector, Exhaust Pipe, NO.1 |
| 17593A | Clamp |
| 18433 | Cover, Converter Insulator, Upper |
| 18434 | Cover, Converter Insulator, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
