Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01

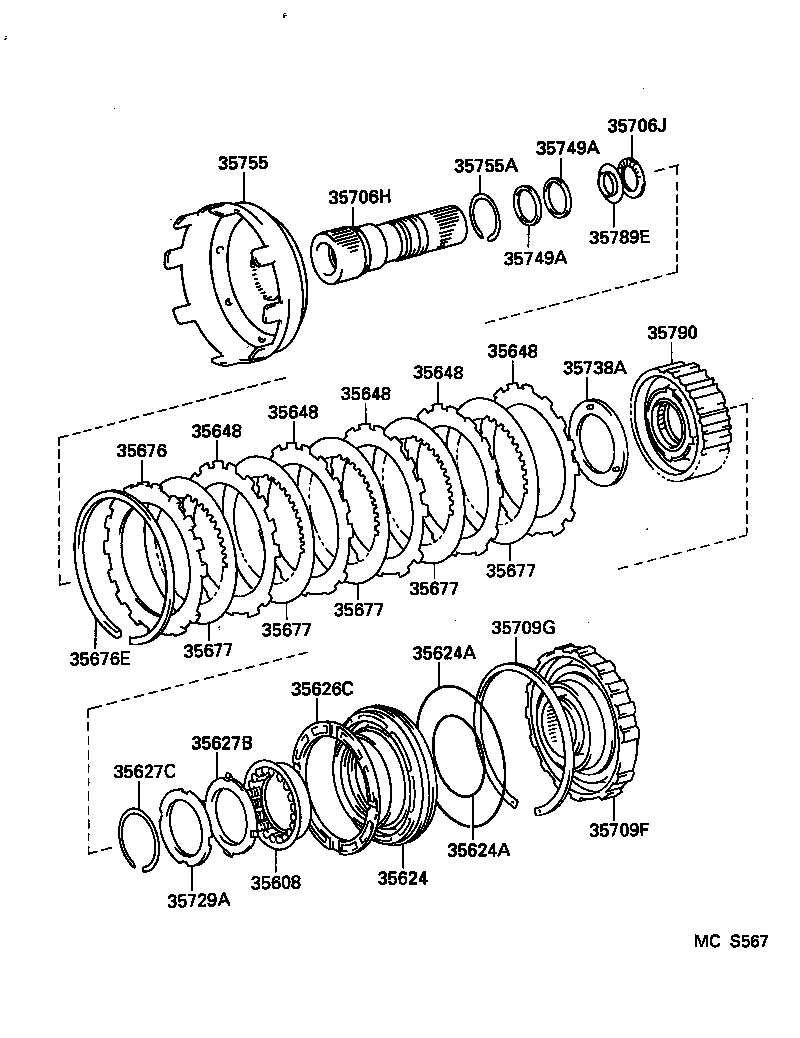

Center Support & Planetary Sun Gear (ATM)

38 part groups · 2 illustrations

PNC	Description
35608	Spring Sub-assy, 2ND Brake Piston Return
35620E	Ring, Hole Snap (FOR BRAKE PISTON RETURN SPRING)
35620F	Ring, Hole Snap (FOR BRAKE NO.1 FLANGE)
35621	Piston, Brake, NO.1
35621A	Ring, O (FOR BRAKE PISTON OUTER)
35621B	Ring, O (FOR BRAKE PISTON INNER)
35624	Piston, 2ND Brake
35624A	Ring, O (FOR 2ND BRAKE PISTON)
35626C	Sleeve, 2ND Brake Piston
35627B	Seat, 2ND Brake Piston Return Spring
35627C	Ring, Shaft Snap(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)
35632	Plate, Brake
35632C	Disc, Clutch (FOR BRAKE)
35648	Plate, Clutch (FOR 2ND BRAKE)
35676	Flange, Brake (FOR 2ND BRAKE)
35676B	Flange, Brake, NO.1
35676E	Ring, Hole Snap (FOR 2ND BRAKE)
35677	Disc, Clutch (FOR 2ND BRAKE)
35706H	Gear Sub-assy, Planetary Sun
35706J	Bearing, Thrust Needle Roller (FOR PLANETARY SUN GEAR)
35706P	Gear Sub-assy, Front Planetary Sun
35706Q	Ring, Shaft Snap (FOR FRONT PLANETARY SUN GEAR)
35709	Support Sub-assy, Center
35709B	Ring, O (FOR CENTER SUPPORT)
35709C	Ring, Oil Seal (FOR CENTER SUPPORT)
35709E	Washer (FOR CENTER SUPPORT)
35709F	Drum Sub-assy, 2ND Brake
35709G	Ring, Hole Snap (FOR 2ND BRAKE DRUM)
35709H	Bolt (FOR CENTER SUPPORT)
35719A	Gear, Rear Planetary Sun
35729A	Washer, Planetary Carrier Thrust, NO.4
35738A	Washer, 1 Way Clutch Thrust, NO.1
35749A	Ring, Sun Gear Shaft Oil Seal
35755	Drum, Sun Gear Input
35755A	Ring, Shaft Snap (FOR SUN GEAR INPUT DRUM)
35785	Retainer, Center Support Ring
35789E	Race, Thrust Bearing (FOR PLANETARY SUN GEAR)
35790	Clutch Assy, 1 Way

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
