Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake NO.3, 1ST & Reverse Brake (ATM)

15 part groups · 2 illustrations

Illustrations

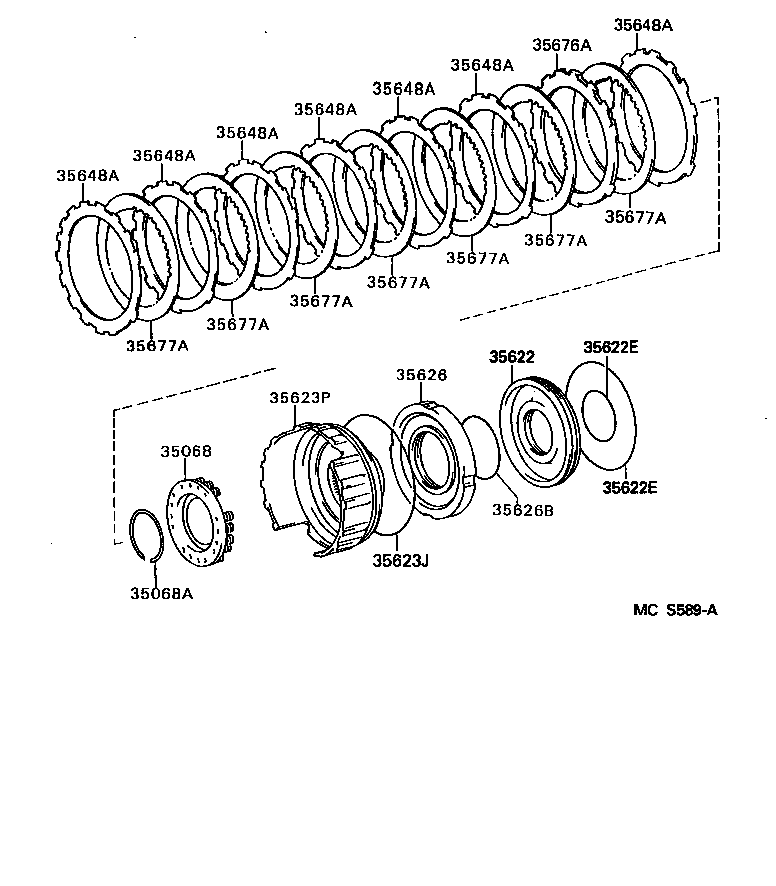

Figure MCB717 MCB717 1990-01 → 1995-01 Figure MCS589A MCS589A 1995-01 → —

Part groups

PNCDescription
35068 Spring Sub-assy, 1ST & Reverse Brake Return
35068A Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35622 Piston, Brake, NO.2
35622E Ring, O (FOR BRAKE PISTON NO.2)
35623H Piston, 1ST & Reverse Brake
35623J Ring, O (FOR 1ST & REVERSE BRAKE)
35623P Piston, 1ST & Reverse Brake, NO.2
35626 Sleeve, Brake Reaction
35626B Ring (FOR BRAKE REACTION SLEEVE INNER)
35632A Plate, Brake (FOR 1ST & REVERSE BRAKE)
35648A Plate, Clutch (FOR 1ST & REVERSE BRAKE)
35671 Plate, Brake Cushion
35676A Flange, Brake (FOR 1ST & REVERSE BRAKE)
35676D Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE)
35677A Disc, Clutch (FOR 1ST & REVERSE BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
