Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe
Discontinued model
Data version 1998-01

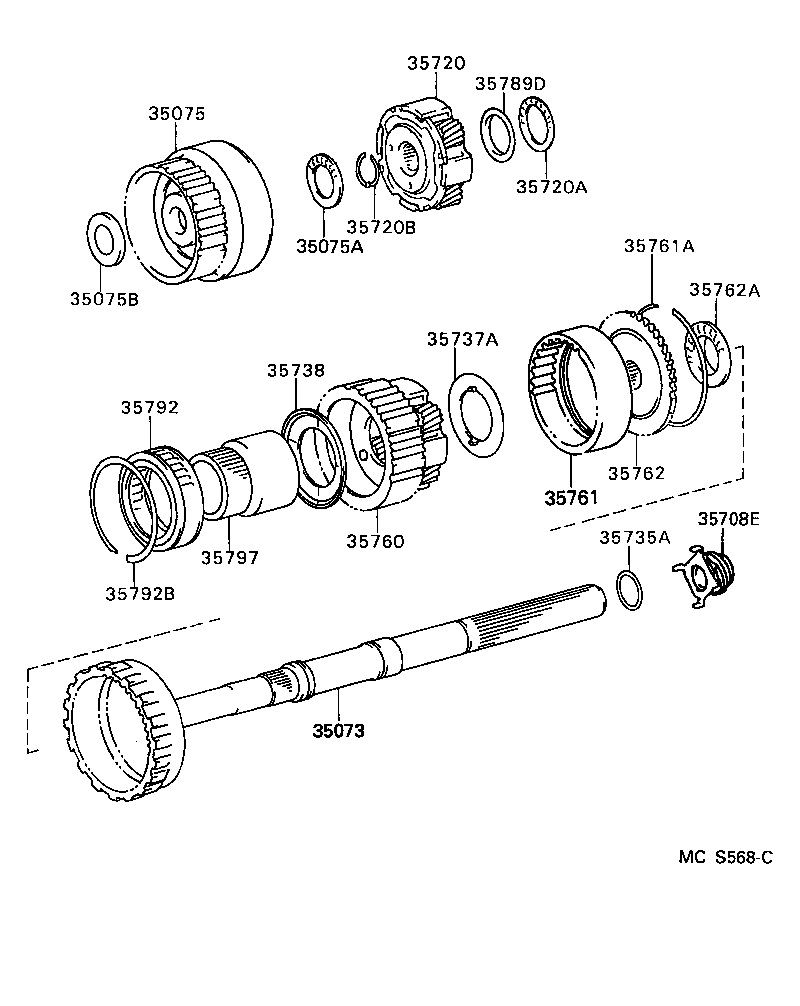

Planetary Gear, Reverse Piston & Counter Gear(ATM)
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35073 | Shaft Sub-assy, Output |
| 35073B | Ring, O (FOR OUTPUT SHAFT) |
| 35073C | Bearing, Radial Ball (FOR OUTPUT SHAFT FRONT) |
| 35073D | Bearing, Radial Ball (FOR OUTPUT SHAFT REAR) |
| 35073F | Spacer, NO.1 (FOR OUTPUT SHAFT REAR BEARING) |
| 35073G | Spacer, NO.2 (FOR OUTPUT SHAFT REAR BEARING) |
| 35073J | Ring, Hole Snap (FOR OUTPUT SHAFT) |
| 35073K | Ring, Shaft Snap (FOR OUTPUT SHAFT REAR BEARING) |
| 35075 | Gear Sub-assy, Front Planetary Ring |
| 35075A | Bearing, Thrust Needle Roller (FOR FRONT PLANETARY RING) |
| 35075B | Race, Thrust Bearing (FOR FRONT PLANETARY RING GEAR FRONT) |
| 35469J | Spacer, Parking Lock Gear |
| 35708E | Gear Sub-assy, Speedometer Drive |
| 35713 | Shaft, Intermediate |
| 35720 | Gear Assy, Front Planetary |
| 35720A | Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR) |
| 35720B | Ring, Shaft Snap (FOR FRONT PLANETARY GEAR) |
| 35733 | Gear, Parking Lock |
| 35735A | Ring, Planetary Output Shaft Oil Seal |
| 35737A | Washer, Planetary Carrier Thrust, NO.1 |
| 35738 | Washer, Planetary Carrier Thrust, NO.2 |
| 35743 | Gear, Front Planetary Ring |
| 35743B | Ring, Hole Snap (FOR FRONT PLANETARY RING GEAR) |
| 35748B | Ring, Intermediate Shaft Oil Seal |
| 35760 | Gear Assy, Rear Planetary |
| 35761 | Gear, Rear Planetary Ring |
| 35761A | Ring, Hole Snap (FOR REAR PLANETARY RING GEAR) |
| 35762 | Flange, Rear Planetary Ring Gear |
| 35762A | Bearing, Thrust Needle Roller (FOR REAR PLANETARY FLANGE) |
| 35762B | Ring, Hole Snap (FOR REAR PLANETARY RING GEAR FLANGE) |
| 35762C | Ring, Shaft Snap (FOR REAR PLANETARY RING GEAR) |
| 35770A | Bearing, Thrust (FOR OUTPUT SHAFT) |
| 35789D | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR REAR) |
| 35789F | Race, Thrust Bearing (FOR REAR PLANETARY FLANGE) |
| 35790A | Clutch Assy, 1 Way |
| 35790B | Ring, Hole Snap (FOR 1 WAY CLUTCH) |
| 35792 | Clutch, 1 Way, NO.2 |
| 35792B | Ring, Hole Snap (FOR 1 WAY CLUTCH NO.2) |
| 35793B | Retainer, 1 Way Clutch |
| 35797 | Race, 1 Way Clutch Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
