Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 2 illustrations

Illustrations

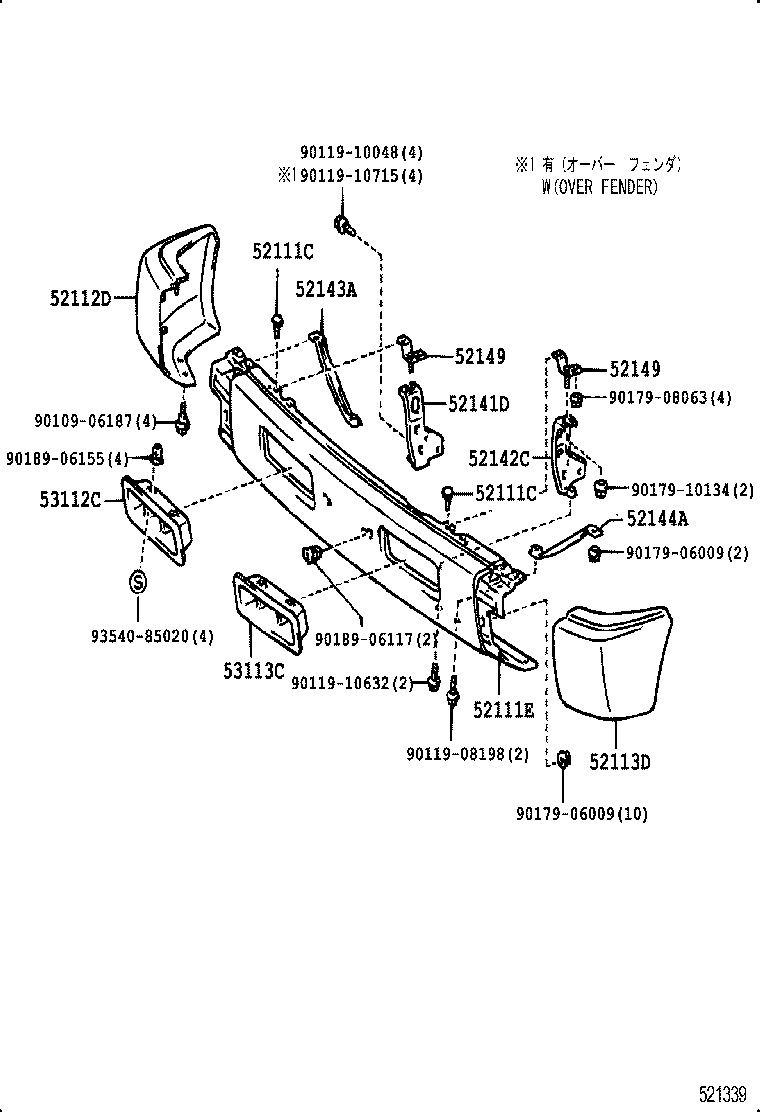

Figure MBU145C MBU145C 1990-01 → 1995-01 Figure 521339 521339 1995-01 → —

Part groups

PNCDescription
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52143A Arm, Front Bumper, Inner RH
52144A Arm, Front Bumper, Inner LH
52149 Bracket, Front Bumper, Inner
52521A Clip(FOR FRONT BUMPER RETAINER)
52711 Moulding, Front Bumper
52715 Retainer, Front Bumper Moulding, NO.1
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
53112C Grille, Radiator, Lower RH
53113C Grille, Radiator, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
