Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe
Discontinued model
Data version 1998-01

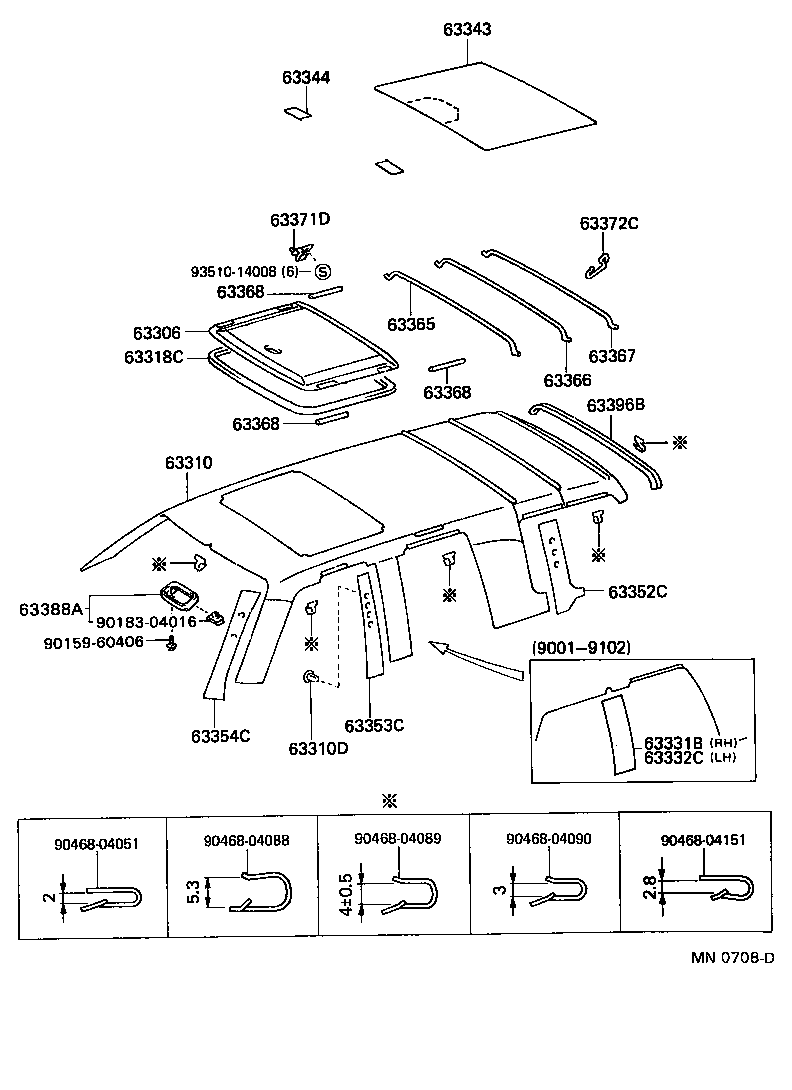

Roof Headlining & Silencer Pad
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63314 | Welt, Roof Headlining |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63331B | Headlining, Roof, Center RH |
| 63332C | Headlining, Roof, Center LH |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344 | Pad, Roof Silencer, NO.4 |
| 63352C | Pad, Roof Headlining, End |
| 63353C | Pad, Roof Headlining, Center |
| 63354C | Pad, Roof Headlining Front Side |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63367 | Support, Roof Headlining, NO.7 |
| 63368 | Support, Roof Headlining, NO.8 |
| 63371D | Retainer, Roof Headlining Support |
| 63372C | Hook, Roof Headlining Support |
| 63388A | Cover, Roof Headlining Holder |
| 63396B | Trim, Roof Headlining, Rear Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
