Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

8 part groups · 2 illustrations

Illustrations

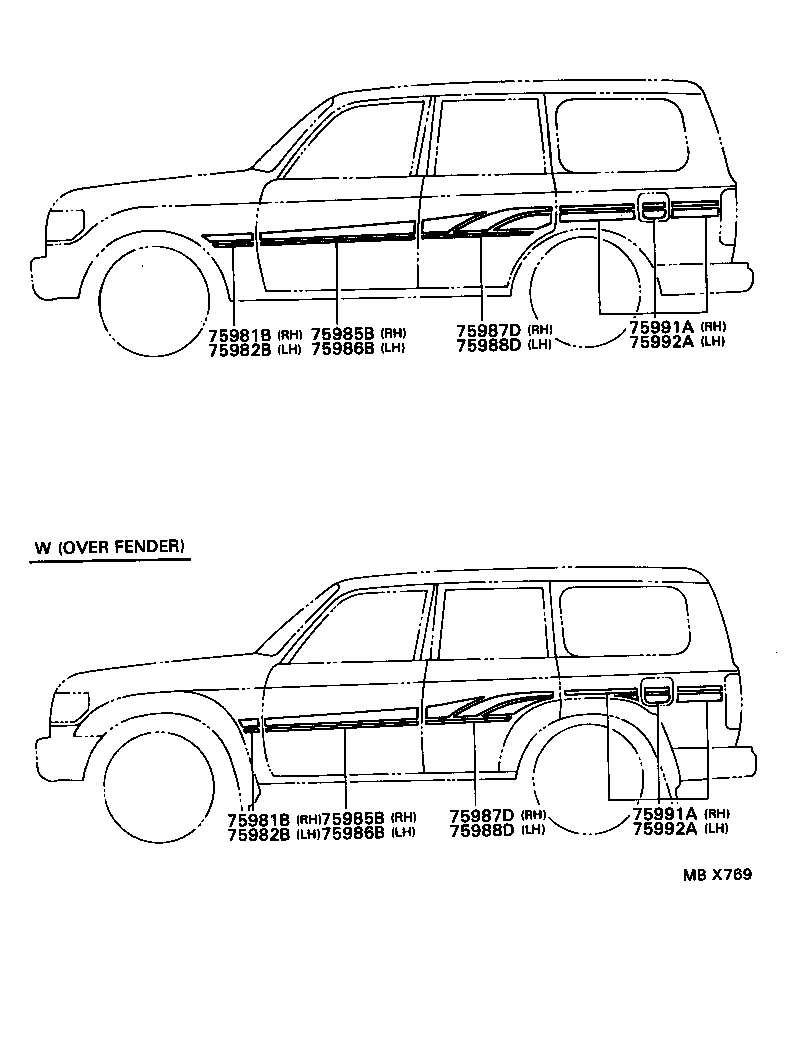

Figure MBU520 MBU520 1990-01 → — Figure MBX769 MBX769 1993-08 → 1995-01

Part groups

PNCDescription
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75985B Stripe, Front Door, NO.3 RH
75986B Stripe, Front Door, NO.3 LH
75987D Stripe, Rear Door, Outside, RH
75988D Stripe, Rear Door Outside, LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
