Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

11 part groups · 3 illustrations

Illustrations

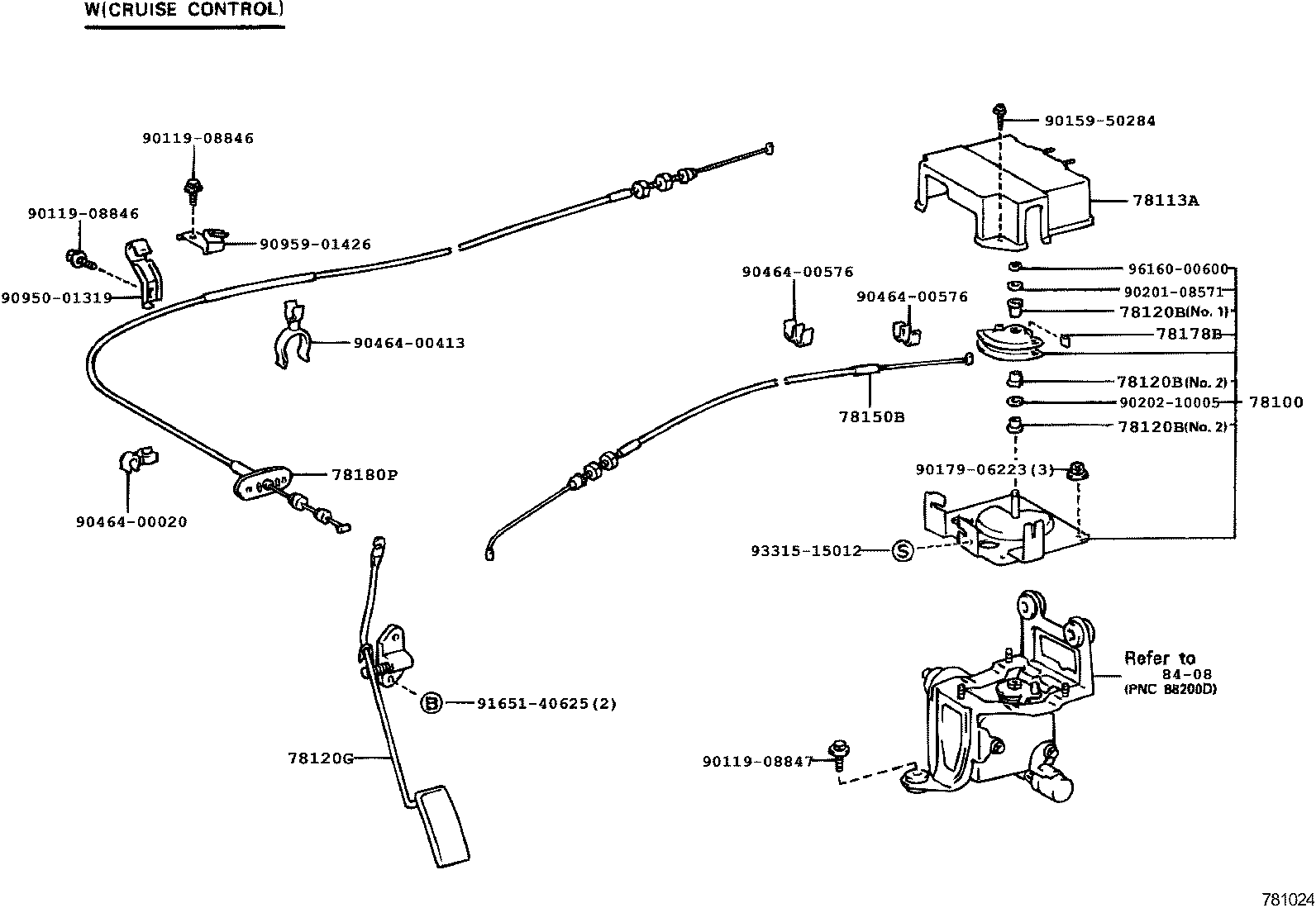

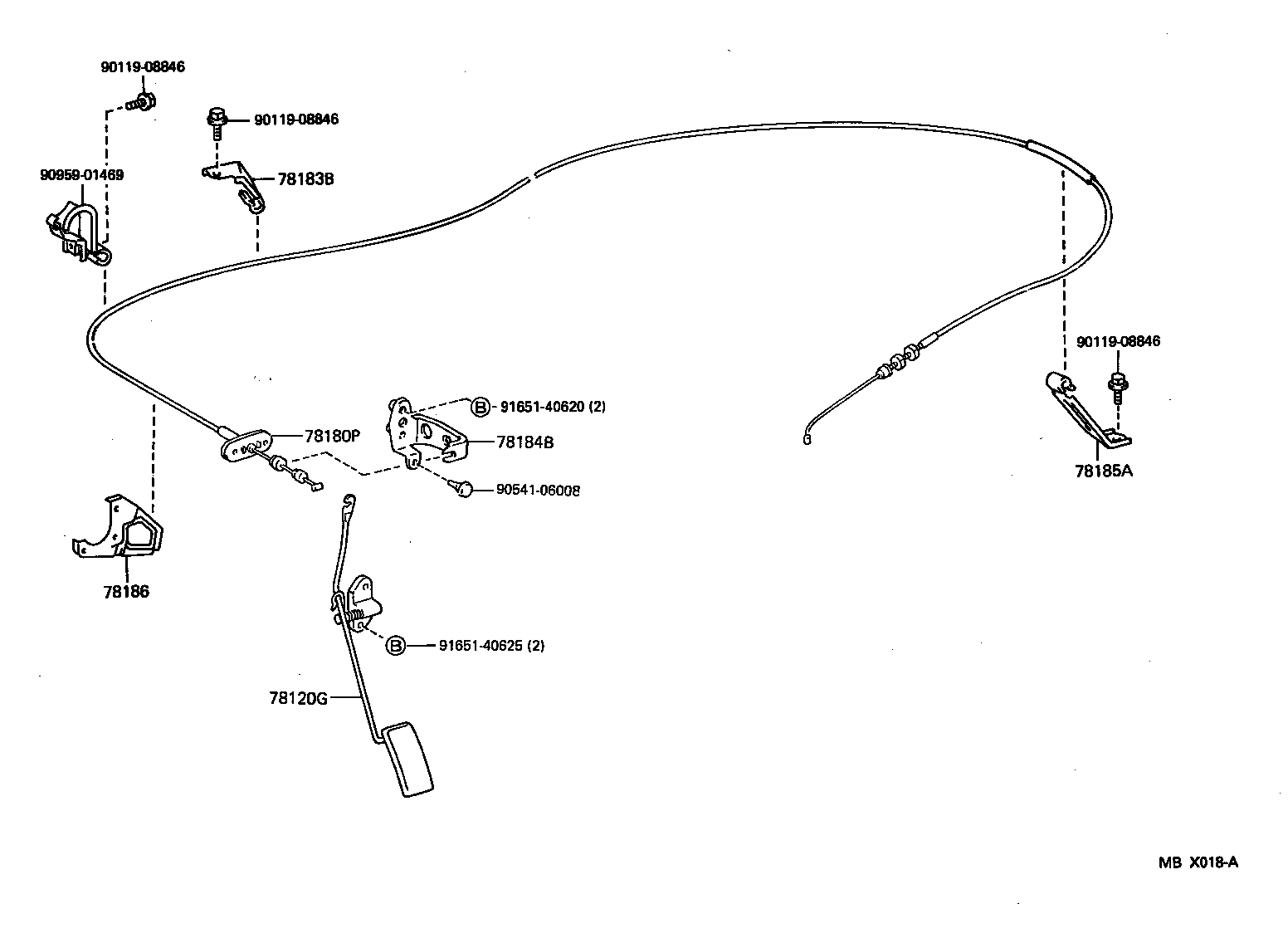

Figure 781023 781023 1990-01 → 1992-08 Figure 781024 781024 1990-01 → 1992-08 Figure MBX018A MBX018A 1992-08 → 1998-01

Part groups

PNCDescription
78100 Link Assy, Accelerator
78113A Cover, Auto Drive Accelerator Link
78120B Bush (FOR ACCELERATOR LINK ROD)
78120G Rod Assy, Accelerator Pedal
78150B Cable Assy, Accelerator Auto Drive
78178B Damper, Accel Control NO.4 Rod Bracket
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
