Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 11 illustrations

Illustrations

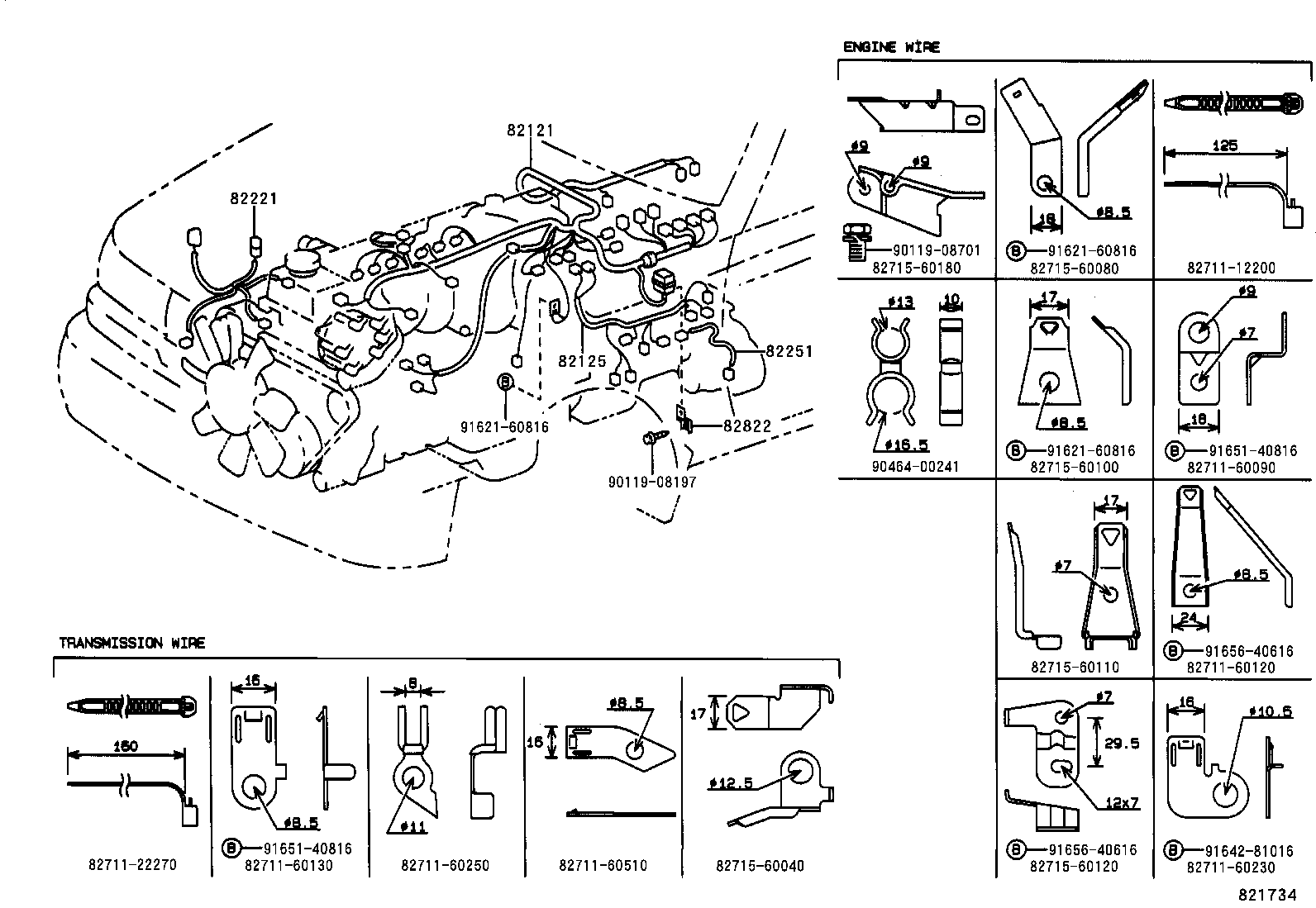

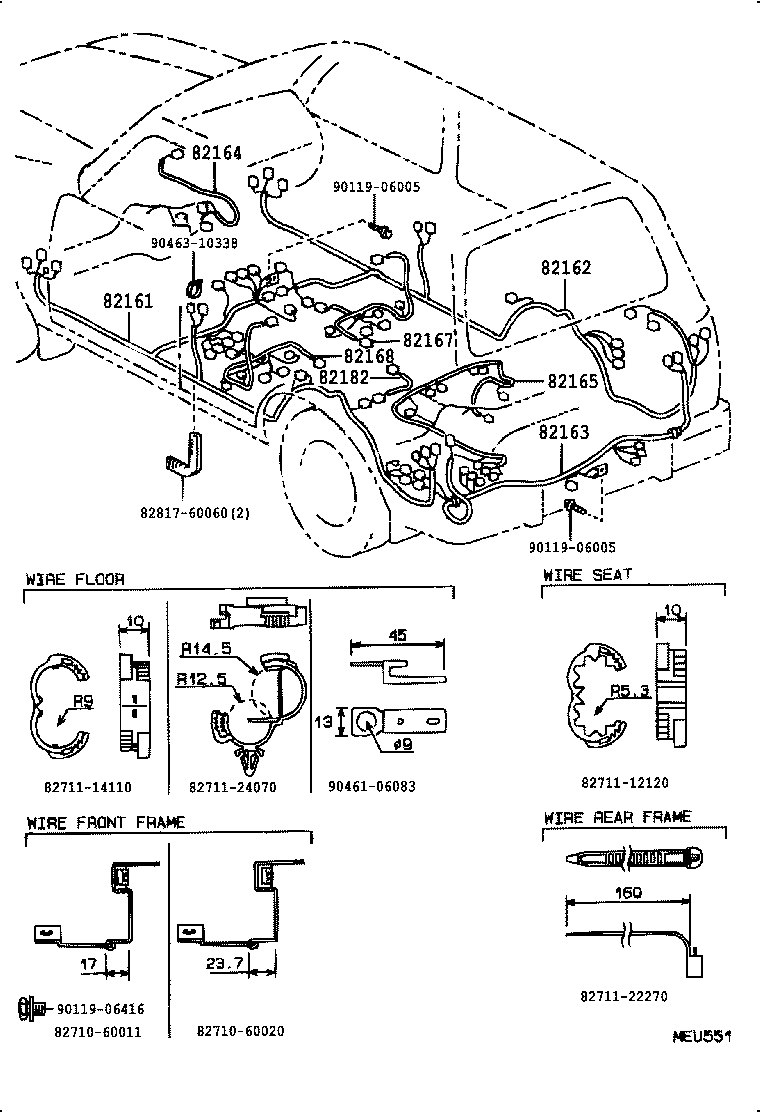

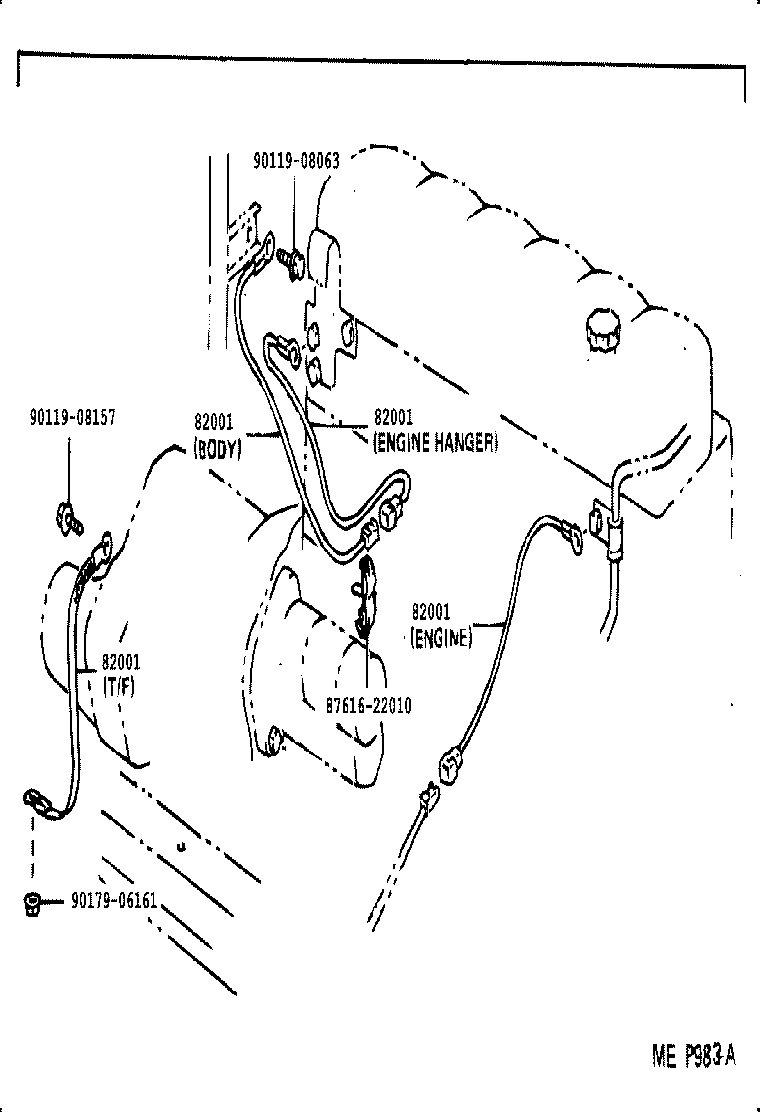

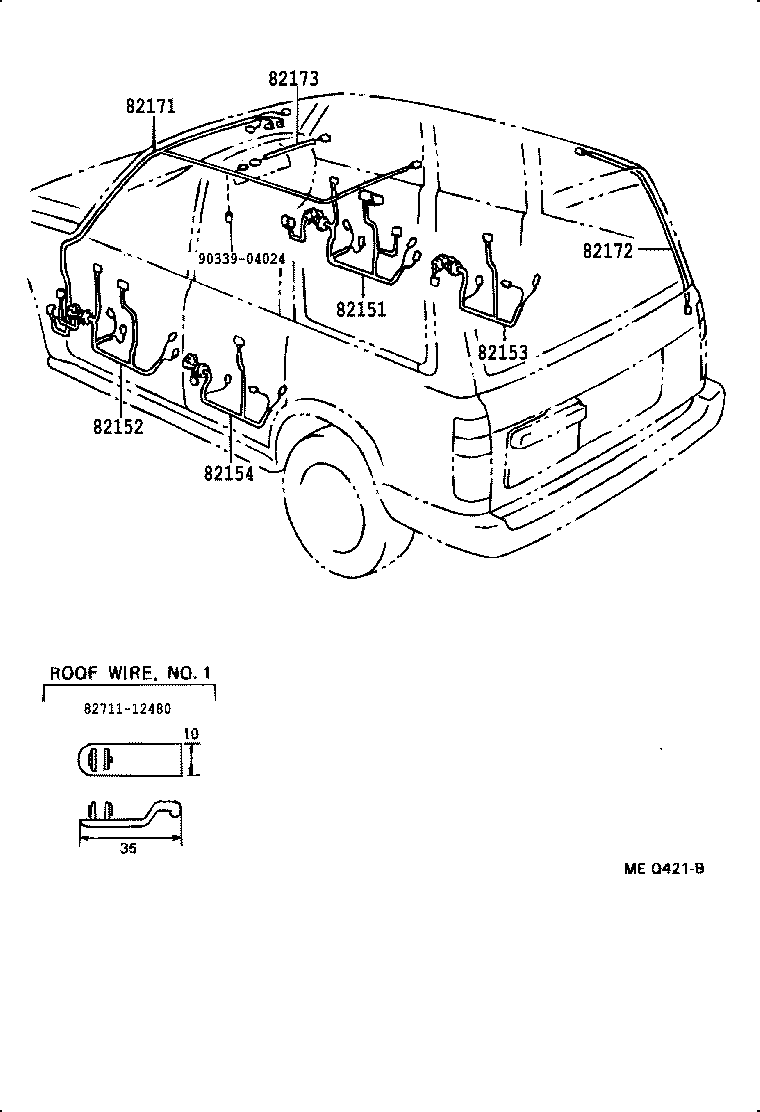

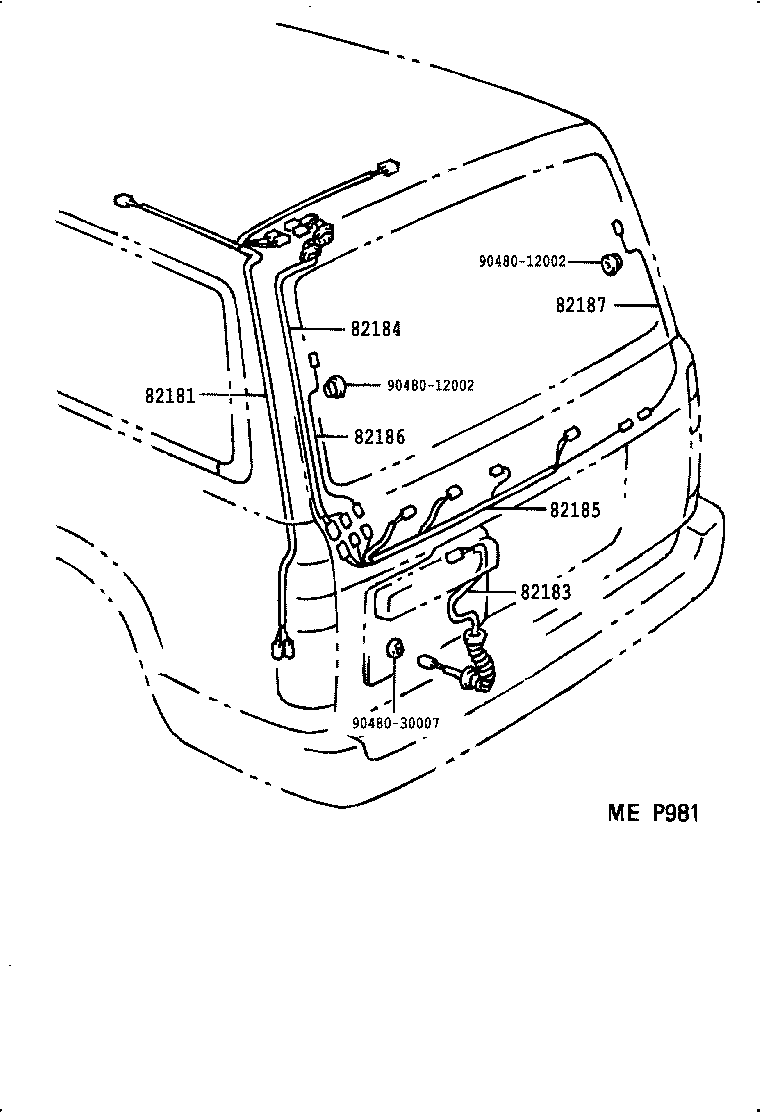

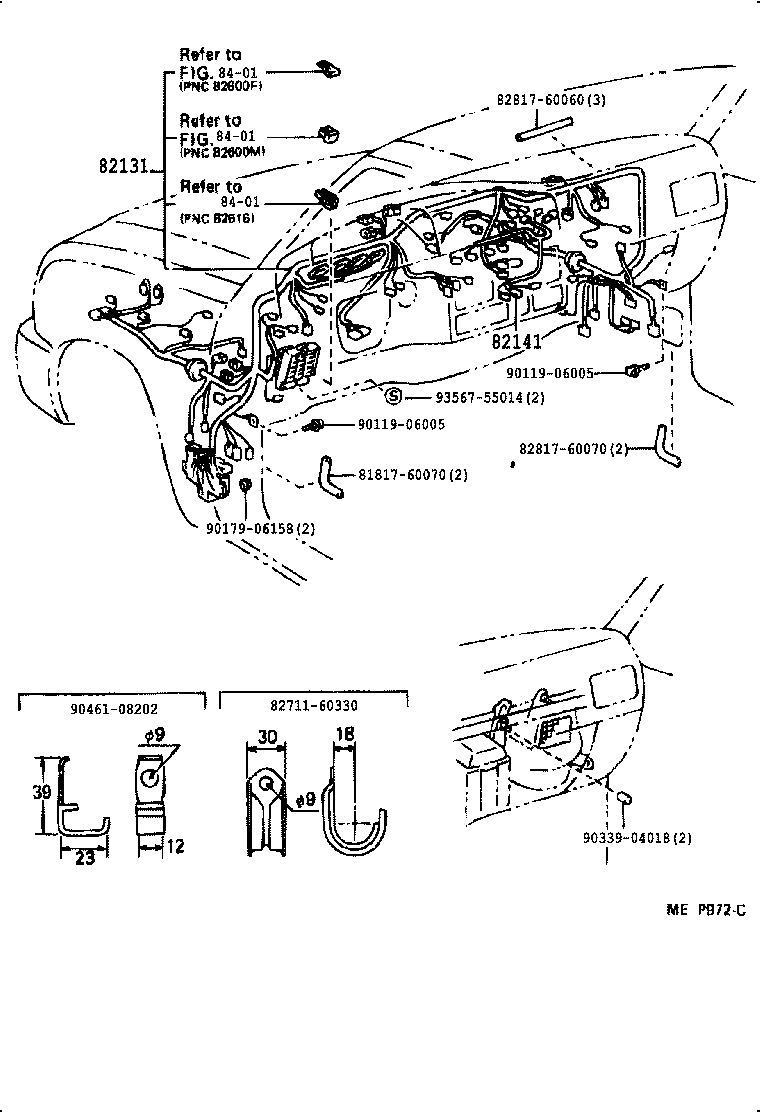

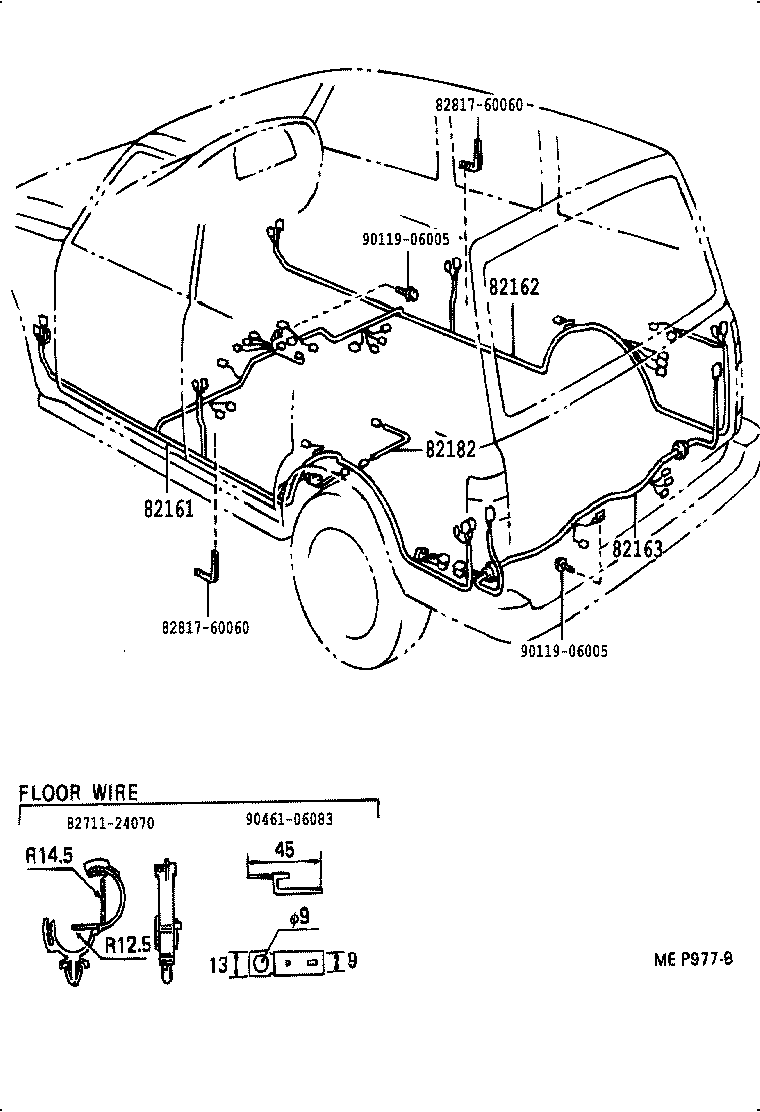

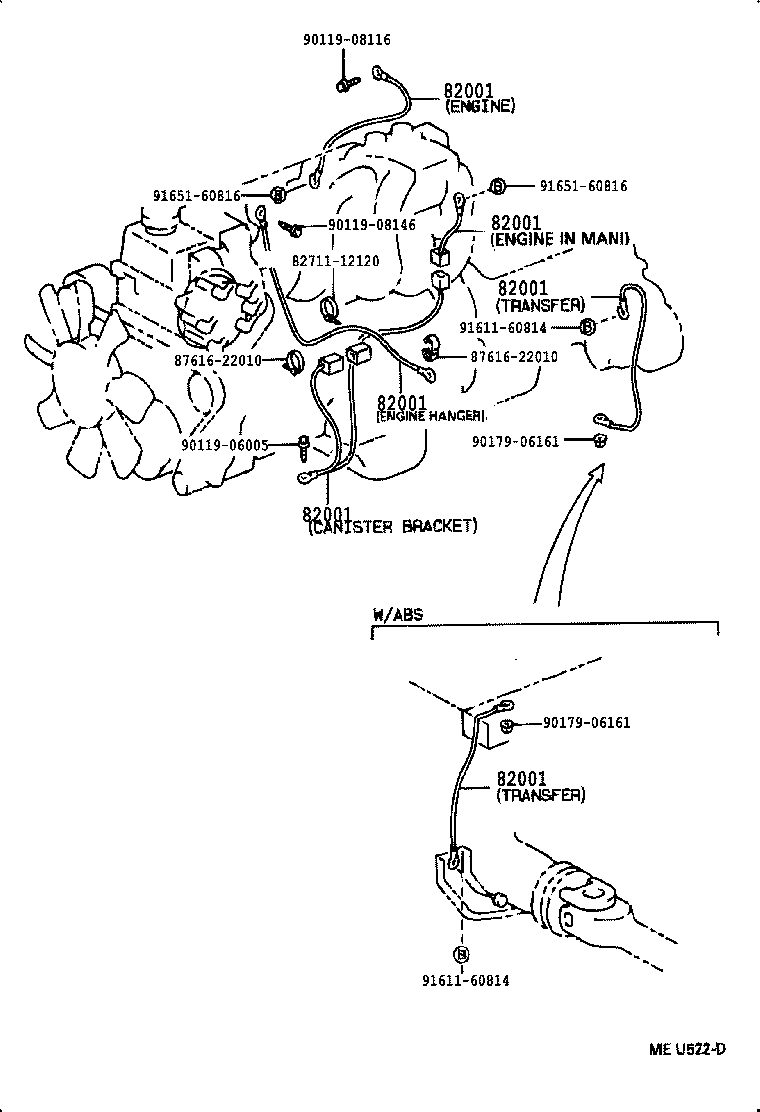

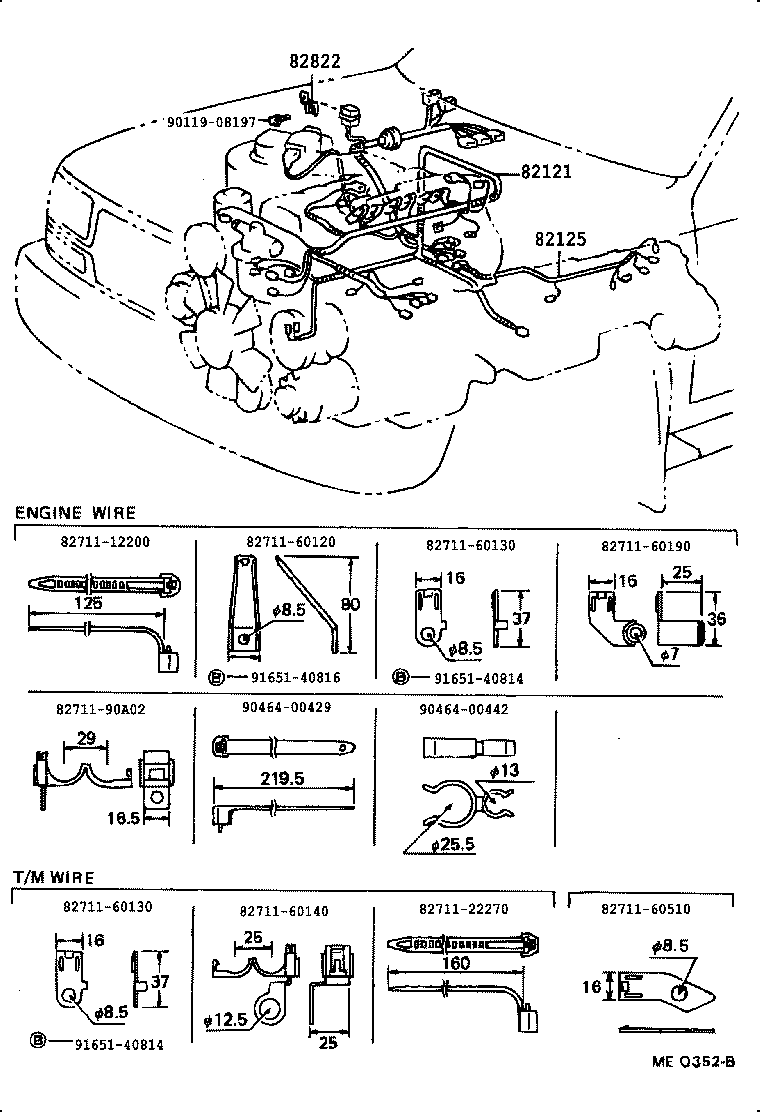

Figure MEP965A MEP965A 1990-01 → — Figure MEQ352B MEQ352B 1990-01 → 1992-08 Figure 821734 821734 1992-08 → — Figure MEP972C MEP972C 1990-01 → — Figure MEQ421B MEQ421B 1990-01 → — Figure MEP977B MEP977B 1990-01 → 1992-08 Figure MEU551 MEU551 1992-08 → — Figure MEP981 MEP981 1990-01 → — Figure MEP983A MEP983A 1990-01 → 1992-08 Figure MEU522D MEU522D 1992-08 → — Figure 824133 824133 1992-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82345 Diode
82822 Bracket,Connector Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
