Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

10 part groups · 2 illustrations

Illustrations

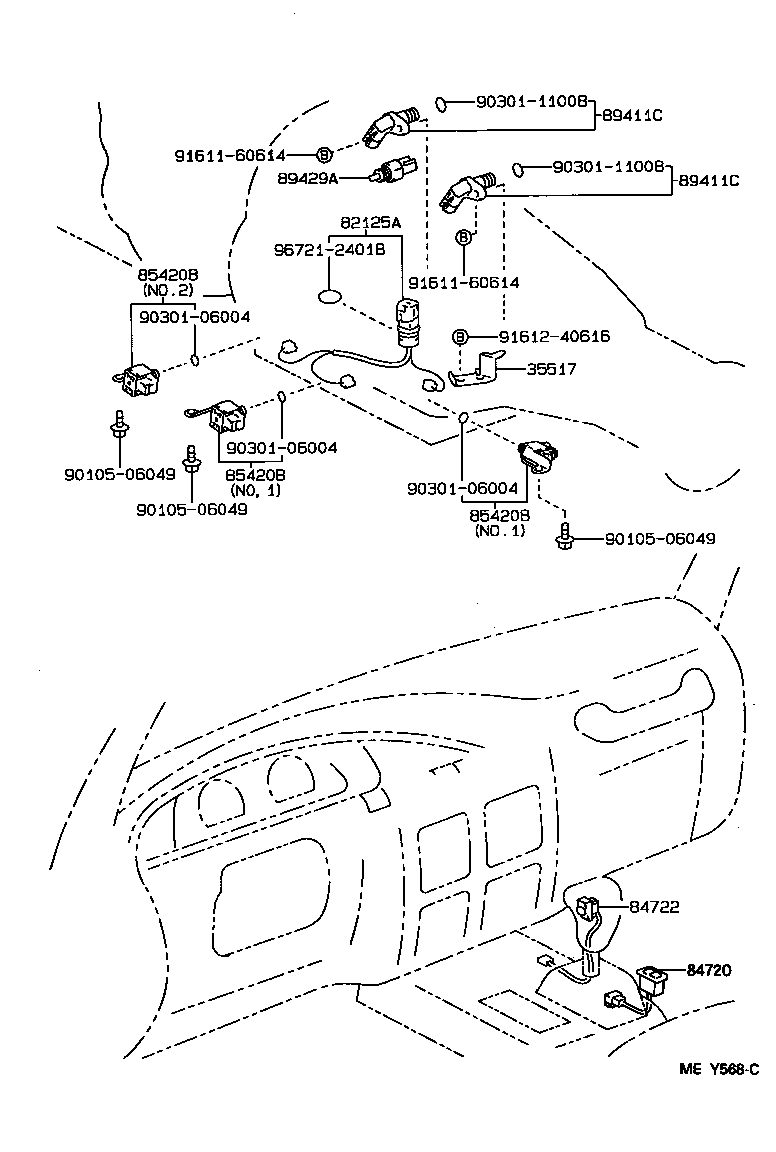

Figure MEU491D MEU491D 1992-08 → 1995-01 Figure MEY568C MEY568C 1995-01 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125A Wire, Transmission
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420B Solenoid Assy, Transmission
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89429A Sensor, Temperature
89530 Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
