Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 4 illustrations

Illustrations

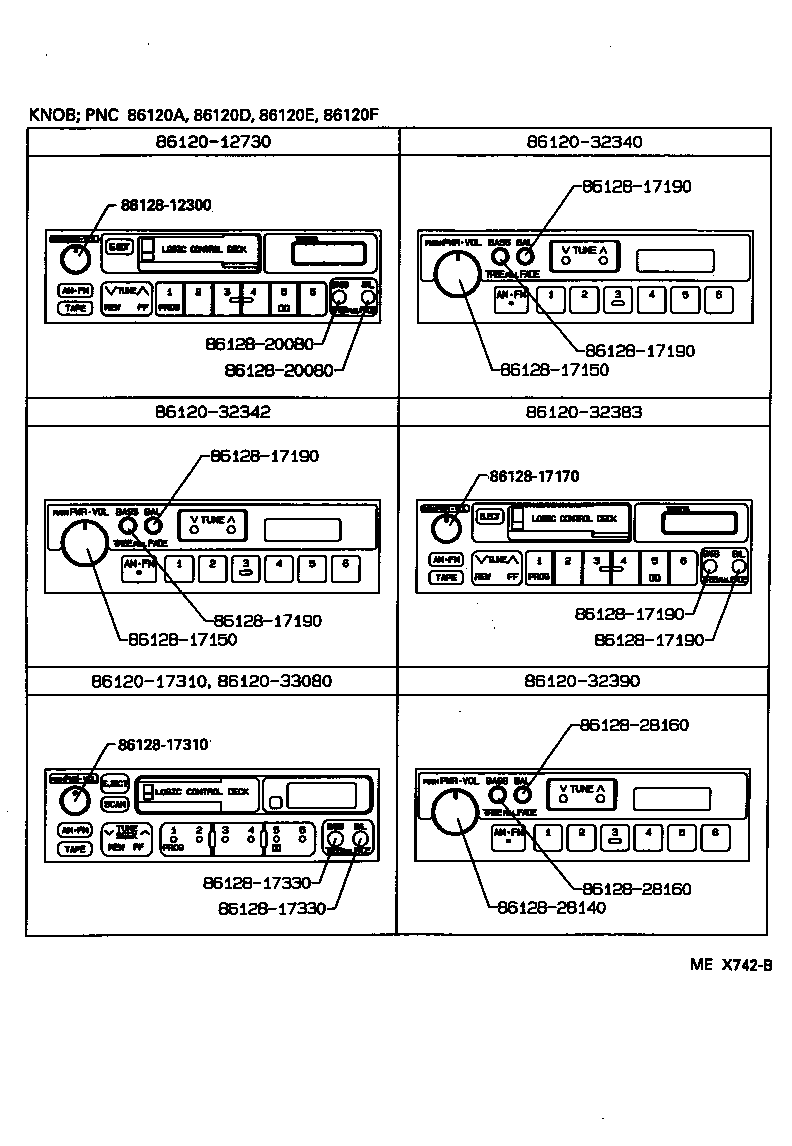

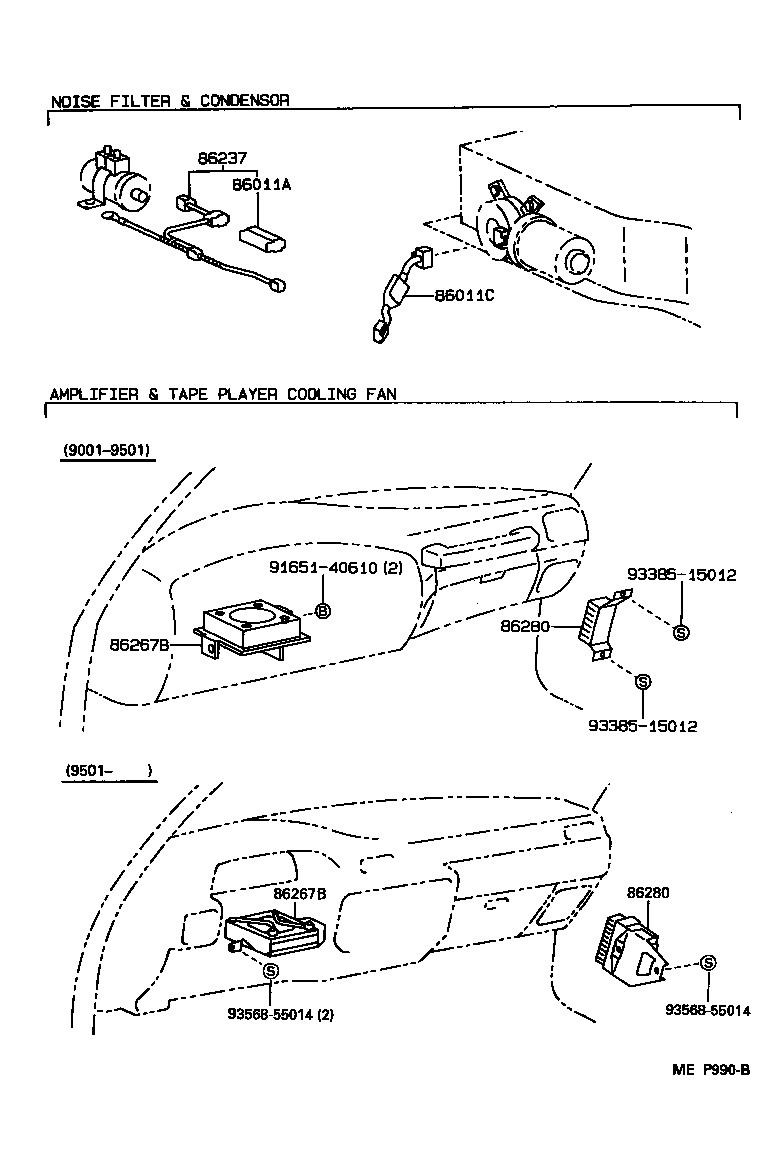

Figure MEP989D MEP989D 1990-01 → — Figure MEX742B MEX742B 1990-01 → — Figure MEY573A MEY573A 1990-01 → — Figure MEP990B MEP990B 1990-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120D Knob, Radio Receiver Tone
86120E Knob, Radio Receiver Balance
86120F Knob, Radio Receiver Sub Volume
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86237 Wire, Condenser
86267B Fan, Tape Player Cooling
86270A Disc Player Assy
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
