Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

10 part groups · 2 illustrations

Illustrations

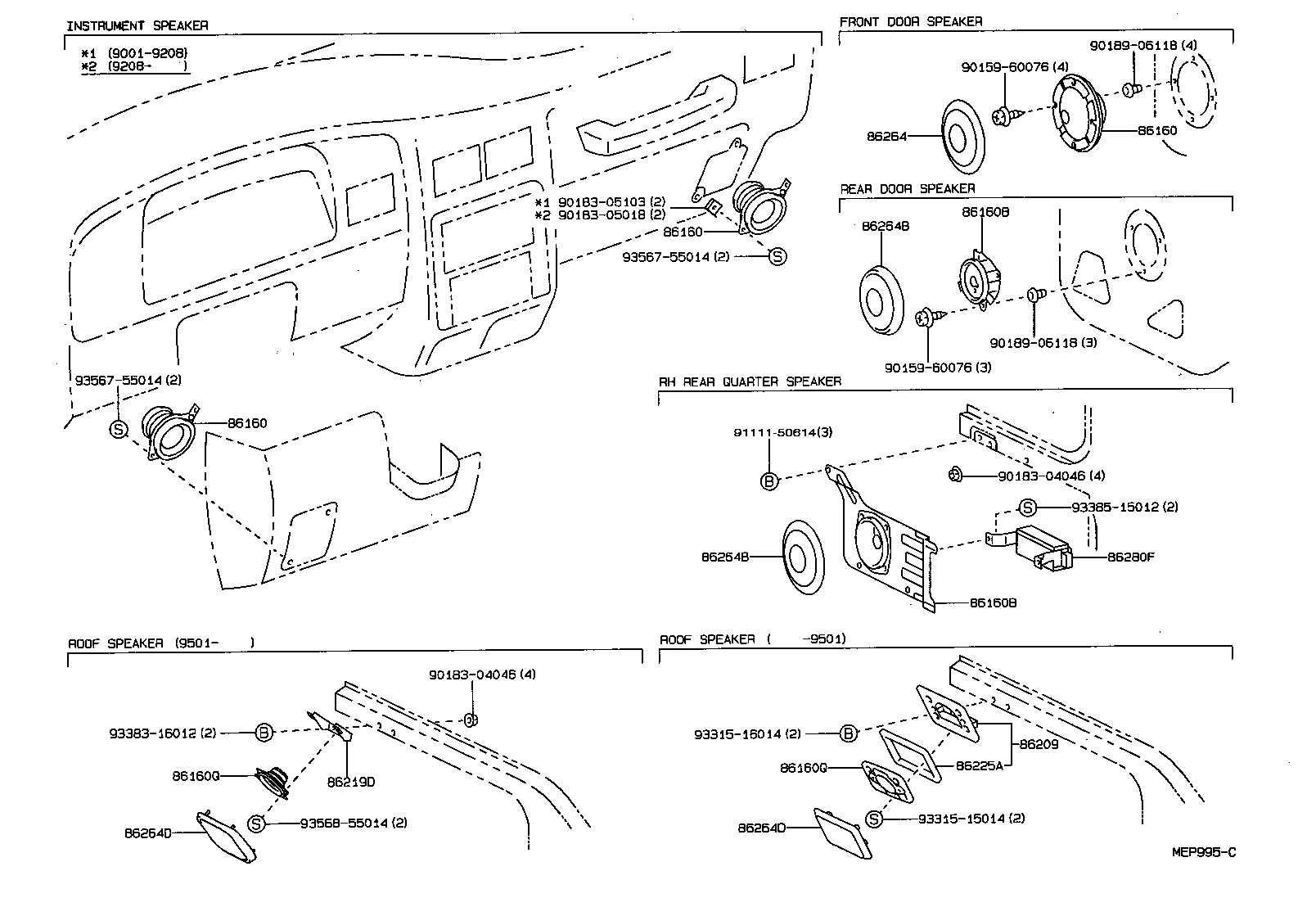

Figure 863212A 863212A 1990-01 → — Figure MEP995C MEP995C 1990-01 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160Q Speaker Assy, Roof
86209 Bracket Sub-assy, Speaker
86219D Bracket, Speaker, Rear NO.1
86225A Cover, Speaker
86264 Grille, Speaker, Front
86264B Grille, Speaker, Rear
86264D Grille, Speaker, Roof
86280F Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
