Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 5 illustrations

Illustrations

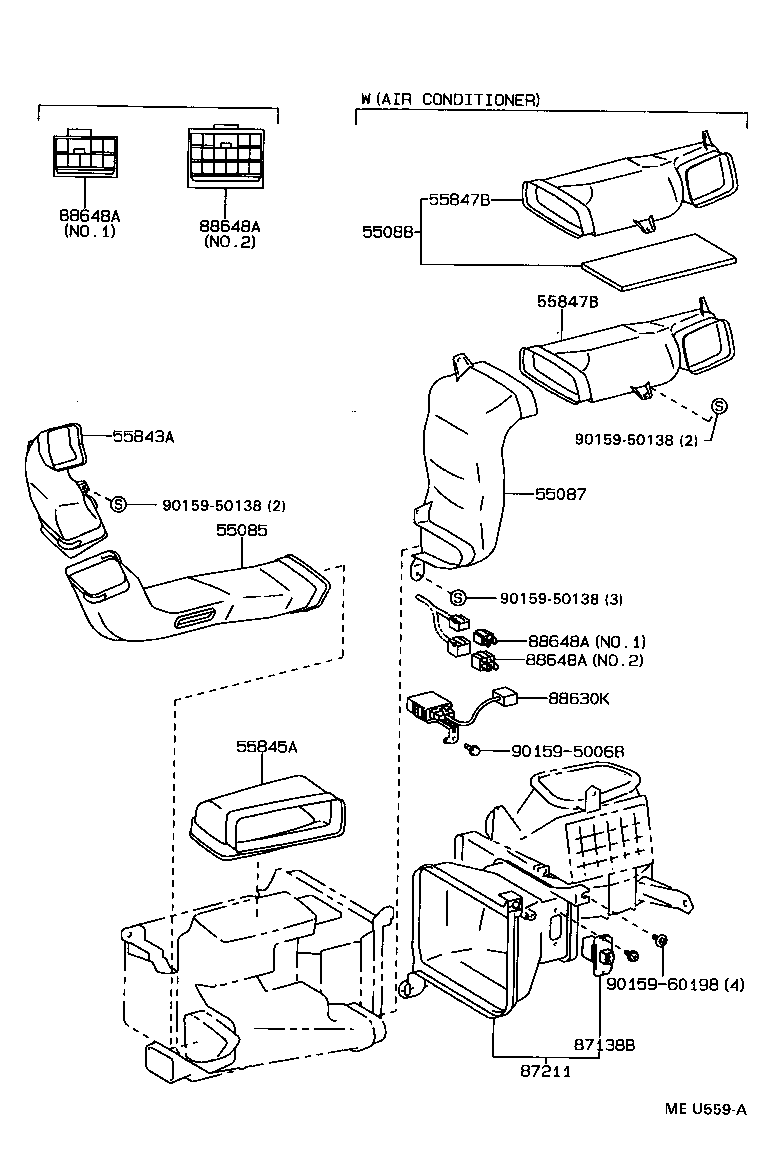

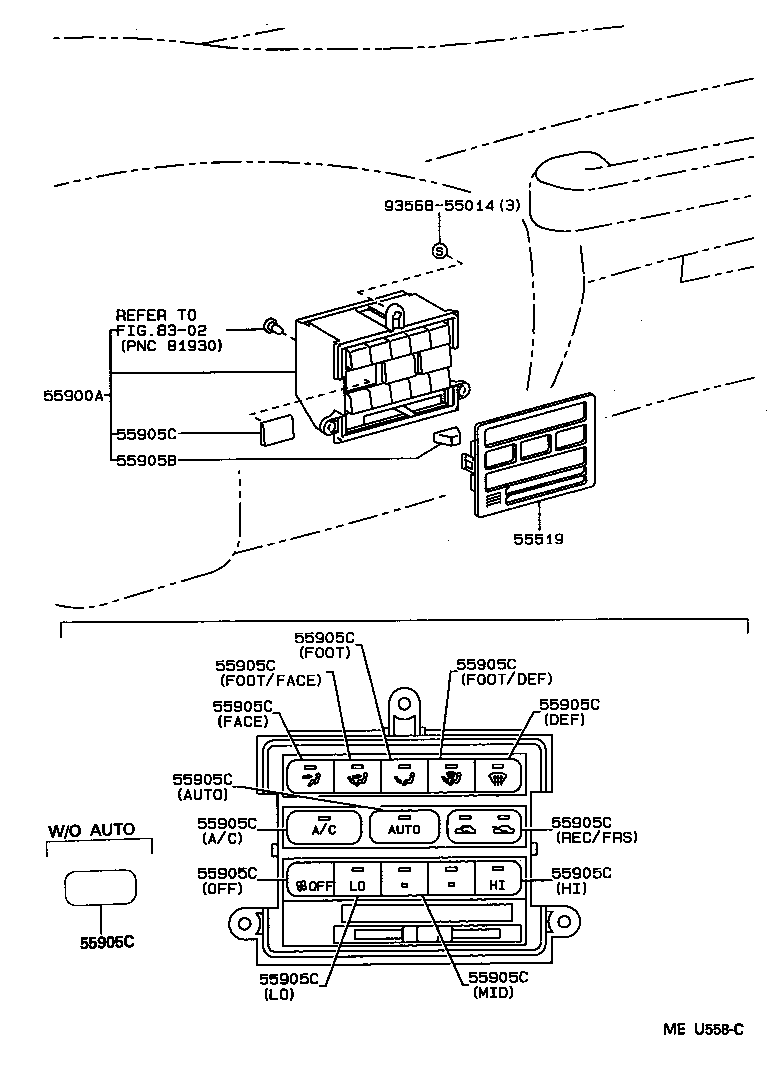

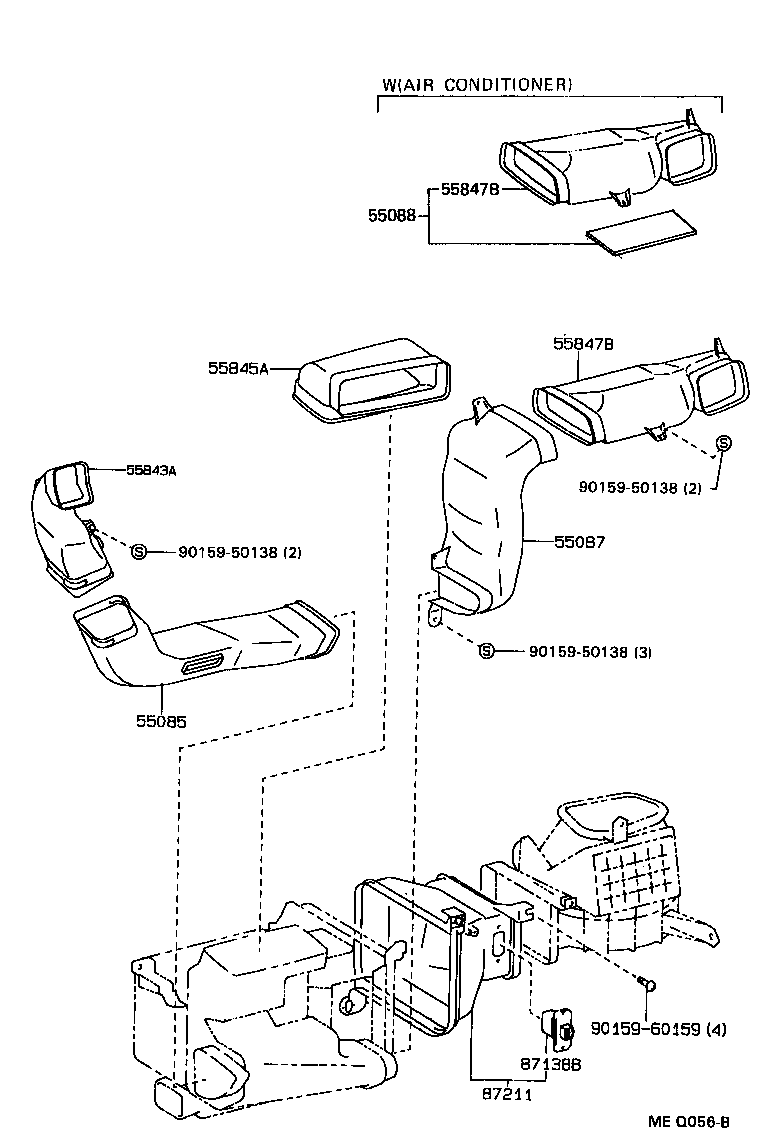

Figure MEQ054 MEQ054 1990-01 → 1992-08 Figure MEU558C MEU558C 1992-08 → — Figure MEQ056B MEQ056B 1990-01 → 1992-08 Figure MEU559A MEU559A 1992-08 → — Figure MEQ058A MEQ058A 1990-01 → —

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55087 Duct Sub-assy, Heater TO Register, NO.4
55088 Duct Sub-assy, Heater TO Register, NO.5
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55847B Duct, Heater TO Register, NO.5
55900A Control & Accessory Assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55906 Cable Sub-assy, Heater Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
88630K Relay Assy
88648A Wiring, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
