Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80 · catalogue 791440 · Europe

Discontinued model Data version 1998-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

23 part groups · 3 illustrations

Illustrations

Figure MEQ062B

MEQ062B 1990-01 → 1992-08

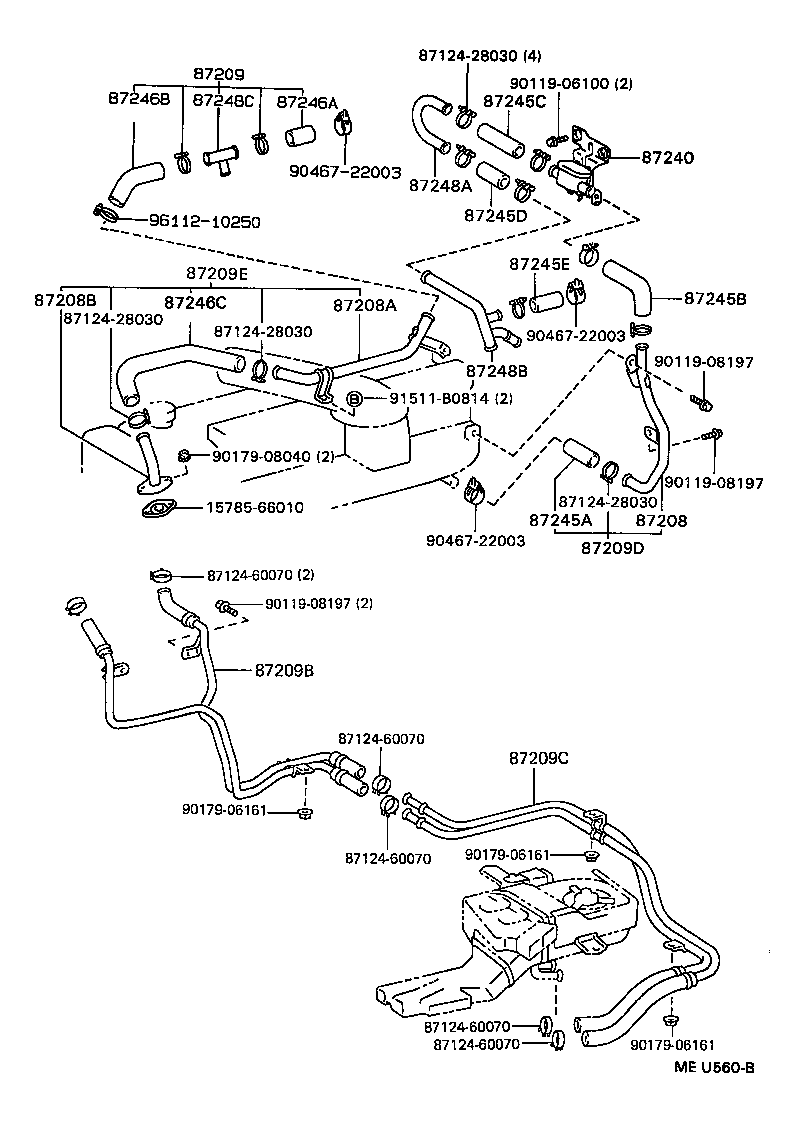

Figure MEU560B

MEU560B 1992-08 → 1995-01

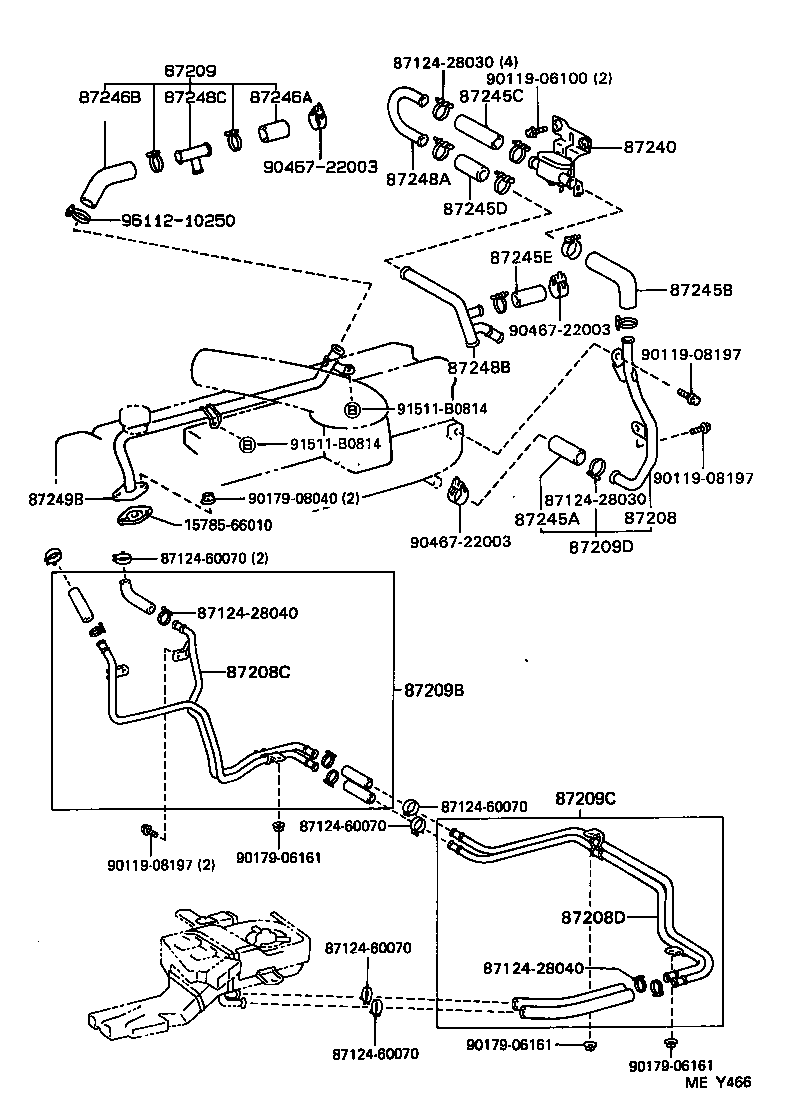

Figure MEY466

MEY466 1995-01 → —

Part groups

PNC	Description
87208	Pipe Sub-assy, Heater Water
87208A	Pipe Sub-assy, Heater Water, A
87208B	Pipe Sub-assy, Heater Water, B
87208C	Pipe Sub-assy, Heater Water, C
87208D	Pipe Sub-assy, Heater Water, D
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87209C	Hose Sub-assy, Water, C
87209D	Hose Sub-assy, Water, D
87209E	Hose Sub-assy, Water, E
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245D	Hose, Heater Water, Inlet D
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87248C	Pipe, Heater Water Inlet, C
87249B	Pipe, Heater Water Outlet, B

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
