Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

20 part groups · 3 illustrations

Illustrations

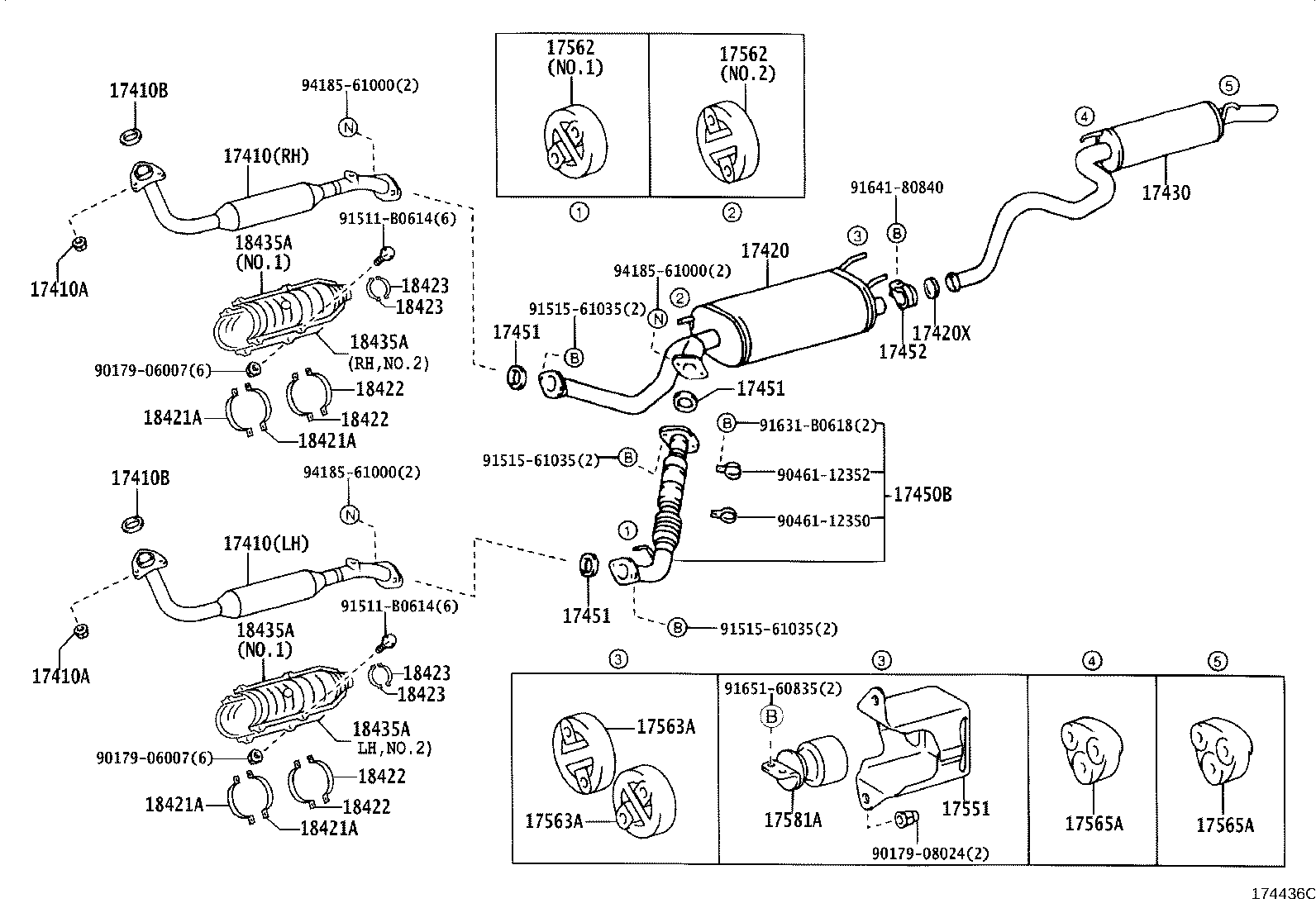

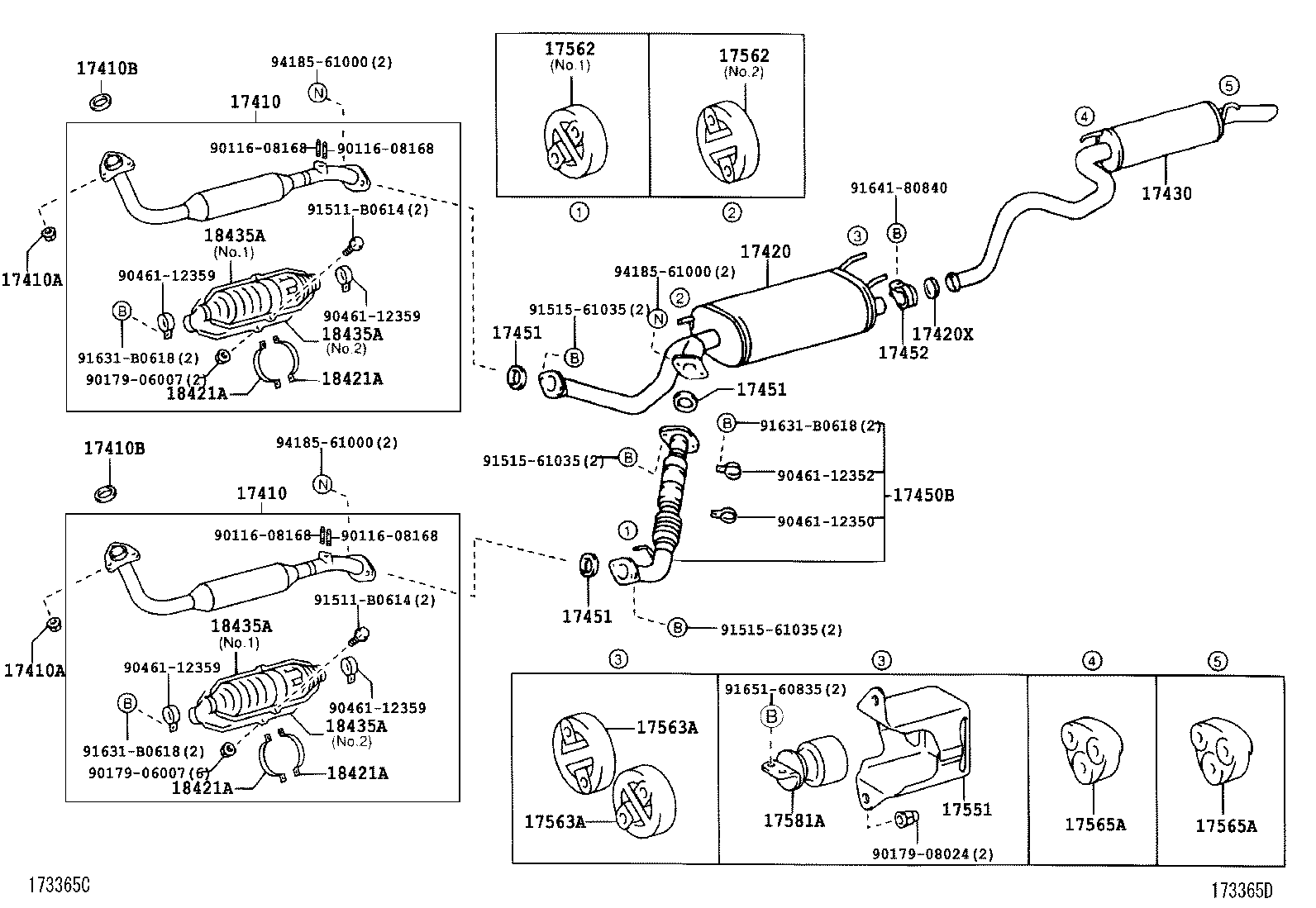

Figure 171978G 171978G 1998-01 → 2002-08 Figure 173365D 173365D 2002-08 → 2005-05 Figure 174436C 174436C 2005-05 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17551 Insulator, Exhaust Pipe Heat, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17581A Damper, Exhaust Pipe
18421A Stay, Converter Protector, LH
18422 Stay, Converter Protector, NO.2
18423 Stay, Converter Protector, NO.3
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
18449 Spacer, Converter Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
