Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe
Discontinued model
Data version 2008-01

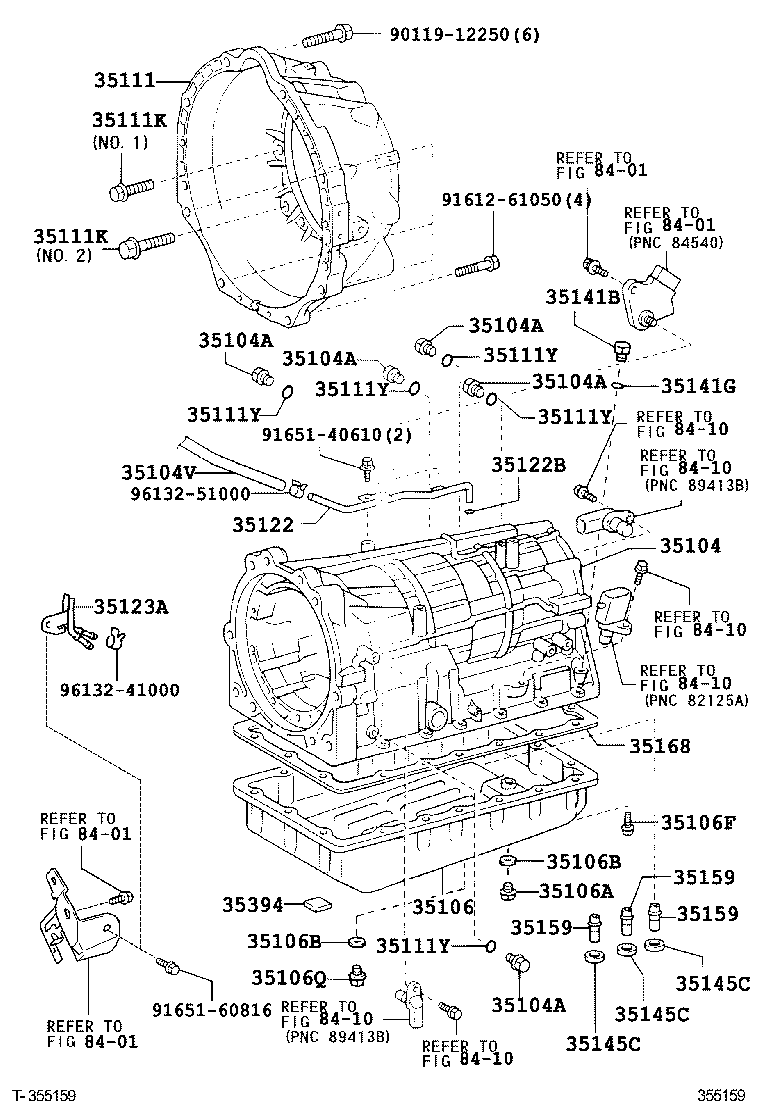

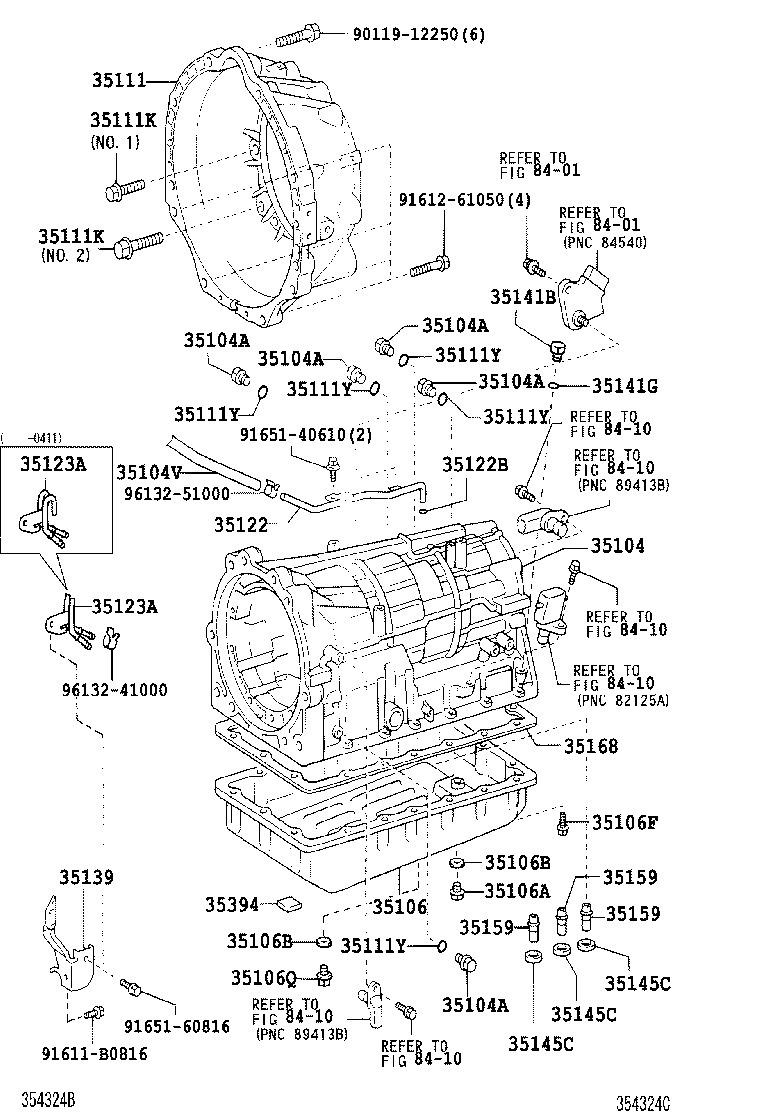

Transmission Case & Oil Pan (ATM)
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 35013 | Tube Sub-assy, Transmission Oil Filler |
| 35015A | Adapter Sub-assy, Transmission Case, Rear |
| 35015K | Bearing, Radial Ball(FOR TRANSMISSION CASE ADAPTER) |
| 35103 | Gage Sub-assy, Transmission Oil Level |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104A | Plug, Automatic Transmission Case |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35106F | Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN) |
| 35106Q | Plug (FOR AUTOMATIC TRANSMISSION OIL PAN) |
| 35111 | Housing, Automatic Transmission |
| 35111K | Bolt (FOR TRANSMISSION HOUSING & CASE SETTING) |
| 35111Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35122 | Tube, Breather (FOR AUTOMATIC TRANSAXLE) |
| 35122B | Ring, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) |
| 35123A | Skirt, Transmission Breather |
| 35136 | Hanger, Transmission,NO.1 |
| 35139 | Bracket, Oil Filler Tube |
| 35141B | Plug (FOR AUTOMATIC TRANSMISSION CASE) |
| 35141G | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35145C | Gasket, Transaxle Case |
| 35150 | Plug Assy, Transmission Case |
| 35150A | Ring, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) |
| 35156F | Seal, Oil(FOR TRANSMISSION CASE REAR ADAPTER COVER) |
| 35159 | Gasket, Brake Drum |
| 35168 | Gasket, Automatic Transmission Oil Pan |
| 35336 | Ring, O (FOR TRANSMISSION OIL FILLER TUBE) |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
| 35519D | Label, Automatic Transmission Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
