Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe
Discontinued model
Data version 2008-01

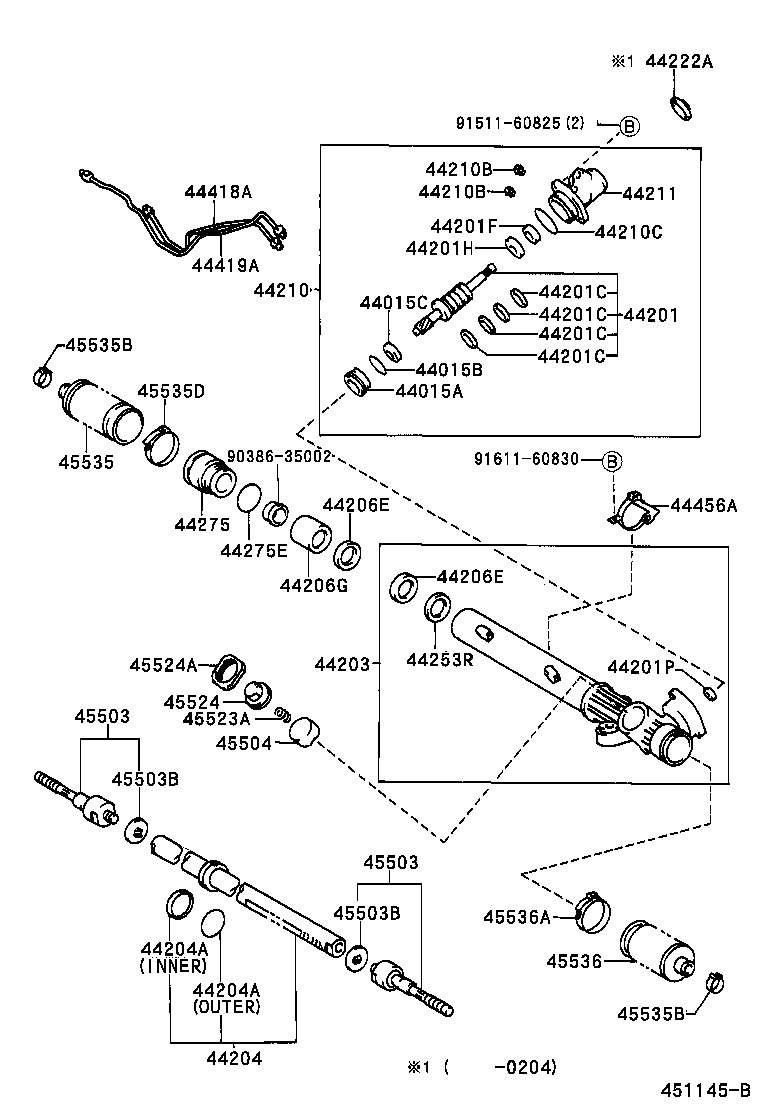

Front Steering Gear & Link
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04445A | Gasket Kit, Power Steering Gear(FOR RACK & PINION) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 44015A | Nut Sub-assy, Bearing Guide |
| 44015B | Ring, O(FOR BEARING GUIDE NUT) |
| 44015C | Seal, Oil(FOR BEARING GUIDE NUT) |
| 44200 | Link Assy, Power Steering |
| 44201 | Valve Sub-assy, Power Steering Control |
| 44201C | Ring(FOR POWER STEERING CONTROL VALVE) |
| 44201F | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44201H | Bearing(FOR POWER STEERING CONTROL VALVE UPPER) |
| 44201P | Bearing(FOR POWER STEERING CONTROL VALVE LOWER) |
| 44203 | Housing Sub-assy, Power Steering Rack |
| 44204 | Rack Sub-assy, Power Steering |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44206E | Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE) |
| 44206G | Spacer, NO.1(FOR POWER STEERING CYLINDER TUBE) |
| 44210 | Valve Assy, Power Steering Control |
| 44210B | Seat, Union(FOR POWER STEERING CONTROL VALVE) |
| 44210C | Ring, O(FOR POWER STEERING CONTROL VALVE) |
| 44211 | Housing, Control Valve |
| 44222A | Cover, Dust(FOR POWER STEERING GEAR) |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44253R | Spacer(FOR POWER STEERING RACK HOUSING) |
| 44275 | Stopper, Cylinder End |
| 44275E | Ring, O(FOR RACK END GUIDE) |
| 44418A | Tube, Steering Right Turn Pressure |
| 44419A | Tube, Steering Left Turn Pressure |
| 44456A | Retainer, Power Steering Tube Support, NO.1 |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45503 | End Sub-assy, Steering Rack |
| 45503B | Washer, Claw(FOR STEERING RACK END) |
| 45504 | End Sub-assy, Steering Rack, NO.2 |
| 45514 | Bracket, Steering Rack Housing, NO.1 |
| 45517 | Grommet, Steering Rack Housing, NO.2 |
| 45523A | Spring(FOR STEERING GEAR RACK GUIDE) |
| 45524 | Cap, Steering Rack Guide Spring |
| 45524A | Nut(FOR STEERING RACK GUIDE SPRING CAP) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45535D | Clamp(FOR STEERING RACK BOOT NO.1) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45536A | Clamp(FOR STEERING RACK BOOT NO.2) |
| 45611 | Arm, Steering Knuckle, RH |
| 45611J | Bolt(FOR STEERING KNUCKLE ARM RH) |
| 45612 | Arm, Steering Knuckle, LH |
| 45612B | Bolt(FOR STEERING KNUCKLE ARM LH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
