Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe
Discontinued model
Data version 2008-01

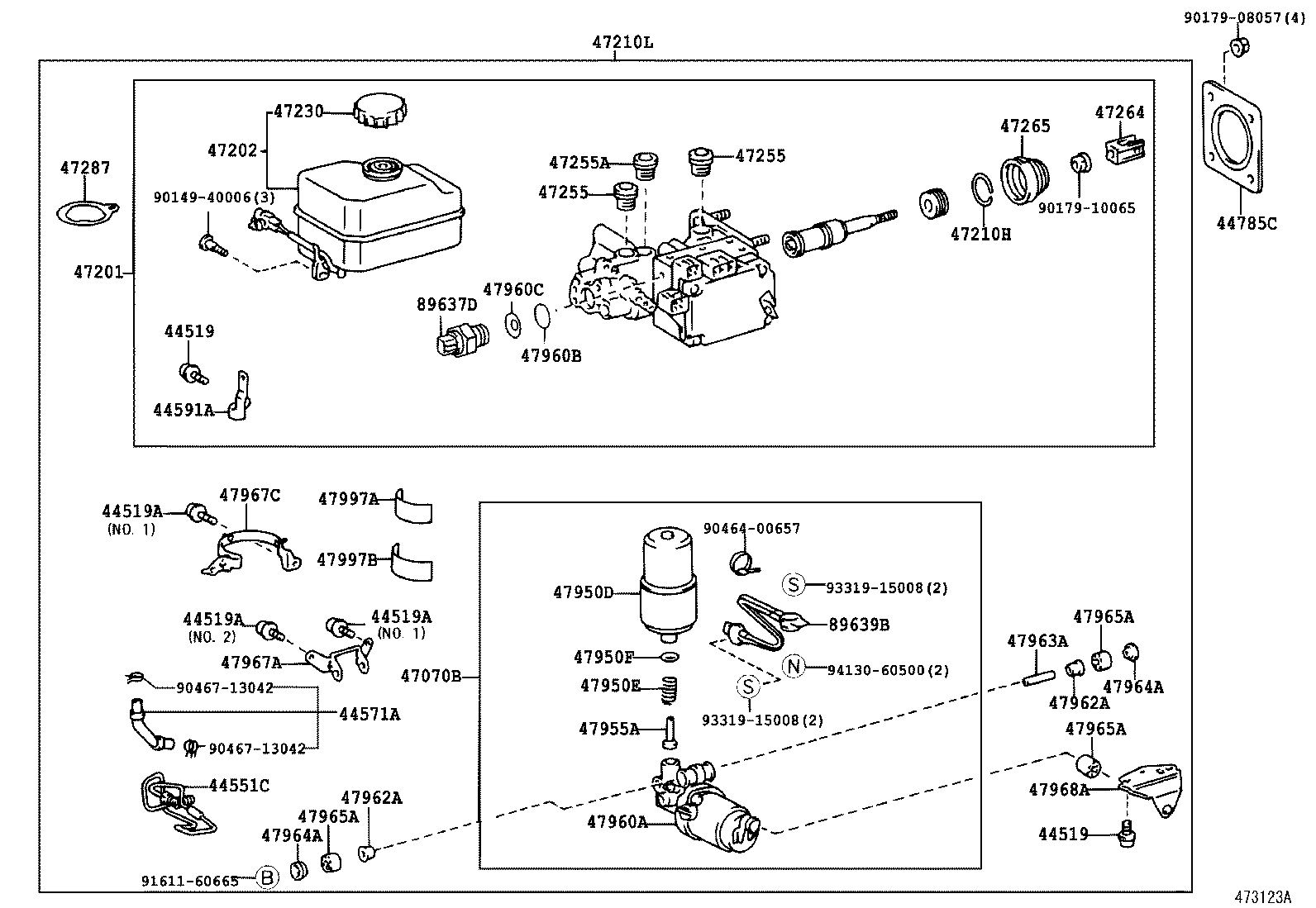

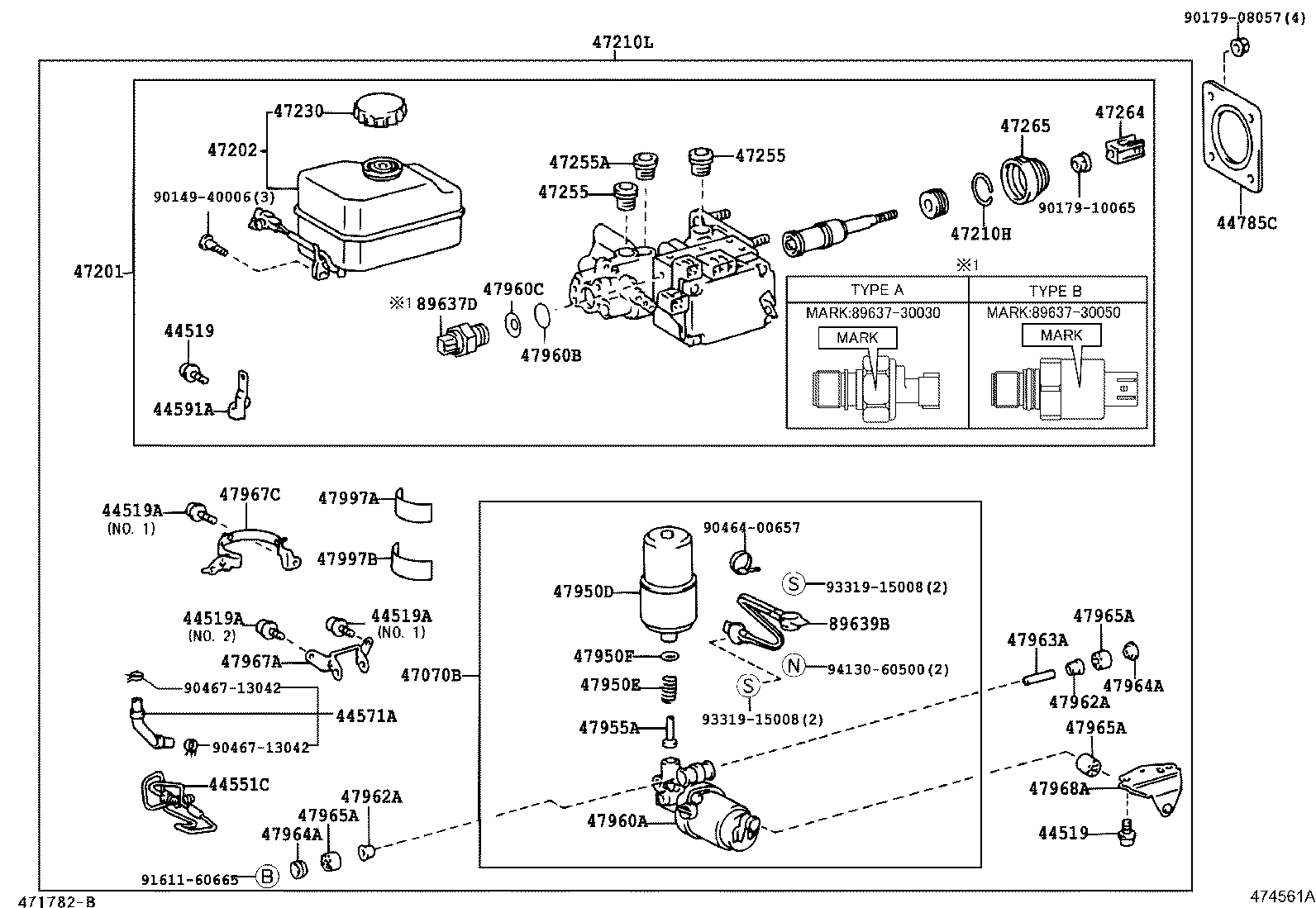

Brake Master Cylinder
36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 44519 | Bolt, Brake Actuator |
| 44519A | Bolt(FOR BRAKE BOOSTER PUMP) |
| 44551C | Tube, Brake Actuator, NO.1 |
| 44571A | Hose, Brake Actuator, NO.1 |
| 44591A | Bracket, Brake Actuator, NO.1 |
| 44785C | Gasket, Brake Booster |
| 47070B | Pump Assy, Brake Booster W/Accumulator |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47210H | Ring, Snap(FOR BRAKE MASTER CYLINDER) |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47255A | Grommet, Master Cylinder Reservoir, NO.2 |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47287 | Label, Brake Fluid Information |
| 47950D | Accumulator Assy, Brake Booster |
| 47950E | Spring, Compression(FOR BRAKE BOOSTER ACCUMULATOR) |
| 47950F | Ring, O(FOR BRAKE BOOSTER ACCUMULATOR) |
| 47955A | Pipe, Brake Booster Accumulator |
| 47960A | Pump Assy, Brake Booster |
| 47960B | Ring, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) |
| 47960C | Spacer(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) |
| 47962A | Collar, Brake Booster Pump |
| 47963A | Shaft, Brake Booster Pump |
| 47964A | Washer, Brake Booster Pump |
| 47965A | Bush, Brake Booster Pump |
| 47967A | Bracket, Brake Booster Pump, NO.1 |
| 47967C | Bracket, Brake Booster Pump, NO.2 |
| 47968A | Bracket, Brake Booster Pump, NO.2 |
| 47997A | Label, Accumulator Caution, NO.1 |
| 47997B | Label, Accumulator Caution, NO,2 |
| 89637D | Sensor, Oil Pressure |
| 89639B | Wire, Brake Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
