Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01

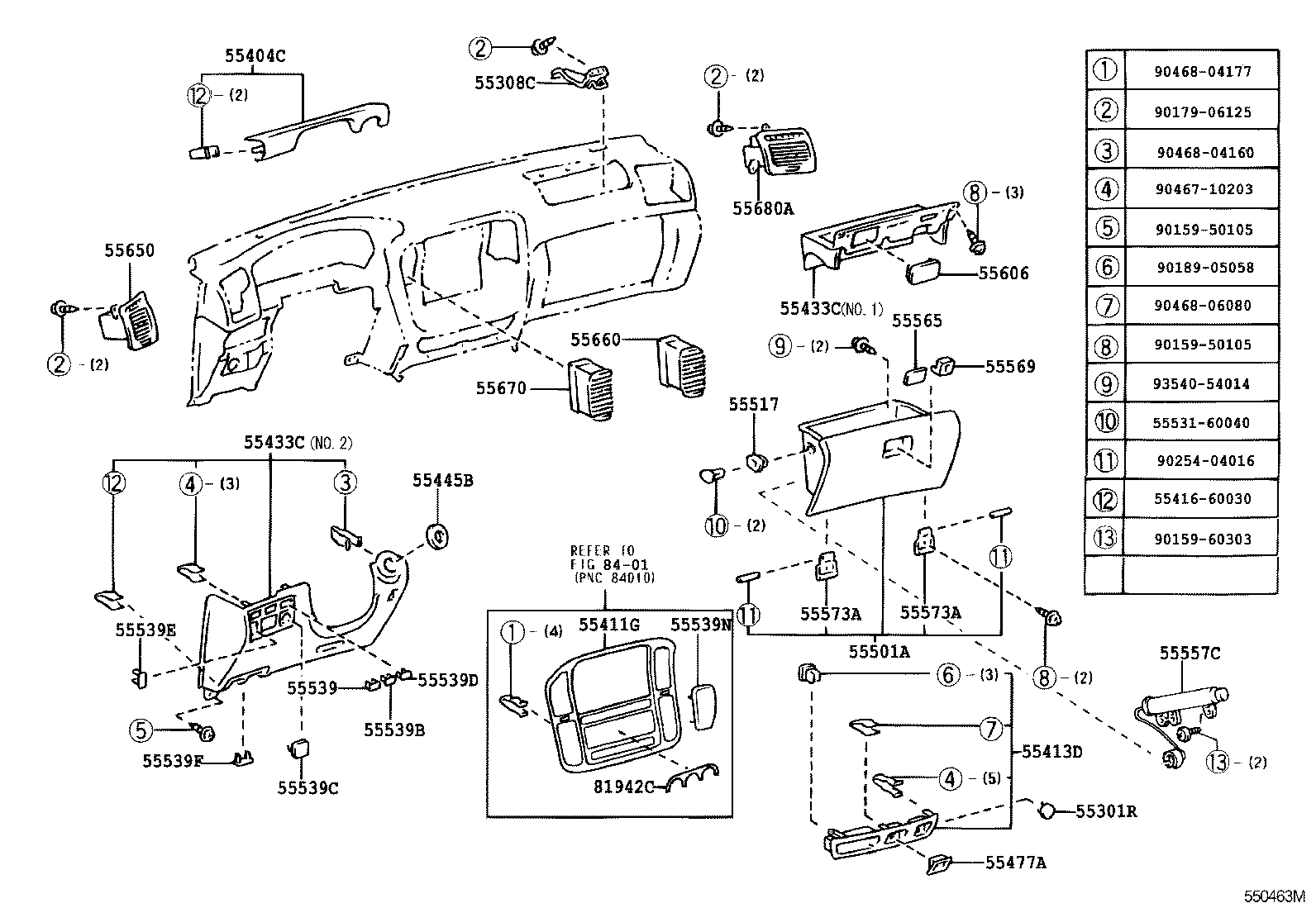

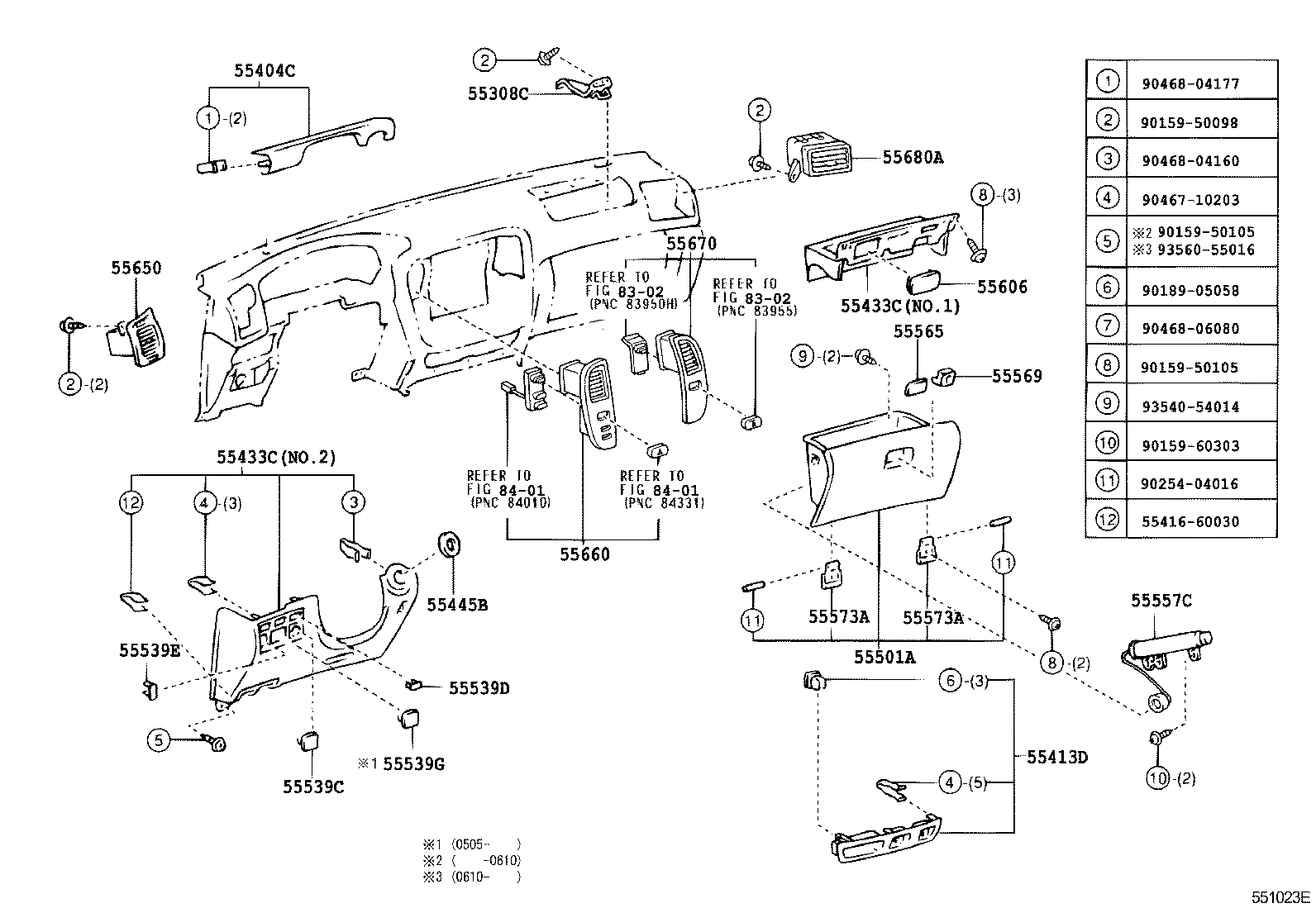

Instrument Panel & Glove Compartment

37 part groups · 3 illustrations

PNC	Description
55301R	Plug, Hole(FOR INSTRUMENT PANEL)
55306A	Brace Sub-assy, Instrument Panel, NO.1
55308C	Bracket Sub-assy, Instrument Panel, Center
55309D	Brace Sub-assy, Instrument Panel TO Floor
55313	Panel, Instrument, Lower LH
55330B	Reinforcement Assy, Instrument Panel
55382	Bracket, Finish Panel Mounting, NO.2
55401E	Pad Sub-assy, Instrument Panel Safety
55404C	Panel Sub-assy, Instrument Cluster Finish, NO.2
55411G	Panel, Instrument Cluster Finish, NO.1
55413D	Panel, Instrument Cluster Finish, Center Lower
55433C	Panel, Instrument Panel Finish, Lower LH
55445B	Plate, Instrument Panel Finish
55477A	Bezel, Cigarette Lighter Hole
55501A	Door Sub-assy, Glove Compartment
55517	Stopper, Glove Compartment Door Arm
55539	Cover, Spare Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55539C	Cover, Spare Switch Hole
55539D	Cover, Spare Switch Hole
55539E	Cover, Spare Switch Hole
55539F	Cover, Spare Switch Hole
55539G	Cover, Spare Switch Hole
55539N	Cover, Spare Switch Hole
55557C	Damper, Glove Compartment Door
55565	Handle, Glove Compartment Door Lock
55569	Cover, Glove Compartment Door Lock
55573A	Hinge, Glove Compartment Door
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55680A	Register Assy, Instrument Panel, NO.4
55950	Nozzle Assy, Defroster
55990A	Nozzle Assy, Defroster, Lower
73960A	Airbag Assy, Instrument Panel Passenger W/O Door
81942C	Sheet, Heater Control Name

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
